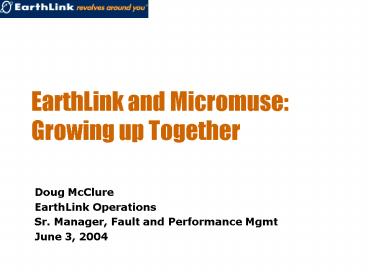

EarthLink and Micromuse Growing up Together

• Doug McClure
• EarthLink Operations
• Sr. Manager, Fault and Performance Mgmt
• June 3, 2004

2
Overview

• One of the Nations Largest ISPs
• Headquarters in Atlanta, GA
• Key facilities in Dallas, TX, Pasadena and San
  Jose, CA, Knoxville, TN and Seattle, WA
• Profitable, strong balance sheet
• Largest DSL footprint
• First-to-market with products that provide the
  best possible Internet experience
• Customer Advocacy Fighting SPAM with technical
  solutions, litigation, legislative support,
  industry collaboration and consumer education
• Howard Carmack, aka the "Buffalo Spammer," was
  sentenced to 3-1/2 to seven years in prison on
  May 27th after EarthLink received a 16.4M civil
  judgment in May 2003
• 10th Anniversary (1994-2004)
• http//www.redefineyourworld.com

3
Overview

• 5.25M Customers
• 4M Dialup (Premium 3.5M, Value 500K)
• 1.2M Broadband (Cable, xDSL)
• 160K Web Hosting (Unix, Windows)
• 50K Wireless (Blackberry, PDA, Laptops, Wi-Fi)
• Dial Access Coverage 90 of US Population
• 16K Local Dial Access Numbers
• 500K Active Modem Ports (50 ELNK, 50
  Outsourced)
• 400 PoPs (18 Core Backbone PoPs, four data
  centers)
• Broadband Coverage
• 200 Markets with Broadband Offerings
• Large and Diverse Infrastructure
• 2300 Network Elements
• 1500 Server Elements
• Thousands of Access Circuits, Hundreds of WAN
  Circuits

4
Overview

• Access Technology Innovation
• Premium and Value Dial-up
• Broadband (Cable, xDSL, Satellite)
• Voice (Converged Devices, VoIP)
• Wireless (WiFi, CDMA, Blackberry, PDA)
• Broadband over Power Lines (BPL)
• Value Added Service and Product Innovation
• Blocker Family spamBlocker, POP-UP Blocker,
  ScamBlocker, Virus Blocker, Spyware Blocker
• Parental Controls
• Webmail
• Web Accelerator

5
Overview

• Exceptional Customer Service
• 2003 PC Magazine Readers' Choice Awards for both
  high-speed and dial-up services
• 2003 highest ranking in customer satisfaction for
  the second year in a row for high-speed Internet
  service by J.D. Power and Associates in its
  Internet Service Provider Residential Customer
  Satisfaction StudySM
• 2003 CNET Editors' Choice award

6
Innovation Constant Change

• Drivers
• Speed to Market, Competition Do more, faster
• Quality, Performance, Support Costs
• Compliance - Sarbanes-Oxley
• Operational Challenges
• Release Management
• Change Management
• Service Level Management

7
Operations Maturity Growing Up

• Production Improvement Program (PIP)
• Foundation in IT Service Management, ITIL, CobIT
• Focusing on four main areas Service Level Mgmt,
  Change Mgmt, Release Mgmt, and Production
  Security
• Over 10 of Operations staff have now attended
  ITIL Foundation Training
• 1 Master Level Certified (more planned)
• 9 Practitioner Level Trained in CCR Quadrant
  (pending certification results)
• 114 Foundation Level Trained (most pending
  certification results)

8
Operations Maturity Growing Up

• Service Level Management
• NOC, Help Desk
• Set and manage expectations internal/external to
  Operations
• Change Management
• Provide oversight and control of the production
  environment
• Minimize risk and impact from change activities
• Release Management
• Development ? Operations
• Minimize poor quality production releases
• Enterprise Security
• Compliance, control, audit

9
EarthLink and Micromuse Facts

• Very Early Netcool Adopter
• EarthLink (Mindspring) was Micromuses first US
  customer
• Began evaluating Micromuse Netcool in 1996,
  official customer April 1997
• Early Innovation
• Early joint innovation and development helped
  build foundation for many of Micromuses key
  products
• EarthLink and Micromuse are revitalizing joint
  development projects with emerging service and
  business activity monitoring products
• Driving 3rd Party Vendor Integration
  Partnerships
• EarthLink requires detailed integration with
  Micromuse suite much more than just sending
  SNMP TRAPs
• Quest Software, Compuware, PeopleSoft, Remedy,
  Cisco Systems, Arbor Networks
• Current Deployment
• Netcool OMNIbus, Internet Service Monitors,
  Desktop Clients, Webtop, Impact, numerous
  Gateways, Probes, Data Source Adaptors
• Two Senior System Engineers, Three System
  Engineers, Two System Analysts devoted to Fault
  and Performance Management (Netcool Other)
• Services provided for NOC (3 shifts, 6 per
  shift), Systems Administration (3 shifts, 10 per
  shift), Network Engineering

10
Moving Beyond MoM and Apple Pie

• EarthLinks Early Micromuse Netcool Deployment
• Focused on Netcool as the Manager of Managers
  or MoM
• Needed during EarthLinks rapid growth and
  expansion
• Enabled event management, eliminated swivel
  chair NOC
• Apple Pie is Event Correlation and
  Deduplication
• The Netcool sweet spot was providing EarthLink
  with event correlation and deduplication
• Able to reduce the event stream from 100,000s to
  1,000s per week
• Further reduction expected to 100s per week
  through use of advanced Netcool/Impact policies
  and deployment of Netcool/Precision
• Enables NOC and support staffs to operate
  efficiently
• Focus now on End-to-End Service Management
• Netcool Suite allows EarthLink to manage entire
  service
• Understand service relationships, service levels,
  perform service modeling and service discovery
• Enables impact assessment, prioritization,
  understanding service delivery chain
• Eliminates needle in the haystack approach of
  event management
• This is the problem that needs attention now
  (compared to I think this is the event causing
  problems)

11
Service Management Complexity
Good Customer Experience? Performance?
Source EarthLink Product Group
12
Service Management Complexity

• The complexity and amount of data generated from
  end-to-end service management is enormous
• Networks, Firewalls, Servers, Applications,
  Switches, Routers, Load Balancers, Applications,
  Databases, etc.
• Netcool/ObjectServer is a must have for EarthLink
  to effectively manage and understand EarthLinks
  service event stream from end-to-end
• Impact 3.0s cluster capability will enable
  EarthLink to analyze, enrich, suppress, and
  manage event stream regardless of our growth

Dealing with EarthLink Service Complexity

• RAD (future)
• Impact
• Precision (future)

• ISM
• System Agents
• SNMP

• ObjectServer
• RAD (future)
• Impact

• RAD (future)
• Impact
• ISM

Source EarthLink Product Group
13
The Customer IS Important

• Customer Experience Monitoring and Management
• The Micromuse Netcool Suite enables proactive,
  real-time monitoring of the customers experience
  for core EarthLink services
• Over 14K Internet Service Monitors (ISM)
  instances in operation covering all key services
  (HTTP, HTTPS, SMTP, POP3, IMAP) and dedicated
  customers (ICMP)
• Allows for customer experience monitoring
  information to be correlated, analyzed, and
  presented in real-time
• Micromuse Netcool/ISMs, Keynote, Compuware Client
  Vantage, Quest Foglight
• External/Internal Synthetic testing ? system
  network element monitoring ? system and network
  port monitoring
• Immediate notification to support groups when
  customers experience degrades

14
The Business IS Important

• Business Activity Monitoring and Management
• Expands IT Operations visibility vertically and
  horizontally
• Ties IT Operations data and Business data
  together
• System Downtime vs. Contact Center Call Volume
• Real-Time Customer Subscriptions vs. Sales
  Forecasts
• Enables Real Time Monitoring and Management of
  Business and IT processes
• Change and Downtime Management
• Customer Registration Management

15
Production Improvement Program
REQUEST FOR CHANGE (RFC)
Corp Project
Ops Project
Non-Project
STATUS CHANGE (3) Final Change Approval
and Implementation
STATUS CHANGE (2) Change Approval and Proj.
Service Availability
STATUS CHANGE (4) Review Changes
STATUS CHANGE (1) Prioritization, Risk Assessment
and Forward Schedule of Change
Change Mgt
Metrics Reporting
Release Mgt
Policy, Procedures, Standards Guidelines
Security Consulting
Security Assessment
Security Monitoring
Security Test Sign off
Prod Sec
Source EarthLink SLM Group
16
Business Activity Monitoring
Managing the Impact of Change and Downtime
Activities on the Business and Operations
17
Overview

• Drivers
• Adoption of ITIL/COBIT Best Practices for Change
  Management
• Production Improvement Program (PIP), SOX
  Compliance, etc.
• Significant change for many groups Fear,
  Uncertainty, Doubt (FUD)
• No Real-Time Visibility into Change/Downtime
  Management Activities
• Business Process
• Who, What, When, Where, Why, and How, Cost, Risk,
  and Impact
• Workflow Monitor Lifecycle, SLAs, Bottlenecks
  Is the process enabling Operations or is it a
  bottleneck?
• Impact on Infrastructure False Positives,
  Contact Center Call Volume (COGS)
• Drive out False Positives from Production
  Monitoring Systems
• Huge burden on NOC and other support staff
• Desire to have Automated Remedy Trouble Ticket
  Creation
• Reduce time to address problems, reduces MTTR

18
Overview

• Solution
• Provide Real-Time Visibility into Change/Downtime
  Process
• There are 12 pending and 24 scheduled change
  requests for tonight, 6 are underway and 8 start
  in 15 minutes or less
• Create Actionable Information
• Dept. 828 has five outstanding major change
  requests, attention is needed
• Ensure Business Rules are Guiding/Enabling the
  Process Not Hindering It
• Eliminate FUD
• Report (dashboards, reports) on Process and
  Impact
• NOC and other support groups know whats
  happening during change and downtime windows
• Management has oversight and visibility
• Business understands impact of change and
  downtime activity

19
Implementation

• Micromuse Netcool/OMNIbus
• Custom integration with Request for Change (RFC)
  and Downtime Management System
• ObjectServer flexibility allows for definition of
  important business and IT data in each event to
  capture Change/Downtime Status
• Service Impact, Business Impact, Customer Impact,
  SLA, Restoral Priority, Escalation Path, etc.
• Micromuse Netcool/Impact 3.0
• Impact policies build lists in real time for all
  nodes listed in change/downtime request
• As change/downtime activity progresses through
  its lifecycle, the change/downtime Netcool event
  changes states
• Change/Downtime event suppression policy updates
  all incoming events that match node list during
  the maintenance window with Suppression Status
  and Change/Downtime Reference Number
• Micromuse Netcool/Webtop 1.2 RAD 2.0
• Process owner (Change/Downtime Management Group)
  dashboard for monitoring and managing the overall
  end-to-end process, workflow, and business impact
• Business group dashboards for monitoring
  change/downtime activities within area of control
  (Network Engineering, MIS, etc.)

20
Webtop 1.2 Presentation
21
RAD 2.0 Presentation
22
Netcool Event Management
Change/Downtime Request Events
Change / Downtime ID
Change / Downtime Status
Suppressed Change/Downtime Activity Events
Event Suppressed by Change / Downtime
23
Future Enhancements

• Planned Netcool/Impact Policies
• COGS Impact
• Assess support cost impact due to change and
  downtime activities within Operations and
  Customer Support in Real-Time
• Data Gap Management
• A common question Why does my chart or graph
  have gaps?
• The solution Annotate graphs, charts, portals,
  etc. with the reason for data gaps caused by
  planned change/downtime activities
• How Integrate change and downtime event
  information with all performance, utilization,
  and capacity monitoring solutions via Impact 3.0

24
Business Activity Monitoring
EarthLink Customer Registration, Provisioning,
and Fulfillment Dashboards
25
RAD 2.0 Joint Development
Business Activity Monitoring Real-Time Customer
Registration Dashboard
26
RAD 2.0 Joint Development
Business Activity Monitoring Real-Time Customer
Registration Dashboard
27
Continuous Improvement

• Building better Network and Systems Management
• Founded Atlanta Network and Systems Management
  Technical User Group (ANSMTUG) in January 2004
• http//www.ansmtug.org
• Metro-Atlanta Fortune 100, Service Providers,
  Enterprise, Media, and Emerging Technology
  Companies
• Bell South, The Home Depot, EarthLink, Southern
  Company, N2 Broadband, eDeltacom, Delta, CNN,
  Cingular, ETrade, Knology Broadband, Cox
  Communications
• Customers helping Customers
• Use Micromuse and other NSM products better
• Collectively drive product requirements and
  features into Micromuse and other NSM vendors
• Special Interest Groups (SIG) Forming
• Best practices for NSM using Micromuse Netcool
  Suite
• Aligning NSM solutions to ITIL, MOF, CobIT, etc.

28
Challenges facing Micromuse

• Product Development, Focus, and Release Cycle
• Business Monitoring (BAM, BSM, BI, BTI,
  B-I-N-G-O)
• Performance Monitoring Management Solution
• Features vs. New Product Finding the Right
  Balance
• Licensing Needs Review and Simpler Approach
• Support New Technologies Sooner Across Core
  Products
• Uniform Release Cycle (core architecture
  components and capabilities)
• Discovery, Root Cause Analysis (RCA), Next-Gen
  Polling
• Emerging Competition
• Service / Application Discovery RCA
• Universal Poller Concept
• Out of the Box Functionality and Updates
• Appearance of Requiring Too Much Customization
• Competition is focusing on this
• Many customers have product still on the shelf
• Ease of Use
• More out of the box, templates, examples, plug
  and play, wizards,

29
Closing and QA

• Closing
• QA
• Doug McClure
• Sr. Manager,
• Fault and Performance Mgmt
• EarthLink Operations
• dmcclure_at_corp.earthlink.net
• 404-748-7665 (W)
• 678-362-7712 (C)
