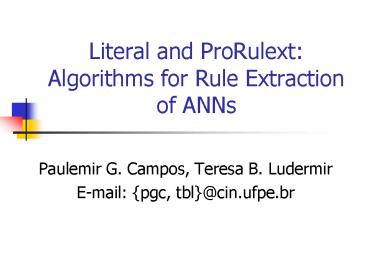

Literal and ProRulext: Algorithms for Rule Extraction of ANNs

1
Literal and ProRulext Algorithms for Rule
Extraction of ANNs

• Paulemir G. Campos, Teresa B. Ludermir
• E-mail pgc, tbl_at_cin.ufpe.br

2
Presentation Summary

• 1. Introduction
• 2. Literal and ProRulext
• 3. Experiments
• 4. Results
• 5. Discussions
• 6. Conclusions
• Acknowledgements
• References

3
1. Introduction

• Main Features of Artificial Neural Networks
  (ANN)
• Excellent capacity for generalization
• It have been applied with success to solve
  several problems the actual world
• It represents the domain knowledge in topology,
  weight values and bias
• And, explaining clearly your answers is not
  available promptly (main deficiency).

4
1. Introduction

• Usually this deficiency can be minimized through
  the IF/THEN Rule Extraction from the trained
  network (ANN Rule Extraction).
• However, exist others hybrid models for this aim,
  such as, Evolutionary Algorithms and Neuro-Fuzzy
  Systems.

5
1. Introduction

• This paper presents two algorithms for extraction
  of rules from trained networks Literal and
  ProRulext.
• The Literal has as a differential to be portable.
• The ProRulext has a relatively low computational
  cost in the rules extraction from feedforward MLP
  networks with one hidden layer.

6
2. Literal and ProRulext

• Literal
• Is a very simple algorithm proposed for the
  extraction of IF-THEN propositional rules from
  trained networks applied to problems of pattern
  classification and time series forecast
• The rules are extracted through a literal mapping
  of the network input and output
• This approach is a Pedagogical Technique (Andrews
  et al 2 Taxonomy).

7
2. Literal and ProRulext

• Overview of the Literal Algorithm
• 1. Make discrete the network inputs and outputs
  in intervals with the same width
• 2. Normalize the patterns of the training set of
  network for values within 01 or -11
• 3. Present each one of these normalized input
  patterns to the trained network obtaining the
  respective rule consequents

8
2. Literal and ProRulext

• Overview of the Literal Algorithm (to continue)
• 4. De-Normalize the rule antecedents and
  consequents previously obtained for original
  values of the database
• 5. Store the new rules created in the previous
  steps in a file
• 6. Select the input attribute with more frequent
  contents through the conclusion of the rules

9
2. Literal and ProRulext

• Overview of the Literal Algorithm (to continue)
• 7. Eliminate the other attributes of each one of
  these rules, guaranteeing more general rules
• 8. Eliminate the redundant rules that can be
  obtained after the execution of steps 6 and 7

10
2. Literal and ProRulext

• Overview of the Literal Algorithm (to continue)
• 9. Calculate the coverage of the training set of
  each resultant rule through conclusion, based on
  the number of activations of theses rules
• 10. Exclude the rules with 0 coverage of the
  patterns used in the training of the network from
  which the rules have been extracted originally.

11
2. Literal and ProRulext

• ProRulext
• Is the other algorithm proposed in this paper for
  the extraction of IF-THEN propositional rules
  from MLP networks with one hidden layer trained
  to pattern classification and time series
  forecast

12
2. Literal and ProRulext

• ProRulext (to continue)
• The rules are extracted by using a
  decompositional method to obtain its antecedents
  and by applying a pedagogical approach to
  determine the consequents
• This approach is a Eclectic Technique (Andrews et
  al 2 Taxonomy).

13
2. Literal and ProRulext

• Overview of the ProRulext Algorithm
• 1. Make it discrete the network inputs and
  outputs in intervals with the same width
• 2. Normalize the network input and output
  patterns of the training set for values within
  01 or -11
• 3. Present each one of these input patterns to
  the trained network

14
2. Literal and ProRulext

• Overview of the ProRulext Algorithm (to
  continue)
• 4. Build the AND/OR graph of the trained network
  considering only its positive weights
• 5. Determine the antecedents of the rules through
  the decompositional method
• 6. Apply a pedagogical approach to find the
  consequents of these rules

15
2. Literal and ProRulext

• Overview of the ProRulext Algorithm (to
  continue)
• 7. De-Normalize the rule antecedents and
  consequents previously obtained for original
  values of the database
• 8. Store the new rules created in the previous
  step in a file
• 9. Select an input attribute with more frequent
  contents through conclusion of rules

16
2. Literal and ProRulext

• Overview of the ProRulext Algorithm (to
  continue)
• 10. Eliminate the other attributes of each one of
  these rules, guaranteeing more general rules
• 11. Eliminate the redundant rules which can be
  obtained through the execution of steps 9 and 10


17
2. Literal and ProRulext

• Overview of the ProRulext Algorithm (to
  continue)
• 12. Calculate the coverage of the training set of
  each resulting rule through conclusion, based on
  the number of activations of these rules
• 13. Erase the rules with 0 of coverage of the
  patterns used in the training of the network from
  which the rules have been extracted originally.

18
2. Literal and ProRulext

• It is valid to emphasize that both algorithms
  presented have rule simplification stages (the
  last five steps of Literal and ProRulext).
• This way it can be assured the acquisition of
  concise and legible rules from trained network
  for pattern classification and time series
  forecast.

19
3. Experiments

• The trained networks and the respective sets of
  rules have been generated through the AHES
  (Applied Hybrid Expert System) version 1.2.1.5
  4.

20
3. Experiments

• The models implemented in the AHES are
  feedforward MLP networks with one hidden layer
  and the rule extraction techniques BIO-RE 11,
  Geometrical 7, NeuroLinear 10, Literal 5
  and ProRulext 4.

21
3. Experiments - Databases

• In a problem of patterns classification, it will
  be used a database about Breast Cancer from the
  Proben1 repository 6.
• This base contains 699 cases, among which 458 are
  related to benign Breast Cancer and 241 to
  malignant Breast Cancer, each one with 10
  attributes more the Breast Cancer class.

22
3. Experiments - Databases

• For the time series forecast problem it will be
  used a database with the Index of the Stock
  Market of São Paulo (IBOVESPA) 6.
• The series predicted in this work will be of
  minimum with a total amount of 584 patterns.

23
3. Experiments - Databases

• Before the experiments those bases have been
  submitted to pre-processing stages 6.
• Thus, the Breast Cancer database remained with
  457 cases, 219 benign and 238 malignant.
• The IBOVESPA database has the size of the time
  window indicated equal to two and the number of
  patterns has become 582.

24
3. Experiments - Databases

• Furthermore, the databases have been normalized
  to values belonging to the interval 0 1 or
  -1 1 (depending on the activation function
  used) before the stages of training and rule
  extraction from each trained networks.

25
3. Experiments The Trained Networks

• The MLP networks have been trained according to
  the Holdout methodology.
• Thus, each training set contains 2/3 of the total
  normalized input and output patterns. On the
  other hand, each test set has the remaining 1/3
  of the patterns.

26
3. Experiments The Trained Networks

• Fixed parameters during the training stage of the
  networks obtained with the Breast Cancer
  database
• Method of weight adjusting per epochs or batch
• Choice of the fixed initial weights among values
  within the interval -0.1 0.1
• Moment term equal to 0.1, number of epochs
  equal to 100 and output maximum error desired
  equal to 0.01.

27
3. Experiments The Trained Networks

• Fixed parameters during the training stage of the
  networks obtained with the IBOVESPA database
• Method of weight adjusting per pattern or
  on-line
• Choice of the fixed initial weights among values
  belonging to the interval -0.1 0.1
• Without moment term number of epochs equal to
  100 and output maximum error desired equal to
  0.01.

28
3. Experiments The Trained Networks

• Variable parameters during the training stage of
  the networks obtained with the Breast Cancer and
  IBOVESPA databases
• Number of units of the hidden layer (1, 3 and 5)

• Learning rate (0.1 0.5 0.9)
• Use or not of bias
• And, kinds of non-linear activation functions
  (sigmoid and hyperbolic tangent).

29
3. Experiments The Trained Networks

• Trained networks selected using Breast Cancer
  database

where CM1 Network CM_Tan_NE9_Bias_4
CM2 Network CM_Sig_NE9_Bias_1.
30
3. Experiments The Trained Networks

• Trained networks selected using IBOVESPA database

where IB1 Network IBOVESPA_Sig_Bias_2
IB2 Network IBOVESPA_Tan_4
MAE Mean Absolute Error.
31
3. Experiments Extracting Rules

• ProRulext algorithm
• Limits of the IF part using the two database
  0.1, 0.5 and 0.9
• Limits of the THEN part using the Breast Cancer
  database 0.1, 0.5 and 0.9
• And, limits of the THEN part using the IBOVESPA
  database 0.1, 0.5 and 0.8, because with
  0.9 no rule has been obtained.

32
3. Experiments Extracting Rules

• Literal and ProRulext Algorithms
• Quantity of intervals to make discrete numerical
  input and output attributes of the two databases
  2 (two)
• This to obtain sets of rules as much compact as
  possible.

33
3. Experiments Extracting Rules

• Examples of extracted rules by Literal from CM2
  Network (Breast Cancer)

34
3. Experiments Extracting Rules

• Examples of extracted rules by ProRulext from IB1
  Network (IBOVESPA)

35
3. Experiments Extracting Rules

• It was also obtained sets of rules with the
  BIO-RE (Bio) 11, Geometrical (Geo) 7 and
  NeuroLinear (Neuro) 10 techniques.
• It has been done for comparison among the results
  obtained with these techniques and the ones
  presented by Literal and ProRulext.

36
4. Results

• The best results of the sets of extracted rules
  from trained networks with Breast Cancer database

where Sig Sigmoid, Tan Hyperbolic Tangent,
Irr non relevant (Sig or Tan)
37
4. Results

• The best results of the sets of extracted rules
  from trained networks with IBOVESPA database

where Sig Sigmoid, Tan Hyperbolic Tangent,
Irr non relevant (Sig or Tan)
38
5. Discussions

• The results using Breast Cancer database indicate
  that the BIO-RE technique 11 has obtained sets
  of more concise, comprehensible and faithful
  rules, because the antecedents of the rules
  extracted by the Geometrical approach 7 are
  hidden units, what damages its legibility.

39
5. Discussions

• The Literal and the ProRulext algorithms have
  presented performance compatible with the one
  obtained with the NeuroLinear technique, mainly
  recognized for extracting very faithful, compact
  and legible rules.

40
5. Discussions

• However, the NeuroLinear was the most expensive
  computational method.
• And the BIO-RE and Literal techniques have not
  been affected by the kind of activation function
  used in the network training.

41
5. Discussions

• By analyzing results obtained with IBOVESPA
  database, can be concluded that all the
  investigated approaches, except by the Geometric
  technique, have offered the acquisition of sets
  of rules that are very concise, legible and
  faithful to the networks from which they have
  been obtained.

42
5. Discussions

• It is important to mention that Literal and
  ProRulext do not have the disadvantages presented
  by the other methods investigated.
• Besides, the algorithms proposed in this paper
  extract very expressive rules, as already
  illustrated.

43
6. Conclusions

• It has been observed that Literal and ProRulext
  algorithms presented performance similar to the
  NeuroLinear, obtaining sets of rules that are
  concise, legible and faithful to the networks
  from which they have extracted, also with a lower
  computational cost and applicable to trained
  networks for pattern classification and time
  series forecast.

44
6. Conclusions

• BIO-RE has obtained optimal rule sets, but it is
  only applicable to binary data or when the
  conversion to this type does not significantly
  affect the network performance 11.

45
6. Conclusions

• Thus, as Literal and ProRulext do not have that
  limitation, these new approaches appear as
  efficient alternatives for the rule extraction
  from trained networks to justify the inferred
  outputs.

46
Acknowledgements

• The authors thanks to CNPQ and CAPES (Brazilian
  Government Research Institutes) for financial
  support to development this research.

47
References

• 1 R. Andrews and S. Geva, Rule Extraction from
  Local Cluster Neural Nets, Neurocomputing, vol.
  47, 2002, pp. 1-20.
• 2 R. Andrews, A. B. Tickle and J. Diederich, A
  Survey and Critique of Techniques for Extracting
  Rules from Trained Artificial Neural Networks,
  Knowledge-Based Systems, vol. 8, n. 6, 1995, pp.
  373389.
• 3 B. Baesens, R. Setiono, C. Mues and J.
  Vanthienen, Using Neural Network Rule Extraction
  and Decision Tables for Credit-Risk Evaluation,
  Management Science, vol. 49, 2003, pp. 312-329.

48
References

• 4 P. G. Campos, Explanatory Mechanisms for
  ANNs as Extraction of Knowledge, Master Thesis,
  Federal University of Pernambuco, Brazil, 2005
  (In Portuguese).
• 5 P. G. Campos and T. B. Ludermir, Literal A
  Pedagogical Technique for Rules Extraction of
  ANNs, V ENIA Brazilian Conference of
  Artificial Intelligence, São Leopoldo-RS, 2005,
  pp. 1138-1141 (In Portuguese).
• 6 P. G. Campos, E. M. J. Oliveira, T. B.
  Ludermir and A. F. R. Araújo, MLP Networks for
  Classification and Prediction with Rule
  Extraction Mechanism, Proceedings of the
  International Joint Conference on Neural
  Networks, Budapest, 2004, pp. 1387-1392.

49
References

• 7 Y. M. Fan and C. J. Li, Diagnostic Rule
  Extraction from Trained Feedforward Neural
  Networks, Mechanical Systems and Signal
  Processing, vol. 16, n. 6, 2002, pp. 1073-1081.
• 8 Y. Hayashi, R. Setiono and K. Yoshida, A
  Comparison Between Two Neural Network Rule
  Extraction Techniques for the Diagnosis of
  Hepatobiliary Disorders, Artificial Intelligence
  in Medicine, vol. 20, n. 3, 2000, pp. 205-216.
• 9 T. B. Ludermir, A. C. P. L. F. Carvalho, A.
  P. Braga et al, Hybrid Intelligent Systems, In
  S. O. Rezende (Organizer), Intelligent Systems
  Foundations and Applications, Manole, Barueri,
  2003, pp. 249-268 (In Portuguese).

50
References

• 10 R. Setiono, H. Liu, NeuroLinear From
  Neural Networks to Oblique Decision Rules,
  Neurocomputing, vol. 17, 1997, pp. 1-24.
• 11 I. A. Taha, J. Ghosh, Symbolic
  Interpretation of Artificial Neural Networks,
  IEEE Transactions on Knowledge and Data
  Engineering, vol. 11, n. 3, 1999, pp. 448-463.
