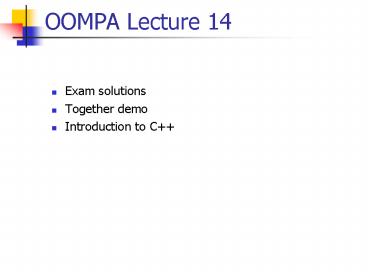

OOMPA Lecture 14

1
OOMPA Lecture 14

• Exam solutions
• Together demo
• Introduction to C

2
Together

• Together ( http//www.togethersoft.com )
• Model-build-deploy tool
• Creation, editing of UML diagrams
• Synchronization between UML diagrams and source
  code
• GoF patterns
• JAVA, C, C
• Free limited version available at
  http//www.togethercommunity.com/
• Demo ..\..\..\..\Together5.5\bin\Together.exe

3
Exam

• Master solution available on course webpage
• Evaluation scheme will be available
• Exam results by November 2nd, 2001
• Grading
• 22 out of 38 betyg 3
• 26 out of 38 betyg 4
• 30 out of 38 betyg 5

4
Question 1

• Question 1 (1) Abstract methods have
• No program code in the subclass FALSE
• Program code in the defining class FALSE
• Program code in the subclasses CORRECT
• No program code in the defining class CORRECT
• (b) and (c)
• (c) and (d)
• (a) and (b)
• Correct answer f

5
Question 2

• Question 2 (1) An association is
• a.      A straight line in a class diagram FALSE
• b.     Represented by a noun that describes the
  interaction FALSE
• c.      A relationship between instances of
  classes CORRECT
• d.     A relationship between classes FALSE
• e.      (a) and (d)
• f.       (b) and (c)
• Correct answer c

6
Question 3

• Question 3 (1) Aggregation
• a.      Means an object is built of other objects
  FALSE
• b.     Means an object contains other objects
  CORRECT
• c.      Is always of multiplicity 1- FALSE
• d.     Is is a kind of relationship FALSE
• e.      (b) and (c)
• f.       (a) and (d)
• Correct answer b

7
Question 4

• Question 4 (1) Which of the following statements
  are true for statechart diagrams
• a.      An event is caused by a transition. FALSE
• b.     An object has to be in exactly one state
  at a time. CORRECT
• c.      A state is a condition needed for a
  transition to occur. FALSE
• d.     In a transition one or more attributes
  change their value. MAYBE
• e.      (a) and (c)
• f.       (b) and (d)
• Correct answer f , but b also counts as a
  correct answer since changing state does not
  necessarily means that the object changes its
  attributes, but for example it could simply
  change the control flow.

8
Question 5

• Question 5 (1) Generalization is
• a.      building objects from parts FALSE
• b.     a has a-relationship FALSE
• c.      a is a kind-of relationship CORRECT
• d.     realized by means of inheritance CORRECT
• e.      realized by means of composition FALSE
• f.       (a) and (b)
• g.      (c) and (d)
• h.      (a) and (e)
• i.       (a), (b) and (e)
• Correct answer g

9
Question 6

• Question 6 (1) Polymorphism
• a.      requires abstract classes FALSE
• b.     is realized by means of static binding
  FALSE
• c.      is realized by means of dynamic binding
  CORRECT
• d.     enables subclasses to override the method
  of a superclass CORRECT
• e.      (a),(c) and (d)
• f.       (a) and (c)
• g.      (c) and (d)
• h.      (b) and (d)
• Correct answer g

10
Question 7

• Question 7 (4) Which of the following phrases
  best describe the design patterns in the list.
  Match 10 out of 14 phrases with the 10 concepts
  below.
• a.   Proxy-   Provide a placeholder for another
  object to control access to it.
• b.    Adapter- Convert the interface of a class
  into another interface clients expect.
• c.      Low Coupling- Supports low dependency and
  low impact of change.
• d.     Composite - Lets clients treat individual
  and group of objects uniformly.
• e.      Factory Method - Lets a class defer
  instantiation to subclasses.
• f.       Abstract Factory - Provide an interface
  for creating families of related objects without
  specifying their concrete classes.
• g.      Singleton - Provides global access to a
  unique instance
•

11
Question 7

• h.    Observer-  When one object changes its
  state the state of dependant objects is
  synchronized.
• i.     Expert - A class that has the information
  necessary to fulfill a responsibility.
• j.     Pure Fabrication - Assign responsibilities
  to an artificial class to support high cohesion
  and low coupling.
• k.     Controller - An object responsible for
  receiving or handling system events.
• l.     Strategy - Define a family of algorithms
  and make them interchangeable.
• m.    Façade -  Provide a unified interface to a
  set of interfaces in a subsystem.
• n.       Mediator - An intermediate object that
  decouples other objects.

12
Question 8

• Question 8 (2) Describe in two sentences what is
  the difference between object oriented analysis
  and design.
• OO analysis is concerned with
• finding and describing objects or concepts in
  the problem domain.
• what needs to be done.
• defining the problem/requirements (do the right
  thing)
• OO design is concerned with
• defining software objects and how they
  collaborate
• how is it done
• conceiving a solution to the problem (do the
  thing right)

13
Question 9

• Question 9 (2) What is (usually) the
  multiplicity (1.., .., etc.) of the following
  associations?
• a.               Brother is sibling of sister
  -
• b.               Child is a descendant of parent
  1..-2
• c.               Person is married with person
  0,1-0,1
• d.               Twin is sibling of twin 1-1
• e.               Student attends course - or
  -1..
• f.                Flight flies to airport -1 or
  -
• g.               Order contains items 1-1..
• h.               Customer purchases product -
  or 0,1-

14
Question 10

• Question 10 (2) Describe in two sentences the
  roles of inception and elaboration within the
  unified process.
• Answer Inception is a feasibility study which
  envisions the product scope, approximate vision
  and business case. Elaboration generates a
  refined vision, iterative implementation of core
  architecture, resolution of high risks,
  identification of most requirements and scope.
  (see Larman pages 35 and 109).

15
Question 11

• Question 11 (1) In the unified process
  requirements are described by
• a.               Design model FALSE
• b.               Domain model FALSE
• c.               Use case model CORRECT
• d.               (a) and (b)
• e.               (a) and (c)
• f.                (b) and (c)
• Correct answer c

16
Question 12

• Question 12 (1) Extreme Programming advocates
• a.               continuous integration CORRECT
• b.               a sequential, linear lifecycle
  FALSE
• c.               Refactoring CORRECT
• d.               (a) and (b)
• e.               (a) and (c)
• f.                (b) and (c)
• g.               (a), (b) and (c)
• Correct answer e

17
Question 13

• Question 13 (8) A vending machine offers two
  different products A and B. Product A costs 4
  SEK, product B 6 SEK. The customer inserts one
  coin at a time into the slot. The machine accepts
  coins in denominations of 1, 5 or 10 SEK. The
  machine displays the amount available for
  purchasing products. The machine has three
  buttons, button A to dispense product A, button B
  to dispense product B and button C to obtain
  change. At any time the customer can press button
  C to collect her change or amount paid, even if
  no purchase occurred previously. The customer can
  press buttons A and B at any time, but the
  machine only dispenses the corresponding product
  if the current amount paid is equal to or exceeds
  the product price. It is possible to make
  multiple purchases with one payment by using the
  remaining amount for another purchase (for
  example inserting a 10 SEK coin and purchasing
  product A twice and obtain 2 SEK change or for
  example inserting a 5 SEK coin, purchasing
  product A, inserting another 5 SEK coin and
  purchasing product B).
• a.   Draw a state diagram for the vending
  machine.
• b.   Draw a system sequence diagram for a
  scenario in which the customer inserts two 5 SEK
  coins, purchases product B and collects her
  change. Illustrate the information or product the
  vending machine shows or dispenses to the
  customer.

18
Question 13 State-Diagram

• States Idle, Coins Inserted, Product A
  dispensable, Product A B dispensable
• Events insert coin, button A, button B, return
  button
• Actions dispense A, dispense B, return change

19
Question 13
20
Question 13
21
Question 13
22
Question 14

• Question 14 (4) Draw the collaboration diagram
  that corresponds to the following sequence
  diagram

23
Question 14
24
Question 15

•  Question 15 (8) Draw a domain model as a UML
  class diagram, containing concepts,
  generalizations, named associations with
  multiplicity (composition and aggregation where
  applicable) and attributes for the following
  domain. The task is to design a software that
  helps you keep track of your collection of audio
  CDs. One distinguishes between two different
  types of releases, namely maxi-CDs and album CDs.
  Each release (album or maxi-CD) contains one or
  several recordings, a recording is a particular
  song performed by a particular artist, for
  example the album Hot Rocks by the Rolling
  Stones contains recordings of the songs Time is
  on my side, Heart of Stone, Play with Fire
  etc. Each recording has a playing time, for
  example Time is on my side has a playing time
  of 523. The same recording might occur on
  different releases, for example the original
  studio album and a best-of album..

25
Question 15

• The same or a different artist might perform the
  same song in different recordings, for example
  the song American Pie by Don Mc Lean and
  Madonna or Sympathy for the Devil in a live and
  a studio version by the Rolling Stones. One
  distinguishes between solo artists (e.g. Madonna)
  and bands composed of artists, for example Paul
  McCartney, John Lennon, Ringo Starr and George
  Harrison are members of the Beatles. An artist
  can occur on different recordings in different
  roles, either as a solo artist or a band member,
  for example Sting as a solo artist or as a member
  of the band Police. A song has a title and is
  composed by one or several composers, for example
  the song Hey Jude is composed by Paul Mc
  Cartney and John Lennon. Each release has a
  title, release date, music label and a playing
  time that is calculated as the accumulated
  playing time of the recordings on the release. A
  release is usually associated with one particular
  solo artist or band, for example the album Abbey
  Road with the Beatles. Still, this is not always
  the case for example in case of movie sound
  tracks or events such as Woodstock, which feature
  a number of different artists on the same release

26
Question 15
Concepts composer, song, recording, release,
artist, solo artist, band, album, maxi-CD
27
Differences between JAVA and C

• C uses pointers instead or in addition to JAVA
  references
• C also uses references but in a different way
  than JAVA
• C has no garbage collection, which means that
  objects created with new have to be destroyed
  with delete in order to avoid memory leaks
• JAVA is an interpreter language (virtual
  machine), portable across platforms (byte code is
  somehow between assembler code and source code)
• C programs need to be compiled separately for
  each target platform.

28
Additonal Features of C

• Pointers
• Operator overloading
• Template methods and classes
• Multiple inheritance
• Standard Template Library (container classes)

29
Hello World

• include ltiostreamgt // input-output library
• int main() // function main
• cout ltlt Hello World ltlt endl //
  standard output stream

30
Output Using Cout

• The identifier cout is actually an object. It is
  predefined
• in C and corresponds to the standard output
  stream.
• A stream is an abstraction that refers to a flow
  of data.
• The operator ltlt is called the insertion or put
  operator
• and can be cascaded (like arithmetic
  operators ,-,,/)
• It directs the contents of the variable to the
  right to
• the object to the left.

string strHello world int i8 cout ltlt str ltlt
endl // endl inserts a new line cout ltlt i
ltlt i ltlt endl // cascade operator ltlt
variable/ constant
standard output device
cout
ltlt
31
Input Using Cin

• The object cin is predefined in C and
  corresponds
• to the standard input stream.
• The gtgt operator is called the extraction or get
  operator
• and takes the value from the stream object to
  the left
• and places it in the variable on its right.
• The stream represents data coming from the
  keyboard

int temperature cout ltlt Enter temperature in
Celsius cin gtgt temperature
standard input device
cin
variable
gtgt
32
Library Functions

• Many activities in C/C are carried out by
  library functions.
• These functions perform file access, data
  conversion and
• mathematical computations.
• include ltmathgt // includes the declaration
  file for
• // mathematical functions
• int main()
• double x3.14
• cout ltlt sin(3.14) ltlt sin(x) ltlt endl

33
Header Files

• a header file contains the declaration of
  functions
• you want to use in your code
• the preprocessor directive include takes care
  of
• incorporating a header file into your source
  file
• example
• include ltmathgt
• include myprog.h
• the brackets ltgt indicate that the compiler first
  searches
• the standard include directory which contains
  the
• standard C/C header files first
• the quotation marks indicate that the compiler
  first searches
• for header files in the local directory
• if you do not include the appropriate header
  file
• you get an error message from the compiler

34
Header and Library Files
library header file
include ltsomelibgt
myprog.C
somelib.h
user header file
include myprog.h
myprog.h
compiler
library file
object file
myprog.o
libm.a
linker
executable file
myprog
35
Makefile

• A Makefile is a recipe for how to cook a
  product
• The necessary operations are divided into single
  steps which partially depend on each other
• Example Change a flat tire on a car
• Actions
• get_jack, get_spare_tire, lift_car,
  remove_flat_tire, attach_spare_tire, lower_car,
  stow_away_jack, stow_away_flat_tire, drive_away
• Dependencies
• lift_car get_jack
• remove_flat_tire lift_car
• attach_spare_tire get_spare_tire
• stow_away_flat_tire remove_flat_tire
• lower_car attach_spare_tire
• stow_away_jack lower_car
• drive_away stow_away_flat_tire
  stow_away_jack

36
Makefile
user header file
mat.C
lab1.C
mat.h
source file
include mat.h
g c mat.C
compiler
compiler
g c lab1.C
mat.o
lab1.o
object file
linker
libm.a
g lab1.o mat.o -lm
executable file
a.out
math library file
37
Makefile

• Assume you have two source files mat.C and lab1.C
• from which you are supposed to create a
  program a.out
• all a.out
• lab1.o depends on lab1.C and mat.h
• lab1.o lab1.C mat.h
• g -c lab1.C
• mat.o depend on mat.C and mat.h
• mat.o mat.C mat.h
• g -c mat.C
• a.out depends on lab1.o and mat.o
• a.out lab1.o mat.o
• g mat.o lab1.o -lm

38
Makefile

• define a variable CC for the name of the
  compiler
• CCg
• define compiler flags for warnings and
  debugging
• CCFLAGS-Wall -g
• define a variable OBJS for the objects needed
  to build the program
• OBJSmat.o lab1.o
• overall target
• all a.out
• explain for all cc source files how to build an
  object file
• .o .C
• (CC) (CCFLAGS) -c lt
• a.out (OBJS)
• g (OBJS) -lm

39
Passing by Value

• when passing arguments by value, the function
  creates
• new local variables to hold the values of the
  variable
• argument
• the value of the original variable are not
  changed
• void f(int val) // the parameter val holds a
  local copy of the
• // variable argument
• val
• int x4
• f(x) // call function f passing x by value
• cout ltlt x // x still has the value 4

40
Passing by Reference

• a reference provides an alias a different name
  for a variable
• when passing arguments by reference the local
  variable
• is an alias for the original variable
• the memory address of the variable is passed
  such that the
• function can access the actual variable in the
  calling program
• void swap (int a, int b) // call by reference
  a,b are aliases
• int tmp
• tmp a
• a b
• b tmp
• int x3 int y5
• swap(x,y) // call by reference a,b are aliases
  for x,y

41
Const Parameters/Variables

• passing by reference is efficient when passing
  large data
• structures as it avoids copying the variable
• a const reference guarantees that the function
  cannot
• modify the value of the passed argument
• an attempt to change the value of a const
  variable or
• parameter is caught at compile time
• void f( int a, const int b ) // argument b is
  constant
• const int c8 // defines variable c as a
  constant
• a5 // ok
• b7 // error cannot modify const parameter
• c7 // error cannot modify const variable

42
Class Definition (Interface)

• class Date // declares class name
• private // not visible outside the
  class
• int day, month, year // member
  data
• public // visible interface
• Date(int d, int m, int y) //
  constructor
• void add_year(int n) // add n
  years
• void add_month(int n) // add n
  months
• void add_day(int n) // add n
  days
• void show_date() // displays
  date
•
  // do not forget the here !!!

43
Class Implementation

• void DateDate(int d, int m, int y)
• dayd
• monthm
• year y
• void Dateadd_month(int n)
• monthn
• year (month-1)/12
• month (month-1) 12 1

44
Class Implementation

• include ltiostreamgt
• void Dateshow_date() // Date specifies
  that show_date is a
• //
  member function of class Date
• cout ltlt day ltlt . ltlt m ltlt . ltlt y ltlt endl
• void Dateadd_year(int n)
• yeary
• void Dateadd_day(int n)
• .

45
Member Initialization

• two types of member initialization in class
  constructor
• by initialization members are initialized
  before the constructor is executed (necessary for
  data members tha have no default constructor)
• by assignment members are created per default
  constructor first and then a value is assigned to
  them
• DateDate(int d, int m, int y) day(d),
  month(m), year(y)
• DateDate(int d, int m, int y) // assignment
  initialization
• dayd
• monthm
• yeary

46
Constant Member Functions

• A member function that is declared as constant
  does
• not modify the data of the object
• class Date
• int month() const // const month() does
  not modify attributes of Date
• void add_year(int n) // non-const
  add_year() modifies attributes of Date
• int Datemonth() const // defined as const
• return month
• int Dateadd_year(int n)
• yearn

47
Constant Member Functions

• A const member function can be invoked for const
  and non-const objects, whereas a non-const member
• function can only be invoked for non-const
  objects
• Date somedate(12,17,1999)
• const Date christmas(24,12,2001)
• int isomedate.month() // ok
• somedate.add_year(2) // ok
• int jchristmas.month() // ok month const
  member function
• christmas.add_year(3) // error add_year
  non-const member

48
Lecture 15

• C
• Multiple Inheritance
• Operator overloading
• Templates
• Pointers
• Dynamic memory allocation
• Standard Template Library
• Containers
• Iterators
• Algorithms

49
Lecture Schedule

• Mon 5/11/01 (Bjoern)
• VisualWorks/Smalltalk
• Mon 12/11/01 (Frank)
• C
• Game playing (lab4)
• Course evaluation
• Tue 20/11/01 (Bjoern)
• VisualWorks/Smalltalk

50
Inheritance
subclass
super class
Feature A
Feature A
Feature B
Feature B
Feature C
Feature D
51
Inheritance

• class Date
• public // visible outside class scope
• int Year()
• protected // visible to sub-classes but
  hidden from rest of the world
• int day, month, year
• class DateTime public Date
• public
• int Hours()
• private // only visible to class DateTime
• int hours, minutes

52
Multiple Inheritance
subclass
base class A
Feature A
Feature A
Feature B
Feature B
Feature C
base class B
Feature D
Feature C
Feature D
53
Multiple Inheritance

• class Date
• public
• int Year()
• private
• int day, month, year
• class Time
• public
• int Hours()
• private
• int hours, minutes

54
Multiple Inheritance

• class DateTime public Date, public Time
• public
• DateTime(int d, int m, int y, int h, int
  mi)
• DateTimeDateTime(int d, int m, int y, int h,
  int mi)
• Date(d,m,y), Time(h, mi)

55
Ambiguity in Multiple Inheritance

• class Date
• void add(int days)
• class Time
• void add(int minutes)
• Class DateTime public Date, public Time
• DateTime dt(13,2,1998,23,10)
• dt.add(3) // ambiguous -- will not compile
• dt.Dateadd(4) // uses add of class Date
• dt.Timeadd(5) // uses add of class Time

56
Ambiguity in Multiple Inheritance

• class A public void F()
• class B public A
• class C public A
• class D public B, public C
• D d
• d.F() // ambiguous - wont compile

class A
diamond shaped inheritance tree
class B
class C
class D
57
Overloading Operator

• Operator overloading is a useful feature of
  object
• oriented programming
• Operator overloading allows it to give normal C
  operators such as ,-,,lt additional meanings
• It makes statements more intuitive and readable
• for example
• Date d1(12,3,1989)
• Date d2
• d2.add_days(d1,45)
• // can be written with the operator as
• d2d145

58
Operator Overloading

• The name of an operator function is the keyword
• operator followed by the operator itself.
• class complex
• double re, im // re and im part of a
  complex number
• public
• complex (double r, double i) re(r), im(i)
  //constructor
• complex operator(complex c) // operator
  function
• complex c1(2.2,3.0) // instantiate complex c1
• complex c2(1.0,-4.5) // instantiate complex c2
• complex c3c1c2 // shorthand notation for
  c1 c2
• complex c4c1.operator(c2) // explicit call

59
Overloading Unary Operators

• class Date
• Date operator() // prefix increment
  operator
• Date Dateoperator ()
• if (day gt days_in_month())
• day1
• if (month gt 12)
• month1
• year
• return this
• Date d1(31,12,1999)
• d1 // results in 1.1.2000

60
Overloading Unary Operators

• class Date
• Date operator(int) // postfix increment
  operator
• Date Dateoperator (int)
• Date old(this)
• if (day gt days_in_month())
• day1
• if (month gt 12)
• month1
• year
• return old
• Date d1(31,12,1999) Date d2

61
Overloading Binary Operators

• class Date
• Date operator(int days) const
• Date Dateoperator(int days) const
• Date tmpthis // copy object
• for (int i0 i lt days i)
• tmp
• return tmp
• Date d1(1,4,1999)
• Date d2d125 // results in 26.4.2000

62
Overloading Binary Operators

• class Date
• Date operator(int days) // must be
  reference as modifies
•
  // the left hand argument
• Date Dateoperator(int days) // return type
  reference to object
• for (int i0 i lt days i)
• this
• return this // return reference to
  object
• Date d1(1,4,1999)
• d125 // results in 26.4.2000

63
Overloading Relational Operators

• class Date
• bool operator(Date d)
• return (dayd.day) (monthd.month)
  (yeard.year)
• bool operatorlt(Date d)
• if (year lt d.year)
• return true
• else
• if (yeard.year) (month lt d.month)
• return true
• else
• return (monthd.month) (day lt
  d.day)

64
Overloading Binary Operators

• int Dateoperator-(Date d) const
• int days0
• if (this gt d)
• while (this ! d)
• days
• else
• while (this ! --d)
• days--
• return days
• Date d1(24,4,1988)
• Date d2(13,3,1998)
• int diff d1-d2 // diff 42

65
Templates

• A template is a place-holder for an arbitrary
  built-in
• or user-defined data type
• Templates make is possible to use one
• function or class to handle many different
  data types
• Function templates allow a parameter to assume an
  arbitrary data-type
• Class templates allow a member data to assume an
• arbitrary data-type
• Templates are another example for polymorphism

66
Function Templates

• int max(int a, int b) // one max function for
  int
• if (agtb)
• return a
• else
• return b
• double max(double a, double b) // max function
  for double
• if (agtb)
• return a
• else
• return b

67
Function Templates

• template ltclass Typegt // class Type placeholder
  for concrete data type
• Type max( Type a, Type b) // substitute
  templateType for concrete type
• if (agtb) return a else return b //
  identical code
• void main()
• int a3, b2
• Date d1(17,5,1998) // assume operator gt is
  defined for class Date
• Date d2(23,6,1997)
• int cmax(a,b) // template T replaced with
  int
• char zmax(f,q) // template T replaced
  with char
• Date d3max(d1,d2) // template T replaced
  with date

68
Function Templates
one function template in source file
template ltclass Tgt T max(T a, T b)
argument type determines function instantiation
Date d1,d2,d3 d3max(d1,d2)
char c1,c2,c3 c3max(c1,c2)
int i1,i2,i3 i3max(i1,i2)
int max(int a, int b)
char max (char a, char b)
Date max (Date a, Date b)
69
Class Templates Array.h

• template ltclass Typegt // template class Type
• class Array // array of arbitrary data type
• public
• Array(unsigned int sz)
• Type operator(unsigned int i) // returns a
  reference to i-th element
• Type operator()(unsigned int i) // returns the
  value of i-th element
• private
• static int max_size100
• unsigned int size
• Type array100 // placeholder for concrete
  data type

70
Class Templates Array.C

• include Array.h
• template classltTypegt
• ArrayltTypegtArray(unsigned int sz)
• if (sz gt max_size)
• sizemax_size
• else
• sizesz
• template classltTypegt
• Type ArrayltTypegtoperator(unsigned int i)
• if (iltsize)
• return arrayi
• template classltTypegt
• Type ArrayltTypegtoperator()(unsigned int i)
• if (iltsize)
• return arrayi

71
Class Templates

• Arrayltdoublegt x(20) // instantiates a double
  array of size 20
• ArrayltDategt dates(10) // instantiates a Date
  array of size 10
• Date christmas(24,12,2001)
• x105.7 // operator returns reference can
  be used on rhs
• dates3christmas
• x11x(10)3.4 // operator () returns value
  can only be used on lhs
• x01.2
• for (int i1 ilt20i)
• xix(i-1)1.2
• for (int i0 ilt10i)
• datesi // increment all dates by one
  calendar day

72
Class Templates

• G has two compiler options
• -fexternal-templates
• -fno-external-templates
• The later compiler directive is the default one
  and you need to arrange for all necessary
  instantiations to appear in the implementation
  file (.C) for example in Array.C
• include Array.h
• template classltTypegt
• ArrayltTypegtArray(unsigned int sz)
• ...
• ...
• template class Arrayltdoublegt // explictly
  instantiate Arrayltdoublegt
• template class ArrayltDategt // explictly
  instantiate ArrayltDategt

73
Pointers

• Pointers
• Pointers and Arrays
• Pointers and function arguments
• Dynamic memory management
• New and delete

74
Pointers

• Pointers are used to
• Access array elements
• Passing arguments to functions when the function
  needs to modify the original argument
• Passing arrays and strings to functions
• Obtaining memory from the system
• Creating data structures such as linked lists
• Many operations that require pointers in C can be
  carried out without pointes in C using
  reference arguments instead of pointers, strings
  instead of char arrays or vectors instead of
  arrays
• Some operations still require pointers, for
  example creating data structures such as linked
  lists and binary trees

75
Pointers

• Each variable in a program occupies a part of the
  computers memory, for example an integer
  variable occupies 4 bytes of memory
• The location of the piece of memory used to store
  a variable is called the address of that variable
• An address is some kind of number similar to
  house numbers in a street that is used to locate
  the information stored in that particular variable

int i
address of i
0x1054
10101011
00001111
0x1055
10001000
0x1056
11100011
0x1057
00111011
0x1058
char c
address of c
10111100
0x1059
short s
address of s
11001100
0x1060
76
Pointer Variables

• A pointer variable is a variable that holds
  address values
• Each data type has its own pointer variable,
  pointer to int, pointer to double, pointer to
  char,
• C/C uses the address-of operator to get the
  address of an variable
• C/C uses the indirection or contents-of
  operator to access the value of the variable
  pointed by
• int i17
• int ptr // defines a pointer to an integer
  variable
• ptr i // assign the address of x to pointer
• cout ltlt ptr ltlt endl // prints contents of
  variable i

77
Pointer Variables
78
Pointer Variables

• int v // defines variable v of type int
• int w // defines variable w of type int
• int p // defines variable p of type pointer to
  int
• pv // assigns address of v to pointer p
• v3 // assigns value 3 to v
• p7 // assigns value 7 to v
• pw // assigns address of w to pointer p
• p12 // assigns value 12 to w
• Using the indirection operator p to access the
  contents of a variable is called indirect
  addressing
• or dereferencing the pointer

79
Pointers and Arrays

• There is a close association between pointers and
  arrays
• Arrays can be accessed using pointers
• The name of an array is also a constant pointer
  to the data type of the elements stored in the
  array
• int array5 23, 5, 12, 34, 17 // array of
  5 ints
• for (int i0 ilt 5 i)
• cout ltlt arrayi ltlt endl // using index to
  access elements
• for (int i0 ilt 5 i)
• cout ltlt (arrayi) ltlt endl // using pointer
  to access elements
• // array is of type pointer to integer

80
Pointers as Function Arguments

• C/C offers three different ways to pass
  arguments to a function
• by value void f(int x)
• by reference void f(int x)
• by pointer void f(int x)
• In passing by value the function obtains only a
  local copy of the variable, so that changes to
  the local variable have no impact on the argument
  with which the function was invoked
• In passing by reference and passing by pointer
  the function manipulates the original variable
  rather than only a copy of it

81
Pointers as Function Arguments

• void swap( double x, double y)
• double tmpx
• xy // access variable by its alias name
• ytmp
• void swap( double ptr1, double ptr2)
• double tmpptr1
• ptr1ptr2 // de-referencing pointer
• ptr2tmp
• double a3.0
• double b5.0
• swap(a,b) // call by reference to variables a
  and
• swap(a, b) // call by pointer using the
  addresses of a and b

82
BubbleSort

• void bsort (double ptr, int n) // pass pointer
  to array and
• // size of
  array as arguments to bsort
• int j,k // indices to array
• for (j0 jltn-1 j) // outer loop
• for(kj1 kltn k) // inner loop
  starts at outer
• if((ptrj) gt (ptrk))
• swap(ptrj,ptrk)
• double array6 2.3, 4.5, 1.2, 6.8, 0.8, 4.9

• bsort(array,n) // sort the array

83
Const Modifiers and Pointers

• The use of the const modifier with pointers is
  confusing as it can mean two things
• const int cptrInt // cptrInt is a pointer to a
  const int
• You can not the change the value of the integer
  that cptrInt points to but you can change the
  pointer itself
• int const ptrcInt // ptrcInt is a constant
  pointer to int
• You can change the value of the integer that
  ptrcInt points to but you can not change the
  pointer itself

84
Memory Management

• In order to create an array in C/C you have to
  know its size in advance during compile time, in
  other words it has to be a constant
• int size
• cout ltlt Enter size of array
• cin gtgt size
• int arraysize // ERROR size has to be a
  constant
• Solution in C, use vector class from the STL
  which is expandable

85
Memory Management

• Date CreateDate() // allows the user to create
  a date object
• int day, month, year
• char dummy
• cout ltlt Enter dd/mm/yyyy
• cin gtgt day gtgt dummy gtgt month gtgt dummy gtgt
  year
• Date date(day, month, year)
• return date // ERROR!! Scope of date
  ends with end of function
• Date ptr
• ptrCreateDate() // call CreateDate() to
  generate a new date
• cout ltlt You entered ltlt ptr ltlt endl
• // variable to which ptr points no longer exist ,
  segmentation fault !!!

86
Memory Management

• The new operator in C can be used to create
  objects on the heap that are alive after
  returning from a function
• Objects allocated in dynamic memory are called
  heap objects or to be on free store and have a
  permament existence
• Date CreateDate() // allows the user to create
  a date object
• int day, month, year
• char dummy
• cout ltlt Enter dd/mm/yyyy
• cin gtgt day gtgt dummy gtgt month gtgt dummy gtgt
  year
• Date tmpptr new Date(day, month, year)
• return tmpptr // returns pointer to heap
  object
• Date ptr
• ptrCreateDate() // call CreateDate() to
  generate a new date
• cout ltlt You entered ltlt ptr ltlt endl // ok,
  ptr refers to heap object

87
Memory Management

• New can also be used to allocate blocks of memory
• The delete operator is used to release the memory
  allocated with new once it is no longer needed
• include ltcstringgt
• char str This is an old C-style string
• int lenstrlen(str) // computes the length of
  str
• char ptr // create a pointer to char
• ptr new charlen1 // set aside memory
  string \0
• strcpy(ptr,str) // copy str to new memory
• cout ltlt ptr ltlt ptr ltlt endl
• delete ptr // release ptrs memory

88
New Operator in Constructors

• class String // user-defined string class
• private
• char str // pointer to block of
  characters
• public
• String(char s) // one-argument constructor
• int lengthstrlen(s) // length of
  string argument
• str new charlength1 // allocate
  memory
• strcpy(str,s) // copy argument to it
• String() // destructor
• delete str
• void Display() cout ltlt str ltlt endl
• String mystringThis is my string of Type
  String
• mystring.Display()

89
Pointers to Objects

• Pointers can point to objects as well as to
  built-in data types
• Date date // define a named Date object
• date.Set(12,3,1996) // set the date
• date.Display() // display the date
• Date dateptr // define a pointer to a Date
  object
• dateptrnew Date // points to new Date object
• dateptr-gtSet(9,12,1999) // set date using -gt
  operator
• dateptr-gtDisplay() // display date
• (dateptr).Display() // works as well but less
  elegant

90
Linked List Example

• A linked list is composed of a chain of elements
  (links). Each element contains some data and a
  pointer to the next element in the list.
• In a double linked list, each element also
  contains a pointer to its predecessor.

Element
Element
Element
next data
next data
next data
Element
Element
Element
next prev data
next prev data
next prev data
91
Linked List Example

• struct link // one element of list
• int data // data item
• link next // pointer to next element
• class linklist
• private
• link first // pointer to first link
• public
• linklist() first NULL // no argument
  constructor
• void push_back(int d) // add new
  element to the end of list
• int pop_back() // delete last element
  and return data value
• void push_front(int d) // add new
  element to the front of list
• int pop() // delete first element and
  return data value
• void display() // display all elements
  in list

92
Linked List Example

• void linklistpush(int d) // add data item at
  the front
• link newlink new link // create a new
  link
• newlink-gtdata d // assign new
  data d
• newlink-gtnextfirst // it points to
  the next link
• first newlink // now first
  points to this link

93
Linked List Example

• int linklistpop() // remove element at the
  front
• int tmp_data first-gtdata
• link tmpfirst
• firstfirst-gtnext
• delete tmp // free storage
• return tmp_data
• int linklistpop_back() // remove element at
  the end
• link tmpfirst
• while (tmp-gtnext ! NULL)
• tmptmp-gtnext
• int tmp_data tmp-gtdata
• delete tmp // free storage
• return tmp_data

94
Linked List Example

• void linklistpush_back(int d) // add data
  item at the end
• link newlink new link // create a new
  link
• newlink-gtdata d // assign new
  data d
• newlink-gtnext 0 // points to nil
• link tmpfirst
• if (tmp NULL) // empty list
• firstnewlink
• else
• while (tmp-gtnext!NULL)
• tmptmp-gtnext
• tmp-gtnextnewlink // it points to the
  next link

95
Linked List Example

• void linklistdisplay() // display all links
• link tmpfirst // set ptr to first link
• while(tmp ! NULL) // until ptr points
  beyond last link
• cout ltlt current-gtdata ltlt // print
  data
• currentcurrent-gtnext //
  move to next link

96
Linked List Example

• template ltclass Tgt
• struct link // one element of list
• T data // data item
• link next // pointer to next element
• template ltclass Tgt
• class linklist
• private
• link first // pointer to first link
• public
• linklist() first NULL // no argument
  constructor
• void push(T t) // add data item
  (one link)
• T pop()
• void display() // display all
  links

97
Linked List Example

• template ltclass Tgt
• void linklistltTgtpush(T t) // add element at
  the front
• link newlink new link // create a new
  link
• newlink-gtdata t // give it data
  d
• newlink-gtnextfirst // it points to
  the next link
• first newlink // now first
  points to this link
• template ltclass Tgt
• void linklistltTgtdisplay() // display all
  links
• link currentfirst // set ptr to first
  link
• while(current ! NULL) // until ptr points
  beyond last link
• cout ltlt current-gtdata ltlt // print
  data
• currentcurrent-gtnext //
  move to next link

98
Standard Template Library

• The standard template library (STL) contains
• Containers
• Algorithms
• Iterators
• A container is a way that stored data is
  organized in memory, for example an array of
  elements.
• Algorithms in the STL are procedures that are
  applied to containers to process their data, for
  example search for an element in an array, or
  sort an array.
• Iterators are a generalization of the concept of
  pointers, they point to elements in a container,
  for example you can increment an iterator to
  point to the next element in an array

99
Containers, Iterators, Algorithms
Algorithms use iterators to interact with
objects stored in containers
Container
Container
Iterator
Algorithm
Iterator
Objects
Algorithm
Iterator
Iterator
Algorithm
100
Containers

• A container is a way to store data, either
  built-in data
• types like int and float, or class objects
• The STL provides several basic kinds of
  containers
• ltvectorgt one-dimensional array
• ltlistgt double linked list
• ltdequegt double-ended queue
• ltqueuegt queue
• ltstackgt stack
• ltsetgt set
• ltmapgt associative array

101
Sequence Containers

• A sequence container stores a set of elements in
• sequence, in other words each element (except
• for the first and last one) is preceded by
  one
• specific element and followed by another,
  ltvectorgt,
• ltlistgt and ltdequegt are sequential containers
• In an ordinary C array the size is fixed and
  can
• not change during run-time, it is also
  tedious to
• insert or delete elements. Advantage quick
  random
• access
• ltvectorgt is an expandable array that can shrink
  or
• grow in size, but still has the disadvantage
  that
• inserting or deleting elements in the middle
  is costly as it requires to copy chunks of memory

102
Sequence Containers

• ltlistgt is a double linked list (each element has
• points to its successor and predecessor), it
  is
• quick to insert or delete elements but
  provides no
• random access (e.g. return 5th element in list)
• ltdequegt is a double-ended queue, that means one
• can insert and delete elements from both ends,
  it
• is a kind of combination between a stack (last
  in
• first out) and a queue (first in first out) and
  constitutes a compromise between a ltvectorgt and
• a ltlistgt

103
Associative Containers

• An associative container is non-sequential but
  uses
• a key to access elements. The keys, typically
  a number or a string, are used by the container
  to arrange the stored elements in a specific
  order,
• for example in a dictionary the entries are
  ordered
• alphabetically.

104
Associative Containers

• A ltsetgt stores a number of items which contain
  keys
• The keys are the attributes used to order the
  items,
• for example a set might store objects of the
  class
• Person which are ordered alphabetically using
  their name
• A ltmapgt stores pairs of objects a key object
  and
• an associated value object. A ltmapgt is
  somehow
• similar to an array except instead of
  accessing its
• elements with index numbers, you access them
  with
• indices of an arbitrary type.
• ltsetgt and ltmapgt only allow one key of each value,
• whereas ltmultisetgt and ltmultimapgt allow
  multiple
• identical key values

105
Vector Container
int array5 12, 7, 9, 21, 13 vectorltintgt
v(array,array5)
12
7
9
21
13
v.push_back(15)
v.pop_back()
13

12
7
9
21
12
7
9
21
15
0 1 2 3 4
12
7
9
21
15
v.begin()
v3
106
Vector Container

• include ltvectorgt
• include ltiostreamgt
• vectorltintgt v(3) // create a vector of ints of
  size 3
• v023
• v112
• v29 // vector full
• v.push_back(17) // put a new value at the end
  of array
• for (int i0 iltv.size() i) // member
  function size() of vector
• cout ltlt vi ltlt // random access to
  i-th element
• cout ltlt endl

107
Constructors for Vector

• A vector can be initialized by specifying its
  size and
• a prototype element or by another vector
• vectorltDategt x(1000) // creates vector of size
  1000,
• //
  requires default constructor for Date
• vectorltDategt dates(10,Date(17,12,1999)) //
  initializes
• // all
  elements with 17.12.1999
• vectorltDategt y(x) // initializes vector y with
  vector x

108
Iterators

• Iterators are pointer-like entities that are used
  to
• access individual elements in a container.
• Often they are used to move sequentially from
  element to element, a process called iterating
  through a container.

vectorltintgt
array_
17
vectorltintgtiterator
4
23
The iterator corresponding to the class
vectorltintgt is of the type vectorltintgtiterator
12
size_
4
109
Iterators

• The container member functions begin() and end()
  return an iterator to the first and past the last
  element of a container

vectorltintgt v
v.begin()
array_
17
4
23
v.end()
12
size_
4
110
Iterators

• One can have multiple iterators pointing to
  different or identical elements in the container

vectorltintgt v
i1
array_
17
4
i2
23
12
i3
size_
4
111
Iterators

• include ltvectorgt
• include ltiostreamgt
• vectorltintgt v // initialize empty vector
• v.push_back(13)
• v.push_back(9)
• v.push_back(8)
• vectorltintgtiterator iterv.begin() //
  iterator for class vector
• // define iterator for vector and point it to
  first element of v
• cout ltlt first element of v ltlt iter //
  de-reference iter
• iter // move iterator to next element
• iterv.end()-1 // move iterator to last element

112
Iterators

• int max(vectorltintgtiterator start,
  vectorltintgtiterator end)
• int tmpmaxstart
• while(start ! stop)
• if (start gt tmpmax)
• tmpmaxstart
• start
• return tmpmax
• cout ltlt max of v ltlt max(v.begin(),v.end())

113
Iterator Categories

• Not every iterator can be used with every
  container for example the list class provides no
  random access iterator
• Every algorithm requires an iterator with a
  certain level of capability for example to use
  the operator you need a random access iterator
• Iterators are divided into five categories in
  which a higher (more specific) category always
  subsumes a lower (more general) category, e.g. An
  algorithm that
• accepts a forward iterator will also work
  with a bidirectional iterator and a random access
  iterator

input
forward
bidirectional
random access
output
114
For_Each() Algorithm

• include ltvectorgt
• include ltalgorithmgt
• include ltiostreamgt
• void show(int n)
• cout ltlt n ltlt
• int arr 12, 3, 17, 8 // standard C
  array
• vectorltintgt v(arr, arr4) // initialize vector
  with C array
• for_each (v.begin(), v.end(), show) // apply
  function show
• // to each element of vector v

115
Find() Algorithm

• include ltvectorgt
• include ltalgorithmgt
• include ltiostreamgt
• int key
• int arr 12, 3, 17, 8, 34, 56, 9 //
  standard C array
• vectorltintgt v(arr, arr7) // initialize vector
  with C array
• vectorltintgtiterator iter
• cout ltlt enter value
• cin gtgt key
• iterfind(v.begin(),v.end(),key) // finds
  integer key in v
• if (iter ! v.end()) // found the element
• cout ltlt Element ltlt key ltlt found ltlt endl
• else
• cout ltlt Element ltlt key ltlt not in vector v
  ltlt endl

116
Find_If() Algorithm

• include ltvectorgt
• include ltalgorithmgt
• include ltiostreamgt
• Bool mytest(int n) return (ngt21) (n lt36)
• int arr 12, 3, 17, 8, 34, 56, 9 //
  standard C array
• vectorltintgt v(arr, arr7) // initialize vector
  with C array
• vectorltintgtiterator iter
• iterfind_if(v.begin(),v.end(),mytest)
• // finds element in v for which mytest is true

• if (iter ! v.end()) // found the element
• cout ltlt found ltlt iter ltlt endl
• else
• cout ltlt not found ltlt endl

117
Count_If() Algorithm

• include ltvectorgt
• include ltalgorithmgt
• include ltiostreamgt
• Bool mytest(int n) return (ngt14) (n lt36)
• int arr 12, 3, 17, 8, 34, 56, 9 //
  standard C array
• vectorltintgt v(arr, arr7) // initialize vector
  with C array
• int ncount_if(v.begin(),v.end(),mytest)
• // counts element in v for which mytest is
  true
• cout ltlt found ltlt n ltlt elements ltlt endl

118
List Container

• A list container is a double linked list, in
  which
• each element contains a pointer to its
  successor and
• predecessor.
• It is possible to add and remove elements at any
  location in the list
• Lists do not allow random access but are
  efficient to
• insert new elements and to sort and merge
  lists

119
List Container
int array5 12, 7, 9, 21, 13 listltintgt
li(array,array5)
12
7
9
21
13
li.push_back(15)
li.pop_back()
13

12
7
9
21
12
7
9
21
15
li.push_front(8)
li.pop_front()
12
