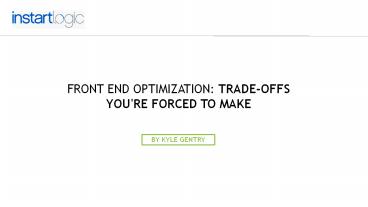

Front End Optimization: Trade Offs You're Forced to Make

1
FRONT END OPTIMIZATION TRADE-OFFS YOU'RE FORCED
TO MAKE
BY KYLE GENTRY
2
(No Transcript)
3

• You cant have it all so the saying goes and
  when it comes to application optimization, that
  is typically true. There are trade-offs that are
  made when deciding what optimization to deploy.
  Three of the main aspects when optimizing an
  application to consider are
• What performance impact an optimization will
  have. Is the optimization going to help the
  majority of customers, the majority of content,
  and will it cause a double-digit performance
  improvement?
• How reliable the optimization is. Will
  implementing a new technique cause an application
  to break? Does the optimization cause some pages
  to load faster and other pages to load slower, or
  have first-time visits improved but repeat visits
  become slower?
• How much time and effort is required for
  implementation. Will you have to spend time
  creating a whitelist or blacklist to ensure the
  site continues to function for all users? What
  happens when you change your site? Do you have to
  reconfigure all of the optimizations?
• When it comes to optimization techniques, the
  list of what can be done is constantly growing,
  and not each technique has the same ROI.

4
The grid above attempts to chart some of the most
common optimizations available through FEO- and
server-based along three variables. The y-axis is
the measurement of the performance impact, the
x-axis is the measurement of the reliability of
the implementation, and the size of the dot
reflects the amount of time required for
implementation (the larger the dot, the more
time-consuming).
5
LOW PERFORMANCE, LOW RELIABILITY
These features have minimal performance impact
and implementing them can result in adverse
consequences. The goal of in-lining and
concatenation of resources is to reduce the
number of round trips required to load a page, as
generally the more round trips required, the
longer it takes to load a page. But these
techniques only apply to first-time visitors, or
those with an empty cache. The bigger downside of
these techniques is that they can break caching
for repeat visitors or a subsequent page views in
a browsing session. Concatenation is the process
of combining multiple JavaScripts (JS) or
Cascading Style Sheets (CSS) into a single file.
With concatenation, each page may have a
different combination of JavaScript files. This
means that files that were downloaded need to be
downloaded multiple times and cant be served
from cache. The other problem with concatenation
is that combining all resources into a single
file may not always improve performance. The
example below shows how concatenating the JS and
CSS actually made performance worse. Figure 1
shows the application prior to concatenation, and
Figure 2 shows performance after concatenation.
6
Figure 1 Prior to concatenation
7
Figure 2 After concatenation
8
Concatenation reduced the number of round trips
from 48 down to 21, which is a large reduction in
the number of round trips. The problem is that
the JavaScript file is now 600 Kb and blocks
other objects from downloading resulting in a
higher average page load time and a longer time
to start render. Having the content split across
multiple connections results in a better
experience for users. Similarly, in-lining
resources can also negatively impact caching.
In-lining takes external files and embeds them in
the HTML to eliminate the round trip. HTML is
typically not cached by a browser and is
retrieved for each request, resulting in repeat
viewers getting worse performance after in-lining
is implemented. Many people will choose to only
in-line smaller files, but this adds layers of
complexity to determining the appropriate
threshold and the creation of the
whitelist. With increased adoption of HTTP/2,
both of these techniques will be deprecated,
as concurrency is a core feature of the HTTP/2
specification. Spending time to implement
techniques that will not be needed in an HTTP/2
world does not seem worth the effort, especially
given the low performance impact.
HIGH PERFORMANCE, LOW RELIABILITY
These optimizations have a higher performance
impact but still have challenges in terms of
reliability. While all of these optimizations
attempt to improve the performance of images,
they all go about it in different ways. Improving
the performance of images often results in high
performance gains, as they make up such a large
percentage of page weight. The time required for
implementation may be worth the performance
gains. One thing to remember with each of these
is the ongoing care and feeding that is required
any web site change means re-testing and
potentially rewriting code to execute correctly.
9
Image sprites were one of the first optimizations
on the scene. The goal was to reduce the number
of round trips by combining all the images into a
single file and use CSS pointers to tell the
browser which part of the image to display.
Having to create a new sprite and update the CSS
when images change on your application reduces
the reliability of images on your site changing
frequently. Prefetching images is anticipating
what a user will click on next and populating the
browser's cache with that content. As images are
highly cacheable, they are frequently
pre-fetched. Requesting images before a user
needs them can speed up performance if the
prediction was correct. Predicting human behavior
is not easy you may end up sending content to
the user that wasnt needed, wasting precious
bandwidth. It is difficult to reliably predict
what a user will do next after viewing a web
page. Lazy-loading of images is the opposite of
pre-fetching content. Instead of loading images
on the page, the browser defers loading of the
resource until a later time. This technique is
used to first populate only the content that
appears above the fold images that are
outside of the viewport are not loaded
immediately. If a user navigates away from a page
prior to the image loading, this technique can
also serve to reduce overall server load.
Predicting what is in the viewport, though, is
not always successful, resulting in images that
should load not being visible.
10
LOW PERFORMANCE, HIGH RELIABILITY
Optimizations in this category provide lower
performance benefits but are generally considered
safe. Reasons for lower performance benefits are
that the optimizations only apply to a small
subset of users or to a small number of
resources. Domain sharding was popular back in
the day when browsers only opened 2 connections
per domain as browsers have evolved, they now
support more than 6 connections per domain. For
those still forced to use IE 6, domain sharding
is still an excellent solution to performance
issues. As with other techniques, HTTP/2 will
eliminate the effectiveness of domain
sharding. Minification complements compression,
making text files even smaller by eliminating
whitespace and comments, as these arent needed
by the browser to render a page. Minification can
provide small improvements for already-compressed
content and greater compression for users who
cant receive compressed content. With a number
of tools out there to minify content, the time
requirements are relatively small, but the
reliability is high. Implementing minification
makes sense if you have already optimized
everything else on your site.
11
Figure 2 After minification
Revisiting the earlier concatenation example, we
can see the benefits that minification can
provide. While concatenation made the performance
worse, minifying the content reduces page load
time by 12 from the origin and 16.8 from the
concatenated version, as the 600-Kb JS file is
reduced to 428 Kb.
12
HIGH PERFORMANCE, HIGH RELIABILITY
This last category is where you want to focus
your attention, as you get the most bang for your
buck the greatest performance gains and the
lowest chance of breaking your application.
Caching and compression are two very easy ways to
improve performance and can generally be
configured easily at the server or application
delivery controller (ADC). Caching can also be
extended a step further by using a content
delivery network (CDN) to cache and serve content
for geographically-distributed locations. Many
FEO techniques focus on improving the performance
of first-time visitors, as the hope is that on a
repeat visit, content will come from cache. The
challenge is that not all caches are created
equal. Image optimization provides tremendous
gains to web sites but requires a large time
commitment to ensure that it is done correctly.
Image optimization includes both lossless and
lossy optimizations, such as converting an image
from one format to another, stripping metadata,
and reducing image quality. When done
incorrectly, these can be highly unreliable and
result in a broken site. Taking the time to
optimize images correctly is required to get the
high performance impact and high reliability for
your application.
13
WHERE TO START?
Optimizing applications seems a lot like a
science experiment. You form a hypothesis that
doing x will improve performance. You make the
changes, realize something went wrong,
investigate what went wrong, fix the problem, and
test again. You may or may not get the
performance improvements you were hoping for, and
if you had estimated the project would take a
couple of days and ended up taking weeks, was it
worth it? If you are short on time, focus on the
high-performance and high-reliability items with
short times to implement, like caching and
compression. Or stay tuned for the next blog post
on how Instart Logic took a different approach to
optimize application delivery by harnessing the
power of machine learning.
