Complete Investment Casting Manufacturers Process - Turbo Cast

1

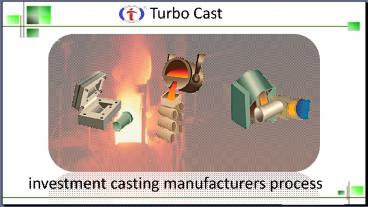

Turbo Cast
investment casting manufacturers process
2
Investment Casting Manufacturers Process

• Investment casting complete manufacturing
  process in which lost wax pattern is surface or
  laminate with a refectory ceramic raw material.
• This raw material is used in internal calculation
  takes the shape or size of casting.
• The wax is extra melted remove and molten metal
  is poured into the chamber where the wax pattern
  was.
• The metal harden inside the ceramic mold and then
  the investment casting is isolated.

3
Complete Process Steps

• Wax pattern making
• Pattern Assembly
• Shell Coating Building
• Dewax/Firing
• Metal Purity
• Knockout
• Finishing
• Quality Testing
• Packing Shipping

4
Wax pattern making
Lost wax pattern is built to provide customer
specifications and then will explain that way to
produce final casting
5
Pattern Assembly
The lost wax model is removed from the injection
tool. Assembly parts are tested for tolerance and
then cleaned.
6
Shell Coating Building
Successfully assembled parts after ceramic and
stucco are applied to the sprue assembly to from
heading section.
7
Dewax/Firing
The shell build sprue is the de-waxing by quickly
heating in a boiler or autoclave leaving beyond
the suite shell cavity.
8
Metal Purity
Now metal purity while the mold heat treat allows
the liquid metal to flow easily through the mold
chamber.
9
Knockout
The heat sprues are the isolated from the boiler
and poured quickly. The metal purity shells are
the set aside to cool.
10
Finishing
Excess extra metal is removed surfaces are
perfect finishing and casting heat treatment.
11
Quality Testing
Each casting parts and equipments are inspected
according to our customer specification and
requirements.
12
Packing Shipping
All the process done after castings are surly
packaged by require and deliver to the customer
13
Benefits of investment casting process

• Creating freedom design
• Various option to choose
• Size freedom a small to large
• Dimensions flexible
• Perfect surface finish
• Improved quality

14
Turbo-Cast - Investment Casting Applications
Our casting part is used in the aerospace,
medical application, electrical application and
defense industries
Aerospace Casings
Defense Castings
Medical Applications
Electronic Applications
15
Quality Accreditations Certifications
ISO 9001 2008
AS 9100 Rev. C
Nadcap Certified
16
Our Clients
17
Contact Us
Office Address
"Satyam", 35 / Silver Sand, Opp - Big Bazaar,
150 Feet Ring Road, Rajkot - 360 001, India.
Factory Address
Survey No. 21, Village- Biliyala, Rajkot-Gondal
National Highway, B/h Pan Agri Export,
Rajkot-360311
91 2825 280301 / 280302
18
Turbo Cast
Thank you for visiting our presentation
