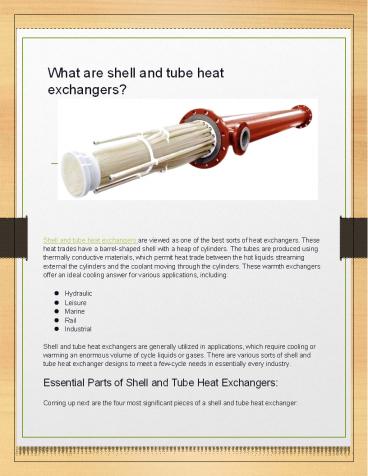

What are shell and tube heat exchangers?

1
What are shell and tube heat exchangers?

• Shell and tube heat exchangers are viewed as one
  of the best sorts of heat exchangers. These heat
  trades have a barrel-shaped shell with a heap of
  cylinders. The tubes are produced using
  thermally conductive materials, which permit heat
  trade between the hot liquids streaming external
  the cylinders and the coolant moving through the
  cylinders. These warmth exchangers offer an
  ideal cooling answer for various applications,
  including
• Hydraulic
• Leisure
• Marine
• Rail
• Industrial
• Shell and tube heat exchangers are generally
  utilized in applications, which require cooling
  or warming an enormous volume of cycle liquids
  or gases. There are various sorts of shell and
  tube heat exchanger designs to meet a few-cycle
  needs in essentially every industry.

Essential Parts of Shell and Tube Heat Exchangers
Coming up next are the four most significant
pieces of a shell and tube heat exchanger
2

• Tube Bundle A tube pack comprises tube sheets
  and tubes. The tube pack is held together by
  confuses and tie bars.
• Shell The tube pack is involved in a shell.
• Front Header A front header, which is
  additionally alluded to as a fixed header, is the
  part from where the liquid enters the tube side
  of the exchanger.
• Back Header A back header is a section from
  where the tube side liquid leaves the exchanger
  or gets back to the front header.

Why are Shell and Tube Heat Exchangers Used?

• Shell and tube heat exchanger is utilized in
  different modern interaction applications since
  they can perform tasks, for example,
• Evacuation of interaction heat and feed water
  preheating
• Cooling of water-driven and lube oil
• Cooling of turbine, blower, and motor
• Consolidating measure fume or steam
• Dissipating measure fluid or steam

Elements Used for Shell and Tube Heat Exchangers

• Various materials are utilized for assembling
  heat exchangers dependent on the applications.
  Here are the most frequently used tube side
  materials
• Cupronickel Alloys
• Titanium
• Carbon Steel
• Metal Alloys
• Tempered Steel

What Are the Benefits of Using Shell and Tube
Heat Exchangers?

• Shell and tube heat exchangers are broadly
  utilized in various enterprises, especially in
  treatment facilities, attributable to the
  different benefits they offer over other heat
  exchangers
• Shell and tube heat exchangers have more heat
  movement effectiveness.
• These heat exchangers are an ideal answer for
  pool warming, mining hardware, water- driven
  force packs, and so on.
• These heat exchangers can be effectively
  destroyed. Accordingly, cleaning and fixing are
  simple.
• The heat exchangers are minimized in size.
• You can expand the limit of these heat exchangers
  by adding plates in sets.

3

• These exchangers are cheap, contrasted with the
  plate type coolers.
• As the pressing factor test is generally easy,
  one can undoubtedly find tube holes and fix
  them.
• These heat exchangers can be utilized in
  frameworks, which have higher working
  temperatures and pressing factors.
• AMETEK Products is an organization that ensures
  that every one of its cycles is done and
  finished precisely. We are notable for assembling
  shell and tube heat trades that meet our
  clients' detailed requirements. Likewise, we have
  a staff of master and qualified designers with a
  decent encounter who will comprehend your needs
  and guide you with proper determination. To find
  out about building an adjustable shell and tube
  heat exchangers, you can call us on 570-
  645-6917.You can likewise mail us at
  info.fpp_at_ametek.com.
