UNICORE Plugins

1

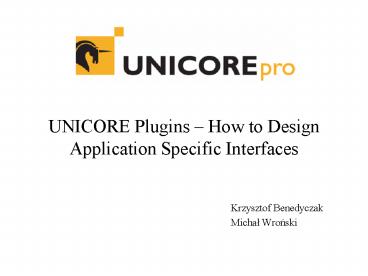

UNICORE Plugins How to Design Application
Specific Interfaces

• Krzysztof Benedyczak
• Michal Wronski

2
Introduction

• Plugin types
• Task Plugin (e.g. Gaussian, Amber)
• Extension Plugin (DBBrowser, LAJ)
• Classes
• public abstract class UnicorePlugable
• public abstract class TaskPlugable extends
  UnicorePlugable
• public abstract class ExtensionPlugable extends
  UnicorePlugable

3
TaskPlugin
Job Preparation menu
Job Preparation tree
JPA Panel
4
ExtensionPlugin
Extensions menu
Plugin window
5
UnicorePlugable

• public abstract void startPlugin()
• public abstract void stopPlugin()
• public abstract String getPluginInfo()
• public JMenuItem getSettingsItem()
• public HelpSet getHelpSet()
• protected Client getClient()

6
ExtensionPlugable
7
ExtensionPlugable API

• public Component getVsiteToolBarComponent()
• public Component getJPAToolBarComponent()
• public JMenuItem getCustomMenu()
• public Object setupSpecialVsiteFeatures(Vsite
  vsite, AbstractJob job)

8
TaskPlugable
9
TaskPlugin JPAPanel

• End user panel for preparing plugin's input
• Straightforward integration with client's
  standard panels - mainly for file imports and
  exports

10
TaskPlugin Container

• Used to simplify low-level AJO creation
• It is streamed to NJS
• ErrorSet checkContents()method can be used to
  validate Container data
• Client offers wide range of Containers most
  commonly used in plugins are
• UserContainer for executing SoftwareResources
• GroupContainer for maintaining complex job
  structures

11
TaskPlugin OutcomePanel

• is used to post process plugin's task output
• generally it can perform any additional tasks
  (even submit another jobs)

12
TaskPlugable API

• public abstract String getName()
• public abstract ActionContainer
  getContainerInstance(GroupContainer parent)
• public abstract JPAPanel getPanelInstance(ActionCo
  ntainer container)
• protected String getIconPath()
• public final Class getContainerClass()
• public final boolean hasContainerClass(Class cls)

13
TaskPlugin JPAPanel API

• Extends JPAPanel (thus also extends JPanel)
• Implements
• void applyValues() - should setup underlying
  plugin container with GUI's values
• void resetValues() - just another way round
  fills panel with containers data
• void updateValues(boolean vsiteChanged) invoked
  every time panel becomes visible

14
TaskPlugin UserContainer

• Simple scenario
• extend UserContainer
• use setPreinstalledSoftware()
• use addFileImport(), addFileExport()
• Optionally implement buildExecuteGroup which
• creates executeGroup instance
• adds to executeGroup custom AbstarctActions with
  dependences

15
TaskPlugin OutcomePanel API

• Container implements IPanelProvider interface to
  register additional panel(s) in Client's outcome
  area
• JPanel getPanel(int i)
• usually OutcomePanel want to get notifications
  when new data is fetched and when the panel
  becomes visible
• OutcomePanel implements Applyable interface

16
TaskPlugin JPAPanel code

• public class DBAccessJPAPanel extends JPAPanel
• public DBAccessJPAPanel(JFrame parentFrame,
  ScriptContainer container)
• ...
• initComponents()
• / Apply values from GUI to container /
• public void applyValues()
• container.setModifiedTime(new
  Date(System.currentTimeMillis()))
• container.setName(taskTextField.getText())
• / Fill values from container into gui /
• public void resetValues()
• taskTextField.setText(container.getName())
• scriptTextArea.setText(task.getScript())
• / Method will be called whenever this panel is
  activated /
• public void updateValues(boolean vsiteChanged)
• if (vsiteChanged)

17
TaskPlugin Container code (1)

• public class ExampleContainer extends
  UserContainer
• implements IPanelProvider
• private transient JPanel simpleOutcomePanel
• public ExampleContainer(GroupContainer parent)
• super(parent)
• public ErrorSet checkContents()
• ErrorSet er super.checkContents()
• //Does Vsite support needed
  SoftwareResource?
• NamedResourceSet nrs
• ResourceManager.getResourceSet(getVsite())
• if (nrs.findSoftwareResourceByName("our_exe
  cutable") null)
• er.add(new Uerror(getIdentifier(),"
  Wrong Vsite"))

18
TaskPlugin Container code (2)

• .....
• public int getNrOfPanels()
• return 1
• public String getPanelTitle(int i)
• return Simple outcome panel
• public void finalizePanel()
• public JPanel getPanel(int i)
• if (!simpleOutcomePanel)
• simpleOutcomePanel
• new ReexSimpleOutcomePanel(this)
• return simpleOutcomePanel

19
TaskPlugin OutcomePanel code

• public class SimpleOutcomePanel extends JPanel
  implements Applyable
• ...
• public SimpleOutcomePanel(Container container)
• initComponents()
• public void applyValues()
• / Becomes visible /
• public void updateValues()
• if (plot null)
• addPlotPanel()
• / New outcome /
• public void resetValues()
• if (panelReady) return
• if (plot null) addPlotPanel()

20
Re-usable components

• Graphical interfaces
• FileImportPanel, FileExportPanel,
  RemoteTextEditor
• Container classes
• UserContainer, GroupContainer
• Classes to get the outcome of AJO
• OutcomeManager
• Classes to manage resources
• ResourceManager
• Requests

21
Requests

• Requests allow to prepare jobs at low level (AJO)
  without using containers
• but they still hides from programmer many issues
  sending job to Vsite, waiting/checking for reply
  and all certificates related work
• Requests are often used in ExtensionPlugins
• There are many out-of-the-box requests in the
  Client. The most interesting
• GetJobStatus
• GetFilesFromUspace
• GetListing

22
How to implement a Request

• extends ObservableRequestThread
• add some IObservers to Request object
• implement run() method where
• AJO is constructed
• AJO is sent with desired method (polling or
  nonPolling)
• if nonPolling() answer was RetrieveOutcomeReply
  then in run() we can get (deserialized) outcome
  else it must be done in IObserver code

23
Summary

• TaskPlugin
• used as a component in standard Clients job
• integrates JPAPanel, Container and OutcomePanel
• ExtensionPlugin
• adds any other new functionality to the Client

24
DeviceSteer Plugin (1)

• Plugin for steering remote devices through
  Unicore infrastructure
• user friendly GUI
• Interactivity in Unicore
• Designed in the way which allows simple
  adaptation to different devices

25
DeviceSteer Plugin (2)
26
DBAccess Plugin (1)

• Plugin allows for access to SQL databases
• Features
• User friendliness
• Support for the most popular free DBMSes
  PostgreSQL and MySQL
• Support for SDSC Storage Resource Broker
• Extensibility

27
DBAccess Plugin (2)
28
References

• Plugin Programmers Guide
• Client API documentation
• Client and plugins source code

29
QUESTIONS ?
