Composites - overview

1

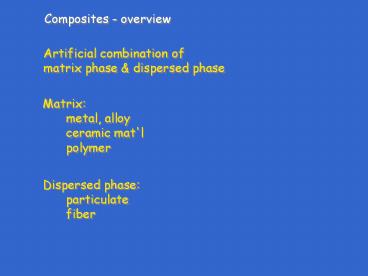

Composites - overview
Artificial combination of matrix phase
dispersed phase
Matrix metal, alloy ceramic mat'l polymer
Dispersed phase particulate fiber
2
Composites - metal matrix composites (MMCs)
Particulates ThO2-dispersed Ni (TD
Ni) sintered Al powder (SAP)
- except strengthening maintained at hi T
Improves strength creep resistance hi T
corrosion resistance
3
Composites - metal matrix composites (MMCs)
Fibers Conts - C, SiC, B, Al2O3 Disconts - C,
Al2O3 , SiC whiskers
May get rxn betwn phases at hi T
4
Composites - ceramic matrix composites (CMCs)
Particulates, fibers SiC, B, Al2O3 , C, SiC
Si3N4 whiskers
Improve fracture toughness
slow crack growth deflect crack
tips redistribute stresses around crack
tips bridge crack tips
5
Composites - polymer matrix composites (PMCs)
Fibers mainly - glass (GFRPs), carbon (CFRPs),
aramid, others - B, SiC, Al2O3
6
Composites
Fibers - variables amount fiber
length distribution orientation
Fiber orientation can be random aligned
intermediate
7
Crystal whiskers - SiC
8
Composites - polymer matrix composites (PMCs)
Fibers mainly - glass (GFRPs), carbon (CFRPs),
aramid, others - B, SiC, Al2O3
9
Composites - polymer matrix composites (PMCs)
Fibers mainly - glass (GFRPs), carbon (CFRPs),
aramid, others - B, SiC, Al2O3
10
Composites - polymer matrix composites (PMCs)
Fibers mainly - glass (GFRPs), carbon (CFRPs),
aramid, others - B, SiC, Al2O3
11
Composites - polymer matrix composites (PMCs)
Fibers mainly - glass (GFRPs), carbon (CFRPs),
aramid, others - B, SiC, Al2O3
12
Composites - polymer matrix composites (PMCs)
Fibers mainly - glass (GFRPs), carbon (CFRPs),
aramid, others - B, SiC, Al2O3
13
Composites - polymer matrix composites (PMCs)
Carbon fibers frequently used as woven fabrics
impregnated with an epoxy
14
Composites - polymer matrix composites (PMCs)
15
Composites - polymer matrix composites (PMCs)
Woven carbon fiber fabrics in auto industry -
2006 BMW M6 - roof (unpainted)
'vette Z06 - front fenders, wheel wells, floor
Porsche Carrera GT (440,000) - frame
Scion accessories - gear shift knob (49),
fuel-filler door (39), roof pillar appliqués
(75-189), etc.
16
Composites - polymer matrix composites (PMCs)
Matrix
17
Composites - polymer matrix composites (PMCs)
Very common - polyesters, vinyl esters
18
Composites
Role of matrix in FR composites a. transfer
stresses betwn fibers b. provide barrier to
environment c. protect fibers
Matrix/fiber bond matrix must wet fiber
physical chemical bond desirable mechanical
interlocking
Fibers frequently coated w/ coupling agent
19
Composites
20
Composites
Fibers - variables amount fiber
length distribution orientation
21
Composites
Fibers - variables amount fiber
length distribution orientation
Fiber orientation can be random aligned
intermediate
22
Composites
23
Composites
