LECTURE 5: REACTIVE AND HYBRID ARCHITECTURES

1

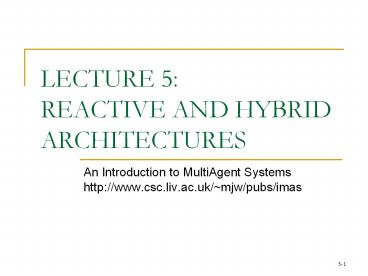

LECTURE 5 REACTIVE AND HYBRIDARCHITECTURES

• An Introduction to MultiAgent Systemshttp//www.c
  sc.liv.ac.uk/mjw/pubs/imas

2
Reactive Architectures

• There are many unsolved (some would say
  insoluble) problems associated with symbolic AI
• These problems have led some researchers to
  question the viability of the whole paradigm, and
  to the development of reactive architectures
• Although united by a belief that the assumptions
  underpinning mainstream AI are in some sense
  wrong, reactive agent researchers use many
  different techniques
• In this presentation, we start by reviewing the
  work of one of the most vocal critics of
  mainstream AI Rodney Brooks

3
Brooks behavior languages

• Brooks has put forward three theses
• Intelligent behavior can be generated without
  explicit representations of the kind that
  symbolic AI proposes
• Intelligent behavior can be generated without
  explicit abstract reasoning of the kind that
  symbolic AI proposes
• Intelligence is an emergent property of certain
  complex systems

4
Brooks behavior languages

• He identifies two key ideas that have informed
  his research
• Situatedness and embodiment Real intelligence
  is situated in the world, not in disembodied
  systems such as theorem provers or expert systems
• Intelligence and emergence Intelligent
  behavior arises as a result of an agents
  interaction with its environment. Also,
  intelligence is in the eye of the beholder it
  is not an innate, isolated property

5
Brooks behavior languages

• To illustrate his ideas, Brooks built some based
  on his subsumption architecture
• A subsumption architecture is a hierarchy of
  task-accomplishing behaviors
• Each behavior is a rather simple rule-like
  structure
• Each behavior competes with others to exercise
  control over the agent
• Lower layers represent more primitive kinds of
  behavior (such as avoiding obstacles), and have
  precedence over layers further up the hierarchy
• The resulting systems are, in terms of the amount
  of computation they do, extremely simple
• Some of the robots do tasks that would be
  impressive if they were accomplished by symbolic
  AI systems

6
A Traditional Decomposition of a Mobile Robot
Control System into Functional Modules
From Brooks, A Robust Layered Control System for
a Mobile Robot, 1985
7
A Decomposition of a Mobile Robot Control System
Based on Task Achieving Behaviors
From Brooks, A Robust Layered Control System for
a Mobile Robot, 1985
8
Layered Control in the Subsumption Architecture
From Brooks, A Robust Layered Control System for
a Mobile Robot, 1985
9
Example of a Module Avoid
From Brooks, A Robust Layered Control System for
a Mobile Robot, 1985
10
Schematic of a Module
From Brooks, A Robust Layered Control System for
a Mobile Robot, 1985
11
Levels 0, 1, and 2 Control Systems
From Brooks, A Robust Layered Control System for
a Mobile Robot, 1985
12
Steels Mars Explorer

• Steels Mars explorer system, using the
  subsumption architecture, achieves near-optimal
  cooperative performance in simulated rock
  gathering on Mars domainThe objective is to
  explore a distant planet, and in particular, to
  collect sample of a precious rock. The location
  of the samples is not known in advance, but it is
  known that they tend to be clustered.

13
Steels Mars Explorer Rules

• For individual (non-cooperative) agents, the
  lowest-level behavior, (and hence the behavior
  with the highest priority) is obstacle
  avoidance if detect an obstacle then change
  direction (1)
• Any samples carried by agents are dropped back at
  the mother-ship if carrying samples and at the
  base then drop samples (2)
• Agents carrying samples will return to the
  mother-ship if carrying samples and not at the
  base then travel up gradient (3)

14
Steels Mars Explorer Rules

• Agents will collect samples they find if detect
  a sample then pick sample up (4)
• An agent with nothing better to do will explore
  randomly if true then move randomly (5)

15
Situated Automata

• A sophisticated approach is that of Rosenschein
  and Kaelbling
• In their situated automata paradigm, an agent is
  specified in a rule-like (declarative) language,
  and this specification is then compiled down to a
  digital machine, which satisfies the declarative
  specification
• This digital machine can operate in a provable
  time bound
• Reasoning is done off line, at compile time,
  rather than online at run time

16
Situated Automata

• The logic used to specify an agent is essentially
  a modal logic of knowledge
• The technique depends upon the possibility of
  giving the worlds in possible worlds semantics a
  concrete interpretation in terms of the states of
  an automaton
• An agentx is said to carry the information
  that P in world state s, written s K(x,P), if
  for all world states in which x has the same
  value as it does in s, the proposition P is
  true. Kaelbling and Rosenschein, 1990

17
Situated Automata

• An agent is specified in terms of two components
  perception and action
• Two programs are then used to synthesize agents
• RULER is used to specify the perception component
  of an agent
• GAPPS is used to specify the action component

18
Circuit Model of a Finite-State Machine
f state update functions internal stateg
output function
From Rosenschein and Kaelbling,A Situated View
of Representation and Control, 1994
19
RULER Situated Automata

• RULER takes as its input three components
• A specification of the semantics of the
  agent's inputs (whenever bit 1 is on, it is
  raining) a set of static facts (whenever it is
  raining, the ground is wet) and a specification
  of the state transitions of the world (if the
  ground is wet, it stays wet until the sun comes
  out). The programmer then specifies the desired
  semantics for the output (if this bit is on, the
  ground is wet), and the compiler ...
  synthesizes a circuit whose output will have
  the correct semantics. ... All that declarative
  knowledge has been reduced to a very simple
  circuit. Kaelbling, 1991

20
GAPPS Situated Automata

• The GAPPS program takes as its input
• A set of goal reduction rules, (essentially rules
  that encode information about how goals can be
  achieved), and
• a top level goal
• Then it generates a program that can be
  translated into a digital circuit in order to
  realize the goal
• The generated circuit does not represent or
  manipulate symbolic expressions all symbolic
  manipulation is done at compile time

21
Circuit Model of a Finite-State Machine
GAPPS
RULER
The key lies in understanding how a process can
naturally mirror in its states subtle conditions
in its environment and how these mirroring states
ripple out to overt actions that eventually
achieve goals.
From Rosenschein and Kaelbling,A Situated View
of Representation and Control, 1994
22
Situated Automata

• The theoretical limitations of the approach are
  not well understood
• Compilation (with propositional specifications)
  is equivalent to an NP-complete problem
• The more expressive the agent specification
  language, the harder it is to compile it
• (There are some deep theoretical results which
  say that after a certain expressiveness, the
  compilation simply cant be done.)

23
Advantages of Reactive Agents

• Simplicity
• Economy
• Computational tractability
• Robustness against failure
• Elegance

24
Limitations of Reactive Agents

• Agents without environment models must have
  sufficient information available from local
  environment
• If decisions are based on local environment, how
  does it take into account non-local information
  (i.e., it has a short-term view)
• Difficult to make reactive agents that learn
• Since behavior emerges from component
  interactions plus environment, it is hard to see
  how to engineer specific agents (no principled
  methodology exists)
• It is hard to engineer agents with large numbers
  of behaviors (dynamics of interactions become too
  complex to understand)

25
Hybrid Architectures

• Many researchers have argued that neither a
  completely deliberative nor completely reactive
  approach is suitable for building agents
• They have suggested using hybrid systems, which
  attempt to marry classical and alternative
  approaches
• An obvious approach is to build an agent out of
  two (or more) subsystems
• a deliberative one, containing a symbolic world
  model, which develops plans and makes decisions
  in the way proposed by symbolic AI
• a reactive one, which is capable of reacting to
  events without complex reasoning

26
Hybrid Architectures

• Often, the reactive component is given some kind
  of precedence over the deliberative one
• This kind of structuring leads naturally to the
  idea of a layered architecture, of which
  TOURINGMACHINES and INTERRAP are examples
• In such an architecture, an agents control
  subsystems are arranged into a hierarchy, with
  higher layers dealing with information at
  increasing levels of abstraction

27
Hybrid Architectures

• A key problem in such architectures is what kind
  of control framework to embed the agents
  subsystems in, to manage the interactions between
  the various layers
• Horizontal layeringLayers are each directly
  connected to the sensory input and action
  output.In effect, each layer itself acts like an
  agent, producing suggestions as to what action to
  perform.
• Vertical layeringSensory input and action output
  are each dealt with by at most one layer each

28
Hybrid Architectures
m possible actions suggested by each layer, n
layers
m2(n-1) interactions
mn interactions
Not fault tolerant to layer failure
Introduces bottleneckin central control system
29
Ferguson TOURINGMACHINES

• The TOURINGMACHINES architecture consists of
  perception and action subsystems, which interface
  directly with the agents environment, and three
  control layers, embedded in a control framework,
  which mediates between the layers

30
Ferguson TOURINGMACHINES
31
Ferguson TOURINGMACHINES

• The reactive layer is implemented as a set of
  situation-action rules, a la subsumption
  architectureExamplerule-1 kerb-avoidance if
  is-in-front(Kerb, Observer) and speed(Observer
  ) gt 0 and separation(Kerb, Observer) lt
  KerbThreshHold then change-orientation(KerbAvoi
  danceAngle)
• The planning layer constructs plans and selects
  actions to execute in order to achieve the
  agents goals

32
Ferguson TOURINGMACHINES

• The modeling layer contains symbolic
  representations of the cognitive state of other
  entities in the agents environment
• The three layers communicate with each other and
  are embedded in a control framework, which use
  control rulesExamplecensor-rule-1 if entit
  y(obstacle-6) in perception-buffer then remove-
  sensory-record(layer-R, entity(obstacle-6))

33
Müller InteRRaP

• Vertically layered, two-pass architecture

cooperation layer
social knowledge
plan layer
planning knowledge
behavior layer
world model
world interface
perceptual input
action output
