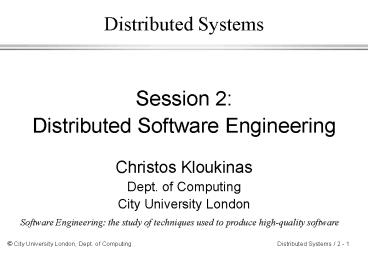

Distributed Systems

1
Distributed Systems

• Session 2
• Distributed Software Engineering
• Christos Kloukinas
• Dept. of Computing
• City University London

Software Engineering the study of techniques
used to produce high-quality software
2
Outline

• 0 LAST Session Summary additional material.
• 1 Motivation
• 2 The CORBA Object Model
• 3 The OMG Interface Definition Language (IDL)
• 4 Other Approaches
• 5 Summary

3
Summary Key Points of Lecture 1

• What is a Distributed System?
• Adoption of DS is driven by Non-Functional
  Requirements
• Distribution needs to be transparent to users and
  application designers
• Transparency has several dimensions
• Transparency dimensions depend on each other

4
Definition

• A distributed system consists of a collection of
  autonomous computers, connected through a network
  and distributed operating system software, which
  enables computers to coordinate their activities
  and to share the resources of the system, so that
  users perceive the system as a single, integrated
  computing facility.
• Certain common characteristics can be used to
  assess distributed systems Resource Sharing,
  Openness, Concurrency, Scalability, Fault
  Tolerance, and Transparency

5
Distributed System Types (Enslow 1978)
Fully Distributed
Control
Data
Autonomous fully cooperative
Local data, local directory
Autonomous transaction based
Not fully replicated master directory
Master-slave
Fully replicated
Homog. special purpose
Homog. general purpose
Processors
Heterog. special purpose
Heterog. general purpose
6
Dimensions Of Transparency
7
1.3 Model of a Distributed System
Component 1
Component n
..
Middleware
Component 1
Component n
..
Network Operating System
...
Middleware
Hardware
Network Operating System
Host n
Hardware
Host 1
Network
8
Middleware Examples

• Transaction-oriented
• IBM CICS
• BEA Tuxedo
• IBM Encina
• MS Transaction Server
• Message-oriented
• MS Message Queue
• NCR TopEnd
• IBM MQSeries
• Sun Tooltalk
• Sun JavaSpaces

• Procedural
• Sun ONC
• Linux RPCs
• OSF DCE
• Object-oriented
• OMG CORBA
• Sun Java/RMI
• Microsoft COM
• Sun Enterprise Java Beans

9
0.3 Client-Server Computing(OLeary 2000)

• A client is defined as a requester of services
• A server is defined as a provider of services
• A single machine can be both a client and a
  server depending on the software configuration

10
0.4 Client-Server (OLeary 2000)

• Processing can be improved because client and
  server share processing loads
• Client/server computing considers that the client
  has computing power that is not being used
• Fundamental idea is to break apart an application
  into components that can run on different
  platforms
• Thin vs. Fat Clients
• a thin client has most of the functionality with
  server
• a fat client has most of the functionality with
  the client.

11
0.5 Two tier architectures

• The user system interface is usually located in
  the user's desktop environment.
• Database management services are usually in a
  server that is a more powerful machine that
  services many clients.
• Processing management is split between the user
  system interface environment and the database
  management server environment.
• The database management server provides stored
  procedures and triggers.
• Good for LAN with work group users lt 100

12
0.6 Three-Tiered Architecture

• Three Tiered Architecture is an information model
  with distinct pieces -- client, applications
  services and data sources -- that can be
  distributed across a network.
• Client Tier -- The user component displays
  information, processes, graphics, communications,
  keyboard input and local applications.
• Applications Service Tier -- A set of sharable
  multitasking components that interact with
  clients and the data tier. It provides the
  controlled view of the underlying data sources.
• Data Source Tier -- One or more sources of data
  such as mainframes, servers, databases, data
  warehouses, legacy applications etc.

13
0.7 Examples of three tier architectures

• Three tier architecture with transaction
  processing monitor technology
• Three tier with message server
• Three tier with an application server
• Three tier with an ORB architecture( e.g CORBA)
• Distributed/collaborative enterprise
  architecture.

14
0.8 Three Tier Client/Server Object Style

Business Objects
DBMS
CORBA
IIOP
Lotus Notes
TP Monitors
Tier 1
Tier 3
Tier 2
View Objects
Legacy Applications
Server Objects
15
1 CORBA Motivation Overview

• Distributed Systems consist of multiple
  components.
• Components are heterogeneous.
• Components still have to be interoperable.
• There has to be a common model for components,
  which expresses
• component states,
• component services, and
• interaction of components with other components.

16
1.1 Example1 Java Object Model Java Language

• Object
• Runtime entity ? instance of class
• Interface
• declare a set of methods for a Java object
  without implementation
• Method Invocation
• primitive type passed by value
• object references passed by value

17
1.2 Ex 2 Distributed Object Model (Wolrath et al)

• Remote object
• object whose methods can be accessed from another
  address space
• Remote interface
• an interface that declares the methods of a
  remote object
• throws Remote Exception to deal with different
  failure models
• RMI
• non-remote object passed by value
• remote object passed by remote reference

18
1.3 CORBA Object Model OMG IDL

• Model describes components, states, interactions
  and other concepts
• OMG/IDL is a language for expressing all concepts
  of the CORBA object model.
• separation of interface from implementation
• Enables interoperability and transparency
• IDL compiles into client stubs and server
  skeletons
• Stubs and skeletons serve as proxies for clients
  and servers, respectively

19
1.4 CORBA
Client
CORBA Object Implementations
Client Stub
Server Skeleton
Request
Object Request Broker
CORBA Services
20
1.5 Example1 StockQuoter IDL Interface

• module Quoter
• //stock quoter server, some interface to query
  the prices of stock
• exception Invalid_Stock_Symbol
• interface Stock
• interface Stock_Factory
• Stock get_stock (in string stock_symbol) raises
  (Invalid_Stock_Symbol)
• interface Stock
• readonly attribute string symbol
• // Get the stock symbol.
• readonly attribute string full_name
• // Get the name.
• double price ()
• // Get the price

21
2.3 Example 2 ATM Controller
22
Teller Controller IDL Definition

• interface ATM
• interface TellerCtrl
• typedef sequenceltATMgt ATMList
• exception InvalidPIN
• exception NotEnoughMoneyInAccount ...
• readonly attribute ATMList ATMs
• readonly attribute BankList banks
• void accept_request(in Requester req,
• in short amount)
• raises(InvalidPIN,NotEnoughMoneyInAccount)

23
2 The CORBA Object Model

• Components ??objects.
• Component state ? object attributes.
• Usable component services ? object operations.
• Component interactions ? operation execution
  requests.
• Component service failures ? exceptions.

24
3 The OMG Interface Definition Language

• OMG/IDL is a language for expressing all concepts
  of the CORBA object model.
• IDL is a 'contractual' language that lets you
  specify a component's (object's) boundaries and
  its interfaces with potential clients
• CORBA IDL is language neutral and totally
  declarative, i.e., it does not define
  implementations details
• Provides operating system and programming
  language independent interfaces to all services
  and objects that reside on the CORBA bus.
• Different programming language bindings are
  available. (Well work with Java)

25
2.1 Types of Distributed Objects

• Attributes and operations and exceptions are
  properties defined in object types.
• Object types are those properties that are shared
  by similar objects. Only their identity and
  values of their attributes differ.
• Objects may export these properties to other
  objects.
• Objects are instances of types.
• Object types are specified through interfaces
  that determine the operations that clients can
  request, that is, they define a contract that
  binds the interaction between client and sever
  objects.

26
3.1 Types

• A type is one of the following
• Atomic types
• (void, boolean, short, long, float, char,
  string),
• Object types (interface),
• Constructed types
• Records (struct),
• Variants (union), and
• Lists (sequence), or
• Named types aliases (typedef).

27
3.1 Types (Examples)

• struct Requester
• int PIN
• string AccountNo
• string Bank
• typedef sequenceltATMgt ATMList

28
2.2 Attributes

• Attributes have a (unique) name and a type
• Type can be an object type or a non-object type
  (e.g., Boolean values, characters or numbers).
• Attributes are readable by other components
• Attributes may or may not be modifiable by other
  components (readonly).
• Attributes correspond to one or two operations
  (get/set).
• Attributes are declared within an interface.
• Attribute name must be unique within interface.

29
2.2 Attributes (Examples)

• readonly attribute ATMList ATMs
• readonly attribute BankList banks

readonly attribute string symbol readonly
attribute string full_name
30
2.3 Operations

• Operations modify the state of an object or just
  compute functions
• Used for service requests
• Operations have a signature that consists of
• a name,
• a list of in, out, or inout parameters,
• a return value type (result) or void if none, and
• a list of exceptions that the operation can raise.

31
2.3 Operations (Examples)

• void accept_request(in Requester req,
• in short amount)
• raises(InvalidPIN,
• NotEnoughMoneyInAccount)
• short money_in_dispenser(in ATM dispenser)
• raises(InvalidATM)

32
2.4 Operation Execution Requests

• A client object can request an operation
  execution from a server object.
• Operation request is expressed by sending a
  message (operation name) to server object.
• Conceptually, an object request is a triple
  consisting of an object reference, the name of an
  operation and a list of actual parameters.
• Parameters are marshaled (packaged and
  transmitted, e.g., serialisation )
• Client have to react to exceptions that the
  operation may raise.

33
2.5 Exceptions

• Service requests may not be executed properly.
• Exceptions have a unique name.
• Exceptions may declare additional data
  structures.
• Exceptions are used to explain (and locate) the
  reason of failure to the requester of the
  operation
• Operation execution failures may be
• generic (system), raised by the middleware, e.g.,
  an unreachable server object or
• specific, raised by the server object, when the
  execution of a request would violate the objects
  integrity, e.g., not enough money in a bank
  account.

34
2.5 Exceptions cont

• Specific Failures may be explained by specific
  exceptions
• Example

• exception InvalidPIN
• exception InvalidATM
• exception NotEnoughMoneyInAccount
• short available

35
3.5 Interfaces

• In distributed systems, services are
  syntactically specified through interfaces that
  capture the names of the functions available
  together with types of the parameters, return
  values, possible exceptions, etc.
• There is no legal way a process can access or
  manipulate the state of an object other than
  invoking methods made available to it through an
  objects interface.

36
3.5 Interfaces

• Attributes, exceptions and operations are defined
  in interfaces.
• Interfaces have an identifier, which denotes the
  object type associated with the interface.
• Interfaces must be declared before they can be
  used.
• Interfaces can be declared in a forward manner

37
3.5 Interfaces (Example)

• interface ATM / forward declaration! /
• interface TellerCtrl
• typedef sequenceltATMgt ATMList
• exception InvalidATM exception InvalidPIN
• exception NotEnoughMoneyInAccount
• short
  available
• readonly attribute ATMList ATMs
• readonly attribute BankList banks
• void accept_request(in Requester req,
• in short amount)
• raises(InvalidPIN,NotEnoughMoneyInAccount)

38
3.6 Modules

• A single global name space for all identifiers is
  unreasonable.
• IDL includes Modules to restrict visibility of
  identifiers.
• Access to identifiers from other modules by
  qualification with module identifier
• moduleNameidentifierName

39
3.6 Modules (Example)

• module Bank
• interface AccountDB
• module ATMNetwork
• typedef sequenceltBankAccountDBgt BankList
• exception InvalidPIN
• interface ATM
• interface TellerCtrl ...

40
2.6 Sub-typing/Inheritance

• Object types are organised in a type hierarchy.
• Subtypes inherit attributes, exceptions and
  operations from their supertypes.
• Subtypes can add more specific properties.
• Subtypes can redefine inherited properties.
• Advantages
• Reuse
• Changes are easier to manage
• Abstraction makes designing DS elegant and easier
  to understand
• Enables polymorphism (an attribute or parameter
  can refer to instances of different types).

41
3.7 Inheritance

• Notation to define object type hierarchy.
• Type hierarchy has to form an acyclic graph.
• Type hierarchy graph has one root called
  (Object).
• Subtypes inherit the attributes, exceptions and
  operations of all super-types.

42
3.7 Inheritance (Examples)

• interface Controllee
• interface Ctrl
• typedef sequenceltControlleegt CtrleeList
• readonly attribute CtrleeList controls
• void add(in Controllee new_controllee)
• void discard(in Controllee old_controllee)
• interface ATM Controllee ...
• interface TellerCtrl Ctrl ...

43
3.7 Multiple Inheritance

• An object type can inherit from more than one
  super-type.
• May cause name clashes if different super-types
  export the same identifier.
• Example
• interface Set
• void add(in Element new_elem)
• interface TellerCtrlSet, Ctrl ...
• Name clashes are not allowed!

44
3.8 Redefinition

• Behaviour of an operation as defined in a
  super-type may not be appropriate for a subtype.
• Operation can be re-defined in the subtype.
• Binding messages to operations is dynamic.
• Operation signature must not be changed.
• Operations in (abstract) super-types are not
  implemented.

45
3.8 Redefinition (Example)

• interface Ctrl
• void add(in Controllee new_controllee)
• interface TellerCtrl Ctrl
• void add(in ATM new_controllee)
• TellerCtrl cannot redefine adds interface only
  its behaviour!
• It cannot overload it either!

46
3.9 Polymorphism

• Objects can be assigned to an attribute or passed
  as a parameter, even though they are instances of
  subtypes of the attributes/parameters
  respective type.
• Attributes, parameters and operations are
  polymorph.
• Example
• Using Polymorphism, instances of type ATM can be
  inserted into attribute controls that Ctrl has
  inherited from Ctrl.

47
2.7 Problems of the Model

• Interactions between components are not defined
  in the model.
• No concept for abstract or deferred types.
• Model does not include primitives for the
  behavioural specification of operations.
• Semantics of the model is only defined informally.

48
4 Other Approaches (D)COM

• (D)COM is Microsofts Distributed Component
  Object Model (http//microsoft.com/com/).
• Evolved from OLE/COM.
• Weaker than CORBA object model since it
• does not support inheritance,
• does not have a strong type system and
• does not support exceptions.

49
4. Other Approaches Darwin

• Experimental language developed at Imperial
  College
• http//www-dse.doc.ic.ac.uk/Research/Darwin
• Supports dynamic configuration of distributed
  components.
• Graphical and textual notation.
• Components provide and require services.
• Primitive for binding service requester to
  service provider.
• Formal semantics based on Milners ?-calculus.

50
5 Summary

• Client-Server vs n-Tier Architecture
• Why do we need a component model?
• What are the primitives of the CORBA object
  model?
• What is OMG/IDL?
• What are the strengths and weaknesses of the
  CORBA approach?

51
EXTRA MATERIAL

• (Not to be examined)

52
0.2 Further ExamplesComputational Grids

• Inspired by the electrical power grids
  pervasiveness, reliability and easy to use,
  computer scientists in the mid-90s began
  exploring the design and development of an
  analogous infrastructure called the computational
  power Grid

53
Vision

• To build an environment that enables
• sharing,
• selection,
• aggregation of a wide variety of
• geographically distributed resources including
• supercomputers,
• storage systems, data sources, and
• specialised devices owned by different
  organisations for solving large-scale resource
  intensive problems in science, engineering, and
  commerce (Buyya, 2002).

54
0.2 Computational Grid

• Motivation Small computing resources such as PCs
  have the potential to provide vast computing
  power when connected. And yet
• Many of these resources lie idle most of the
  time. Millions of online-PCs are only involved in
  tasks like word processing or browsing the
  Internet. The computing resources of many
  organisations are often severely under-utilised,
  specially outside of peak business hours.
• At the same time, there are many individuals and
  organisations that have intensive computations to
  perform but only have limited access to resources
  that are available to execute them.

55
Possible exploitation (Source IBM)

• Analyze the value of an investment portfolio in
  minutes rather than hours?
• Unite research teams with others around the world
  to take advantage of the most up-to-date
  knowledge?
• Significantly accelerate the drug discovery
  process?
• Scale your business to meet cyclical demand?
• Cut the design time of your products in half
  while reducing the instances of defects?
• Source http//www-1.ibm.com/grid/about_grid/index
  .shtml

56
Online Access to Scientific Instruments
Advanced Photon Source
wide-area dissemination
desktop VR clients with shared controls
real-time collection
archival storage
tomographic reconstruction
DOE X-ray grand challenge ANL, USC/ISI, NIST,
U.Chicago
57
Data Grids forHigh Energy Physics
Image courtesy Harvey Newman, Caltech
58
Network for EarthquakeEngineering Simulation

• NEESgrid national infrastructure to couple
  earthquake engineers with experimental
  facilities, databases, computers, each other
• On-demand access to experiments, data streams,
  computing, archives, collaboration

NEESgrid Argonne, Michigan, NCSA, UIUC, USC
59
Home ComputersEvaluate AIDS Drugs

• Community
• 1000s of home computer users
• Philanthropic computing vendor (Entropia)
• Research group (Scripps)
• Common goal advance AIDS research

60
Computational Grids Resourses

• Global Grid Forum (http//www.gridforum.org/)
  community-initiated forum of 5000 individual
  researchers and practitioners working on
  distributed computing, or "grid" technologies
• GridComputing (http//www.gridcomputing.com/)
• myGrid (http//www.mygrid.org.uk/), an EPSRC
  project
• Platforms
• Globus (http//www.globus.org/)
• Unicore (http//www.unicore.org/)
• Load Sharing Facility (http//www.platform.com/)
