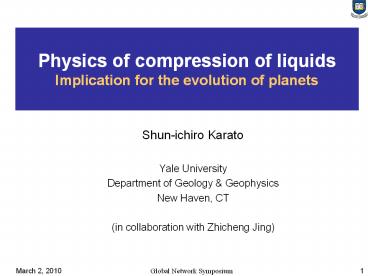

Physics of compression of liquids Implication for the evolution of planets

1
Physics of compression of liquidsImplication for
the evolution of planets

• Shun-ichiro Karato
• Yale University
• Department of Geology Geophysics
• New Haven, CT
• (in collaboration with Zhicheng Jing)

2
Outline

• Geological motivation
• How does a molten layer in a terrestrial planet
  evolve?
• Physics of compression of melts
• (bulk modulus, Grüneisen parameter)
• How is a liquid compressed?
• Compression behavior of non-metallic liquids is
  totally different from that of solids.
  Bottinga-Weill model does not work for
  compression of silicate liquids.
• Compression behavior of metallic liquids is
  similar to that of solids.
• The Birchs law is totally violated for
  non-metallic liquids but is (approximately)
  satisfied for solids and metallic liquids.
• --gt A new model is developed for non-metallic
  liquids.

3
Motivation-I

• Melts are more compressible than solids --gt
  density cross-over
• Why is a melt so compressible?
• Could a melt compressible even if its density
  approaches that of solid?

density
Stolper et al. (1981)
4
Motivation - II
How does a molten layer in a planet evolve?
5

• Grüneisen parameter ???controls
• dTad/dz and dTm/dz

6
Liquid-solid comparison bulk modulus
7
metallic liquids
Liquid-solid comparison Grüneisen parameter
solids
non-metallic liquids
Boehler and Kennedy (1977), Boehler (1983)
8
melt (peridotite) solid (perovskite)
K30 GPa
K260 GPa

• Thermal expansion in a melt is large.
• Thermal expansion in a melt does not change with
  pressure (density) so much, although thermal
  expansion in solids decreases significantly with
  pressure.

9
SiO2 Karki et al. (2007)

• Densification of a (silicate, oxide) liquid
  occurs mostly
• not by the change in cation-oxygen bond length
• partly by the change in oxygen-oxygen distance
• mostly by something else

10
Liquids versus solids

• (non-metallic) liquids are more compressible
  than solids.
• the bulk moduli of non-metallic liquids do not
  vary so much among various melts (30 GPa).
• the thermal expansion of liquids is larger than
  solids and does not change with pressure
  (density) so much.
• the Grüneisen parameters of (non-metallic)
  liquids increase with pressure (density) while
  they decrease with compression in solids.
• the bulk moduli of glasses are similar to those
  of solids (at the glass transition), but much
  larger than those of liquids.
• bond-length in (silicate) liquids does not
  change much upon compression.
• --gt compression mechanisms of (non-metallic)
  liquids are completely different from those of
  solids.

11
Explanation of ???? relationship
12
Entropy elasticity
For an ordered solid, the first term dominates (
small contribution from the second part
(vibrational entropy)) -gt compression behavior
is controlled by inter-atomic bonds, i.e.,
control by the bond-length Birchs law. For a
gas, (a complex) liquid the second term
dominates. Entropy elasticity --gt the Birchs
law does not apply.
13
a hard sphere model

• Each solid-like element does not change its
  volume hard sphere model
• These elements (molecules) move only in the space
  that is not occupied by other molecules
  excluded volume
• Compression is due to the change in molecular
  configuration, not much due to the change in the
  bond length

14
Consequence of Sconfig model of EOS(scaled
particle theory excluded volume effect)
(f packing fraction)
15

• small KT (10-30 GPa)
• small ?T (large intrinsic T-derivative)
• positive density dependence of the Grüneisen
  parameter

16
An extension to a multi-component system (MgO,
CaO, SiO2, Al2O3, FeO Na2O, K2O)
Bottinga-Weill model A hard sphere
model (Stixrude et al., 2005)
17

• The Bottinga-Weill model (solid mixture model)
• does not work---gt what should we do?
• a silicate melt oxygen sea cations
• (van der Waals model of a complex liquid
  Chandler (1983))
• assign a hard sphere diameter for each cation
• determine the hard sphere diameter for each
  cation from the experimental data on EOS of
  various melts
• predict EOS of any melts
• modifications 1. Coulombic interaction, 2.
  Volume dependence of the sphere for Si, 3.
  T-dependence of a sphere radius
• compositional effect is mainly through the mass
  (?m)

18
Jing and Karato (2009)
19
Jing and Karato (2010)
20
Some exceptions

• Metals behave differently.
• Little difference between solids and liquids
• lt--cohesive energy of a metal is made of free
  electrons screened atomic potential
  (pseudo-potential)
• --gt influence of atomic disorder is small

Ziman (1961)
21
For metals ??solid?????liquid --gtsolidification
from below For silicates ??solid??? ??liquid,
??liquid becomes large in the deep interior Tad
increases more rapidly with P than Tm. --gt
Solidification from shallow (or middle)
mantle.
22
Conclusions

• Evolution of a molten layer in a planet is
  controlled largely by the behavior of the bulk
  modulus and the Grüneisen parameter.
• The bulk moduli of silicate liquids are lower
  than those fo solids ad assume a narrow range.
• The dependence of the Grüneisen parameter of
  liquids on density (pressure) is different from
  that of solids.
• In non-metallic liquids, the Grüneisen parameter
  increases with compression.
• In metallic liquids, the Grüneisen parameter
  decreases with compression.
• Changes in configuration (geometrical
  arrangement, configurational entropy) make an
  important contribution to the compression of a
  (complex) liquid such as a silicate melt.
• A new equation of state of silicate melts is
  developed based on the (modified) hard sphere
  model.
• In metallic liquids, the change in free energy
  upon compression is dominated by that of free
  electrons, and consequently, the behavior of
  metallic liquids is similar to that of metallic
  solids.

23
Stixrude-Karki (2007)

• liquid mixture of solid-like components
• (Bottinga-Weill model)

24
Problems with a conventional approach

• Bond-lengths in liquid do not change with
  compression as much as expected from the volume
  change
• Bulk moduli for individual oxide components in a
  liquid are very different from those of
  corresponding solids, and they take a narrow
  range of values
• Grüneisen parameters of most of liquids increase
  with compression whereas those for solids
  decrease with compression.
• --gt fundamental differences in compression
  mechanisms

25
Liquids versus glasses

• Glasses and solids follow the Birchs law.
• Liquids do not follow the Birchs law.
• Small K for a liquid is NOT due to small density.

26
(No Transcript)
27
How to formulate an equation of state for a
multi-component system?

• Bottinga-Weill model
  does not work---gt what should we do?
• majority of silicate melt (MgO, FeO, CaO, Al2O3,
  SiO2) hard sphere model works, compositional
  effect is mainly through (mass) ?m

28
(a) (b)
solid (or Bottinga-Weill model)
(oxide) liquid

1. Compression of a mineral (solid) can be described
   by the superposition of compression of individual
   components (a polyhedra model).
2. Compression of a silicate melt is mostly
   attributed to the geometrical rearrangement using
   a free volume. Individual components do not
   change their volume much. -gt compression of a
   silicate melt cannot be described by the sum of
   compression of individual components.

29
Assign the size of individual hard sphere
components MgO, SiO2, Al2O3 ---- Determine the
size based on the existing data Use these sizes
to calculate the density at higher P (T)
30
