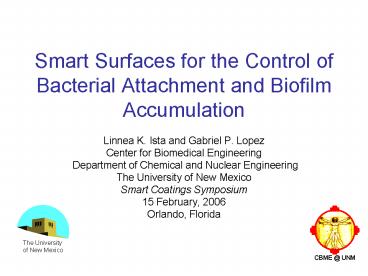

Smart Surfaces for the Control of Bacterial Attachment and Biofilm Accumulation

1
Smart Surfaces for the Control of Bacterial
Attachment and Biofilm Accumulation

• Linnea K. Ista and Gabriel P. Lopez
• Center for Biomedical Engineering
• Department of Chemical and Nuclear Engineering
• The University of New Mexico
• Smart Coatings Symposium
• 15 February, 2006
• Orlando, Florida

The University of New Mexico
2
Bacterial attachment and biofilm formation

• The accumulation of bacteria, bacterial
  metabolites and small organics on a surface
• Specialized ecological niche
• Separate developmental form of bacteria
• Resistant to antimicrobial agents, desiccation,
• Increased nutritional concentration
• Increased genetic exchange

OToole et al, Annu. Rev. Microbiol. 2000,
5949-79
3
Why do we want to control biofilm
formation/bacterial adhesion?

• To promote adhesion
• Antibiotic production
• Fermentation
• Bioremediation
• Biosensing applications

• To deter adhesion
• Medical implants
• Ship hulls/oil platforms
• Environmental systems
• Non specific adsorption in assays

• To enable reversible attachment and detachment
• Preconcentration
• Fundamental studies of biofilm development

4
How can we control biofilm formation/bacterial
adhesion?
Surfaces that resist bacterial attachment
Ista, et al, FEMS Microbiol. Lett. 1996.
14959-63
5
How can we control biofilm formation/bacterial
adhesion?
Surfaces that resist bacterial attachment
Surfaces with biocidal activity
6
How can we control biofilm formation/bacterial
adhesion?
Surfaces that resist bacterial attachment
Surfaces with biocidal activity
Fouling release surfaces
Ista and Lopez, J. Industr. Microbiol.
Biotechnol, 1998. 20121-125
7
Smart polymers as fouling release surfaces
Exploit interfacial phase transitions for fouling
release
Poly (N-isopropylacrylamide) PNIPAAM Solubility
phase transition 32oC
8
Smart polymers as fouling release surfaces
Exploit interfacial phase transitions for fouling
release
Poly(N-isopropylacrylamide) PNIPAAM Solubility
phase transition 32oC
9
Attachment/detachment studies
Sample
Samples incubated in bacterial suspension at
incubation temperature (2-72 hr)
Sample rinsed with deionized H2O at incubation
temperature
Count number of attached cells 60x, phase
contrast
Rinse with 60 mL release temperature buffer,
followed by a rinse in deionized H2O
Count number of attached cells 60x, phase
contrast
10
What happened?
Cobetia marina (formerly Halomonas marina) ATCC
25374

• Gram negative
• Obligately aerobic
• Marine source -Pacific
• Motile by gliding (mostly) or flagella

Ista, et al, Appl. Eviron. Microbiol 1999.
651603-1609
Incubation temp. 37OC release 4oC
11
What happened?
Staphylococcus epidermidis ATCC 14990
No release upon transition when attached at 37oC
and rinsed at 4oC!

• Gram positive
• Facultative anaerobe
• Skin bacteria- medically relevant
• Non motile

12
Why? Attachment to SAMs

• Self Assembled Monolayers of ?-substituted
  alkanethiolates on gold
• Well ordered surface
• Can express a single or multiple moieties on the
  surface
• Can do chemical modification on the surface
• Gold can be made any thickness, allowing for a
  variety of analytical techniques

13
Why? Attachment to SAMs
C. marina
S. epidermidis
14
Changing attachment/detachment temperature regime
results in removal of S. epidermidis
S. epdermidis Incubation at 25oC 72 hours
S. epidermidis After rinsing with 37oC PBS
15
Both newly attached cells and biofilms can be
released using this method
C. marina attach at 37oC Release at 4oC
S. epidermidis attach at 25oC release at 37oC
16
Exploring the effects of changing
physicochemistry on fouling release using PNIPAAM
grafted from SAMs
Ista, et al, Langmuir, 2001 652552-2555
17
Exploring the effects of changing hydrophobicity
on fouling release using PNIPAAM grafted from SAMs
Atom transfer radical polymerization
(Balamurguran, et al. Langmuir, 2003, 192545-2549
R-Br Cu(I)BrL

• Advantages of ATRP
• Free radical is formed only at the surface
  eliminating undesired reactions caused by
  solution free radicals
• Surface coverage can be varied by altering the
  surface mole of OH-terminated thiolate in the
  SAM
• Length of polymer can be controlled by time of
  polymerization.
• Room temperature polymerization
• Slow reaction results in increased monodispersity

18
Changing hydrophobicity by changing the comonomer
Copolymerization with tert-butyl acrylamide
results in surfaces on which the overall
hydrophobicity is higher.
Change in ?Aw PNIPAAM 60o to 42o P 21 78o to
63o P 14 81o to 60o
With Drs. Sreelatha and Subramanian Balamurugaran
19
C. marina attach 37oC release 4OC
Changes in temperature result in different
attachment and detachment behavior
C. marina attach 25oC release 4OC
20
Using tunable PNIPAAM to examine effect of
changing hydrophobicity
Mendez, et al, Langmuir, 2003. 198115-8116
21
Attachment to tunable PNIPAAM
S. epidermidis attach 25oC
C. marina attach 37oC
With Dr. Sergio Mendez
22
Release from tunable PNIPAAM
S. epidermidis attach 25oC Release 37oC
C. marina attach 37oC release 4OC
23
Toward practical coatingssilica/smart polymer
composites
PNIPAAM
Silica network
With Dr. V.G. Rama Rao
24
Smart polymer-silica composites both resist
attachment and promote release
C. marina Attach 2 hr 37oC release 4oC
25
Mixed oligo(ethylene glycol)/ methyl terminated
sams a new smart material for biofilm release?
Prime and Whitesides, J. Amer. Chem. Soc. 1993,
115 10714- 10721
26
Balamurugaran, et al, J. Amer. Chem Soc. 2005.
12714548-14549
C. marina Attach 2 hr 37oC release 4oC
27
Acknowledgements

• Sergio Mendez, Sreelatha Balamurugaran,
  Subramanian Balamurugaran, G.V. Rama Rao
• Robin Simons
• Office of Naval Research
• Sandia National Labs

28
Thank you!
Any questions?
