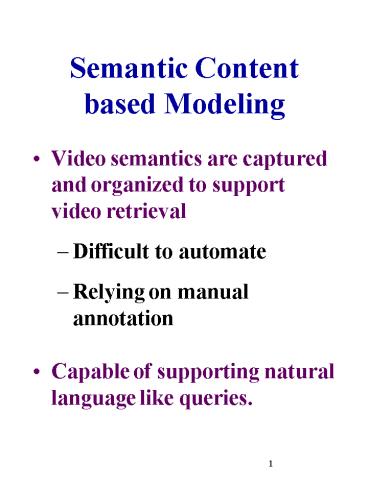

Semantic Content based Modeling

1
Semantic Content based Modeling

• Video semantics are captured and organized to
  support video retrieval
• Difficult to automate
• Relying on manual annotation
• Capable of supporting natural language like
  queries.

2
Video Content Extraction

• Other forms of information extraction can be
  employed

• Close-captioned text
• Speech recognition
• Descriptive information from screenplay
• Key frames that characterize a shot

• These content information can be associated with
  the video story units.

3
Existing Semantic-Level Models

• Segmentation-based Models
• Stratification-based Models
• Temporal Coherent Models

4
Segmentation-based Modeling

• A video stream is segmented into temporally
  continuous segments
• Each segment is associated with a description
  which could be natural text, keywords, or other
  kinds of annotation.
• Disadvantages
• Lack of flexibility
• Limited in representing semantics

Lack of flexibility Limited capability of
representing semantics
5
Stratification-based Modeling
70
0
5
15
20
30
35
60
85
90
We partition the contextual information into
single events. Each event is associated with a
video segment called a stratum. Strata can
overlap or encompass each other.
6
Temporal Coherent

• Each event is associated with a set of video
  segments where it happens.
• More flexible in structuring video semantics.

More flexible in structuring video semantics
7
Stratum
The concept of stratification can be used to
assign descriptions to video footage. - Each
stratum refers to a sequence of video
frames. - The strata may overlap or totally
encompass each other.
Car wreck rescue mission
Medics
Victim
In ambulance
In stretcher
Pulled free
Siren
Ambulance
Video Frames
Advantage Allowing easy retrieval by keyword
8
Video Algebra

• Goal To provide a high-level abstraction that
• models complex information associated with
  digital video data and
• supports content-based access
• Strategy
• The algebraic video data model consists of
  hierarchical compositions of video expressions
  with high-level semantic descriptions
• The video expressions are constructed using video
  algebra operations

9
Presentation

• In the algebraic video data model, the
  fundamental entity is a presentation.
• A presentation is a multiwindow spatial,
  temporal,
• and content combination of video segments.
• Presentations are described by video
  expressions.
• - The most primitive video expression creates a
  single-window presentation from a raw video
  segment.
• - Compound video expression are constructed from
  simpler ones using video algebra operations.

a compound video expression
video expression
a primitive video expression
an algebraic video node
video expression
video expression
video expression
raw video
raw video
Note An algebraic video node provides a means of
abstraction by which video expressions can be
named, stored, and manipulated as units.
10
Video Algebra Operations

• The video algebra operations fall into four
  categories
• 1. Creation defines the construction of
  video expressions from raw video.
• 2. Composition defines temporal relationships
  between component video expressions.
• 3. Output defines spatial layout and audio
  output for component video expressions.
• 4. Description associates content attributes
  with a video expression.

11
Composition
The composition operations can be combined
to produce complex scheduling definitions and
constraints.
create a video presentation raw
video segment
C1 create Cnn.HeadlineNews.rv 10 30 C2
create Cnn.HeadlineNews.rv 20 40 C3 create
Cnn.HeadlineNews.rv 32 65 D1 (description
C1 Anchor speaking) D2 (description C2
Professor Smith) D3 (description C3 Economic
reform)
D3 follows D2 which follows D1, and common
footages are not repeated. (It creates a
non-redundant video stream from three overlapping
segments.)
C1
C2
C3
Anchor speaking
Professor Smith
Economic reform
12
Composition Operators (1)

• E1 ? E2 defines the presentation where E2
  follows E1
• E1 È E2 defines the presentation where E2
  follows E1 and common footage is not repeated.
• E1 Ç E2 defines the presentation where only
  common footage of E1 and E2 is played.
• E1 - E2 defines the presentation where only
  footage of E1 that is not in E2 is played.
• E1 E2 E1 and E2 are played concurrently and
  terminate simultaneously.
• (test) ? E1E2...En Ei is played if test
  evaluates to i.
• loop E1 time defines a repetition of E1 for a
  duration of time
• stretch E1 factor sets the duration of the
  presentation equal to factor times duration of E1
  by changing the playback speed of the video
  segment.
• limit E1 time sets the duration of the
  presentation equal to the minimum of time and the
  duration of E1, but the playback speed is not
  changed.

13
Composition Operators (2)

• transition E1 E2 type time defines type
  transition effect between E1 and E2 time defines
  the duration of the transition effect
• The transition type is one of a set of
  transition effects, such as dissolve, fade, and
  wipe.
• contains E1 query defines the presentation that
  contains component expressions of E1 that match
  query.
• A query is a Boolean combination of attributes
• Example text smith and text question

14
Descriptions

• description E1 content specifies that E1 is
  described by content.
• a content is a Boolean combination of attributes
  that consists of a field name and a value.
• some field names have predefined semantics (e.g.,
  title), while other fields are user-definable.
• values can assume a variety of types, including
  strings and video node names.
• field names or values do not have to be unique
  within a description.
• hide-content E1 defines a presentation that
  hides the content of E1 (i.e.., E1 does not
  contain any description).
• This operation provides a method for creating
  abstraction barriers for content-based access.

Example title CNN Headline News
15
Output Characteristics

• Video expressions include output characteristics
  that specify the screen layout and audio output
  for playing back children streams.
• Since expressions can be nested, the spatial
  layout of any particular video expression is
  defined relative to the parent rectangle.
• window E1 (X1 , Y1 ) - (X2 , Y2 ) priority
• specifies that E1 will be displayed with
  priority in the window defined by the top-left
  corner (X1 , Y1) and the bottom-right corner (X2
  , Y2) such that Xi Î 0, 1 and Yi Î 0, 1.
• Window priorities are used to resolve overlap
  conflicts of screen display.
• audio E1 channel force priority
• specifies that the audio of E1 will be output to
  channel with priority if force is true, then the
  audio operation overrides any channel
  specifications of the component video expressions.

16
Output Characteristics An example

• C1 create MavericksvsBulls.rv 300 500
• P1 window C1 (0, 0) - (0.5, 0.5) 10
• P2 window C1 (0, 0.5) - (0.5, 1) 20
• P3 window C1 (0.5, 0.5) - (1, 1) 30
• P4 window C1 (0.5, 0) - (1, 0.5) 40
• P5 (P1 P2 P4)
• P6 (P1 P2 P3 P4)
• (P5
• (window
• (P5 (window P6 (0.5, 0.5) - (1, 1)
  60))
• (0.5, 0.5) - (1, 1) 50))

larger means
higher priority
bottom-right
top-left
0
P1
P4
P1
P4
P2
P1
P4
P2
P2
P3
17
Scope of a video node description

• The scope of a given algebraic video node
  description is the subgraph that originates from
  the node.
• The components of a video expression inherit
  descriptions by context.
• All the content attributes associated with some
  parent video nodes are also associated with all
  its descendant nodes.

18
Content-Based Access

• Search query Search a collection of video nodes
  for video expressions that match query.
• Strategy Matching a query to the attributes of
  an expression must take into account all of
  the attributes of that expression including the
  attributes of its encompassing expressions.
• Example search text smith AND text question

Smith on economic reform
?
This is the result of the query
Smith
Anchor
O
Question from audience
O
This node also satisfies the query but is not
returned because its a descendant of a node
already in the result set.
Question
Raw video
19
Browsing and Navigation

• Playback presentation
• Plays back the video expression. It enables the
  user to view the presentation defined by the
  expressions.
• Display video-expression
• Display the video expression. It allows the user
  to inspect the video expression.
• Get-parent video-expression
• Returns the set of nodes that directly point to
  video-expression.
• Get-children video expression
• Returns the set of nodes that video- expressions
  directly points to.

20
Algebraic Video System Prototype

• The Algebraic Video System is a prototype
  implementation of the algebraic video data model
  and its associated operations.
• The implementation is build on top of three
  existing subsystems
• The VuSystem is used for managing raw video data
  and for its support of Tcl (Tool command
  language) programming. It provides an environment
  for recording, processing, and playing video.
• The Semantic File System is used as a storage
  subsystem with content-based access to data for
  indexing and retrieving files that represent
  algebraic video nodes.
• The WWW server provides a graphical interface to
  the system that includes facilities for querying,
  navigating, video editing and composing, and
  invoking the video player.

21
Multimedia Objects in Relational Databases

• The most straightforward and fundamental support
  of multimedia data types in a RDBMS is the
  ability to declare variable-length fields in the
  tables.
• Some of the names of variable-length bit or
  character string used in commercial products
  include
• VARCHAR
• BLOB
• TEXT
• IMAGE
• CHARACTER VARYING / SQL92 /
• VARGRAPHIC
• LONG RAW
• BYTE VARYING
• BIT VARYING / SQL92 /
• Some systems have maximal variable-length field
  as small as 256 bytes. Other systems allow field
  values as large as 2 GBytes.

22
BLOBs in InterBase

• InterBase stores BLOBs in collections of
  segments. A segment in InterBase can be thought
  of as a fixed-length page or I/O block.
• InterBase provides special API calls to retrieve
  and modify the segments.
• open-BLOB opens the BLOB for
  reading
• get-segment reads the next segment
• create-BLOB opens the BLOB for writes
  or updates
• put-segment saves the changes to the
  BLOB
• Users can specify the length of each segment.

23
IMAGE TEXT in Sybases SQL Server

• TEXT and IMAGE data types are supported in
  Sybases TransactSQL, which is an enhanced
  version of the SQL standard.
• TEXT and IMAGE data types can be as large as 2
  GBytes.
• Internally, TEXT and IMAGE column values contain
  pointers to the first page of a linked list of
  pages.
• Some of the functions supported
• PATINDEX(pattern, column) returns the
  starting position of the first occurrence of the
  pattern in the column.
• TEXTPTR(column) returns a pointer to the
  variable length field.

24
OODBs and Multimedia Applications

• Object-oriented databases are more suitable for
  multimedia application development.
• Better complex object support By their nature,
  many multimedia database applications, such as
  compound documents, need complex object support.
• Extensibility and ability to add new types
  (classes) Users can add new types and extend
  the existing class hierarchies to address the
  specific needs of the multimedia application.
• Better concurrency control and transaction model
  support Transaction concepts such as long
  transactions and nested transactions are
  important for multimedia applications.

25
Multimedia Data Types in UniSQL/X

• UniSQL/X supports a class hierarchy rooted at
  generalized large object (GLO) class.
• GLO class serves as the root of multimedia data
  type classes and provides a number of built-in
  attributes and methods.
• For the content of GLO objects the user can
  create either a Large Object (LO) or a File Based
  Object (FBO).
• LOs can only be accessed through UniSQL/X.
• FBOs are stored in the host file system. The
  database stores a reference or a path for each
  FBO.
• In addition to the base class GLO, UniSQL/X
  supports subclasses of GLO for specific
  multimedia data types
• Audio class
• Image class

26
Programming Multimedia Applications

• An application is considered to be a multimedia
  object.
• An application object uses or consists of many
  Basic Multimedia Objects (BMOs) and Compound
  Multimedia Objects (CMOs).
• The specification of an object includes
• binding information to a file
• methods
• event-driven processing (e.g., displaying the
  last image if the video ends before the audio).
• The use of methods and events allows the
  application to create a script which express the
  interactions of different objects precisely and
  relatively simply.

27
A Multimedia-Program Example
28
Multimedia Information Retrieval (and Indexing)

• Multimedia information retrieval
• deals with the storage, retrieval, transport and
  presentation of different types of multi-media
  data (e.g., images, video clips, audio clips,
  texts,)
• real need for managing multimedia data including
  their retrieval
• Multimedia information retrieval in general
• retrieval process
• queries
• indexing the medias
• matching media and query representations

29
MMDBMS and Retrieval What is that ? First
attempt for a clearer meaning

• Example
• an insurance companys accident claim report as
  a multimedia object it includes
• images (or video) of the accident
• insurance forms with structured data
• audio recordings of the parties involved in the
  accident
• text report of the insurance companys
  representative
• Multimedia databases store structured data and
  unstructured data
• Multimedia retrieval systems must retrieve
  structured and unstructured data

30
MMDBMS and Retrieval (cont.)

• Retrieval of structured data from databases
• typically handled by a Database Management System
  (DBMS)
• DBMS provides a query language (e.g., Structured
  Query Language, SQL for the relational data
  model)
• deterministic matching of query and data
• Retrieval of unstructured data from databases
• typically handled by Information Retrieval (IR)
  system
• similarity matching of uncertain query and
  document representations
• result list of documents according to relevance

31
MMDBMS and Retrieval (cont.)

• Multimedia database management systems should
  combine the Database Management System (DBMS) and
  information retrieval (IR) technology
• data modeling capabilities of DBMSs with the
  advanced and similarity based query capabilities
  of IR systems
• Challenge finding a data model that ensures
• effective query formulation and document
  representation
• efficient storage
• efficient matching
• effective delivery

32
MMDBMS and Retrieval (cont.)

• Query formulation
• must accommodate information needs of users of
  multimedia systems
• Document representations and their storage
• an appropriate modeling of the structure and
  content of the wide range of data of many
  different formats ( indexing) - XML ? - MPEG-7
• cf. dealing with thousands of images, documents,
  audio and video segments, and free text
• at the same time modeling of physical properties
  for
• compression/ decompression, synchronization,
  delivery - MPEG-21

33
MMDBMS and Retrieval (cont.)

• Matching of query and document representations
• taking into account the variety of attributes and
  their relationships of query and document
  representations
• combination of exact matching of structured data
  with uncertain matching of unstructured data
• Delivery of data
• browsing, retrieval
• temporal constraints of video and audio
  presentation
• merging of data from different sources (e.g., in
  medical networks)

34
MMDBMS Queries

• 1) As in many retrieval systems, the user has the
  opportunity to browse and navigate through
  hyperlinks with querying need of
• topic maps
• summary descriptions of the multimedia objects
• 2) Queries specifying the conditions of the
  objects of interest
• idea of multimedia query language
• should provide predicates for expressing
  conditions on the attributes, structure and
  content (semantics) of multimedia objects

35
MMDBMS Queries (cont.)

• attribute predicates
• concern the attributes of multimedia objects with
  an exact value (cf. traditional DB attributes)
• e.g., date of a picture, name of a show
• structural predicates
• temporal predicates to specify temporal
  synchronization
• for continuous media such as audio and video
• for expressing temporal relationships between the
  frame representations of a single audio or video
• e.g., Find all the objects in which a jingle is
  playing for the duration of an image display

36
MMDBMS Queries (cont.)

• spatial predicates to specify spatial layout
  properties for the presentation of multimedia
  objects
• examples of predicates contain, is contained in,
  intersect, is adjacent to
• e.g., Find all the objects containing an image
  overlapping the associated text
• temporal and spatial predicates can be combined

• e.g., Find all the objects in which the logo of
  the car company is displayed, and when it
  disappears, a graphic (showing the increase in
  the company sales) is shown in the same position
  where the logo was
• temporal and spatial predicates can
• refer to whole objects
• refer to subcomponents of objects with data
  model that supports complex object representation

37
MMDBMS Queries (cont.)

• semantic predicates
• concern the semantic and unstructured content of
  the data involved
• represented by the features that have been
  extracted and stored for each multimedia object
• e.g.,Find all the objects containing the word
  OFFICE or Find all red houses
• uncertainty, proximity and weights can be
  expressed in query
• multimedia query language
• structured language
• users do not formulate queries in this language,
  but enter query conditions by means of interfaces
• natural language queries?
• interface translates query to correct query syntax

38
MMDBMS Queries

• 3) Query by example
• e.g., video, audio
• the query is composed by picking an example and
  choosing the features the object must comply with

• e.g., in a graphical user interface (GUI) users
  chooses image of a house and domain features for
  the query Retrieve all houses of similar shape
  and different color
• e.g., music recorded melody, note sequence
  being entered by Musical Instruments Digital
  Interface (MIDI)
• 4) Question-answering?
• e.g., questioning video images How many
  helicopters were involved in the attack on Kabul
  of December 20, 2001?

39
MMDBMS Example Oracles interMedia

• Enables Oracle 9i to manage rich content,
  including images, audio, and video information in
  an integrated fashion with other traditional
  business data.
• interMedia can parse, index, and store rich
  content, develop content rich Web applications,
  deploy rich content on the Web, and tune Oracle9i
  content repositories.
• interMedia enables data management services to
  support the rich data types used in electronic
  commerce catalogs, corporate repositories, Web
  publishing, corporate communications and
  training, media asset management, and other
  applications for internet, intranet, extranet,
  and traditional application in an integrated
  fashion
• http//technet.oracle.com

40
MMDBMS Indexing

• Remember Indexing and Retrieval Systems.
• Indexing assigning or extracting features that
  will be used for unstructured and structured
  queries (refers unfortunately often only to
  low-level features)
• Often also segmentation detection of retrieval
  units
• Two main approaches
• manual
• segmentation
• indexing naming of objects and their
  relationships with key terms (natural language or
  controlled language)
• automatic analysis
• identify the mathematical characteristics of the
  contents
• different techniques depending on the type of
  multimedia source (image, text, video, or audio)
• possible manual correction

41
Indexing multimedia and features

• multimedia object typically represented as set
  of features (e.g., as vector of features)
• features can be weighted (expressing uncertainty
  or significance of its value)
• can be stored and searched in an index tree
• Features have to embedded with the semantic
  content

42
Indexing images

• Automatic indexing of images
• segmentation in homogeneous segments
• homogeneity predicate defines the conditions for
  automatically grouping the cells
• e.g., in a color image, cells that are adjacent
  to one another and whose pixel values are close
  are grouped into a segment
• indexing recognition of objects simple
  patterns
• recognition of low level features color
  histograms, textures, shapes (e.g., person,
  house), position
• appearance features often not important in
  retrieval

43
Indexing audio

• Automatic indexing of audio
• segmentation into sequences ( basic units for
  retrieval) often manually
• indexing
• speech recognition and indexing of the resulting
  transcripts (cf. indexing written text retrieval)
• acoustic analysis (e.g., sounds, music, songs
  melody transcription note encoding, interval and
  rhythm detection and chords information)
  translated into string
• e.g., key melody extraction Tseng, 1999

44
Scene Segmentation based on Audio Information

• Short Time Energy (STE) is a reliable indicator
  for silence detection.
• Zero-Crossing Rate (ZCR) is a useful feature to
  characterize different non-silence audio signals
  (especially discern unvoiced speech )
• Pitch (P value) is the fundamental frequency of
  an audio waveform
• Spectrum Flux (SF) is defined as the average
  variation value of spectrum between two adjacent
  frames in a short-time analysis window to
  discriminate speech and environmental sound

45
Indexing video

• Automatic indexing of video
• segment basic unit for retrieval
• objects and activities identified in each video
  segment can be used to index the segment
• segmentation
• detection of video shot breaks, camera motions
• boundaries in audio material (e.g., other music
  tune, changes in speaker)
• textual topic segmentation of transcripts of
  audio and of close-captions (see below)
• heuristic rules based on knowledge of
• type-specific schematic structure of video (e.g.,
  documentary, sports)
• certain cues appearance of anchor person in news
  new topic

46
An example of indexing

• Learning of textual descriptions of images from
  surrounding text (Mori et al., 2000)
• training
• images segmented in image parts of equal size
• feature extraction for each image part (by
  quantization)
• 4 x 4 x 4 RGB color histogram
• 8 directions x 4 resolutions intensity histogram
• words that accompany the image are inherited by
  each image part
• words are selected from the text of the document
  that contains the image by selecting nouns and
  adjectives that occur with a frequency above a
  threshold
• cluster similar image parts based on their
  extracted features
• single-pass partitioning algorithm with minimum
  similarity threshold value

47
An example of indexing

• for each word and each cluster is estimated
  P(wicj) as
• where mji total frequency of word wi in
  cluster cj
• Mj total frequency of all words in cj
• testing
• unknown image is divided into parts and image
  features are extracted
• for each part, the nearest cluster is found as
  the cluster whose centroid is most similar to the
  part
• the average likelihood of all the words of the
  nearest clusters is computed
• k words with largest average likelihood are
  chosen to index the new image (in example k 3)

48
(No Transcript)
49
source Mori et al.
50
source Mori et al.
51
Demo Systems

• Hermitage Museum Web Site (QBIC)
• http//hermitagemuseum.org/
• http//hermitagemuseum.org/fcgi-bin/db2www/qbicCol
  or.mac/qbic?selLangEnglish
• Media Portal WebSEEk
• http//www.ctr.columbia.edu/webseek/
• Video Search Engine VideoQ
• http//www.ctr.columbia.edu/videoq
• Georgraphical Application
• http//nayana.ece.ucsb.edu/M7TextureDemo/Demo/clie
  nt/M7TextureDemo.html
• http//www-db.stanford.edu/IMAGE/

52
QBIC features

• Color QBIC computes the average Munsell
  (Miyahara, et.al., 1988) coordinates of each
  object and image, plus a k element color
  histogram (k is typically 64 or 256) that gives
  the percentage of the pixels in each image in
  each of the k colors.
• Texture QBIC's texture features are based on
  modified versions of the coarseness, contrast,
  and directionality features proposed in (H.
  Tamura, et.al., 1978). Coarseness measures the
  scale of the texture (pebbles vs. boulders),
  contrast describes the vividness of the pattern,
  and directionality describes whether or not the
  image has a favored direction or is isotropic
  (grass versus a smooth object).
• Shape QBIC has used several different sets of
  shape features. One is based on a combination of
  area, circularity, eccentricity, major axis
  orientation and a set of algebraic moment
  invariants. A second is the turning angles or
  tangent vectors around the perimeter of an
  object, computed from smooth splines fit to the
  perimeter. The result is a list of 64 values of
  turning angle.

53
WebSeek
54
WebSeek (cont.)
55
VideoQ
56
VideoQ (cont.)
