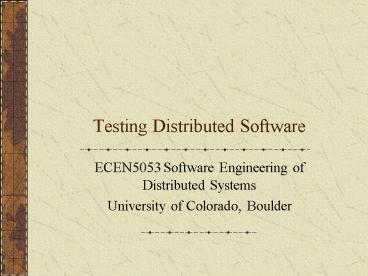

Testing Distributed Software

1
Testing Distributed Software

• ECEN5053 Software Engineering of Distributed
  Systems
• University of Colorado, Boulder

2
Outline

• Testing for Software Security if time
• Testing Patterns for Distributed Services -
  Binders book
• Distributed Software Issues and approaches
• Threads and synchronization
• Path testing
• Life-Cycle
• Models and testing implications
• Test environment

3
Bibliography

• Robert V. Binder, Testing Object-Oriented
  Systems Models, Patterns, and Tools,
  Addison-Wesley Object Technology Series, c. 2000,
  ISBN 0-201-80938-9 (1,190 pp.)
• John McGregor David Sykes, A Practical Guide to
  Testing Object-Oriented Software, Addison-Wesley
  Object Technology Series, c. 2001, ISBN
  0-201-32564-0 (393 pp.)
• Testing Applications On The Web
• Client-Server Testing
• Herbert H. Thompson James Whittaker, Dr. Dobbs
  Journal, Testing for Software Security,
  November 2002, pp. 24 - 32.

4
Defects specific to concurrent distributed sw

• Failure to synchronize accesses to shared data
  values can lead to incorrect data values even
  though each thread is correctly computing its
  result.
• A specific node in a distributed system can fail
  to perform correctly even though every other node
  is performing properly.
• A network link between nodes can fail while the
  remainder of the system continues to function.

5
Basic concepts review thread in Binder

• thread -- independent context of execution within
  an operating system process.
• Has its own program counter and local data
• Smallest unit of execution that can be scheduled
• Most operating systems allow a single process to
  group multiple threads into a related set that
  shares some properties and keeps others private.
• Sequence of computations
• Simplest testing situation -- address various
  entry points and multiple paths through
• Multiple threads complication -- share
  information
• Dependencies implies thread order matters

6
Basic concepts review -- thread

• Developer must provide a synchronization
  mechanism to ensure correct order
• OO languages provide some natural means of
  synchronization by
• hiding attributes behind interfaces
• sometimes making threads correspond to objects
• synchronization is visible in the object
  interface
• messaging is a key element in synchronization
• Class testing would not likely detect synch.
  defects
• Objects must interact to reveal a synch. defect

7
Computational Models -- concurrent

• Design assumes multiple things are happening at
  the same time
• Testing for concurrency defects
• Focus on how two threads interact
• Methods should receive typical testing before
  being exercised in an interaction setting
• State-driven testing, for example
• Parallel processors in the same box -- were
  ignoring this

8
Computational Models -- networked

• Physical concurrency achieved by linking together
  separate boxes with communication devices
• Communication devices operate at slower speed
  than the internal data bus
• Internet
• Difficulty in synchronizing the many independent
  machines
• Times of events are measured by local clocks
• Hard to determine thoroughness of testing

9
Computational Models -- (truly) distributed

• Multiple processes support a flexible
  architecture
• Number of participating objects can change
• Objects can be distributed
• across multiple processes on the same machine
• across multiple physical computers
• Components must be able to locate others
• naming service known to all components
• configuration file may list the machines
  authorized to participate
• part of the infrastructure may be standardized
  and reusable on many systems without modification

10
How are distributed models different?

• Nondeterminism
• Additional infrastructure
• Partial failures
• Time-outs
• Dynamic nature of the structure
• These basic differences directly impact testing.

11
Nondeterminism

• Difficult to exactly replicate a test run
• Determined by scheduler of the operating
  system(s)
• Changes in programs not associated with the SUT
  can affect the order in which threads of the SUT
  are executed.
• Just because a defect does not reoccur does not
  mean it has been repaired correctly.
• Leads to certain techniques -- next slide

12
Nondeterminism -- continued

• More thorough testing at the class level
• Review should pursue whether adequate provision
  for synchronization
• Dynamic class testing should determine if
  synchronization is working correctly in a
  controlled test environment
• Execute a large number of cases trying to record
  the order in which events occur
• Specify a standard test environment --

13
Nondeterminism -- continued

• Specify a standard test environment
• Clean machine with minimal shared devices
• Identify apps that must run for viable platform
• Add basic apps that would be on typical machine
• Each test case describes what modifications are
  made to this standard environment
• include order in which processes are started
• Include a debugger in the standard environment
• Isolate these machines from rest of network at
  least initially

14
Additional Infrastructure

• Many distributed objects rely on infrastructure
  provided by a third-party vendor
• Create regression suite to test compatibility
  between the app and the infrastructure
• Verify against new releases of the infrastructure
• Reconfiguration of the system
• Some infrastructures are self-modifying and
  reconfigure themselves when the system
  reconfigures itself (two moving targets!)
• A specific input data set can cause a different
  path to be executed because the previous path no
  longer exists

15
Partial failures

• May find a portion of the system cannot (does
  not) execute because of hardware or software
  failures on a machine hosting part of the system.
• How do you test this? Failures are simulated by
• removing or disabling network connections
• shutting down a node in the network

16
Time-Outs

• Networked systems avoid deadlocks by setting
  timers when a request is sent to another system
• If no response is received within the allotted
  time, the request is abandoned
• Software must perform correctly when request is
  answered and when it isnt, albeit perhaps
  differently
• Testing should include a variety of loading
  configurations on machines in the network
• Testing should cause partial failures to ensure
  software works correctly when time-outs are
  reached

17
Dynamic Nature of the Structure

• Often built with the capability of changing its
  configuration
• Specific requests may be directed dynamically
  depending on the load on various machines
• Allow a variable number of machines to
  participate
• Tests need to be replicated with a variety of
  configurations

18
Threads

• Design trade-off
• Increasing the number of threads can simplify
  algorithms but increase sequencing problems
• Reducing the number of threads can make the
  software more rigid and less efficient
• Synchronization - when 2 threads access the same
  memory location, must ensure non-interference
• May try to execute a method that modifies a data
  value at the same time
• Java -- language keyword
• C -- individual developer constructs
• OO language localizes access to the modifier
  method for the common data attribute

19
Specifying synchronization

• Design documents specify synchronization in the
  guard clauses of the UML state diagram
• In Java, synchronize appears in the signature of
  a method
• C -- specify synchronization mechanisms as
  classes creation of instance of a monitor object
  indicates the location where synch. is needed.
• During reviews, verify that synchronization is
  specified to occur in the right place, on the
  right method, etc.

20
Defining useful paths

• A path is a set of logically contiguous
  statements that is executed when a specific input
  set is used.
• Multiple new control structures result in new
  paths, possibly indeterminate number or, worse,
  infinite.
• A path is a set of logically contiguous
  statements between the definition (assignment) of
  a value for a variable to the places where the
  variable is used.
• Other definitions of path are more useful in
  distributed systems

21
Significant paths in distributed software

• Richard Carver and K. C. Tai, 1998
• SYN-event is any action that involves
  synchronization of two threads. The spawning of
  one thread by another is one example.
• SYN-sequence is a sequence of SYN-events that
  will occur in a specified order. This is one
  type of path through the program code.
• Design test cases that correspond to
  SYN-sequences.
• The main thread is not counted in the number of
  paths because it executes regardless of the data
  set

22
What type of events are SYN-events?

• Creation and destruction of a thread object
• Creation and destruction of an object that
  encapsulates a thread
• Sending of a message from an object on one thread
  to an object on another thread
• One object controls another by putting it to
  sleep or waking it up
• Tester traces paths from one of these events to
  another
• Minimal SYN-path coverage covers one path through
  control statements between one SYN-event and
  another

23
SYN-paths are necessary, not sufficient

• An object that has its own thread should receive
  thorough testing as a class with its aggregated
  attributes before being tested in interaction
  with other objects.
• The SYN-path technique identifies defects related
  to synchronization defects.
• Use of the SYN-path technique does not replace
  the need to use conventional testing to find
  defects unrelated to synchronization errors.

24
Thread models

• An object has its own personal thread
• An object is visited by an active thread as
  necessary
• Either case, there must be a mechanism to prevent
  multiple threads from operating in the same
  modifier method at the same time.
• Beware the differences in
• Java thread behavior among operating systems
• Windows, Sun, Unix, MacOS -- a cross section
• Variants of Unix
• Different models of workstations w/ different
  options installed

25
Design for Testability

• In languages with single inheritance, e.g. Java,
  the root of every inheritance hierarchy should be
  an interface.
• The test harness must inherit from a tester
  parent class to also implement the interface.
• public class TimerTester extends Tester
  implements TimeObservableIf
• Whenever possible, define a default constructor
  that can be used during unit testing without
  requiring dependencies on many other classes.
  The default constructor need not be public.

26
Life-cycle Testing in a distributed system

• This life cycle is measured by the lifetime of
  the infrastructure components instantiated to
  support the system.
• Test plan
• Test run starting from nothing instantiated,
  followed by bringing the system up, executing a
  series of actions, and finally bringing the
  system completely down.
• Did each action complete successfully?
• Were all resources allocated by the system
  released after the system was terminated?
• Can the system be restarted successfully?

27
More on life-cycle test plan

• Many paths through a complete life-cycle
• Select representative paths to provide maximum
  coverage
• Effective life-cycle tests validate correct
  answers and
• Item being tested interacts correctly with its
  environment
• All acquired resources have been released
• Other elements with which the tested piece
  interacts have been left in correct states.

28
Basic Client/Server Model simplest distributed
system

• Multiple clients all have access to the server
• Single point of failure -- the server
• What should be tested?
• Can server deliver correct results to the correct
  client under steady load of a moderate number of
  requests simultaneously over an extended period
  of time?
• Can the server correctly handle a rapidly
  increasing load? Test set should present a large
  number of test cases at increasing arrival rates.

29
Commercial infrastructures

• Simple client/server model generalized to
  eliminate single point of failure
• Client can select among multiple servers
• Models abstract away the networking details
  reducing the error rate of the former primitive
  pipe- and-socket structures
• Commercial infrastructures hide the communication
  details and support testing systems using the
  models
• CORBA
• RMI
• Web Services

30
CORBA - as a style

• Central element is an object request broker (ORB)
• One object uses this to communicate with other
  objects
• A CORBA-compliant system provides services
• that allow one object to find others based on
  objects being requested, location, or load
• needed to connect two objects written in
  different languages or executing on different
  types of machines
• Multiple vendors provide CORBA with competitive
  differences

31
CORBA -- continued

• CORBA standard assumes
• machines may have different o.s.s and different
  memory layout
• components that comprise the distributed system
  may be written in different languages
• infrastructure may change its configuration based
  on the distribution of objects and the types of
  machines in the network
• Flexible

32
CORBA style testing implications

• Does the system work correctly regardless of its
  infrastructure configuration?
• Can the test cases be made more reusable by
  building them based on the services of the
  standard infrastructure?
• Does a specific new release of the infrastructure
  integrate efficiently with existing applications?
• Regression test suite and test harness allows new
  releases of the infrastructure to be tested prior
  to being integrated into products

33
RMI -- remote method invocation

• Java provides a simplified distributed
  environment that assumes every machine is running
  a JVM
• Structure is similar to CORBA
• simpler because of less flexible assumptions
• A registry (broker) object is provided
• All participating objects must know what port the
  registry listens to for messages
• Testing implications
• Which CORBA test patterns can be used in
  RMI-based systems? Test cases may be structured
  the same as many CORBA test cases.

34
A Generic Distributed Component Model
35
Review of process communication
Generic architecture
service provider
service requester
surrogate for provider - stub
surrogate for requester - skeleton
Communication and location services
Process B
Process A
36
Test the Requester

• Stimulus
• Most of its behaviors have been previously tested
  using class testing techniques
• Still need to test timing requirements
• Requester sends asynchronous msg (1-way), test
  cases must investigate the effect of the length
  of the time it takes to receive a reply.
• Sender immediately proceeds
• May be written to expect answer within window
  may not be written to wait if not arrived by
  then.
• Test this interaction under different amounts of
  latency (different load conditions)

37
Provider -- central role

• Performs behaviors and sometimes returns
  information to the requester.
• Complete interface of the provider can be tested
  using the basic class testing techniques.
• Behaviors expected to be invoked by other
  distributed objects require specialized testing
  (stay tuned!)
• Provider is registered with the infrastructure
  with information about its services.

38
The many faces of the Provider

• May be an object waiting actively for a request
  to be received.
• May not be, too.
• First, instantiated
• Then the request is forwarded to it.
• Source of timing differences.
• Any provider that can be dynamically instantiated
  upon request should be exercised using test cases
  starting from
• instantiated scenarios
• non-instantiated scenarios.

39
Stubs and skeletons

• Stub -- surrogate for the provider in the
  requester process.
• Keeps requester from knowing semantics of the
  infrastructure
• Some infrastructures are smart enough to
  reconfigure themselves depending on whether the
  two objects are actually
• in the same process
• in different processes on the same machine
• on different machines with different
  architectures
• Reconfiguring involves adding or removing stubs,
  skeletons, or other method calls

40
Stubs and Skeletons

• Skeleton -- surrogate for the requester in the
  provider process.
• Keeps provider from knowing semantics of the
  infrastructure
• If infrastructure reconfigures itself to add or
  remove stubs, skeletons, or other method calls,
  this changes the path through which the request
  travels.
• Interaction test suites should be designed to
  execute a set of tests over the path
  corresponding to each possible configuration.

41
Specifying Distributed Objects -- IDL

• The spec for service providers is usually written
  in an interface definition language (IDL).
• simpler than a programming language
• provides information useful for testing purposes
• Signature
• Main portion of the IDL spec is the usual
  signature for a method.
• Method name, types of its params, return type
• Standard techniques for sampling these values
• (continued ...)

42
Specifying Distributed Objects -- IDL

• One-way -- asynchronous message
• Must be tested over a complete life cycle
• Requester may need the requested information
  before the provider sends it.
• Message may result in an exception being thrown
  by the provider.
• Tests should specifically investigate whether
  exceptions are caught in the correct object.
• In, out -- defines if requester is to provide
  this information or expect the parameter to be
  modified by the provider.
• (continued)

43
Specifying Distributed Objects -- IDL

• in, out (continued)
• Tests of a method specifying an out parameter
  must
• locate the returned object (because most OO
  languages do not handle this case gracefully)
• verify that it has the correct state

44
Pre- and Post conditions and Invariants

• Remember them??
• Last semester, looked at building test cases
  based on pre- and post conditions
• Distributed components should be designed not to
  know their location relative to other components
• Components DO have to know about the expanded set
  of possible errors.
• Post conditions now include exceptions for
  scenarios such as a service that is not available
  from the specified provider
• What else?

45
Test cases for implicit, ever-present errors

• Ever-present errors are those that the
  developer doesnt bother to state in the post
  condition as a possible outcome because,
  Everybody knows that!
• Test the requester for proper handling of
• Provider not found
• Provider busy -- time-out
• Null provider reference
• Any null pointer is a problem but some
  infrastructures invalidate a pointer after some
  amount of inactivity. Oops.
• Null out-parameter
• Include in test a checklist for the type of class
  being constructed

46
Temporal Testing

• Eventually
• Until
• Always

47
Test Environment

• Using a wrapper to test the OUT interface of a
  class

48
Test Environment

• Interaction testing
• 2 objects distributed in separate processes
• Testing a complete protocol is important
• In distributed systems ... whether msgs are
  really received in an order even if they are sent
  in the sequence described by the protocol.
• more to this ...

49
Model-Specific Test Cases

• Basic Client/Server Model

50
Model-Specific Test Cases -- cont.

• Generic Distribution Model
• Different models make different assumptions about
  the type of application and the deployment
  environment
• Tests should focus on these assumptions
• Some can be tested during guided inspections

51
More re Generic Distribution Model

• Language issues
• RMI assumes Java CORBA assumes nothing
• They will probably work correctly, the app may
  not
• Doc may not explain well what is possible re data
  types used in classes written in different
  languages
• e.g. Pass an array between Java requester and a
  C provider
• Variation between CORBA types and Java types is
  greater than between CORBA and C
• Are return objects handled properly?

52
More re Generic Distribution Model

• Platform Independence Issues
• Distribution models are platform independent
• Implicit requirements about size of available
  memory or processor speed cause the software to
  work differently in different environments
• Infrastructure Tests -- situations can corrupt
  the infrastructure
• Stubs and skeletons produced automatically by an
  IDL compiler ... and subsequently edited by
  developers

53
More re Generic Distribution Model

• Compatibility Tests
• New releases of the infrastructure should be
  tested against existing release of the app
• Failure Recovery -- partial failure
• Configure a system with
• a main machine where the locator portion of the
  infrastructure is running
• and for which a server is instantiated on a
  specific machine
• When server registers, disconnect network cable
  of that server
• From main, attempt to use that servers services
  ...

54
More re Generic Distribution Model

• Dynamic modification of infrastructure
• CORBA allows modifications during program
  execution
• Changes configuration of the system
• Can change timing and execution paths
• Try a variety for appropriate situations given
  the components that are dynamically available

55
More re Generic Distribution Model

• Logic-specific Test Cases
• With asynchronous messages, events may occur in a
  variety of sequences
• Order of returns to multiple requests varies
• Design must assume it makes no difference
• Test must try as many combinations as possible
• Requested Object Unavailable
• User-entered names can be misspelled or refer to
  a resource that no longer exists
• Handle thrown exception in right place in
  requester abort operation gracefully give user
  another chance

56
Testing the Internet

• Large, dynamic, distributed system
• Servers added and removed continuously
• Applications must operate in the presence of
  partial failures
• missing systems
• nonexistent addresses
• Some form basic business environments for the
  company running the Web site
• specific, stringent requirements for reliability
  and security

57
McGregor Sykes Dont Cover

• Performance
• See Event Sequence Analysis to measure actual
  performance and to know where narrow margins are
  for meeting performance requirements.
• Security
• Can test features intended to increase security
• Can test common sources of technical security
  compromises
• Very hard to test the human weak links
