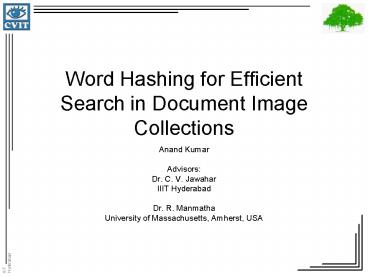

Word Hashing for Efficient Search in Document Image Collections

1
Word Hashing for Efficient Search in Document
Image Collections

• Anand Kumar
• Advisors
• Dr. C. V. Jawahar
• IIIT Hyderabad
• Dr. R. Manmatha
• University of Massachusetts, Amherst, USA

2
Overview

• Introduction
• The problem
• Previous work
• Contributions
• Searching in document images
• Annotation for retrieval
• Summary
• Future work

3
Introduction
Processing
Input Query
Scanning
Database
Image Matching
Retrieved Documents
Documents
NOT the text (ASCII) words.
Matching images of words,
4
Challenges

• Direct matching of images is an expensive
  process.
• Represent word images as feature vectors and
  match.
• Representation should capture the characteristics
  (mainly content) of words.
• On every query, searching in large word image
  database by matching is time consuming.
• The scalability issues arise with the increase in
  size of the document image collection.

5
Basic Directions of Solution

• Convert the images into text using recognizers
  and build index using text search methods.
• If the converted text has errors, will the text
  search methods deliver the expected performance?

6
Basic Directions of Solution

• Group similar words in the document image
  collection and annotate (label with text) the
  groups.
• Apply text search methods for accessing the
  documents.
• Is it possible to annotate large groups of words
  found in a large collection of document images?

7
The Problem

• Building an index using matching or other
  existing methods is not scalable for even
  moderate collections.
• Given a large collection of document images, how
  to search efficiently for similar words so that
  queries are answered quickly (in milli seconds)?

8
Previous Work

• Recognition based methods
• Chan et al. use bi-gram letter transition model
  for recognition of words.
• BYBLOS system uses similar approach for line
  recognition.
• The recognizers may fail in presence of
  degradations.
• There are no good recognizers and language
  modeling approaches for Indian languages.

• Jim Chan, Celal Ziftci, and David A. Forsyth.
  Searching Online Arabic Documents. In Proc. of
  Conference on Computer Vision and Pattern
  Recognition (CVPR) (2), pages 1455-1462, 2006.
• Zhidong Lu, Richard Schwartz, Premkumar
  Natarajan, Issam Bazzi, and John Makhoul.
  Advances in the BBN BYBLOS OCR System. In Proc.
  of International Conference on Document Analysis
  and Recognition (ICDAR), pages 337-340, 1999.
• U. Pal and B.B. Chaudhuri. Indian Script
  Character Recognition A Survey. Pattern
  Recognition, 371887-1899, 2004.

9
Previous Work

• Recognition free methods
• Word spotting in handwritten documents
• Words are clustered and the clusters are
  annotated to enable search.
• Dynamic time warping (DTW) is used for matching
  words.
• George Washingtons handwritten documents.
• Similar approach for printed Indian language
  documents.
• Word spotting in Ottoman documents
• Successive pruning stages eliminate wrong words.

• Toni M. Rath and R. Manmatha. Word Image
  Matching Using Dynamic Time Warping. In Proc. of
  Conference on Computer Vision and Pattern
  Recognition (CVPR)(2), pages 521-527, 2003.
• A. Balasubramanian, M. Meshesha, and C. V.
  Jawahar. Retrieval from Document Image
  Collections. In International Workshop on
  Document Analysis Systems (DAS), pages 1-12,
  2006.
• Esra Ataer and Pinar Duygulu. Retrieval of
  Ottoman documents. In Multimedia Information
  Retrieval (MIR) workshop, pages 155-162, 2006.

10
Contribution of This Work

• Data is processed quickly using the proposed
  technique to help search efficiently in large
  collection.
• Effect of word image representation and document
  types on the proposed technique are analyzed.
• Scalability of the proposed method is
  demonstrated on a collection of Kalidasas books.
• The group of similar words retrieved using the
  proposed approach are labeled (automatically) for
  annotation based access to documents.
• A method to improve the automatic word labeling
  (annotation) accuracy is presented.

11
Overview

• Introduction
• The problem
• Previous work
• Contributions
• Searching in document images
• Word image representation
• Similarity search
• Content sensitive hashing
• Fitting in retrieval system
• Experimental results
• Annotation for retrieval
• Summary
• Future work

12
Word Image Representation

• Profile Features
• Ink transitions
• Number of black to white pixel transitions in the
  image row or column. Calculated for both rows and
  columns.
• Projection profiles
• Sum over the pixel values of a column

13
Word Image Representation

• Profile Features
• Upper word profiles
• Black pixel distance from top boundary of the
  image.
• Lower word profiles
• Black pixel distance from bottom of the image.
• If no pixel is found in a column, the value is
  taken as height of the image.

14
Word Image Representation

• Region based moments
• Central moments
• Discrete Fourier Transform (DFT) coefficients.
• Projection and word profile features are
  segmented vertically into four equal parts.
• 1D Fourier transform of the segmented profile
  features is obtained.
• n4 real parts and last n-13 imaginary parts of
  the DFT are taken as features.
• Total 84 Fourier coefficients are taken from each
  image.

3 x (7 x 4) 84
features x (coefficients x segments) total
coefficients for every image
15
Similarity search

• Given word image representations as vectors
  (points) in some space,
• We need to search for similar vectors (points)
  i.e., nearest neighbor search (NNS).
• k-d tree, B-tree or R-tree can be used for the
  NNS.
• How to handle the slight differences in the
  representation of similar words?
• Approximate nearest neighbor search has to be
  carried out.
• Since the representations are in high dimension
  (more than 84 in our case), traditional way of
  searching is inefficient.
• Locality sensitive hashing (LSH) is an
  approximate nearest neighbor search method for
  sub-linear time complexity.

Jon Louis Bentley. Multidimensional Binary
Search Trees Used for Associative Searching.
Communications of the ACM, 18(9)509-517, 1975.
Sunil Arya and David M. Mount. Approximate
Nearest Neighbor Queries in Fixed Dimensions. In
SODA '93. pages 271-280, 1993.
Rudolf Bayer and E. McCreight. Organization and
Maintenance of Large Ordered Indexes. Acta
Informatica, 1(3)173-189, 1972.
M. Datar, N. Immorlica, P. Indyk, and V. S.
Mirrokni. Locality-Sensitive Hashing Scheme
Based on p-Stable Distributions. In ACM SOCG,
pages 253-262, 2004.
16
Content Sensitive Hashing

• A similarity search problem in which it is not
  necessary to find exact answer instead determine
  approximate answer.
• The key idea is
• To hash points using several hash functions so as
  to ensure that for each function the probability
  of collision is much higher for objects which are
  close to each other than for those which are far
  apart.
• When a query point is given,
• Hash the query point and retrieve elements stored
  in buckets containing that point.

17
Content Sensitive Hashing

• Hashing Technique
• Given set P of n points and number of hash
  tables L.
• for each hash table Ti, i 1,,L
• for each point pj, j1,n
• store pj on bucket gi(pj) of hash table Ti.
• where gi(p), i1,,L is hash function of table Ti

• Hash function can be combination of other
  functions.
• Some Examples
• g(v1,,vk) a1.v1ak.vk mod M
• where M is hash table size and a1,,ak are
  random numbers from interval 0M-1
• g(p) h1(p),,hk(p)
• where hi(p) (ai.pbi)/w, ai is a d dimensional
  vector
• gL(p) v1(p)vL(p)
• v(p) Unaryc(x1)Unaryc(xd).
• Unaryc(x) x 1s followed by c-x 0s
• vi(p) gt select some bits from v(p), i 1..L

18
Content Sensitive Hashing

• Querying
• To process a query q
• we search all indices of g1(q),,gL(q) and
  collect all points from L indices of hash tables.
• Linear search on the collected points.
• Output points within distance R from query.

19
Content Sensitive Hashing

• Example
• Let, p1,3,2, q1,2,3, r3,1,1, s2,1,1
  are d3 dimensional points and c3 is max value
  in the dimensions.
• v(p) Unaryc(x1)Unaryc(xd).
• Unaryc(x) x 1s followed by c-x 0s
• v(p) v(1,3,2) 100 111 110
• A new dimensions d cd 9 is obtained i.e., a
  set I 1,2,3,4,5,6,7,8,9.
• Let number of hash tables L2, and I11,5,6,
  I22,3,7,9 be L subsets from of I.
• Hash function is gL(p) v1(p)vL(p)
• vi(p) gt select Ii bits from v(p), i 1L

Unary(1) 100
Unary(3) 111
Unary(2) 110
20
Content Sensitive Hashing

• Example
• v(p) v(1,3,2) 100 111 110
• g1(p) 111, g2(p) 0010. (7, 2)
• v(q) v(1,2,3) 100 110 111
• g1(q) 110, g2(q) 0011. (6, 3)
• v(r) v(3,1,1) 111 100 100
• g1(r) 100, g2(r) 1110. (4, 13)
• Query s 2,1,1
• v(s) 110 100 100
• g1(s) 100, g2(s) 1010. (4, 10)
• Resulting point is r

I11,5,6 and I22,3,7,9
v(p) v(1,3,2) 100 111 110
g1(p)
1
1
1
21
Fitting in Retrieval System
Document Images
Textual Query
Relevant Documents
Cross Lingual
Pre-processing
Segmentation and word detection
Word Rendering
Hashed Words
Feature Extraction
Feature Extraction
Hashing
Offline Process
Online Process
22
Experimental Results
Performance on different data sets of English
language
query
results
23
Experimental Results
Performance on different data sets of English
language
Performance of individual features
Performance with combination of features
24
Experimental Results
Searching in Kalidasas Collection.
Cross-lingual search
25
Experimental Results
Searching in Kalidasas Collection.
Comparison with Dynamic Time Warping based NNS
26
Overview

• Introduction
• The problem
• Previous work
• Contributions
• Searching in document images
• Annotation for retrieval
• Annotation based search
• Annotation correction
• Experimental results
• Summary
• Future work

27
Annotation for Retrieval

• Annotation is the process of identifying objects
  in images and labeling with meaningful
  description.
• Search is easy and efficient in annotated
  document images.
• Challenges
• Recognition for annotation may be inaccurate.
• Manual annotation is impractical

28
Annotation for Retrieval

• Can we use image search to speed up annotation
  and increase accuracy?
• Image search produces clusters of similar words.
• A single representative is required to annotate
  words of the whole cluster.
• Cluster of recognized words can be obtained to
  get the representative.
• The cluster information can be used to obtain
  correct annotation of the cluster.

29
Annotation Based Search
Document Images
Word Annotation by Recognition
Relevant Documents
Cluster of Word Images
Pre-processing
Text Search Engine
Segmentation and word detection
Hashed Words
Feature Extraction
Textual Query
Hashing
Online Process
Offline Process
30
Annotation Correction
Correction by Majority Voting
What if too erroneous?
ambidextrous ambidextro4s ambidextrous
ambidextrous ab idex tro4s ambiderous an biderous
ambiderous ambideous
recognition
Ordered words
Word length 12
ambidextrous
Final word
Text words of cluster
Word image cluster
31
Annotation Correction
Correction by Majority Voting

• Input Cluster C of words.
• Output Representative word WR for C
• S Sort C based on string length
• Get M S for all A, B in S edit distance of A
  and B is less than half of the lengths of A and
  B
• If l is the length of most of the strings
  (majority) the cluster representative WR has
  length l.
• For each character i 1,,l do
• Get all k words of length l
• Find majority of characters for position i of WR

32
Annotation Correction
Correction by Alignment
ambidextrous
a m b i d e x t r o
u s a b i d e x t
r o 4 s a m b i d e
r o u s a m b i d
e x t r o u s a m b i
d e x t r o 4 s
abidextro4s
ambiderous
ambidextrous
ambidextro4s
Aligned words
Text words of cluster
a m b i d e x t r o 4 s
a m b i d e x t r o
u s
Final word
Word obtained by majority voting
33
Annotation Correction
Correction by Alignment

• Input Cluster C of Wi 1,,n words
• Output Cluster representative WR of C
• for each i 1,,n do
• for each j 1,,n do
• if j ? i then do
• Align word Wi and Wj
• Record errors Ek, k 1,,m in Wi
• Record possible correction Gp, p 1,,q for Ek
  from Wj
• end if
• end for
• Find correction Ch Gp by majority voting
• Correct Ek with Ch
• O ? O U Wi
• end for
• Find correct word WR from the alignments O with
  majority voting.

34
Experimental Results
35
Experimental Results
Effect of cluster size on the retrieval
performance
36
Summary

• Direct hashing of the word features eliminates
  costly processing before building an index.
• Query results can be obtained in milliseconds
  using the content sensitive hashing (CSH).
• Scalability of the proposed method is
  demonstrated on a collection of Kalidasas books.
• Two methods to improve the automatic word
  labeling (annotation) accuracy are presented.
• Demonstrated annotation based retrieval technique
  using the automatic annotations of document
  images.

37
Future Work

• Indexing of documents images in different fonts.
• Searching in Multi-lingual documents is one of
  the challenging tasks.
• Many Indian language documents are translated to
  other languages.
• Usage of cluster information
• for improving the accuracy of character
  recognizers.
• Annotation becomes difficult in presence of
  errors in every recognized word of a cluster.
• Need to explore new techniques for annotation

38
Related Publications

• Anand Kumar, C.V.Jawahar and R. Manmatha.
  "Efficient Search in Document Image Collections".
  Asian Conference on Computer Vision (ACCV), pages
  586-595, November 18-22, 2007, Tokyo, Japan.
• C.V.Jawahar and Anand Kumar. "Content Level
  Annotation of Large Collection of Printed
  Document Images". International Conference on
  Document Analysis and Recognition (ICDAR), pages
  799-803, September 23-26, 2007, Brazil.
• Anand Kumar, A. Balasubramanian, Anoop M.
  Namboodiri and C.V. Jawahar. "Model-Based
  Annotation of Online Handwritten Datasets",
  International Workshop on Frontiers in
  Handwriting Recognition (IWFHR), October 23-26,
  2006, La Baule, France.

39
Thank You

• Questions ?

40
Dynamic Time Warping
41
Partial Matching
