SolarB XRT

1

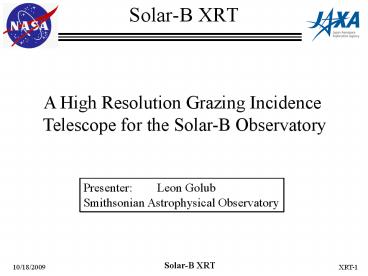

Solar-B XRT
A High Resolution Grazing Incidence Telescope
for the Solar-B Observatory
Presenter Leon Golub Smithsonian Astrophysical
Observatory
2
XRT Team

• U-Side
• Leon Golub U.S.-P.I.
• Jay Bookbinder P.M.
• Peter Cheimets P.E.
• Ed DeLuca P.S.
• Alana Sette
• Mark Weber

• J-Side
• Kiyoto Shibasaki P.I.
• Taro Sakao Secretariat
• Ryouhei Kano Secretariat

and many others in US and Japan.
3
Talk Overview

• The Solar B Mission
• The X-Ray Telescope on Solar B
• Science Requirements
• Instrument Design
• Sample Observing Plans
• XRT firsts

4
Solar B Spacecraft

• Mass 875 kg
• Power 1000W
• Telemetry 4Mbps
• Data Recorder 8Gbit
• Attitude Solar pointed
• Stability 0.3 arcsec per 1s
• Launch Summer 2006
• Orbit Polar, Sun-Sync, 600km

5
Solar-B XRT Flight Design
Graphite Tube Assembly
Ascent Vents 2 places
CCD Camera and Radiator
Electrical Box

Front Door and Hinge Assembly
6
XRT Instrumentation

• X-Ray Telescope
• Mirror inner diameter 35 cm
• Focal Length 2700 cm
• Geometric Area 5 cm2
• Shutter/Analysis Filters
• texp 1ms to 10s
• 9 X-ray, 1 WL filter
• Camera
• 2Kx2K back-illuminated CCD
• 1 arcsec pixels (13.5µm)

7
Focal Plane Filter Wheels
8
XRT Exposure Times
Focal Plane Intensities for XRT Passbands
9
XRT Science Goals

• Coronal Mass Ejections
• Coronal Heating
• Reconnection and Jets
• Flare Energetics
• Photospheric-Coronal Coupling

10
XRT Science Goals 1

• Coronal Mass Ejections
• How are they triggered?
• High time resolution
• What is their relation to the magnetic
  structures?
• High spatial resolution
• What is the relation between large scale
  instabilities and the dynamics of small
  structures?
• Large FOV
• Broad temperature coverage

11
CME Movie
12
XRT Science Goals 2

• Coronal Heating
• How do coronal structures brighten?
• High time resolution
• What are the wave contributions?
• High Spatial Resolution
• Do loop-loop interactions cause heating?
• Large FOV
• Broad temperature coverage

13
Coronal Heating Sample Observation

• What needs to be explained
• Outflows
• Motions along field
• Separatrices and QSLs
• Intermingled hot and cool plasma

14
XRT Science Goals 3

• Reconnection and Jets
• Where and how does reconnection occur? Is it
  related to slow CMEs?
• High time resolution
• Large FOV
• What are the relations to the local magnetic
  field?
• High spatial resolution
• Broad temperature coverage
• Coordinated observing with EIS/SOT

15
Slow CME-associated Flare Events
16
XRT Science Goals 4

• Flare Energetics
• Where and how do flares occur?
• High time resolution
• What are the relations to the local magnetic
  field?
• High spatial resolution
• Large FOV
• Broad temperature coverage
• High temperature response
• Large dynamic range

17
Flare Energetics - Example
18
SXT Science Goals 5

• Photospheric-Coronal Coupling
• Can a direct connection between coronal and
  photospheric events be established?
• High time resolution
• High spatial resolution
• How is energy transferred to the corona ?
• Large FOV
• Does the photosphere determine coronal fine
  structure?
• Broad temperature coverage
• Coordinated observing with SOT-FPP/EIS

19
Example Rotating Spot
Courtesy A. Title
The time has come to move beyond loops and
isolated mini-atmospheres!
20
The XRT Firsts
New XRT Instrumental Capabilities

• Unprecedented combination of spatial resolution,
  field of view and image cadence.
• Broadest temperature coverage of any coronal
  imager to date.
• High data rate for observing rapid changes in
  topology and temperature structure.
• Extremely large dynamic range to detect entire
  corona, from coronal holes to X-flares.
• Flare buffer, large onboard storage and high
  downlink rate provide unique observing capability.

21

• Anticipated XRT Science Firsts
• Flares Coronal Mass Ejections.
• How are they triggered, and what is their
  relation to the numerous small eruptions of
  active region loops?
• What is the relationship between large-scale
  instabilities and the dynamics of the small-scale
  magnetic field?
• XRT will determine the topology, physical
  parameters (T, ne) and interrelatedness of the
  regions integral to flare/CME formation.
• Coronal heating mechanisms.
• How do coronal loops brighten? TRACE has observed
  loop oscillations associated with flares
  (Nakariakov et al. 1999). Are other wave motions
  visible? Are they correlated with heating?
• Do loops heat from their footpoints upward, or
  from a thin heating thread outward? Do loop-loop
  interactions contribute to the heating?
• XRT will exhibit the evolution and activity of
  both active and quiet inner coronal structures on
  MHD (seconds) to surface B diffusion (days)
  timescales.

22

• Anticipated XRT Science Firsts
• Solar flare energetics.
• Solar-B will observe many flare event. The XRT
  can test the reconnection hypothesis that has
  emerged from the Yohkoh data analysis.
• XRT will greatly extend the sample of observed
  flares in intensity, spatial and temporal
  resolution, allowing stringent tests of flare
  theories.
• Reconnection Coronal Dynamics.
• Yohkoh observations of giant arches, jets, kinked
  and twisted flux tubes, and microflares imply
  that reconnection plays a significant role in
  coronal dynamics. With higher spatial resolution
  and with improved temperature response, the XRT
  will help clarify the role of reconnection in the
  corona.
• XRT will determine importance of flows,
  B-fieldplasma interactions, relevance of null
  points, reconnection sites and separatrix (or
  QSL) surfaces.
• Photosphere/corona coupling.
• Can a direct connection be established between
  events in the photosphere and a coronal response?

• To what extent is coronal fine structure
  determined at the photosphere?

23
Typical XRT Observing Plan

• Assumptions
• X-ray data compress to 3 bits/pixel
• White light data compress to 5 bits/pixel
• Filter move and settle time 1.2 s per step
• Shutter prep time 0.2 s
• Parallel shift _at_ 10krows/s read time 512kpixels/s
• gt 3.075 s to read 768x768 FOV
• Exposure times 1s for filters 1 2 3s for
  filter 3
• Data Rate 53 kB/s Compressed data

24
Sample XRT Program

• Emerging Flux Program
• Understand the interaction of emerging magnetic
  flux into
• the existing coronal magnetic field.
• Implementation
• Follow an AR as it crosses disk center (1 week)
• Use 768x768 FOV (13'x13')
• Use 3 filters to obtain basic temperature
  coverage
• Run at a 60-sec. cadence to follow coronal
  structures
• Take WL images every 45 min for context
  alignment

25
Use of On-Board Storage
Typical observing program requires gt6 downlinks
per day.
26
End Presentation

27
Instrument Requirements
28
Analysis Filter Set
29
Focal Plane Intensities for XRT Passbands
XRT Exposure Times
30
Diagnostics via Focal Plane Analysis Filters and
Filter Ratios
Throughput vs. T for C, Al, and Ti
Filter ratios vs. T for some representative focal
plane filter pairs.
31
XRT DEM Widget Interface
No. knots is no. bands - 1
Initial guess Flat (unit) DEM
No errors included In this example!
32
Real AR DEM
4 filters
7 filters
Solid line Input DEM
Dashed lines Best-fit Model DEMs 100
33
Entrance Filter Design
PROTECTIVE COVER ATTACHMENT POINTS
LIGHT SUPRESSION RIB
CAPTIVE SCREW ATTACHMET
FILTER FRAME
FRONT SURFACE
BACK SURFACE
34
XUV Filter Design
Aluminum-Nickel Mesh
Aluminum-Polyimide
Beryllium-Nickel Mesh
Titanium-Polyimide
35
Rear Assembly Overview
FILTER WHEEL AND SHUTTER ASSEMBLY
GRAPHITE TUBE
CAMERA FOCUS INTERFACE
FOCUS MECHANISM
REAR ADAPTER FLANGE
36
Solar-B
Artists Conception
The Real Thing
37
Spot Size for Various Focus Positions
