Arc Writer

1

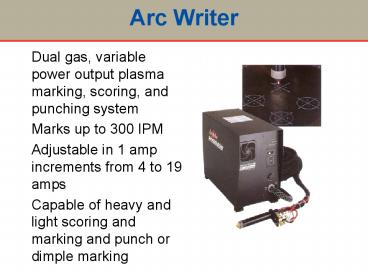

Arc Writer

• Dual gas, variable power output plasma marking,
  scoring, and punching system
• Marks up to 300 IPM
• Adjustable in 1 amp increments from 4 to 19 amps
• Capable of heavy and light scoring and marking
  and punch or dimple marking

2
Air Scribe

• Utilizes a reciprocating pin to mark with dots or
  lines
• Can mark on any material but is especially well
  suited to gage thicknesses
• Economical operation and air consumption
• Carbide tipped marking point for long life
• Easy change out marking tip

3
Drill and Tap

• Allows more work to be done to a piece in a
  single handling
• Drills up to ½ holes in mild steel up to 1
  thick, depending on machine
• Mist lubrication
• Drill and tap is automatically controlled by CNC
  control

4
Powder Marker

• Utilizes a special torch and zinc or colored
  powder to produce a semi-permanent line
• Can be set with a fixed offset to a cutting torch
• Speeds of up to 1000 IPM
• Each 50g powder vial provides approx. 4000 of
  line at 1000IPM
• Line can be continuous or intermittent

5
FT100 Torch Ignitor

• Ignites any oxyfuel torch
• Critical alignment is not needed as no arc is
  struck
• Reliably starts torch, even with low pressure
  natural gas
• Individual programmable torch selection
  (dependent on CNC Control used)
• Self-contained

6
Pneumatic Punch Marker

• Best for material ¼ or thicker
• Provides impact impressions into the material
  being marked
• Stand off height of ¼ to accommodate plate
  variation
• Optional height sensor (if casual water remains
  on plate, it will track the water)
• High carbon steel tip with 120angle for robust
  mark
• Tip is easy to replace
• Marking for drill hole locations, weld and bend
  lines, and assembly locations
• Can create effect of dots or lines

7
Sensomat-Pan

• Height sensing for Oxyfuel cutting that
  automatically maintains proper standoff height
• Accommodates plate inclines of /- 3
• Height freeze can be activated for cutting near
  the plate edge
• Ring 22 (shown) best for thickness range of .79
  to 1.575, and U-65, best for thickness range of
  1.575 to 3.15
• U-65 features an open U shape to allow for
  piercing without slag accumulation on sensor

8
SureStop

• Permanent magnets eliminate possibility of
  failure
• Magnets are unaffected by heat from thermal
  cutting
• Protects torch in Z-Axis (up and down) as well as
  the X and Y axes
• Resetting after a collision is reliable,
  consistent, and takes only 5 to 10 seconds
• Available for use in conjunction with the MG PL-1
  Plasma Lifter
• Does not require power to hold the torch in place

9
Plasma Torches
10
Plasma Torches
11
Benefits of Plasma

• High speed, accurate cutting
• Cuts mild steel, stainless steel, and aluminum
• Cuts gage material up to 1 ½ typically depending
  on plasma (up to 3 can be cut in limited
  quantities and in 760amp plasma only)
• A variety of plasma systems are available to fit
  budgetary and cut part needs
• Conventional and precision plasmas are offered
• Some plasma systems can be used for both marking
  and cutting

12
PowerMAX1000

• Gage thickness through 5/16 ideal cutting range
• Conventional plasma system
• Affordable plasma system
• 60 amp system

13
PowerMAX1250

• Gage thickness through 3/8 ideal cutting range
• Maximum occasional range to 1
• Conventional plasma
• 80 amp system

14
PowerMAX1650

• Gage thickness through 1/2 ideal cutting range
• Maximum occasional cutting to 1 ¼
• 100 amp system
• Long consumable life

15
Max200

• Cutting range is gage to 2 material
• 200 amp system
• Conventional plasma
• 100 duty cycle
• Dual gas system

16
HPR 260
17
HPR 260
18
HD4070

• Gage thickness through 1 ideal cutting range
• Quick disconnect coupling for fast changing of
  the torch
• HyDefinition Precision plasma cutting
• 100 duty cycle at 200 amps
• Standard auto-gas console
• Marking capability

19
HPR130

• Gage thickness through 5/8 ideal cutting range
• Auto gas control
• HyDefinition Precision plasma
• 100 duty cycle
• Low dross cutting reduces need for secondary
  operations
• 130 amp system

20
HT2000

• Gage thickness (10 gage and up) through 1 is the
  ideal cutting range
• 200 amp oxygen plasma cutting system
• Conventional plasma
• Can be used for beveling (up to ¾)
• Good cut quality
• Internal liquid cooled torch

21
HT4001

• Gage thickness (10 gage and up) through 1 1/4 is
  the ideal cutting range
• Cuts up to 3 material at 760 amps and 2 at 400
  amps (400 amps is base system, up to 760 amps
  with slave power unit)
• Water injected torch must be used with a water
  table
• Beveling is possible with HT4001
• Excellent cut speed
• Power output range from 260-760 amps

22
HT4400

• Gage thickness (10 gage and up) through 1 1/2 is
  the ideal cutting range
• Excellent cut quality in bevel and straight
  cutting applications
• Quick disconnect torch
• Conventional plasma
• 400 amp dry cutting system

23
HT4400 Plasma
Designed for busy shop and busy
operators Quick-Disconnect torch has a four
start thread which makes consumable change-out
very fast
Torch Body
Electrode
Swirl Ring
Shielded Nozzle
Retaining Cap
24
Long Life Technology

• LongLife.400 Amps
• 4 Second Cut 600 Starts
• (.7 hours of cutting)
• 60 second Cut 90 Starts

25
FineLine100PC

• Gage thickness through 1/2 ideal cutting range
• Auto-gas console standard
• Affordable system and consumables
• Internal water cooling for longer torch life
• Precision plasma system

26
FineLine200PC

• Gage thickness through 1 ideal cutting range
• Auto gas console standard
• FineLine torch features extended life and low
  cost consumables
• 100 duty cycle capable with internally water
  cooled torch
• Precision High Density plasma system

27
ProLine2200

• 200 amp plasma system
• Precision High Density plasma cutting
• Gage thickness through 1 ideal cutting range
• Manual gas console
• Affordable

28
FineLine150PC

• Ideal cutting range is gage to 3/4
• Standard auto-gas console
• 150 amp precision plasma
• Internally liquid cooled torch
• Extended life, low cost consumables
• Dual gas capable

29
FineLine260PC

• 260 amp high density precision plasma
• Automatic gas control is standard
• Ideal cutting range is gage to 1 ¼
• Internally liquid cooled torch
• 100 duty cycle
• Plasma marking capability

30
ProLine2150

• Affordable precision plasma
• Manual gas console
• 150 amp system
• Ideal cutting range from gage to ¾, with maximum
  cut thickness 1 ½
• Good cut quality
• 100 duty cycle

31
ProLine2260

• Ideal cutting range from gage to 1 ¼, maximum of
  2
• 260 amp high definition plasma system
• Manual gas console
• 100 duty cycle
• Affordable plasma system
• Internally liquid cooled torch
• Plasma marking capacity

32
HQ24

• Gage thickness through 3/4 ideal cutting range
• Quicksilver edges on stainless steel cutting from
  light gage to 14 gage, and 6 gage to ½
• 120 amp system
• Mark and cut with the same consumables
• Excellent small hole quality

33
HQ30

• Gage thickness through 1 ideal cutting range
• Excellent small hole quality
• Quick change consumables
• Superior marking with cutting consumables
• Dings and divots are nearly eliminated
• 150 amp system

34
TurboNest

• Features pattern array, block nesting, optimized
  rectangular nesting, true shape or profile
  nesting, and pattern nesting (some of these
  features are add on options)
• Common line cutting, chain cutting, and bridge
  cutting (add on optional features)
• Automatic import of CNC and CAD geometry
• Drag-and-Drop interactive nesting
• Interactive plate cropping
• Interactive lead in / lead out editing
• Ability to undo part movement or rotation
• Cost and production time estimates

35
ProNest

• Automated import of CAD and CNC files including
  material, thickness and quantity if applicable
• Easy to learn and use
• Optional features include common line, chain, and
  bridge cutting, skeleton cut-up, and collision
  avoidance
• Advanced drag-and-drop nesting
• More optional features include Block, Optimized
  rectangular, True Shape with part-in-part, and
  pattern array nesting

36
MG Advantages

• Robust Design
• Longer Lasting
• Life Long Machine Support
• Lower Operating Cost
• Superior Cut Quality
• Greater Accuracy Repeatabilty
• Best Uptime

37
SUSTAINABLE
ADVANTAGE
38
CUSTOMER NAME

Good Business
39
MG Systems and Welding
