Clustering.

1

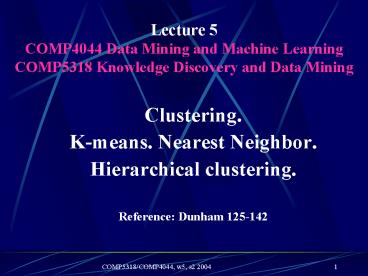

Lecture 5COMP4044 Data Mining and Machine
LearningCOMP5318 Knowledge Discovery and Data
Mining

• Clustering.
• K-means. Nearest Neighbor.
• Hierarchical clustering.
• Reference Dunham 125-142

2
Outline

• Introduction to clustering
• Examples
• Taxonomy of clustering algorithms
• What is a good clustering
• Characteristics of a cluster
• Distance between clusters
• K-means clustering algorithm
• Nearest Neighbor clustering algorithm
• Hierarchical clustering
• Agglomerative hierarchical algorithms
• Single link, complete link, average link
• Divisive hierarchical algorithm

3
What is Clustering?

• Clustering the process of grouping the data
  into classes (clusters) so that the data objects
  (examples) are
• similar to one another within the same cluster
• dissimilar to the objects in other clusters
• Clustering is unsupervised classification no
  predefined classes
• Given A set of unlabeled examples (input
  vectors) pi k desired number of clusters
• Task Cluster (group) the examples into k clusters

4
Clustering Formal Definition

• DEF Given a database Pp1,, pn of tuples
  (items, records, examples, instances) and an
  integer k, the clustering problem is to define a
  mapping f P-gt1,,k where each pi is assigned
  to one cluster Kj, 1ltjltk
• Result of solving a clustering problem a set of
  clusters KKk1,K2,,Kk

5
Typical Clustering Applications

• As a stand-alone tool to
• get insight into data distribution
• find the characteristics of each cluster
• assign the cluster of a new example
• As a preprocessing step for other algorithms
• e.g. dimensionality reduction using cluster
  centers to represent data in clusters

6
Clustering Example - Stars

• Star clustering based on temperature and
  brightness (Hertzsprung-Russel diagram)
• The 3 clusters represent stars in 3 different
  phases of their life
• Astronomers had to perform clustering to identify
  these categories
• Well-defined clusters

From Data Mining Techniques, M. Berry, G.
Linoff, John Wiley and Sons Publ.
7
Clustering Example - Houses

• Given dataset may be clustered on different
  attributes

8
Clustering Example - Animals

• 16 animals described with 13 binary attributes




9
Clustering Example Fitting Troops

• Fitting the troops re-design of uniforms for
  female soldiers in US army
• Goal reduce the number of uniform sizes to be
  kept in inventory while still providing good fit
• Researchers from Cornell University used
  clustering and designed a new set of sizes
• Traditional clothing size system ordered set of
  graduated sizes where all dimensions increase
  together
• The new system sizes that fit body types
• E.g. one size for short-legged, small waisted,
  women with wide and long torsos, average arms,
  broad shoulders, and skinny necks

10
Other Examples of Clustering Applications

• Marketing
• help discover distinct groups of customers, and
  then use this knowledge to develop targeted
  marketing programs
• Biology
• derive plant and animal taxonomies
• find genes with similar function
• Land use
• identify areas of similar land use in an earth
  observation database
• Insurance
• identify groups of motor insurance policy holders
  with a high average claim cost
• City-planning
• identify groups of houses according to their
  house type, value, and geographical location

11
Clustering Important Features

• The best number of clusters is not known
• There is no one correct answer to a clustering
  problem
• domain expert may be required
• Interpreting the semantic meaning of each cluster
  is difficult
• What are the characteristics that the items have
  in common?
• Domain expert is needed
• Cluster results are dynamic (change over time) if
  data is dynamic
• e.g. clustering web logs for patterns of usage

12
Taxonomy of Clustering Algorithms
13
Classification of Clustering Algorithms cont.

• Hierarchical clustering
• create a nested set of clusters
• each level in the hierarchy has a separate set of
  clusters
• lowest level each item is in one cluster
• highest level all items form one cluster

• The desired number of clusters k is not an input
• Agglomerative bottom-up creation of the
  clusters
• Divisive top-down

From Empirical Evaluation of Clustering
Algorithms, A. Rauber, J. Paralic, E. Pampalk,
JIOS, 24(2), 2000.
14
Classification of Clustering Algorithms cont.2

• Partitional
• create only one set of clusters
• Require the number of clusters k to be
  pre-specified
• Examples k-means, nearest-neighboring,
  Self-Organising Maps (SOM)

Clustering using SOM
From Empirical Evaluation of Clustering
Algorithms, A. Rauber, J. Paralic, E. Pampalk,
JIOS, 24(2), 2000.
15
Classification of Clustering Algorithms cont.3

• Categorical and large DB algorithms
• Traditional algorithms do no deal with
  categorical (nominal) data and also are typically
  applied to small data sets that fit in the memory
• Some of the recent clustering algorithms address
  these issues (typically by sampling the data or
  using efficient data structures)
• Other criteria to classify clustering algorithms
• Produce overlapping or non-overlapping clusters
• Serial (incremental) or simultaneous
• items are examined one by one or together
• Monothetic and Polythetic
• Examine one or many attribute values at a time

16
What is a Good Clustering?

• A good clustering method will produce high
  quality clusters with
• high intra-class similarity
• low inter-class similarity
• The similarity is measured using a distance
  function
• e.g. Davies-Bouldin index a heuristic measure
  of the quality of the clustering clusters are
  compared in pairs
• c number of clusters
• D(xi) mean-squared distance from the points in
  the cluster i to the center
• D(xi,xj) distance between the centers of
  cluster i and j
• What is the DB index for a good clustering big
  or small?

17
Characteristics of a Cluster

• Consider a cluster K of N points p1,..,pN
• Centroid the middle of the cluster
• no need to be an actual data point in the cluster
• Medoid M the centrally located data point
  (object) in the cluster
• Radius square root of the average mean squared
  distance from any point in the cluster to the
  centroid
• Diameter square root of the average mean
  squared distance between all pairs of points in
  the cluster

18
Distance Between Clusters
Many interpretations

• Single link the distance between 2 clusters is
  the smallest distance between an element in one
  cluster and an element in the other
• Complete link the largest distance between an
  element in one cluster and an element in the
  other
• Average link the average distance between each
  element in one cluster and each element in the
  other
• Centroid the distance between the centroids
• Medoid the distance between the medoids

19
Different Ways of Visualizing Clusters
1 2 3 a 0.4 0.1
0.5 b 0.1 0.8 0.1 c
0.3 0.3 0.4 d 0.1 0.1
0.8 e 0.4 0.2 0.4 f 0.1 0.4
0.5 g 0.7 0.2 0.1 h
0.5 0.4 0.1
20
K-Means Clustering Algorithm

• Simple and very popular clustering algorithm
• It is an iterative distance-based partitional
  clustering method
• Requires the number of clusters k to be specified
  in advance
• Can be implemented in 4 steps
• 1. Choose k seeds (vectors with the same
  dimensionality as the input examples typically
  the first k examples are selected as seeds)
• 2. Apply an example, calculate the distance from
  it to all seeds and assign it to the cluster with
  the nearest seed point
• 3. At the end of each epoch compute the centroid
  (means) of the clusters
• 4. If the stopping criteria is satisfied (no
  changes in the assignment of the examples or max
  number of epochs reached), stop. Otherwise,
  repeat 2 and 3 with the new centroids taking the
  role of the seeds.

21
K-Means Algorithm - Example

• What is the output of k-means?
• How can we use it to find the cluster of a new
  example?

22
K-Means Algorithm Pseudo Code
23
K-means - Issues

• Different distance measures can be used
• typically Eucledian distance is used
• Data should be normalized
• Typically produces good results
• Computationally expensive, does not scale well
• Involves finding the distance from each example
  to each cluster center at each iteration
• Time complexity O(tkn), t- number of iterations,
  k-number of clusters, n- number of examples
• Not optimal finds a local optimum, may miss the
  global one
• Standard k-means does not work on nominal data
• Calculating distance for nominal feature vectors
• Defining means on the attribute type
• There are variations of k-means that handle
  nominal data (e.g. k-modes)

24
K-means Issues (cont.)

• What type of clusters does k-means produce
  convex-shaped or non-convex shaped? What shape?
• Convex region (hull) region in which any point
  can be connected to any other by a straight line
  that does not cross the boundary of the region

25
K-means Variations

• Improving the chances of k-means to find the
  global minimum
• Different ways to initialize the seeds
• Careful selection of the number of clusters
• Using weights based on how close the example is
  to the cluster center Gaussian mixture models
• Allowing clusters to split and merge
• Split if the variance within a cluster is large
• Merge if the distance between cluster centers is
  smaller than a threshold
• Make it scale better
• Save distance information from one iteration to
  the next, thus reducing the number of
  calculations
• Typical values of k 2 to 10
• K-means can be used for hierarchical clustering
• Start with k2 and repeat recursively within each
  cluster

26
Nearest Neighbor Clustering Algorithm

• A new instance forms a new cluster or is merged
  to an existing one depending on how close it is
  to the existing clusters
• threshold t to determine if to merge or create a
  new cluster

// t1 is placed in a cluster by itself
// t2-tn items add to an existing or place in
a new cluster?

• Time complexity O(n2), n-number of items
• Each item is compared to each item already in the
  cluster

27
Nearest Neighbor Clustering - Example

• Given 5 items with the distance between them
• Task Cluster them using the Nearest Neighbor
  algorithm with a threshold t2

-A K1A -B d(B,A)1ltt gt K1A,B -C
d(C,Ad(C,B)2?tgtK1A,B,C -D d(D,A)2,
d(D,B)4, d(D,C)1 dmin ?t gt K1A,B,C,D -E
d(E,A)3, d(E,B)3, d(E, C)5, d(E,
D)3dmingttgtK2E
28
Hierarchical Clustering

• Creates not one set of clusters but several sets
  of clusters
• The desired number of clusters k is not an input
• The hierarchy of clusters can be represented as a
  tree structure called dendrogram
• Leaves of the dendrogram consist of 1 item
• each item is in one cluster
• Root of the dendrogram contains all items
• all items form one cluster
• Internal nodes represent clusters formed by
  merging the clusters of the children
• Each level is associated with a distance
  threshold that was used to merge the clusters
• If the distance between 2 clusters was smaller
  than the threshold they were merged

29
Dendrogram Representation

• A set of ordered triples (d,k,K)
• d threshold value
• k number of clusters
• K the set of clusters
• Example
• ( 0, 5, A,B,C, D, E ),
• (1, 3, A,B, C,D, E ),
• (2, 2, A,B,C,D, E ),
• (3, 1, A,B,C,D,E )
• Thus, the output is not one set of clusters but
  several. One can determine which of the sets to
  use.

30
Agglomerative vs Divisive Clustering

• Agglomerative
• Start with each item in its own cluster
  iteratively merge clusters until all items belong
  to one cluster
• Merging is based on how close the clusters are to
  each other
• Calculating distance between clusters - single
  link, complete link, average link
• Distance threshold d if the distance between two
  clusters is smaller or equal to d, merge them
• Initially d is set to a small value that is
  incremented at each level
• Divisive
• Place all items in one cluster iteratively split
  clusters in two until all items are in their own
  cluster
• Splitting is based on the distance between
  clusters split if the distance is smaller or
  equal to the threshold d
• Initially d is set to a big value that is
  decremented at each level

31
Agglomerative Algorithms Pseudo Code

• Different algorithms merge clusters at each level
  differently (procedure NewClusters)

• Merge only 2 or more clusters?
• If there are several clusters with identical
  distances, which ones to merge?
• How to determine the distance between clusters?
• single link
• complete link
• average link

32
NewClusters Procedure

• NewClusters typically finds all the clusters that
  are within distance d from each other (according
  to the distance measure used), merges them and
  updates the adjacency matrix
• Example
• Given 5 items with the distance between them
• Task Cluster them using agglomerative single
  link clustering

33
Example Solution 1

• Distance Level 3 merge ABCDE all items are in
  one cluster stop
• Dendrogram

• Distance Level 1 merge AB, CD update the
  adjacency matrix

• Distance Level 2 merge ABCD update the
  adjacency matrix

34
Single Link Algorithm as a Graph Problem

• NewClusters can be replaced with a procedure for
  finding connected components in a graph
• two components of a graph are connected if there
  exists a path between any 2 vertices
• Examples
• A and B are connected, A, B, C and D are
  connected
• C and D are connected
• Show the graph edges with a distance of d or
  below
• Merge 2 clusters if there is at least 1 edge that
  connects them (i.e. if the minimum distance
  between any 2 points is lt d)
• Increment d

35
Example Solution 2

• Procedure NewClusters
• Input graph defined by a set of vertices
  vertex adjacency matrix
• Output a set of connected components defined by
  a number of these components (i.e. number of
  clusters k) and an array with the membership of
  these components (i.e. K - the set of clusters)

Single link dendrogram
36
Single Link vs. Complete Link Algorithm

• Single link suffers from the so called chain
  effect
• 2 clusters are merged if only 2 of their points
  are close to each other
• there may be points in the 2 clusters that are
  far from each other but this has no effect on the
  algorithm
• Thus the clusters may contain points that are not
  related to each other but simply happen to be
  near points that are close to each other
• Complete link the distance between 2 clusters
  is the largest distance between an element in one
  cluster and an element in another
• Generates more compact clusters
• Dendrogram for the example

37
Average Link

• Average link - the the distance between 2
  clusters is the average distance between an
  element in one cluster and an element in another

For our example
arbitrary set can be 1
38
Divisive Clustering

• All items are initially placed in one cluster
• Clusters are iteratively split in two until all
  items are in their own cluster
• In reverse order from e to b

39
Applicability and Complexity

• Hierarchical clustering algorithms are suitable
  for domains with natural nesting relationships
  between clusters
• Biology- plant and animal taxonomies can be
  viewed as a hierarchy of clusters
• Space complexity of the algorithm O(n2), n -
  number of items
• The space required to store the adjacency
  distance matrix
• Space complexity of the dendrogram O(kn),
  k-number of levels
• Time complexity of the algorithm O(kn2) 1
  iteration for each level of the dendrogram
• Not incremental assume all data is present
