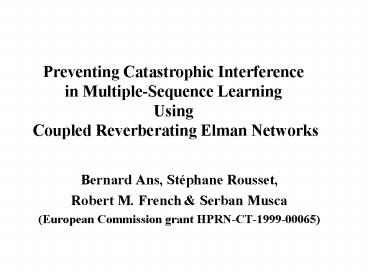

Preventing Catastrophic Interference in
Multiple-Sequence Learning Using Coupled
Reverberating Elman Networks

• Bernard Ans, Stéphane Rousset,
• Robert M. French Serban Musca
• (European Commission grant HPRN-CT-1999-00065)

2
The Problem of Multiple-Sequence Learning

• Real cognition requires the ability to learn
  sequences of patterns (or actions). (This is why
  SRNs Elman Networks were originally
  developed.)
• But learning sequences really means being able to
  learn multiple sequences without the most
  recently learned ones erasing the previously
  learned ones.
• Catastrophic interference is a serious problem
  for the sequential learning of individual
  patterns. It is far worse when multiple
  sequences of patterns have to be learned
  consecutively.

3
The Solution

• We have developed a dual-network system using
  coupled Elman networks that completely solves
  this problem.
• These two separate networks exchange information
  by means of reverberated pseudopatterns.

4
Pseudopatterns
Assume a network-in-a-box learns a series of
patterns produced by a function f(x). These
original patterns are no longer available. How
can you approximate f(x)?
5
1 0 0 1 1
Random Input
6
1 1 0
Associated output
1 0 0 1 1
Random Input
7
1 1 0
Associated output
1 0 0 1 1
Random Input
This creates a pseudopattern ?1 1 0 0 1
1 ? 1 1 0
8
A large enough collection of these
pseudopatterns ?1 1 0 0 1 1 ? 1 1 0 ?2 1 1
0 0 0 ? 0 1 1 ?3 0 0 0 1 0 ? 1 0 0 ?4 0 1 1
1 1 ? 0 0 0 Etc will approximate the originally
learned function.
9
Transferring information from Net 1 to Net 2
with pseudopatterns
Associated output
1 1 0
target
1 1 0
Net 2
Net 1
input
1 0 0 1 1
Random input
1 0 0 1 1
10
Information transfer by pseudopatterns in
dual-network systems

• New information is presented to one network (Net
  1).
• Pseudopatterns are generated by Net 2 where
  previously learned information is stored.
• Net 1 then trains not only on the new pattern(s)
  to be learned, but also on the pseudopatterns
  produced by Net 2.
• Once Net 1 has learned the new information, it
  generates (lots of) pseudopatterns that train Net
  2

This is why we say that information is
continually transferred between the two networks
by means of pseudopatterns.
11
Are all pseudopatterns created equal? No.

• Even though the simple dual-network system (i.e.,
  new learning in one network long-term storage in
  the other) using simple pseudopatterns does
  eliminate catastrophic interference, we can do
  better using reverberated pseudopatterns.

12
Building a Network that uses reverberated
pseudopatterns.
Start with a standard backpropagation network
Output layer
Hidden layer
Input layer
13
Add an autoassociator
Output layer
Hidden layer
Input layer
14
A new pattern to be learned, P Input ? Target,
will be learned as shown below.
Target
Input
Input
15
What are reverberated pseudopatterns andhow
are they generated?
16
We start with a random input î0, feed it through
the network and collect the output on the
autoassociative side of the network.. This
output is fed back into the input layer
(reverberated) and, again, the output on the
autoassociative side is collected. This is done R
times.
17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
After R reverberations, we associate the
reverberated input and the target output.
This forms the reverberated pseudopattern
22

This dual-network approach using reverberated
pseudopattern information transfer between the
two networks effectively overcomes catastrophic
interference in multiple-pattern learning
23
But what about multiple-sequence learning?
Elman networks are designed to learn sequences
of patterns. But they forget catastrophically
when they attempt to learn multiple
sequences. Can we generalize the dual-network,
reverberated pseudopattern technique to dual
Elman networks and eliminate catastrophic
interference in multiple-sequence learning? Yes
24
Elman networks (a.k.a. Simple Recurrent Networks)
S(t1)
Copy hidden unit activations from previous
time-step
Hidden H(t)
Standard input S(t)
Context H(t-1)
Learning a sequence S(1), S(2), , S(n).
25
A Reverberated Simple Recurrent Network (RSRN)
an Elman network with an autoassociative part
26
RSRN technique for sequentially learning two
sequences A(t) and B(t).

• Net 1 learns A(t) completely.
• Reverberated pseudopattern transfer to Net 2.
• Net 1 makes one weight-change pass through B(t).
• Net 2 generates a few static reverberated
  pseudopatterns
• Net 1 does one learning epoch on these
  pseudopatterns from Net 2.
• Continue until Net 1 has learned B(t).
• Test how well Net 1 has retained A(t).

27

Two sequences to be learned A(0), A(1), A(10)
and B(0), B(1), B(10)
Net 1
Net 2
Net 1 learns (completely) sequence A(0), A(1), ,
A(10)
28
Transferring the learning to Net 2
1110010011010
1110010011010 Teacher
Net 1
Net 2
010110100110010
010110100110010 Input
Net 1 produces 10,000 pseudopatterns,
29
Transferring the learning to Net 2
1110010011010 Teacher
Net 1
Net 2
feedforward
010110100110010 Input
30
Transferring the learning to Net 2
1110010011010 Teacher
Backprop weight change
Net 1
Net 2
010110100110010 Input
For each of the 10,000 pseudopatterns produced by
Net 1, Net 2 makes 1 FF-BP pass.
31
Learning B(0), B(1), B(10) by NET 1
Net 1
Net 2
1. Net 1 does ONE learning epoch on sequence
B(0), B(1), , B(10)
2. Net 2 generates a few pseudopatterns ?NET 2
3. Net 1 does one FF-BP pass on each ?NET 2
32
Learning B(0), B(1), B(10) by NET 1
Net 1
Net 2
1. Net 1 does ONE learning epoch on sequence
B(0), B(1), , B(10)
2. Net 2 generates a few pseudopatterns ?NET 2
3. Net 1 does one FF-BP pass on each ?NET 2
Continue until Net 1 has learned B(0), B(1), ,
B(10)
33
Sequences chosen

• Twenty-two distinct random binary vectors of
  length 100 are created.
• Half of these vectors are used to produce the
  first ordered sequence of items, A, denoted by
  A(0), A(1), , A(10).
• The remaining 11 vectors are used to create a
  second sequence of items, B, denoted by B(0),
  B(1), , B(10).
• In order to introduce a degree of ambiguity into
  each sequence (so that a simple BP network would
  not be able to learn them), we modify each
  sequence so that A(8) A(5) and B(5) B(1).

34
Test method

• First, sequence A is completely learned by the
  network.
• Then sequence B is learned.
• During the course of learning, we monitor at
  regular intervals how much of sequence A has been
  forgotten by the network.

35
Normal Elman networks Catastrophic forgetting
(a) Learning of sequence B (after having
previously learned sequence A). By 450 epochs (an
epoch corresponds to one pass through the entire
sequence), sequence B has been completely
learned. (b) The number of incorrect
units (out of 100) for each serial position of
sequence A during learning of sequence B. After
450 epochs, the SRN has, for all intents and
purposes, completely forgotten the previously
learned sequence A
36
Dual-RSRNs Catastrophic forgetting is eliminated
Recall performance for sequences B and A during
learning of sequence B by a dual-network RSRN.
(a) By 400 epochs, the second sequence B has
been completely learned. (b) The previously
learned sequence A shows virtually no forgetting.
Catastrophic forgetting of the previously learned
sequence A has been completely overcome.
37
Normal Elman Network Massive forgetting Error
on Sequence A
Dual RSRN No forgetting of Sequence A
Seq. B being learned
38
Cognitive/Neurobiological plausibility?

• The brain, somehow, does not forget
  catastrophically.
• Separating new learning from previously learned
  information seems necessary.
• McClelland, McNaughton, OReilly (1995) have
  suggested the hippocampal-neocortical separation
  may be Natures way of solving this problem.
• Pseudopattern transfer is not so far-fetched if
  we accept results that claim that neo-cortical
  memory consolidation, is due, at least in part,
  to REM sleep.

39
Conclusions

• The RSRN reverberating dual-network architecture
  (Ans Rousset, 1997, 2000) can be generalized to
  sequential learning of multiple temporal
  sequences.
• When learning multiple sequences of patterns,
  interleaving simple reverberated input-output
  pseudopatterns, each of which reflect the entire
  previously learned sequence(s), reduces (or
  eliminates entirely) forgetting of the initially
  learned sequence(s).
