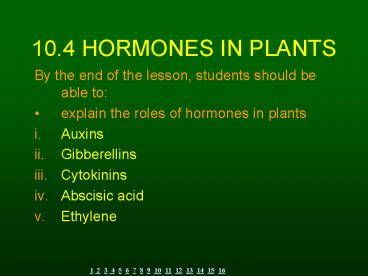

10.4 HORMONES IN PLANTS

1
10.4 HORMONES IN PLANTS

• By the end of the lesson, students should be able
  to
• explain the roles of hormones in plants
• Auxins
• Gibberellins
• Cytokinins
• Abscisic acid
• Ethylene

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
16
2
Auxin

• Produced in
• Embryo of seed, meristem of apical buds, young
  leaves
• Roles
• stimulates stem elongation (low concentration
  only), root growth, cell differentiation and
  branching
• regulates development of fruit
• enhances apical dominance
• functions in phototropism and gravitropism
• promotes xylem differentiation
• retards leaf abscission

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
16
3

• Auxin is synthesized in the shoot tip and
  migrates down the stem
• Auxin stimulates cell elongation causing the
  shoot to grow toward light

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
16
4

• High concentration of auxin will inhibit shoot
  growth
• A certain concentration causes shoot growth is
  inhibiting root growth

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
16
5
Phototropism
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
16
6
Gravitropism
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
16
7
Stem elongation
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
16
8
Gibberellins

• Produced in
• Meristems of apical buds and roots, young leaves,
  embryo
• Roles
• promotes seed and bud germination
• stem elongation and leaf growth
• stimulate flowering and development of fruit
• affect root growth and differentiation

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
16
9
Types of Germinations
Seed Germination
Buds Germination
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
16
10
Flowering
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
16
11
Cytokinins

• Produced in
• roots and transported to other organs
• Roles
• affect root growth and differentiation
• stimulate cell division and growth
• stimulate germination
• delay senescence

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
16
12
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
16
13
Abscisic acid

• Produced in
• Leaves, stems, roots and green fruit
• Roles
• inhibits growth
• closes stomata during water stress
• promotes seed dormancy

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
16
14
Seed dormancy
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
16
15
Ethylene

• Produced in
• tissue of ripening fruit, nodes of stems, aging
  leaves and flower
• Roles
• promotes fruit ripening, opposes some auxin
  effects
• promotes or inhibits growth and development of
  roots, leaves and flowers, depending on species

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
16
16
Fruit ripening
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
16
