Store Everything Online In A Database

1

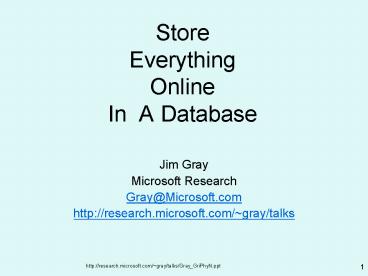

Store EverythingOnlineIn A Database

• Jim Gray
• Microsoft Research
• Gray_at_Microsoft.com
• http//research.microsoft.com/gray/talks

2
Outline

• Store Everything
• Online (Disk not Tape)
• In a Database

3
How Much is Everything?
Yotta Zetta Exa Peta Tera Giga Mega Kilo
Everything! Recorded

• Soon everything can be recorded and indexed
• Most bytes will never be seen by humans.
• Data summarization, trend detection anomaly
  detection are key technologies
• See Mike Lesk How much information is there
  http//www.lesk.com/mlesk/ksg97/ksg.html
• See Lyman Varian
• How much information
• http//www.sims.berkeley.edu/research/projects/how
  -much-info/

All Books MultiMedia
All LoC books (words)
.Movie
A Photo
A Book
24 Yecto, 21 zepto, 18 atto, 15 femto, 12 pico, 9
nano, 6 micro, 3 milli
4
Storage capacity beating Moores law

• 3 k/TB today (raw disk)
• 1k/TB by end of 2002

5
Outline

• Store Everything
• Online (Disk not Tape)
• In a Database

6
Online Data

• Can build 1PB of NAS disk for 5M today
• Can SCAN (read or write) entire PB in 3 hours.
• Operate it as a data pump continuous sequential
  scan
• Can deliver 1PB for 1M over Internet
• Access charge is 300/Mbps bulk rate
• Need to Geoplex data (store it in two places).
• Need to filter/process data near the source,
• To minimize network costs.

7
The Absurd Disk

• 2.5 hr scan time (poor sequential access)
• 1 access per second / 5 GB (VERY cold data)
• Its a tape!

1 TB
100 MB/s
200 Kaps
8
Disk vs Tape

• Tape
• 40 GB
• 10 MBps
• 10 sec pick time
• 30-120 second seek time
• 2/GB for media8/GB for drivelibrary
• 10 TB/rack
• 1 week scan

• Disk
• 80 GB
• 35 MBps
• 5 ms seek time
• 3 ms rotate latency
• 3/GB for drive 2/GB for ctlrs/cabinet
• 15 TB/rack
• 1 hour scan

Guestimates Cern 200 TB 3480 tapes 2 col
50GB Rack 1 TB 12 drives
The price advantage of disk is growing the
performance advantage of disk is huge! At
10K/TB, disk is competitive with nearline tape.
9
Building a Petabyte Disk Store

• Cadillac 500k/TB 500M/PB plus FC
  switches plus 800M/PB
• TPC-C SANs (Brand PC 18GB/) 60 M/PB
• Brand PC local SCSI 20M/PB
• Do it yourself ATA
  5M/PB

10
Cheap Storage and/or Balanced System

• Low cost storage (2 x 3k servers) 5K TB2x (
  800 Mhz, 256Mb 8x80GB disks 100MbE)raid5
  costs 6K/TB
• Balanced server (5k/.64 TB)
• 2x800Mhz (2k)
• 512 MB
• 8 x 80 GB drives (2K)
• Gbps Ethernet switch (300/port)
• 9k/TB 18K/mirrored TB

11
Next step in the Evolution

• Disks become supercomputers
• Controller will have 1bips, 1 GB ram, 1 GBps net
• And a disk arm.
• Disks will run full-blown app/web/db/os stack
• Distributed computing
• Processors migrate to transducers.

12
Its Hard to Archive a PetabyteIt takes a LONG
time to restore it.

• At 1GBps it takes 12 days!
• Store it in two (or more) places online (on
  disk?). A geo-plex
• Scrub it continuously (look for errors)
• On failure,
• use other copy until failure repaired,
• refresh lost copy from safe copy.
• Can organize the two copies differently
  (e.g. one by time, one by space)

13
Outline

• Store Everything
• Online (Disk not Tape)
• In a Database

14
Why Not file object GREP?

• It works if you have thousands of objects (and
  you know them all)
• But hard to search millions/billions/trillions
  with GREP
• Hard to put all attributes in file name.
• Minimal metadata
• Hard to do chunking right.
• Hard to pivot on space/time/version/attributes.

15
The Reality its build vs buy

• If you use a file system you will eventually
  build a database system
• metadata,
• Query,
• parallel ops,
• security,.
• reorganize,
• recovery,
• distributed,
• replication,

16
OK so Ill put lots of objects in a fileDo It
Yourself Database

• Good news
• Your implementation will be 10x faster than the
  general purpose one easier to understand and
  use than the general purpose on.
• Bad news
• It will cost 10x more to build and maintain
• Someday you will get bored maintaining/evolving
  it
• It will lack some killer features
• Parallel search
• Self-describing via metadata
• SQL, XML,
• Replication
• Online update reorganization
• Chunking is problematic (what granularity, how to
  aggregate)

17
Top 10 reasons to put Everything in a DB

• Someone else writes the million lines of code
• Captures data and Metadata,
• Standard interfaces give tools and quick learning
• Allows Schema Evolution without breaking old apps
• Index and Pivot on multiple attributes
  space-time-attribute-version.
• Parallel terabyte searches in seconds or minutes
• Moves processing search close to the disk
  arm (moves fewer bytes (qestons return datons).
• Chunking is easier (can aggregate chunks at
  server).
• Automatic geo-replication
• Online update and reorganization.
• Security
• If you pick the right vendor, ten years from now,
  there will be software that can read the data.

18
DB Centric Examples

• TerraServer
• All images and all data in the database (chunked
  as small tiles).www.TerraServer.Microsoft.com/
• http//research.microsoft.com/gray/Papers/MSR_TR_
  99_29_TerraServer.doc
• SkyServer Virtual Sky
• Both image and semantic data in a relational
  store.
• Parallel search NonProcedural access are
  important.
• http//research.microsoft.com/gray/Papers/MS_TR_9
  9_30_Sloan_Digital_Sky_Survey.doc
• http//dart.pha.jhu.edu/sdss/getMosaic.asp?Z1A1
  T4H1S10M30
• http//virtualsky.org/servlet/Page?F3RA16h10m
  1.0sDE2B0d42m45sT4P12S10X5096Y4121
  W4Z-1tile.2.1.x55tile.2.1.y20

19
OK Why dont they use our stuff?

• Wrong metaphor HDF with hyper-slab is better
  match.
• Impedence match getting stuff in/out of DB is
  too hard
• We sold them OODBs and they did not work
  (unreliable, poor performance, no tools).

20
So, why will the future be different?

• They have MUCH more data (108 files?)
• Java / C eases impedance mismatch rowsets
  ragged arrays.
• Tools are better
• Optimizers are better
• CPU and disk parallelism actually works now
• Statistical packages are better.

21
Outline

• Store Everything
• Online (Disk not Tape)
• In a Database

22
But The title of the talk was

• The Future of Distributed Database Systems

Nobody wants to share his database. blocks,
files, tables are wrong abstraction for
networks. (too low level) Objects are the right
abstraction So, UDDI / WSDL / SOAP is the
solution (not SQL) XML is the wire format, XLANG
is the workflow protocol, Query will be in there
somewhere.
23
DDB technology GREAT in a Cluster

• Uniform architecture
• Trust among nodes
• High bandwidth-low latency communication
• Programs have single system image
• Queries run in parallel
• Global optimizer does query decomposition

24
But in a Distributed System

• Heterogenous architecture makes query planning
  much harder
• No trust
• Communication is slow and expensive (minimize
  it).
• ? Higher level abstraction to minimize round trips

25
DDB the Trust Issue

• Customers serve themselves
• Follow the rules posted on the door
• No Overhead, no staff!

• Clerks serve Customers
• Take order, fill order, fill out invoice, collect
  money.
• Overhead staff, training, rules,

• Customers serve themselves
• Follow the rules posted on the dorr

Client/Server Groceries
DDB Grocery
