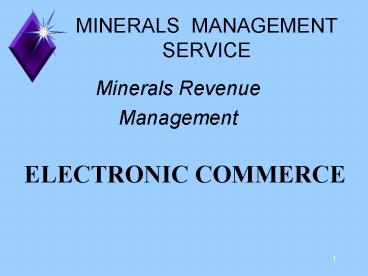

MINERALS MANAGEMENT SERVICE

1
MINERALS MANAGEMENT SERVICE
Minerals Revenue Management ELECTRONIC
COMMERCE
2
Before
Click on Icon on Desktop to begin using Pro Client
3
Now
Reporters will log directly onto Inoviss secure
website http//hx.harbinger.net/mmsmrm to
complete Forms MMS-2014 and MMS-4054. Registration
is required prior to using this website.
4
Before
Main Menu
5
Now
6
Before
Document List
7
Now
8
Before
OGOR Report Form
9
Now
10
Before
If you have errors when you validate, a window
will come up and tell you the lease/agreement
numbers and the errors for each lease/agreement
11
Now
If there are errors during validation, a report
will appear identifying those errors. The report
offers a print option.
12
Before
Import
13
Now
14
Before
15
Now
16
OGOR Web-based Reporting
Overview
17
(No Transcript)
18
Logon - This connects you to the server after
filling in your Login ID and Password. Both are
case sensitive, so be consistent.
19
1
Main Menu 1. Document List Takes you to the
list of documents you have open/sent.
20
2
2. Registration Form Used to register a Password
change.
21
3
3. Provides an overview on the use of the MMS Web
Forms.
22
4
4. Logoff Logs you out of the server and closes
your account.
23
Document List
1
24
1 2 3
1. Choose document type you wish to work on. 2.
Takes you to the Online Help 3. Takes you back to
the Main Menu screen.
25
4
4. Update Allows you to open and edit a form.
26
5 6
5. Print Allows you to print a document. 6.
Copy Allows you to copy an open or sent document.
27
7
7. Delete Allows you to delete the document from
the Document List.
28
MMS - OGOR Form
1 2
29
1 2
1. Save - Saves your document. We recommend you
do this often to avoid losing your data input. 2.
Validate Validates the current document for
errors.
30
3 4 5
3. Send - Sends the current document to the Web
database for transmission to MMS. 4. Address -
Function does not work for OGOR reporting, only
2014. 5. Help - Views the contents of the Help
Text.
31
6 7
6. Field Help - Takes you to Help Text specific
to the part of the OGOR form you are working on
currently. 7. Cancel/Doc List - Exits the Form
and returns you to the Document List.
32
Operator and Lease Information

• If you were a 3160 reporter use Agency, not MMS,
  for MMS/Agency field.

33
(No Transcript)
34

• Fill in the Lease and Authorization information.

• When imputing the Reporter Doc Name, we suggest
  using the production report month, so you can
  identify each month report i.e., 042002
• Click on Save button to save the document.
• Then click on the A to the right of the line
  to enter Part A of the document.

35
OGOR A - Upper Portion
36
OGOR A - Lower Portion
A.
B.
37
OGOR-A
A. If you have made changes to the OGOR A, you
need to click on Calculate Total button. B.
Complete all information in the Contact/Comments
Section. Remember to change the Authorization
Date on each new report. Click on the Save
button before going to Part B.
38
OGOR B
39
OGOR B

• If youve reported production on Part A, you
  must also fill out Part B. Totals need to match
  on both Parts.
• Be sure to refer to Appendix I in the Reporter
  Handbook for specific disposition codes. Many
  errors occur when incorrect codes are used. If
  you have questions, contact your representative
  for assistance.

40
OGOR B (cont..)

• Disposition Code 10, API Gravity, is not
  required on Part B
• Be sure to include the Btu content for gas on
  Part B
• After completing Part B, click on Calculate
  button and again Save the document before moving
  on to
• Part C.

41
OGOR C
Continue until you have filled out the all the
OGOR Parts (A, B, C) required for the
lease/agreement.
42

• You can report several leases on the same
  document by returning to the Lease Information
  Panel, adding an additional line on the page,
  then working through each part again.
• Once the document is complete, click on the
  Validate button and check for errors.
• After the validation is complete with no errors,
  the document can be sent. The document will
  then go to a Sent status.
• For the next months report, you can copy the
  previous report and make the changes.

43

• To delete a lease or line from your document,
  click on the X on the left of the line.
• To insert lines, click on the gt on the left of
  the line, or click on Add lines and tell it how
  many lines to insert.
• Previous and Next take you forward or back one
  screen.

44
Importing Data Files
45
OGOR
Click the Browse button to locate the file to be
imported. Choose the file, then click on the
Upload button.
46
A report will appear identifying any formatting
errors. The report is printable.
47
Newly imported documents will be listed at the
top of the Document List. Click on Edit button
to complete the validation process.
48
Newly imported documents will be listed at the
top of the Document List. Click on Edit button
to complete the validation process.
49
Why do I have to go through two checks for errors?

• The Import process primarily catches any errors
  occurring due to improper formatting of imported
  fields.
• The Validation process identifies improper
  formatting when entering data directly on a new
  form, as well as compares the data based on
  transaction requirements.

50
Electronic Commerce Contacts
