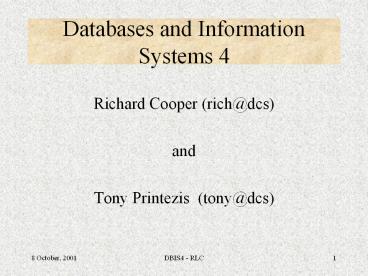

Databases and Information Systems 4

1
Databases and InformationSystems 4

• Richard Cooper (rich_at_dcs)
• and
• Tony Printezis (tony_at_dcs)

2
The Fundamental Problem

• Database Systems have been very successful in
  providing good support for managing data which is
  fairly large and fairly complex
• What happens when
• the data gets very much larger
• the data gets very much more complex

3
Contents of Course

• Week 1 (Richard)
• Introduction
• Overview of RDB/ORDB/OODB
• Week 2 (Richard)
• Orthogonal Persistence
• Object Oriented Database Systems

4
Contents of Course

• Week 3 (Tony)
• Java Object Serialization
• The PJama API
• Week 4 (Tony)
• Object Caching and Object Faulting
• Pointer Swizzling

5
Contents of Course 3

• Week 5 (Tony)
• Garbage Collection - Disk Behaviour
• Object Promotion
• Week 6 (Tony)
• Object Eviction
• Orthogonal Persistence for Java

6
Contents of Course 4

• Week 7 (Tony)
• Store Organisation
• Garbage Collection
• Week 8 (Richard)
• Object Query Languages
• Transaction Models

7
Contents of Course 5

• Week 9 (Richard)
• Transaction Models for Multi-Site Databases
• Schema Evolution
• Week 10
• Specialised Indexing (Ela)
• XML (Richard)

8
Assumptions about Database Use

• As database systems evolved, it was assumed that
• 1. There was a central data store with lots of
  distributed users.
• 2. The data was relatively simple (largely
  alphanumeric).
• 3. The data was regular and complete.
• 4. There was a lot of data, but there was also
  an implicit limit to the size.
• 5. The users were either consumers or
  specialised creators

9
The Real World

• Now we have
• data all over the place
• in all kinds of structures
• much of it is text
• even more of it is graphical or aural
• vast amounts of it
• some of it is missing or is structured
  differently in different places
• users with various kinds of interest/involvement

10
When Data is Small

• You can get away with
• non-linear algorithms
• hand-crafted code and data
• an ad hoc structure
• implicit rules and informal conventions

11
When Data Gets Large

• You must have
• linear or (better still) incremental algorithms
• systematic code and data management
• regular structures, frameworks and tools to
  support them
• explicit, visible and interpretable rules

12
When Data is also Long Lived

• We have the hardware to keep data for a very long
  time
• and there are often laws forcing us to do so
• However, long-lived data tends to change
• new data is added
• it is restructured
• the software expected to handle it evolves
• Can you read a ten year old floppy???

13
When Data is also Heterogeneous

• Information Systems increasingly must bring
  together data produced
• of different kinds (numeric and multi-media)
• separately (e.g. in merged companies)
• for different purposes
• using different technologies
• As though they were all designed to work together

14
Large, Long-lived, Heterogenous and Unstoppable

• Because the data supports continuous operations
• utilities, banking, airlines, public service
• You may not stop such systems if
• you want to change the hardware or software
• you want to change your database
• you want to change the application
• there are hardware or software failures
• there are operations which require exclusive
  access

15
This is the Reality we Live With

• There are lots of examples
• shared scientific data (e.g. genomic data)
• e-business
• governmental systems and health-care data
• computer aided design and manufacturing
• geographic information systems
• etc., etc.

16
And There Are Many More Media for Data Access

• Not just a private network, but also
• the internet
• digital television
• mobile devices
• etc., etc.

17
How To Cope 1

• Software Re-use
• not just small libraries such as Java APIs
• but large components, such as
• databases, payroll packages, GUI packages, etc.
• Standardised Frameworks
• CORBA, DCOM, EJB, .NET, XML

18
How to Cope 2

• Generate code rather than write it
• since much code is repetitious and can be
  generated from
• a high-level notation or by reflecting over data
• Work incrementally
• revolution is never affordable
• plan and resource route for transition
• remember the users!

19
The Fundamental Coping Device

• Effective high-level and complex standards for
  representing
• data (relations not enough)
• applications (regular, strict languages needed)
• distributed systems (CORBA, etc.)
• processes (UML, business processes, etc.)
• etc., etc.

20
But also ...

• It may be necessary to create new storage
  techniques to fit new data structures
• It will be necessary to invent new storage
  structures to manage the new complexity
• There is need for work at both
• the implementation level and
• the usability level

21
Lecture 2

• New Requirements on DB Functions
• Why Relations Won't Do
• Extending Relations
• Historical and Deductive Databases
• Object Relational Databases
• Oracle Objects, SQL3, etc.
• Object Oriented Databases
• intro only

22
New Applications withNew Requirements

• 1. CAD, CAE, CIM
• 2. Computer Aided Software Engineering
• 3. Office Information Systems
• 4. Geographic Information Systems
• 5. Hypermedia Systems
• Data is large, often graphical, multiple
  versions required, data is complex

23
Requirements which carry over from Traditional
Applications

• Efficient access to large amounts of data
• Recovery mechanisms
• Security mechanisms
• Data independence
• Distribution of data

24
Requirements Modified by the New Applications I

• Transactions
• in traditional applications, these are short -
  milliseconds to book a seat
• in novel applications, they may be long - hours
  or days to edit a design
• in traditional applications they are competitive
  - don't book the same seat twice
• in novel applications they may be co-operative
  e.g. collaboration on design development

25
Requirements Modified by the New Applications II

• Integrity Constraints are much more important
• as the data is more semantically complex
• some of the semantics is best expressed as
  constraints
• User Interfaces play a greater rôle
• the data is manageable only if appropriate
  visualised
• complex operations must be made usable

26
Requirements Modified by the New Applications III

• Data is organised differently
• Trad. Apps Novel Apps
• Numbers of Objects Large Small
• Number of Types Small Large
• Object size Small Large/Huge

27
New Requirements Made by the New Applications I

• Complex Data Structures
• Just sets of records won't do
• Object identity easier than primary keys
• Implicit references easier than foreign keys
• First Normal Form is a Killer!
• Multimedia Data Types

28
New Requirements Made by the New Applications II

• The Database must hold Code
• to hold complex derived data
• to hold "active values"
• Multiple Versions
• We only want one bank account record at any time
• But many alternative designs
• Building configurations becomes a problem

29
Can We Go On UsingRelational DBMS?

• Only with increased mapping problems
• The RM only has two ways of relating two pieces
  of data
• They are in the same record.
• They are in two records connected by a foreign
  key.

30
The Semantic Poverty of the RM

• The former is used for
• grouping attributes
• 1-1 relationships
• compound attributes
• connecting keys of M-N relationships
• The latter is used for
• multi-valued attributes
• sub-typing
• one-many attributes

31
Other Problem with RDBs

• You can't do recursive queries
• e.g. "Return all the ancestors of X"
• Nor much support for constraints
• e.g. "All employees earn less than their boss"
• You can't add new operations
• e.g. "Return the volume of a building"
• Impedance mismatch
• if you have use a PL this has a different data
  model than does SQL

32
Three Approaches for Progress

• Start with traditional DBMS Object-Relational
  System and extend its modelling power
• or
• Start with rich data model Object Oriented DBMS
  and add DBMS facilities
• or
• Start with a Programming Persistent Prog
  Language Language and add DBMS facilities
• Manifesto Wars

33
The Third-Generation Database System Manifesto I

• Three tenets
• Besides traditional data management services,
  third generation DBMSs will provide support for
  richer object structures and rules
• Third generation DBMSs must subsume second
  generation systems
• Third generation DBMSs must be open to other
  subsystems

34
The Third-Generation Database System Manifesto II

• Thirteen Propositions
• Rich type system Inheritance
• Functions/encapsulation OIDs only if no
  primary key
• Rules (triggers and constraints) are
  important
• The query language should be central to all
  access
• ManualAutomatic Collections Update through
  views
• Performance and data model should be kept
  separate
• Multiple Prog. Languages SQL is the de facto
  standard
• Persistent extension of languages is good
• Network communication through queries and results

35
The Object Oriented System Manifesto I

• Mandatory Features
• Complex Objects Object Identity Encapsulation
• Types and Classes Inheritance Late binding
• Ad hoc querying Extensibility Persistence
• Efficient storage Concurrency Recovery
• Computational completeness
• Disagreement
• Integrity constraints DB Admin Tools Views
• Schema Evolution Tools

36
The Object Oriented System Manifesto II

• Optional Features
• Multiple inheritance Type checking
• Distribution Design Transactions Versions
• Open Choices
• Programming paradigm Type system Uniformity

37
The Third Manifesto

• The relational model is still important and OO
  features should be orthogonal
• Like
• relations relational algebra up front
• integrity constraints mutiple and single
  inheritance
• computational completeness static type checking

• Don't like
• SQL, object Ids and null values

38
Two Extensions of RDBMS

• Historical DBMS
• keep all past states of the database
• Deductive DBMS
• derived data as well as base data
• uses a language like Prolog to add the derived
  data

39
Historical DBMS

• Old records are kept when they are deleted to
  answer queries like "give balance on 1/10/88?"
• Records have two extra fields - creation and
  deletion dates
• delete sets the deletion field
• insert sets the creation field
• update sets the deletion field and creates a new
  record
• Two notions of time
• when the data is valid and when it is entered

40
Deductive DBMS (DDB)

• A DDB is made up of two kinds of component
• facts are simple base assertions - i.e. records
• father( jane, john ) mother( jill, jane)
• rules are ways of deriving more facts
• grandfather( C, G ) - parent( C, P ), father(
  P, G )
• parent( C, P ) - father( C, P ), etc.
• Queries are rules with variables to be filled in
• grandfather( X, john )? - who are john's
  grandchildren

41
Object-Relational Databases

• Also known as
• Extended relational databases
• Complex object databases
• Main features
• get rid of First Normal Form
• add methods to tables
• Main examples
• Oracle 8/i onwards, SQL3, Infomix

42
The Main Additions to RDBs

• User defined abstract data types
• Row types so that one value can include a nested
  complex value
• Collection types for domains
• Inclusion of user-defined functions defined on
  types
• Inheritance
• Multimedia data types and large objects

43
SQL3 (Evolving Standard)

• This is a massive extension to SQL and has
• computational completeness
• row types
• user-defined types
• user-defined procedures, functions and operators
• type constructors for arrays, sets, lists and
  multisets
• support for large objects - BLOBs and CLOBs
• recursion

44
Row Types in SQL3

• A row type is a sequence of field name/type pairs
  - i.e. the type of a row of a table
• In SQL3 it can also be the domain of a column
• create table Branch( branchNo longInt,
• address row( street varchar(20),
• city varchar(20) ) )
• Row types can be named
• create row type EmpRT( Ename varchar(35), age
  integer )
• create table Employee of type EmpRT

45
User-Defined Types (UDTs) in SQL3

• These are a means of defining new domain types in
  SQL3, e.g.
• create type StaffNumberType as varchar(5) final
• More generally a UDT is an abstract data type
  with
• (non First Normal Form) fields
• constructor methods
• observer and mutator (get and set) methods
• general methods

46
UDT Example

• create type personType as
• ( private dateOfBirth Date,
• public fname VARCHAR(15) not null,
• public lname VARCHAR(15) not null,
• function age(p PersonType) returns integer
• return / code to calculate age /
• end )
• ref is system generated // see later
• instantiable // if not, only subtypes are
• not final // can have sub-types

47
Subtypes and Supertypes

• Given a type, we can create a subtype, e.g.
• create type StaffType under PersonType as
• ( staffNo varchar(6), etc.
• This works by creating an extra attribute which
  refers to a PersonType value
• This also works at the table level
• create table Manager under Staff( MgrStartDate
  Date)
• This creates a table with all the columns of
  Staff duplicated and all manager records in both
  tables

48
References

• In SQL3 it is possible to set up OID style
  references.
• On slide 46 we said that PersonType had
  system-generated references, so we can do
• create table Branch as
• ( branchNo integer,
• address addressType,
• manager ref(PersonType)
• ..... )
• In this, the value is a system-generated OID

49
Collection Types

• SQL3 supports four collection types
• ARRAY - one dimensional fixed length array
• LIST - ordered and allows duplicates
• SET - unordered and does not allow duplicates
• MULTISET - unordered and allows duplicates
• E.g. if PersonType has an attribute
• nextOfKin set(PersonType)
• The following makes sense
• select fName, lName, count(NextOfKin)

50
Triggers

• Triggers are pieces of code which act when some
  condition is met. Each trigger defines
• the event and whether to act before or after it
  occurs
• whether to operate on each row or only once
• what to do
• create trigger MailNewStaffNextOfKin
• after insert on Staff referencing new row as ST
• begin
• insert into StaffToMail values ( select P.name,
  P.address
• from Person where ST.nextOFKin1
  ST.staffNo )
• end

51
Large Objects

• Large objects are increasingly important and
  there are two kinds
• Binary Large Objects (BLOBs)
• Character Large Objects (CLOBs)
• You can
• Concatenate them and do "substring" operations
• Overlay and trim them
• Return the length

52
Recursion

• SQL3 permits linearly recursive queries, such as
• with recursive AllManagers( staffNo,
  managerStaffNo)
• (select staffNo, managerStaffNo
• from Staff
• union
• select in.staffNo, out.managerStaffNo
• from AllManager in, Staff out
• where in.managerStaffNo out.staffNo )

53
Objects in Oracle

• The object option in Oracle8 provides, among
  other things
• user-defined data types
• the use of objects directly by use of the ref
  keyword
• collection types including variable length arrays

• multimedia data types

54
User Defined Types

• UDTs have a name, attributes and methods
• create type Person as object
• ( name varchar2(30),
• address varchar2(40),
• member function getName return varchar2(30)
  )
• Constructor methods - as usual
• Comparison methods - to help order objects
• General methods

55
Ref Types

• Attributes with object types have their domains
  declared using ref
• create type Person as OBJECT
• ( name VARCHAR2(30),
• spouse ref person )
• For an object P of type Person, you can then do
• P.spouse.name // to get the name of P's
  spouse

56
Collection Types

• There are two collection types
• Arrays (called VARRAYs)
• create type Prices as varray(10) of number(1,2)
• Tables (called nested tables)
• create type PersonTable as table of Person
• Now we can have columns whose domains are either
  of the above

57
Object Views

• An object view is a virtual table of objects
• useful to evolve relational applications into
  object applications
• create table Person (NINum varchar2(9),
• Name varchar2(30), Age number)
• create view OldView with object oid (NUNum) as
• select NINum, Name, Age from Person
• where Age gt 40
• Update through views permitted where sensible

58
Comparing ORDBs and OODBs

• ORDBs are better for
• integrating a pre-existing RDB
• traditional DBMS facilities (security, recovery
  etc.)
• OODBs are better for
• advanced transactions, navigational queries
• schema evolution
• integrating a programming language

59
Lecture 3Orthogonal Persistence

• Why Orthogonal Persistence is important
• What Orthogonal Persistence is
• Principles of Orthogonal Persistence
• How to achieve Orthogonal Persistence
• Examples of Persistence Mechanisms

60
The Problem

• Traditional data intensive programming requires
  programmers to be distracted trying to arrange
  storage for the data
• Fortran programs files
• Cobol Network Databases
• C, etc. Relations
• This distraction slows productivity

61
Too Many Mappings!
62
Defining Persistence

• Persistence is the length of time for which a
  piece of data (including program) continues to
  exist.
• from until the end of the block it was declared
  in
• to outliving the program which constructed it
• Most systems provide different persistence
  mechanisms for different data.
• Often systems only permit some data long term
  persistence - e.g. JOS.

63
Orthogonal Persistence

• is the automatic management of data so that it
  may
• outlive an individual program execution
• automatically moving to and from backing store
• be used concurrently by more than one program
• not just storing a heap image - e.g. LISP,
  SmallTalk
• dynamic binding of names and types
• be used by successive program versions
• requires an evolution mechanism

64
Principles of OP

• Data of any type (including multimedia and code
  fragments) should have an equal right to all
  levels of persistence
• All of the data is stored completely
• The data retains its structure when stored
• The code is the same whatever the persistence of
  its data

65
Why is this Important?

• Every departure from these rules creates an
  irregularity that the programmer has to work
  around
• data types which cannot be stored in the same way
  as everything else
• rebuilding incomplete structures
• dealing with referential integrity problems
• different code for transient and persistent data

66
Other Benefits of OP

• Only one persistence technique to learn
• Avoids extra code which obscures the application
  logic
• Permits code re-use
• But how does the programmer assign a persistence
  level variously to the data?
• Any data can persist but for this application
  which should?

67
Mechanisms for Indicating Persistence

• Explicit write statements - not in the spirit of
  OP
• Persistence indicated by class or type
• ODMG supports this
• The E language had "Shadow" classes - one for
  each real class
• Persistence indicated at object declaration or at
  object creation
• some OODBs do this
• Persistence by reachability
• this will be our favourite, you'll see!

68
Persistent Class Examples

• Classes declared to be persistent
• persistent class Person
• early ODMG proposal
• class Person implements Serializable
• Java - native code can't play
• class Person public d_Object
• ODMG proposal for C

69
Persistent Object Examples

• persistent Person P
• Person P new Person(MyDB)
• Person P is created in the database
• Person Q new Person( P )
• Person P is created in the database "near to"
  Person P.

70
Persistence by Reachability

• Some objects are explicitly stored - persistent
  roots
• Any other object which is pointed to by a root is
  automatically stored as well
• Objects pointed to by those objects are also
  stored
• in fact, the transitive closure of references
  from the roots are stored
• This is similar to Garbage Collection

71
Example of Reachability
Memory
The rest of the tree is dragged in as well
A tree in memory
Explicit storage of tree root
The Database
72
Using Persistence by Reachability

• The data must be organised around the idea of
  persistent roots and their transitive closures
• Note this is not new
• An RDB has each relation as a root whose
  transitive closure is the set of records
• ORDB and OODB databases can be organised the same
  way
• Except other structures may now be used - e.g. a
  tree

73
History of OP

• 1978 - Identified by Atkinson
• 1978 - 1982 - Search for a suitable language
• 1983 - 1988 - PS-algol
• 1988 - 1995 - Napier88
• 1985 - present, ideas gradually appear in
  commercial systems
• 1995 - 2000 - Pjama, Persistent Java

74
What the Research has Entailed

• Identification of language with suitable
  properties
• regularity, popularity
• Identification of necessary techniques
• store organisation, memory management, organising
  the movement of data
• Implementation of those techniques efficiently

75
Lecture 4

• Persistent Programming Languages
• What is a suitable language?
• Some examples
• Object Oriented Database Systems
• Features
• Examples
• The Object Data Management Group Standard

76
A Suitable Language to Make Persistent

• A persistent programming language is one which
  accords with the principles of persistence (slide
  64)
• In building a persistent language other aspects
  of a language are desirable
• regularity and small number of constructs
• since irregularities and more constructs increase
  the number of aspects that the persistence layer
  must cope with

77
PS-algol

• This added persistence to S-algol a simple and
  regular form of algol at St. Andrews
• complex object structure, but object domains were
  all of the same type
• procedures are first-class objects which means an
  object can a have a piece of code as a component,
  there are variables which hold procedures, etc.
• databases as objects in which you can enter name,
  value pairs to be persistent roots
• persistence by reachability from those
• anything can persist

78
Napier88

• More powerful version of PS-algol developed at St
  Andrews and Glasgow
• complex objects but now the domains are typed
• single procedure to return the persistent store
  as the sole persistent root objects
• databases inserted immediately below this
• abstract data types and other type constructors
• hyper-programming allows programming directly
  against the database
• image data type

79
Persistent Java

• PJama was developed in Glasgow from 1995 onwards
• Allows Java objects to be bound into the
  persistent store and retrieved
• Much more on this in subsequent lectures

80
Object Oriented Databases

• An Object Oriented Database has the following
  features
• Objects can persist
• Object identifiers and references
• Encapsulation of data and methods
• Inheritance
• Dynamic binding of code to data

81
Example
82
Problems with OODBs

• They are hard to implement
• Adding concurrency, distribution, efficiency,
  reliability and querying to an OO system is
  difficult
• They use different persistence mechanisms
• They use different OO models
• and different OO languages
• They have been produced by small, unstable
  companies

83
Differences in Object Models

• Are scalars objects?
• Can properties be public?
• if not how is the optimiser going to work?
• Are there other information hiding controls? -
  e.g. friends
• Multiple or single inheritance
• What can be made persistent and how?

84
History of OODBMs

• First products in the field use Smalltalk/Own
  Language
• 1986/7 - GemStone and Vbase
• Big companies toy with the idea
• 1987 - DEC (Trellis/Owl) and Hewlett-Packard
  (IRIS)
• C Products in Late Eighties
• Ontos, Versant, Objectivity, ObjectStore
• Other models 1990 onwards
• O2, POET, UniSQL, Jasmine, etc.

85
Gemstone/J

• Started as persistent Smalltalk
• Switch now to Java
• Distributed Java Beans and EJBs
• Servlets and JSP
• CORBA
• etc.
• OQL, Transactions, etc.

86
Jasmine

• From Computer Associates (INGRES RDB)
• Studio for application development
• Java
• Multimedia classes
• Authoring tools
• Web development facilities

87
POET

• Java and C
• OQL
• Targeted at small applications
• Transactions and Locking
• Schema versions
• Event Notification
• Security and Authorisation
• Object factory - putting objects into RDBs

88
The Object Data Management Group (ODMG)

• Set up by Rick Catell at Sun and the main OODB
  vendors
• voting members - Sun, POET, Objectivity, Excelon
• reviewer members - CERN, Versant, CA, NEC and
  Micro Data Base Systems
• academic members
• membership always changing!

89
What are the ODMG Doing?

• an architecture for OODBMS
• a logical data model expressed as a class
  hierarchy
• a data definition language, ODL
• a data interchange format, OIF
• a query language, OQL
• a number of Object Manipulation Languages (OMLs)
• bindings to Java, C and SmallTalk

90
ODMG - OO Features Appropriate for Databases

• Special Treatment of Literal Values
• A DB cannot afford to make an integer an object
• Separate Provision for Relationships
• Most OO models are not very good at relationships
• ODMG provides for automatically maintained
  relationships - i.e. when one side changes so
  does the other
• Domain Types - date and time domains
• Objects for Database Management
• databases, transactions, locks, sessions,
  schemata
• Metadata Management

91
The ODMG Data Model

• The data model is defined in terms of a number of
  types which include
• Interfaces - describe the abstract behaviour of
  objects
• Classes - describe the abstract behaviour and
  state of objects
• Collections - sets, bags, lists, arrays,
  dictionaries
• Constructed Types - enumerations, structures and
  unions
• Objects (with identity) and Literals (no identity)

92
The Type Hierarchy
93
Example (ODL)

• struct Address int house String road ...
• defines a complex literal (not an object)
• interface Person String name int age ...
• defines an uninstantiable object structure
• class Employee Person int StaffNo Dept d ...

• defines an instantiable object structure
• "" is inheritance which can be multiple

94
Relationships

• Attributes and relationships are distinguished
• class Employee Person
• attribute int StaffNo
• relationship Dept d inverse DeptEmployees
  ...
• class Dept
• relationship setltEmployeegt Employees inverse
  Employee d ...
• Relationships can have automatically maintained
  inverses

95
Extents

• The extent of a type is the set of instances of
  that type in the database
• The extent of a subtype is a subset of the extent
  of the supertype
• The DB designer can request that the extent of a
  class is maintained automatically
• A particular implementation may include indexes
  and keys
