Should Green Buildings Contain Toxic Fire Retardant Chemicals

1

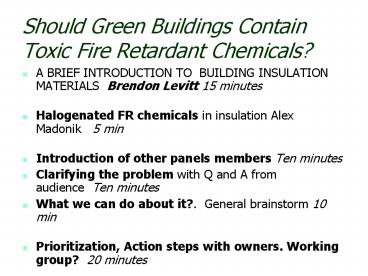

Should Green Buildings Contain Toxic Fire
Retardant Chemicals?

• A BRIEF INTRODUCTION TO  BUILDING INSULATION
  MATERIALS  Brendon Levitt 15 minutes
• Halogenated FR chemicals in insulation Alex
  Madonik   5 min
• Introduction of other panels members Ten minutes
• Clarifying the problem with Q and A from
  audience  Ten minutes
• What we can do about it?.  General brainstorm 10
  min
• Prioritization, Action steps with owners. Working
  group?  20 minutes

2
A BRIEF INTRODUCTION TO BUILDING INSULATION
MATERIALS BRENDON LEVITT
LOISOS UBBELOHDE WWW.COOLSHADOW.COM
3
LOISOS UBBELOHDE WWW.COOLSHADOW.COM
4

• THERMAL INSULATION

• Batt Insulation (Glass and Mineral Wool)
• Board Insulation (Polyurethane, Polyisocyanurate,
  Polystyrene, Cellulose, Fiberglass)
• Blown-In Insulation (Cellulose, Fiberglass)
• Poured-In Insulation (Perlite, Vermiculite)
• Foamed-In Insulation (Polyurethane,
  Polyisocyanurate, Polyicynene)

LOISOS UBBELOHDE WWW.COOLSHADOW.COM
5
LOISOS UBBELOHDE WWW.COOLSHADOW.COM
6
EIFS - Exterior Insulation and Finish System
LOISOS UBBELOHDE WWW.COOLSHADOW.COM
7
INSULATING CONCRETE FORMS
LOISOS UBBELOHDE WWW.COOLSHADOW.COM
8
CONCRETE BLOCK INSULATING SYSTEMS
LOISOS UBBELOHDE WWW.COOLSHADOW.COM
9
STRUCTURAL CONCRETE INSULATED PANELS
LOISOS UBBELOHDE WWW.COOLSHADOW.COM
10
LOISOS UBBELOHDE WWW.COOLSHADOW.COM
11
STRUCTURAL INSULATING PANEL SYSTEMS
LOISOS UBBELOHDE WWW.COOLSHADOW.COM
12
DUCTS, PIPES, EQUIPMENT
LOISOS UBBELOHDE WWW.COOLSHADOW.COM
13
CODE
Chapter 26, California State Building
Code 2603.3 Foam plastic insulation shall have
flame spread index of 75 or less and a
smoke-developed index of 450 or less (test ASTM E
84)
LOISOS UBBELOHDE WWW.COOLSHADOW.COM
14
ISSUES

• Question Need for Fire Retardant
• Revise Building Code
• Select Building Components Only
• All Building Components

• Accept Need For Fire Retardant
• Alternative Fire Retardants
• Alternative Rigid Insulation Materials

LOISOS UBBELOHDE WWW.COOLSHADOW.COM
15
Should Green Buildings Contain Toxic Fire
Retardant Chemicals?

• A BRIEF INTRODUCTION TO  BUILDING INSULATION
  MATERIALS  Brendon Levitt 15 minutes
• Halogenated FR chemicals in insulation Alex
  Madonik   5 min
• Introduction of other panels members Ten minutes
• Clarifying the problem with Q and A from
  audience  Ten minutes
• What we can do about it?.  General brainstorm 10
  min
• Prioritization, Action steps with owners. Working
  group?  20 minutes

16
Should Halogenated Fire Retardants be in Green
Buildings?

• Hexabromocyclododecane (HBCDD) currently used in
  all polystyrene insulation
• TCPP and brominated FR's Chlorinated phosphate
  esters used in polyurethane foam polyiso(rigid
  spray)
• 1-bromopropane, used as a blowing agent in spray
  foam

17
Hexabromocyclododecane (HBCDD)

• Nominated for the first EU list of sixteen
  Substances of Very High Concern by Sweden in
  August, 2008.
• High production volume chemical (3 BFR)
• Persistent, Bioaccumulative, Toxic (PBT)
• Found in household dust, breast milk, sewage
  sludge
• 85 of usage is used in polystyrene insulation
• Currently no non-halogenated substitute

18
TCPP (PCF) chlorinated phosphate esters

• Used with polyurethane foam (rigid spray) to
  meet FR requirements for insulation
• Same family as Chlorinated Tris (TDCP) which is
  cancer causing
• Is it found in dust or indoor air?
• What are long term health effects?
• TEP (triethyl phosphate) is a non-halogenated
  phosphate substitute used widely in the EU

19
1-Bromopropane

• May cause central nervous system effects in
  humans.
• In animals, effects have been reported on the
  following organs Male reproductive organs.
  Female reproductive organs. Liver.
• Birth Defects/Developmental Effects Has been
• toxic to the fetus in lab animals.
• Reproductive Effects has been shown to interfere
  with
• reproduction and fertility in animal studies.

• Normal handling unlikely to result in
  exposure levels of and cutting are 1-bromopropane
  sufficient to cause the listed effects.
• From Material Safety Data Sheet The Dow Chemical
  Company
• Product Name THERMAX(TM) 2.00 Inch BS Heavy
  Duty Insulation Board
