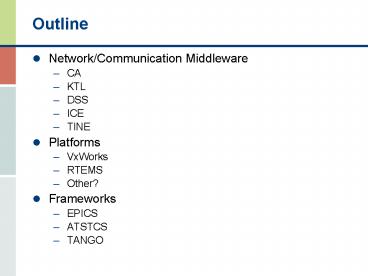

Outline

1
Outline

• Network/Communication Middleware
• CA
• KTL
• DSS
• ICE
• TINE
• Platforms
• VxWorks
• RTEMS
• Other?
• Frameworks
• EPICS
• ATSTCS
• TANGO

2
DDS - Data Distribution Service

• Data (information) centric approach
• Publish- Subscribe standard
• Data Distribution Service
• OMG Standard for Data Centric Publish Subscribe
  (DCPS)
• Architected for data-centric communications in
  embedded, real-time systems
• Adopted in 2003
• Two aspects API and Wire Protocol
• DDS more than a Pub/Sub Middleware
• DDS is a data broker and a data manager
• The Integration of data distribution, data
  management, and data location functions

3
What is DDS

• Networking middleware that simplifies complex
  network programming.
• A publish/subscribe model for sending and
  receiving data, events, and commands among the
  nodes.
• Publishers create "topics" (e.g., temperature,
  location, pressure) and publish "samples."
• DDS handles all the transfer chores message
  addressing, marshalling, delivery, flow control,
  retries, etc.
• Any node can be a publisher, subscriber, or both
  simultaneously.
• Very simple programming model.
• Applications that use DDS for their
  communications are entirely decoupled.
• DDS automatically handles all aspects of message
  delivery and allows the user to specify Quality
  of Service (QoS) parameters
• Way to configure automatic-discovery mechanisms
  and specify the behavior used when sending and
  receiving messages.
• The mechanisms are configured up-front and
  require no further effort on the user's part.
• DDS also automatically handles hot-swapping
  redundant publishers if the primary fails.

4
DDS Layers

• DDS made of two layers
• DCPS Data Centric Publish/Subscribe
• Purpose distribute the data
• Close to Relational model
• DLRL Data Local Reconstruction Layer
• Purpose provide an object-based model to access
  data as if it was local

5
DDS Information Model

• Provides a Global Data Space that is accessible
  to all interested applications.
• Data objects addressed by Topic and Key
• Subscriptions are decoupled from Publications
• Contracts established by means of QoS
• Automatic discovery and configuration

6
DDS Concepts

• Handle, manage and dispatch complex data models.
• Portability, language and platform transparency
• Platform independent Data-model
• Strongly typed interfaces
• Real-time
• QoS Management
• Location Transparency
• Data Integrity Control and Filtering
• Domain managements
• Data History
• Fault tolerance

7
DSS Summary

• OMG Standard
• Information/Data centric
• TOPIC based, defined with IDL
• DDS targets applications that need to distribute
  data in a real-time environment
• DDS is highly configurable by QoS settings
• DDS provides a shared global data space
• Any application can publish data it has
• Any application can subscribe to data it needs
• Automatic discovery
• Facilities for fault tolerance
• Heterogeneous systems easily accommodated

8
RTI-DDS Publish-Subscribe Paradigm (unlike
Client-Server)
Publisher
Subscriber
Subscriber
Position
Velocity
Velocity
Position
DDS
DDS
DDS
LynxOS
OS
LINUX

• Performance
• High Throughput
• Low Latency
• Deterministic transfer
• High availability of Data
• Reliable Data Transfer over Unreliable Networks
• Scalability
• Various OS platforms
• Various CPU platforms
• 1 to Many, Many to 1

• OMGs DDS standard
• Complements CORBA
• Works in a Legacy environment
• Data-centric
• Data Dictionary
• Apply Quality Of Service to Data

9
DDS is a formal industry standard from OMG

• Data Distribution Service (DDS)
• High performance real-time data distribution
• Object Management Group (OMG)
• DDS Standard API
• Specifies user-visible API
• Ensures application portability
• Adopted in June 2003, revised June 2005
• DDS Standard Wire Protocol
• Real-Time Publish-Subscribe (RTPS)
• Ensures application interoperability
• Adopted in June 2006

Standards-based services for application
developers
Data Distribution Service API
DDS Middleware
Real-time Publish-Subscribe (RTPS) Wire Protocol
Standard protocol for interoperability
10
RTI COTS End-To-End Challenge
Real-timeData
Action
Processing
Data Distribution
Event Processing
Data Management
Integration
Data Visualization
11
Data Path Discover, Establish, Use

• Data flows are established by the middleware when
  possible
• Setting a contract
• Data flows are peer-to-peer
• Tunable per data-flow
• One-to-many
• Many-to-one
• Many-to-Many
• Data flows reconfigured while changes occur

12
RTI Data Distribution Service (DDS) application
middleware

• Between your application code and OS/Transport
• Programming Language and Platform Independent

Network
13
Application links in middleware
User Application Code
DDS Infrastructure
Publish / Subscribe Interface
Per Topic Quality of Service Configuration
Topic Based Anonymous Communications
RTI DDS Library
Dynamic Network Architecture
Transport
Network
14
Design Requirements

• One size does not fit all
• Content based filtering
• Time base filtering
• Smart History of data
• Reliable and Not-so reliable data
• Continuous and Not-so continuous data
• Alarm and Events (async data)
• Command and Responses
• High Availability / Failover Situations
• Multicast, Unicast
• Persistent Data through failures
• Auto Discovery of Network Elements
• Black Box recording (and replay)

15
RTI provides a migration path from legacy
middleware infrastructure, e.g. CORBA
RTI DDS
RTI DDS IDL
plugin/support
Compiler
code

generates
uses
IDL File
CORBA Types
CORBA IDL

uses
generates
Compiler
CORBA
Stubs and
Skeletons
RTI DDS uses the CORBA types generated by
the CORBA IDL compiler
16
Drag and Drop UI Development
17
DDS (RTI) Pricing

• 3-user Named User Development Package X
• 3-user development license
• 2-day on-site quickstart training
• 6 run-time licenses
• 1 year maintenance and support

18
ICE Internet Communication Engine

• An object-oriented middleware platform suitable
  for use in heterogeneous environments.
• A full set of features that support development
  of realistic distributed applications for a wide
  variety of domains.
• Avoid unnecessary complexity, making the platform
  easy to learn and to use.
• An implementation that is efficient in network
  bandwidth, memory use, and CPU overhead.
• An implementation that has built-in security,
  making it suitable for use over insecure public
  networks

19
ICE - Architectural benefits

• Object-oriented semantics
• All operation invocations use late binding, so
  the implementation of an operation is chosen
  depending on the actual run-time (not static)
  type of an object.
• Support for synchronous and asynchronous
  messaging
• Ice provides both synchronous and asynchronous
  operation invocation and dispatch, as well as
  publishsubscribe messaging via IceStorm.
• Support for multiple interfaces
• With facets, objects can provide multiple,
  unrelated interfaces while retaining a single
  object identity across these interfaces.
• Machine and Operating system independence
• Clients and servers are shielded form
  idiosyncrasies of the underlying machine
  architecture, APIS are portable.
• Language independence
• Client and server can be developed independently
  and in different programming languages (currently
  C, Java, C, and, for the client side, PHP).
• Implementation independence
• Clients are unaware of how servers implement
  their objects.
• Threading support
• The Ice run time is fully threaded and APIs are
  thread-safe. No effort (beyond synchronizing
  access to shared data) is required on part of the
  application developer to develop threaded,
  high-performance clients and servers.
• Transport independence
• Ice currently offers both TCP/IP and UDP as
  transport protocols.
• Location and server transparency
• The Ice run time takes care of locating objects
  and managing the underlying transport mechanism,
  such as opening and closing connections.
• Security

20
ICE CORBA comparison

• Faster
• Multiple interfaces per object via facets
• Clients can create proxies on the fly
•  Asynchronous Method Dispatch (AMD)
• The CORBA APIs do not provide any mechanism to
  suspend processing of an operation in the server,
  freeing the thread of control, and resuming
  processing of the operation later.
• Security
• Protocol Features
• Ice offers bidirectional support, which is a
  fundamental requirement for allowing callbacks
  through firewalls.
• Ice allows you to use UDP (both unicast and
  multicast) as well as TCP, so event distribution
  on reliable (local) networks can be made
  extremely efficient and light-weight.
• Another important feature of the Ice protocol is
  that all messages and data are fully encapsulated
  on the wire.
• Language Mappings
• Easier language bindings
• CORBA does not specify a language mapping for C,
  Ruby, or PHP.

21
ICE Infrastructure

• Slice The Specification Language for Ice. (IDL)
• Slice Compilers highly efficient protocol
  (including protocol compression and support for
  both TCP and UDP), provides a flexible thread
  pool for multi-threaded servers, and offers
  additional functionality that supports extreme
  scalability with potentially millions of Ice
  objects.
• IceUtil A collection of utility functions, such
  as Unicode handling and thread programming. (C
  only.)
• IceBox An application server specifically for Ice
  applications. IceBox can easily run and
  administer Ice services that are dynamically
  loaded as a DLL, shared library, or Java class.
• IceGrid A sophisticated server activation and
  deployment tool for advanced grid computing.
• Freeze provides automatic persistence for Ice
  servants. With just a few lines of code, an
  application can incorporate a highly-scalable
  evictor that efficiently manages persistent
  objects.
• FreezeScript It is common for persistent data
  types to change, especially in large software
  projects. In order to minimize the impact of
  these changes, FreezeScript provides inspection
  and migration tools for Freeze databases. The
  tools support an XML-based scripting capability
  that is both powerful and easy to use.
• IceSSL A dynamic SSL transport plug-in for the
  Ice core.
• Glacier One of the most difficult challenges for
  object middleware systems is security and
  firewalls. Glacier, the firewall solution for
  Ice, greatly simplifies the deployment of secure
  applications. Glacier authenticates and filters
  client requests and allows callbacks to the
  client in a secure fashion.
• IceStorm A messaging service with support for
  federation. In contrast to most other messaging
  or event services, IceStorm supports typed
  events, meaning that broadcasting a message over
  a federation is as easy as invoking a method on
  an interface.
• IcePatch A patching service for software
  distributions. Keeping software up-to-date is
  often a tedious task. IcePatch automates updating
  of individual files as well as complete directory
  hierarchies. Only files that have changed are
  downloaded to the client machine, using efficient
  compression algorithms.

22
ICE Performance (vs. TAO)
23
TINE Protocol

• The TINE protocol allows data transfer according
  to one of four different paradigms
• client-server (i.e. synchronous transaction)
  and
• publisher-subscriber (i.e. asynchronous event
  notification).
• Both of these mechanisms inherently imply
  uni-cast (peer-to-peer) data transfer.
• producer-consumer mode of transfer, where
  control system data deemed of interest to most
  control system elements (e.g. beam energy) are
  multi-casted from a single source, regardless of
  the number of interested consumers.
• producer-subscriber mode, whereby subscribers
  inform a server of their wishes, and the server
  (producer) multi-casts the results to his
  multicast group. Any number of clients can then
  make the identical request with no extra load on
  either the server or the network.

24
EPICS and TINE

• Epics2tine translator can either run practically
  embedded on any EPICS ioc, or run in parallel on
  a softioc.
• Essentially, it bypasses the channel access
  protocol completely and runs EPICS over the TINE
  protocol.

25
RTEMS (Real-Time Executive for Multiprocessor
Systems)

• Free deterministic real-time operating system
  targeted towards deeply embedded systems
• Cross development toolset is based upon the free
  GNU tools
• Supports EPICS
• Possible VxWorks alternative?
• It has been shown that RTEMS provides a real
  time behavior that is comparable to VxWorks

26
RTEMS Layered ARchitecture
27
RTEMS Standards Compliance

• POSIX 1003.1b API including threads
• VMEbus Industry Trade Association RTEID/ORKID
  based Classic API (similar to pSOS)
• TCP/IP including BSD Sockets
• uITRON 3.0 API
• GNU Toolset Supports Multiple Language Standards
• ISO/ANSI C
• ISO/ANSI C including Standard Template Library
• Ada with GNAT/RTEMS

28
RTEMS Kernel Features

• Multitasking capabilities
• Homogeneous and heterogeneous multiprocessor
  systems
• Event-driven, priority-based pre-emptive
  scheduling
• Optional rate-monotonic scheduling
• Inter task communication and synchronization
• Priority inheritance
• Responsive interrupt management
• Dynamic memory allocation
• High level of user configurability
• Portable to many target environments

29
RTEMS - Networking

• High performance port of FreeBSD TCP/IP stack
• UDP, TCP
• ICMP, DHCP, RARP, BOOTP, PPPD
• Client Services
• Domain Name Service (DNS) client
• Trivial FTP (TFTP) client
• Network Filesystem System (NFS) client
• Servers
• FTP server (FTPD)
• Web Server (HTTPD)
• Telnet Server (Telnetd)
• Sun Remote Procedure Call (RPC)
• Sun eXternal Data Representation (XDR)
• CORBA

30
ATSTCS

• Advanced Technology Solar Telescope (ATST) Common
  Services
• Common framework for all observatory software
• ALMA ACS is excellent example (but too BIG)
• ATSTCS draws from general ACS model
• Much more than just a set of libraries
• Separates technical and functional architectures
• Provides bulk of technical architecture through
  Container/Component model
• Allows application developers to focus on
  functionality
• Provides consistency of use
• System becomes easier to maintain and manage

31
ATSTCS - Architecture
32
ATSTCS - Benefits

• Avoids need to write communication infrastructure
  in-house
• Less effort
• Less in-house expertise required
• Access to outside expertise
• Benefit from wide-spread use
• Often provides rich set of features
• Supports actions required to run in a distributed
  environment
• Lots to choose from (both commercial and
  community)?

33
ATSTCS - Containers and Components
34
ATSTCS - Interfaces
IRemote
ILifeCycle
IFunctional
Container
Component
Controller
IController
IContainer
IComponent
Functional Interfaces

• Narrow functional interfaces
• IComponent has just two commands get, set
• IController has six commands get, set, submit,
  pause, resume, and cancel
• Controller implements command/action/response
  model
• Actions execute asynchronously from command
  submission (no blocking)?
• Supports multiple simultaneous actions
• Supports scheduled actions
• These classes implement technical interfaces,
  subclasses add functionality. e.g. doSubmit,
  doAction

35
ATSTCS - Container Services
36
ATSTCS - How well is it working

• Approach seems successful (early alpha-release
  supported both CORBA and ICE)?
• Choice of service tool has no impact on component
  development can select between CORBA/ICE at
  runtime
• Already helped in unexpected ways (licensing
  conflicts)?
• ICE/CORBA service tools easy to write
• Both similar architectures
• Both align well with access helper models
• Less aligned services likely to be harder
• Changes are well isolated at service tool layer,
  however
• 3rd party implementation of TCS simulation
• Developer code simpler

37
ATSTCS - Event Performance

• Three dual-core machines (source, target, and
  event server), GbE network, CentOS4
• Two versions of ICE 2.1 and 3.2 (CORBA
  OmniNotify/TAO much slower)?
• 1,000,000 events, 120 bytes each
• All Java (JDK 1.6) code (C and Python currently
  much slower)?
• Two service tools tested (unbatched and batched),
  now combined into a single tool (per-event stream
  batching), both fully stable

38
ATSTCS Log Service Performance

• All dual-core machines (source, logdb server),
  CentOS4, GbE
• PostgreSQL version 8.2.4, JDK 1.6
• 500,000 messages, two sizes of payload
• end-to-end performance (client to database)?
• Buffered and unbuffered service tools tested
• Multi-buffering to handle message spikes

39
TANGO What is TANGO

• A software bus for distribued services
• A toolbox to implement control systems using
  CORBA as the transport layer
• A specialization of CORBA adapted to Control
• Hides the complexity of Corba to the programmer
• Adds specific control system features

40
TANGO What is TANGO

• Dedicated to the implementation of distributed
  systems,heterogeneous and oriented
  control/command
• Provides an unified interface to devices
  (objects) on the network
• hiding how they are connected to a computer
  (serial line, USB, sockets, )
• Hides the network
• Location transparency
• Genericity
• APIs for C, Python and Java
• For the server and the client side

41
TANGO What is TANGO

• More than only a software bus
• Database for persistency
• Code generator to implement networked devices
• Central services (Archive, snapshots, logging,
  alarms, scans, security, )
• Application Toolkits (Java, C and Python)
• Commercial bindings (Labview, Matlab, IgorPro)
• Control system administration (Starter, Astor)
• Hundreds of available classes
• Web interfaces (PHP, Java)

42
TANGO and CORBA

• Tango encapsulates the CORBA communication
  protocol
• Allows the use of other communication protocols
• Tango uses a narrow CORBA interface
• All objects on the network have the same
  interface
• Allows the use of generic applications
• Avoids recompilation when new objects are added

43
The TANGO Device

• The fundamental brick of Tango is the device!
• Everything which needs to be controlled is a
  device from a very simple equipment to a very
  sophisticated one
• Every device has a three field name
  domain/family/member
• sr/v-ip/c18-1, sr/v-ip/c18-2
• sr/d-ct/1
• id10/motor/10

44
The TANGO Device
45
TANGO Device Server

• A Tango device server is the process where the
  Tango class(es) are running.

A Tango device server
ps command shows one device server
46
TANGO Device Server

• Tango uses a database to configure a device
  server process
• Device number and names for a Tango class are
  defined within the database not in the code.
• Which Tango class(es) are part of a device server
  process is defined in the database but also in
  the code

47
TANGO Support

• APIs/Programming Languages
• C (performances)
• Java (portability)
• Python (scripts)
• Others (Matlab, Igor Pro, LabView)
• platforms
• Linux
• Windows NT/2000/XP
• Sun-Solaris
• FPGA
