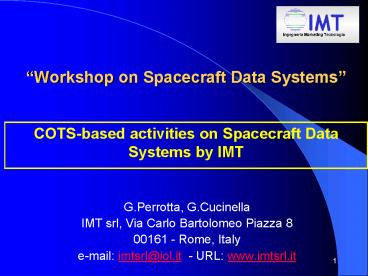

• COTS-based activities on Spacecraft Data Systems
  by IMT

• G.Perrotta, G.Cucinella
• IMT srl, Via Carlo Bartolomeo Piazza 8
• 00161 - Rome, Italy
• e-mail imtsrl_at_iol.it - URL www.imtsrl.it

2
IMTs activities

• The on-going IMTs activities on Spacecraft Data
  Systems are
• - a COTS-based on board computer
• -a COTS-based multi-terabyte RAID system.

3
The On-Board Computer

• The initial IMTs idea of building an OBC with
  COTS boards was sponsored by ESA through a
  contract (N.13409/98/NL/MV) which enabled to test
  the radiation and environmental endurance
  capabilities of motherboards made by two
  different Italian vendors leading to the
  selection of one.
• The success of this contract led to an ASI
  contract (N. I/180/01/0 as co-funding) for the
  realisation of a full COTS-based On-Board
  Computer (OBC) including the updating of the
  motherboard, the addition of the I/O and SCC
  (synchronous Serial Communication Controller)
  boards, and of the additional 1GB mass memory
  (based on flash EPROMS).

4
The On-Board Computer - The OBC features

• PC/AT architecture, efficiently packaged on PC
  104 cards. It includes an ELAN 520 133 MHz CPU
  board by SECO (an Italian PC104 boards Supplier)
  provided with 32 MB DRAM.
• Memory card with a Flash EPROMS of up to 1 GB
  memory.
• Board providing two full-duplex high speed serial
  channels.
• I/O board providing 16 analogue input channels, 2
  output channels, 88 in/out digital signals, 2
  timers and high precision voltage references
  temperature compensated.

5
The On-Board Computer - The OBC features

• OBC mass is 0.7 kg
• Power drain of 5 W _at_ 5V.
• The unit can withstand up to 10 Krads
• Operating temperature range 20C to 60C.
• The OBC has a QNX operating system, but full
  compatibility with other O.S. has been proven in
  our Labs.
• All applications SW are written in C, but we
  have tested the compatibility with other
  low-level languages.

6
The On-Board Computer
SCC Board
Mother Board
Mass Memory
ADC Board
7
The On-Board Computer
130 mm
8
The On-Board Computer Environmental Testing

• The OBC has been subjected to radiation and
  environmental tests (vibration, thermal and
  thermal-vacuum) with success.

9
The On-Board Computer Environmental Testing
The Hardware during irradiation
Radiation withstanding up to 10 Krads
10
The On-Board Computer Environmental Testing
The OBC during vibration test
Vibration test performed according to the
applicable ECSS-E-10-03A standard (qualification
level)
11
The On-Board Computer Environmental Testing
The OBC during Thermal Cycles test
47 Thermal Cycles performed according to the
applicable ECSS-E-10-03A standard (qualification
level) -20C to 70C
12
The On-Board Computer Environmental Testing
The OBC during Thermal Vacuum test
Thermal Vacuum tests (8 cycles) performed
according to the applicable ECSS-E-10-03A
standard (qualification level) -20C to 70C
13
The On-Board Computer - Applications

• Besides its use as the core OBC on board nano,
  micro and minisatellites, we intend to propose
  the OBC as a navigation computer on launch
  vehicles and for general computing and TLC/TLM
  handling purposes for scientific missions both on
  free-flyers and on the Space Station.

14
The Mass Memory (HDCOTS)

• The COTS-based RAID (Redundant Array of
  Independent Disk Driver) system originated from a
  market survey showing the absence of makers of
  spaceborne RAID systems in Europe while such
  devices have been used on several USAs space
  missions. Considering the push from the consumer
  and professional market towards decreasing prices
  and the continuous technical evolution of the
  hard disk technology, it seemed logical to
  undertake the development of a RAID system
  looking in prospective to the ever increasing
  storage capacity of Earth Remote Sensing
  satellites equipped with optical or radar
  instruments.

15
The Mass Memory (HDCOTS)

• The RAID system consists of a stack of hard disks
  inclusive of the RAID controller and interfaces
  with an external computer. The RAID system will
  be capable of up to 8 pairs of hard disks each
  with 73 GB capacity (for a total of 1.2
  terabytes). A last-generation SCSI interface is
  adopted to speed up the write/read performance,
  which is further enhanced by the inherent shared
  operation of the RAID system.
• This RAID intends to compete, in terms of cost,
  mass and power consumption, with the equivalent
  solid-state products available on the space
  market. The target applications address mainly
  the bulk temporary storage of remote sensing
  images, in the visible, hyper-spectral or radar
  bands.

16
The Mass Memory (HDCOTS)

• The product is under development in the frame of
  the ASI contract (N. I/030/02/0, as co-funding).
• It is an High-Capacity Hard-Disk Memory based on
  the extensive usage of COTS (Commercial-Off-The-Sh
  elf) - HDCOTS.
• IMT partners in the development are Alenia Spazio
  (for the User Reqs definition) and Laben (for
  Final Testing).
• Possible applications are space applications in
  LEO, avionics and military applications. The
  HDCOTS is composed by 2 counter-rotating Disks in
  a pressurised box with suitable provisions
  against vibrations.
• Main characteristicsCapacity 146
  Gbytes (expandable)
• Ultra-wide SCSI interface BUS 16 Bits Transfer
  Speed about 40 MB/sec Mass less than 2.5 Kg
  ((for the baseline). Power consumption in the
  order of some tens of watts. Program completion
  forecast December 2003

17
The Mass Memory (HDCOTS) - General Requirements

• Reduced dimensions and mass
• Reduced costs w.r.t. the Solid State Mass
  Memories
• Reduced Power consumption
• (Extensive usage of COTS
• Expandable Capacity gt 1 TB
• Transfer Speed gt 10-20 MB/sec
• PC Standard Compatible interface

18
The Mass Memory (HDCOTS) System Architecture

• The Technological Demonstrator (TD) is a
  High-Capacity Memory system for space application
  at low cost. It is composed by memory devices and
  control electronics in a single box the power
  supply can be a separated unit.
• The Hard Disks are the ideal solution for the
  implementation of the TD. From space application
  point of view it implies
• - the TD shall be composed by 2 counter-rotating
  Disks to give a resulting null angular momentum
  to the satellite during read/write operations
• - the TD shall be maintained in a pressurised box
  such as the internal pressure does not go down to
  the minimum required by the disk heads since they
  work on an air cushion.

19
The Mass Memory (HDCOTS) - Architecture

• To increase significantly the capacity,
  modularity and reliability of the memory system,
  a RAID (Redundant Array of Independent Disk
  Driver) architecture will be implemented, by
  using a single control electronics to manage all
  Disks. Of course, the system will be composed by
  a multiple of 2 Disks, formed by a pairs of
  counter-rotating Disks.
• The TD, as demonstrating model, will be a RAID
  system reduced to the minimum, formed by a single
  pair of counter-rotating Disks and a control
  electronics.

20
The Mass Memory (HDCOTS) - Architecture

• As far as the Disks, the SCSI technology has been
  selected, because the high read/write speed. In
  addition the significant number of Disks that can
  be managed will be useful for the development of
  more complex RAID system.
• For the TD, Disks with Ultra 160 SCSI interface
  have been selected, because it is a consolidated
  standard at low cost w.r.t. the very new Ultra
  320. For the Disks we have considered a capacity
  greater than 40 GB, more than adequate for the
  current market and applications requirements.

21
The Mass Memory (HDCOTS) - Architecture

• The control electronics shall allow the
  management of the Disks RAID configuration and
  shall perform interface functions versus the
  remote computer at similar speed than the
  transfer speed of the Disks. Such electronics
  shall be an Ultra 160 SCSI Controller plus a
  communication interface versus the remote
  computer.
• The additional interface shall foreseen a PCI
  slot, at least, compatible with the controller
  in addition an expansion cable versus the remote
  computer is necessary.

22
The Mass Memory (HDCOTS) - Architecture
23
The Mass Memory (HDCOTS) Electrical Design

• For the interface of the TD and the remote
  computer the selected solution is from MAGMA,
  named PCI Expansion.

24
The Mass Memory (HDCOTS) Electrical Design

• The selected Hard-Disks are
• IBM Ultrastar 73LZX
• Maxtor 73G Ultra 160 SCSI

25
The Mass Memory (HDCOTS) Electrical Design

• The SCSI Controller will be selected as results
  of the evaluation tests performed on the two
  chosen types.

26
HDCOTS TD mechanical Design
27
HDCOTS TD mechanical Design
28
HDCOTS TD mechanical Design
29
The Mass Memory (HDCOTS) EM Test Bench
30
The Mass Memory (HDCOTS) EM Test Bench
31
The Mass Memory (HDCOTS) EM Preliminary Test
32
The Mass Memory (HDCOTS) The Electrical Model
PCI expansion
SCSI Controller
Disk 1
Disk 2
Disk 3
33
The Mass Memory (HDCOTS) IBM HD
34
The Mass Memory (HDCOTS) Maxtor HD
35
The Mass Memory (HDCOTS) FFD UWSCSI M-Systems
36
The Mass Memory (HDCOTS) SCSI Controller
37
The Mass Memory (HDCOTS) PCI Expansion
38
AIV Plan Preliminary COTS Verification
To be performed on Electrical Model
Radiation Test
Yes
Yes
Temperature Cycles
Unit Verifications
OK
OK
To be performed on TD
No
No
COTS Selection
39
AIV Plan Electrical Model Verifications
Preliminary Functional Verifications
Yes
Yes
Expected performances verifications
Radiation Test
OK
OK
No
No
Electrical Design modification
40
AIV Plan Validation Testing
Structural Model Vibration Test
Tests on TD
Thermal Cycles -20C 60C
Yes
Yes
Vibrations
Thermal vacuum -20C 60C
OK
OK
No
Yes
No
OK
Yes
OK
No
Mechanical Design modification
Electrical/ Mechanical Design modification
No
TD validated
