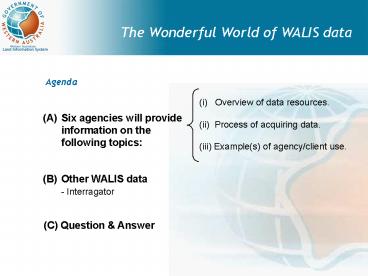

The Wonderful World of WALIS data
Agenda
(i) Overview of data resources. (ii) Process
of acquiring data. (iii) Example(s) of
agency/client use.

• Six agencies will provide information on the
  following topics

• Other WALIS data
• - Interragator

(C) Question Answer
2
Introduction
(A) Six Agencies

• DLI (Department of Land Information) 13 mins
• DOIR (Department of Industry and Resources) 8
  mins
• DPI (Department of Planning and Infrastructure)
  8 mins
• CALM (Conservation and Land Management) 8 mins
• DOE (Department of Environment) 8 mins
• DAWA (Department of Agriculture) 8 mins

3
Department of Land Information

• Aerial Photography
• State coverage, archived from 1947.
• Available as hard copy digital scans
  orthorectified digital
• Imagery regional coverage on CD (PanAIRama) or
  online via
• Skyview.

(ii) Process of acquiring data. Hard copy prints,
digital scans PanAIRama (08) 9273
7209 Orthorectified imagery customised products
[phone] Email geodata_at_dli.wa.gov.au Browse
order via Skyview www.landonline.com.au
(iii) Example(s) of agency/client use. Urban and
regional planning, asset management, primary
industry and natural resource management. Images
are available in a range of formats and can be
overlaid with other mapping information
4
Department of Land Information

• Satellite Imagery
• Raw data archives of Landsat TM, Landsat MSS,
  SPOT, ASTER, NOAA, SeaWIFS and MODIS.
• Products and services include Agimage, Pastures
  from Space, Firewatch, Vegetation Watch, Land
  Monitor, Fishing Hotspots

(ii) Process of acquiring data. All enquiries 08
9387 0330 Search online archives
http//www.rss.dola.wa.gov.au/archive/ Online
access www.landgate.com.au (Farm Channel)
(iii) Example(s) of agency/client
use. Agricultural industries, rural planners,
developers, exploration industries, environmental
groups and other Government Agencies
5
Department of Land Information

• Digital Data
• Topographic cultural, relief hydro themes at
  a range of scales, variable currency, available
  in DGN, DWG, SHAPE (selected areas) or DXF.
  Digital Elevation Models are also available.
• Cadastral All freehold Crown land boundaries
  , updated daily, available in Norm files, Shape
  files, or DGN, DXF, DWG, CSD.
• Tenure Ownership data including, name, C/T,
  parcel description etc, updated daily, available
  in Access or Excel.
• Road centreline Attribution includes name,
  Surface Type Indicator, and road classification.
  Available in Arc Export,
• Arc Info and Shape Digital Format.
• Property Street Address Addresses for Perth
  Metropolitan area with rural town and some
  regional coverage, updated weekly. Available in
  ARC/INFO, ASCII, EOO (Arc Export), DGN and DXF.

6
Department of Land Information

• Digital Data cont.
• Sales Evidence Sales of residential and
  non-residential property, available as hard copy
  or Excel, Lotus 123, D Base, Microsoft Works
  digital files.
• Native Title Claimant details and geographic
  extent of claims. Available as DGN, ArcView, Map
  Info and Excel digital files.
• WA Place Names (Geonoma) Name, position, origin
  and meaning of towns, suburbs and roads, plus
  geographical features. Available in hard Copy,
  ASC11, Excel or plot form.
• Geodetic - Standard survey marks and bench marks,
  including mark status, cadastral connection field
  books, reference marks and notes. Available
  digitally or hard copy.

7
Department of Land Information
(ii) Process of acquiring data. For digital data
requests ph [phone], [phone]
(Fax)or email geodata_at_dli.wa.gov.au For an
order form visit our website http//www.dli.wa.go
v.au/corporate.nsf/web/HowtoOrderMaps-Geospat
ialData For Geodetic Data email
geodesy_at_dli.wa.gov.auor ph [phone]
(iii) Example(s) of agency/client use. The
applications for geospatial digital data are
limitless. Our major customers are from the
planning, natural resource and land development
sectors.
8
Department of Land Information

• Streetsmart Product Range
• WA Street Directory, Travellers Atlas, Street
  Express CD and
• Touring maps. Data available as hard copy, or in
  digital raster
• format, GIF, TIF or PDF at 200 dpi resolution.

(ii) Process of acquiring data. Directories and
maps available from sales_at_dli.wa.gov.au or ph 08
9273 7555 or from DLI agents other
retailers. Data and customised products contact
ph 08 9273 7045 or email geodata_at_dli.wa.gov.au
(iii) Example(s) of agency/client use. Mapping
for websites, regional tourism, business
promotion and event management.
9
Department of Land Information

• Online Services
• Landgate www.landgate.com.au, is being
  developed as a gateway to WAs land property
  information.
• Landgate has a number of customised access
  channels for communities of interest.
• Current services, some of which are offered in
  partnership with other agencies include
• Electronic Advice of Sale (EAS2), Regional
  Scheme Certificates (RSCS), Land enquiries,
• Online map viewer,
• Firewatch,
• Vegetation Watch,
• Agimage and Land Monitor.
• Landonline www.landonline.com.au. Browse and
  order touring maps, street directories, fishing
  hotspots and aerial photography online.

10
Department of Land Information
(ii) Online Access Access to the Planning channel
and public access to the Farm channel are
free. Access to the Survey, Government and
Business Channels, which host customised versions
of the Landgate Mapviewer are subscription based.
To subscribe, contact Online Support on Email
onlinesupport_at_dli.wa.gov.au Ph 08 9273 7341
(iii) Example(s) of agency/client use. Land
management, planning, land development, and
natural resource management by Government
agencies, Local Government and industry.
11
Department of Land Information
For full details of all DLI products and
services, visit www.dli.wa.gov.au to view our
full product catalogue or come and see us at the
DLI booth
12
Department of Industry and Resources
(i) Overview of data resources.
DoIR has a responsibility to help the WA economy
grow by making WA the preferred place to invest
and do business.
Easy access to readily available information is
an important component
13
Department of Industry and Resources
Environmental Mineral resources and land access
series Miscellaneous Various index maps e.g.
graticule blocks, map sheet, geophysical
survey Administrative boundaries Images Aerial
photos Orthophotos (covering project
areas) Images Remote sensing SPOT (covering
project areas) Aster (covering project
areas) Gravity(covering project
areas) Decorrelation stretch Landsat TM imagery
(covering project areas) Principal components
Landsat TM imagery (covering project
areas) Images - Photographs Field
observations Thin section sample /
core Geochronology
(i) Overview of data resources.
Geology Tectonic units Geological 100
Series Geological 250 Series Geological 500
Series Interpreted bedrock 500 Series State
Geology series Geological exploration
packages Geological miscellaneous Environmental
Series UDAG map Series Urban Geology
Series Regolith materials Regolith
geochemical Geophysical data (Seismic, Magnetic,
Radiometric and Gravity data) Mineral Potential
For Land Use Planning Series Geochronology
data Petrographic data Field observation location
and data (WAROX)
Titles Mineral (TENGRAPH) Petroleum
(WAPIMS) Pipeline (WAPIMS) Mineral
Information Mineral exploration activity
(EXACT) Mineral deposits (MINEDEX)
database Mineral deposits and occurrence (WAMIN)
database Drill hole location and data Abandoned
mine site location Company reports
database Petroleum Information Petroleum
exploration activity (WAPIMS) Seismic
data Magnetic data Well hole location Down hole
data
14
Department of Industry and Resources
Discovery
(ii) Process of acquiring data.
Interragator
15
Department of Industry and Resources
Discovery
(ii) Process of acquiring data.
eBOOKSHOP
16
Department of Industry and Resources
Discovery
(ii) Process of acquiring data.
GeoVIEW.WA
17
Department of Industry and Resources
Access
(ii) Process of acquiring data.
Clearinghouse
18
Department of Industry and Resources
Access
(ii) Process of acquiring data.
Information Centre
19
Department of Industry and Resources
Access
(ii) Process of acquiring data.
Online
20
Department of Industry and Resources
Access
(ii) Process of acquiring data.
Online
21
Department of Industry and Resources
Access
(ii) Process of acquiring data.
Online
22
Department of Industry and Resources
Access
(ii) Process of acquiring data.
gsd.dda_at_doir.wa.gov.au
9222 3423
Special Needs
23
Department of Industry and Resources
Formats
(ii) Process of acquiring data.
Datasets Shapefile (ESRI), TAB file
(MapInfo) ArcSDE layer (ESRI) and DGN (Bentley)
Very limited Manuscripts and maps PDF
24
Department of Industry and Resources
(iii) Example(s) of agency/client use.

• Statutory requirements
• Industry investment in WA
• Mineral and petroleum exploration
• Government Fed, State, Local
• Land use conflicts and approvals
• Environmental science
• Community groups
• Academic research

25
Department of Industry and Resources
(iii) Example(s) of agency/client use.
Departments budget 127M
Mineral exploration 465M Petroleum exploration
625M Return Royalties 1018M
26
Department for Planning Infrastructure
(DPI)Western Australian Planning Commission
(WAPC)
Geospatial Data
27
DPI / WAPC have 5 major areas of geospatial data

• Statutory
• Publications
• Marine
• Research
• Project Based

28
Statutory

• Regional Schemes
• Metropolitan, Peel Greater Bunbury (DRAFT).
• Scheme Amendments.
• Supporting Plans Land Requirement and Detail
  Plans.
• Town Planning Schemes Statewide coverage (DPI
  copy).
• Town Planning Scheme Amendments

29
Publications

• Regional Strategies future planning
• Shark Bay Strategy
• Goldfields-Esperance Regional Strategy
• Structure Plans- future planning
• Metropolitan Area - Southern River Structure
  Plan
• Regional Onslow Structure Plan
• Strategic Plans future planning
• Mandurah Inner Area Strategic Plan
• Country Land Development Program
• Geraldton Land Release Areas
• Metropolitan Development Program

30
Marine

• Bathymetric Information as either point data or
  contours.
• Coastline Movements
• Nautical Charts
• Tides (Predictions and recorded values)
• Waves (Recorded values)
• Submergence Curves

31
Research

• Land Use Surveys
• Journey to work
• Developers Intention Survey

32
Project Based

• Perth Bike Network
• Regional Bus Routes
• Transperth Network Planning Maps

33
Examples
34
Internet Resources

• WALIS online Atlas
• Planning data MDP,CLDP,MRS
• Landgate
• Online viewing of Metropolitan and Peel Region
  Schemes.
• Clearinghouse

35
Obtaining Data Cost

• Single point of contact
• Email Geographical Information Officer
• Clearinghouse WALIS members (no charge on
  download)
• Statutory and Publications are available at a
  cost of
• 71.50 per dataset (cost of extraction and
  distribution).
• Large orders are by quotation eg. TPS
• Research and Marine data are quoted per requests.

36
Contacts

• DPI Datasets
• Debbie CliffordGeographical Information
  OfficerSpatial Information ResearchMapping
  and Spatial Branch ( Telephone [phone]
  1 Facsimile [phone] - E-Mail
  debbie.clifford_at_dpi.wa.gov.au
• Research Based Data
• Janet IverachPrincipal Research Analysis
• Spatial Information Research
•  ( Telephone [phone]- E-Mail
  janet.iverach_at_dpi.wa.gov.au
• Marine Based Data
• Rodney HoathCoordinator Geographic Information
  ManagementOperations - Spatial Information
• ( Telephone [phone] Facsimile (08)
  9216 8981- E-Mail rodney.hoath_at_dpi.wa.gov.au

37
Conservation and Land Management

• Overview of data resources.
• As an agency with integrated
  responsibilities, we manage lands and waters for
  the conservation of biodiversity at ecosystem,
  species and genetic levels, including management
  for the renewable resources they provide, and for
  the recreation and visitor services they can
  sustainably support.

TENURE CALM Managed Estate Forest Management
Plan Administration Boundaries Regional
Parks FLORA and FAUNA Declared Rare Flora and
Priority Species Threatened Fauna VEGETATION Pre
1750 Veg Complexes Pre-European Vegetation
(AgWA) IBRA Vegetation Threatened Ecological
Communities Landscape Conservation Units
FIRE Year of Last Burn Fire Scars WETLANDS Ramsar
Recovery Catchments SUSTAINABLE
FOREST MANAGEMENT Forest Blocks Apiary
Sites Disease Risk Areas Visual Landscape
Mapping Timber Species Tuart Woodlands Diverse
Ecotype Zones
Fauna Habitat Zones MAPPING PRODUCTS COG
Atlases COG Georef Images RECREATION Cultural
Heritage Sites Tracks and Trails MARINE
CONSERVATION Marine Parks Sanctuary Zone Marine
Habitats Marine Wildlife Distribution World
Heritage REGIONAL FOREST ASSESSMENT Forest
Ecosystems
38
Conservation and Land Management

• (ii) Process of acquiring data.
• Search WALIS Interragator On-line
• Additional Specific Data Requirements
• Written Request
• License Agreement
• Extraction Costs

39
Conservation and Land Management

• (iii) Example(s) of agency/client use.
• Land Management
• Planning and Development
• Biodiversity Conservation
• Fire Suppression
• Analysis and Mapping
• Recreation and Tourism

40
Department of Environment
Over 100 custodial data sets including

• Geomorphic Wetlands

• Hydrography

• Acid Sulphate Soil Risk

• Hydrogeology 250k

41
(No Transcript)
42
Department of Environment
Data can be acquired by

• CD / DVD

• E-mail

• Portable Hard Drive

• Memory Stick

43
Department of Environment
Formats

• ESRI Shapefile

• ESRI Geodatabase

• DGN or DXF

under extreme duress

• Corel Draw 5 CDR file -

no
Projection -
GDA94 lat long
44
Department of Environment
Cost Government Agency -
No charge
Students and Educational -
No charge
Others -
75 per hour extraction
45
Department of Environment
Clearing Permit System
46
Department of Environment
Contact Wayne Tyson 9278 0333 wayne.tyson_at_environ
ment.wa.gov.au
47
Department of Agriculture
Spatial information at the Department of
Agriculture WA
Spatial information at the Department of
Agriculture WA is coordinated by the Client and
Resource Information System, or CRIS.
CRIS handles the day-to-day management and
integration of information systems within the
Department.
CRIS also provides the following services to
clients inside and outside the agency.

• A range of existing web maps called Reporting
  Interfaces available on-line 24/7.
• Custodians of a wide range of data that can be
  used to generate customized maps in a range of
  formats.
• Provides GIS services to provide spatial
  analysis of any suitable data.

48
Department of Agriculture
Overview of data resources.
The Department of Agriculture WA holds a number
of datasets relating the the infrastructure of
Western Australian rural industries and natural
resources.
These include
A state-wide property spatial database - this
includes links to management and business
contacts eg brands etc.
Property infrastructure for all pastoral leases
Property infrastructure and farm plans for a
large number of properties in south-western
Australia
These data are available on permission from
property owners.
49
Department of Agriculture
Overview of data resources.
Soil-landscape resources - soil-landscape mapping
at scales between 150,000 and 1250,000
Vegetation extent in Western Australia at scales
between 120,000 and 1100,000.
A consistent pre-European (pre-clearing)
vegetation type dataset for the whole state. A
dataset for current vegetation extent-by-type can
be generated by intersecting the two vegetation
datasets.
Areas of vegetation protected through the Office
of the Commissioner for Soil and Land
Conservation and various funding schemes eg
Remnant Vegetation Protection Scheme.
50
Department of Agriculture
Overview of data resources.
Detailed contours and Digital Elevation Models
(DEMs) and derivatives.
Shaded relief
Landscape profile
Slope maps
Aspect maps
51
Department of Agriculture
Process of acquiring data.
Data and data services from the Department of
Agriculture WA can be ordered as follows
Contact the CRIS Data Administrator Ph. (08)
9368 3841 Fx. [phone]
The data administrator will discuss your request
with you to determine the most appropriate data
or service and delivery time. All reasonable
request times are considered, although we usually
require 48 hours for a data request.
You will then be provided with a formal quote for
services for data
On receipt of a signed quote, email or verbal
acceptance the request will be scheduled and a
data license agreement will be prepared.
Digital data can be supplied in a wide range of
formats.
52
Department of Agriculture
Our clients

• Farmers
• Indigenous Landholders
• Agribusiness
• Marketing organisations
• Research and Development organisations
• Tertiary institutions
• Government - local/State/Federal
• Agriculture consultants
• Local communities
• Public
• Overseas businesses and organisations

53
Department of Agriculture
Examples of client use.
Potential tree planting sites for the Forest
Products Commission.
Identifying suitable areas based on slope and
salinity risk
54
Department of Agriculture
Examples of client use.
Soil hazard risk maps
Identifying areas at high, moderate and low risk
from various potential hazards
55
Department of Agriculture
Examples of client use.
Rangeland condition modelling for the Australia
Collaborative Rangelands Information System
56
Department of Agriculture
Examples of client use.
Seasonal assessments - including exceptional
circumstances
57
Other WALIS data
(B) Other WALIS data ?
www.walis.wa.gov.au/interragator
58
Conclusion
(C) Questions ?
