Interactive Data Analysis on the Grid with JAS and Globus

1

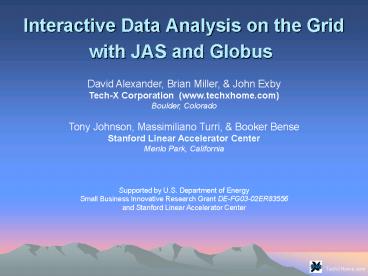

Interactive Data Analysis on the Grid with JAS
and Globus
David Alexander, Brian Miller, John
Exby Tech-X Corporation (www.techxhome.com) Bould
er, Colorado Tony Johnson, Massimiliano Turri,
Booker Bense Stanford Linear Accelerator
Center Menlo Park, California
Supported by U.S. Department of Energy Small
Business Innovative Research Grant
DE-FG03-02ER83556 and Stanford Linear
Accelerator Center
2
Project Overview

• Started with Java Analysis Studio (JAS)
• Has distributed analysis system based on RMI
• Set up test grids on Linux clusters
• Used Globus Toolkit 2.0
• Each node had GRAM GridFTP servers and Java
  Runtime Environment
• Wrote a JAS grid plug-in
• Used Java CoG Kit 0.9
• Demonstrated at SC2002
• Hit remote and on-site cluster

3
Java Analysis Studio (JAS)jas.freehep.org

• Open source application
• Built for interactive data analysis, but flexible
  modularized
• Publication quality plotting facilities
• User writes Java code to analyze data

4
Java Analysis Studio (JAS)jas.freehep.org

• Abstracted data source interface
• Modules are written to work with a variety of
  file formats (PAW, HIPPO, AIDA, Root, ODBC, flat
  files, SIO, HEP)
• Distributed System Available
• Versatile Well used in high energy physics
• Pure Java (Portable, Web Start installation
  upgrade)
• Flexible topology (stand-alone, client/server,
  cluster)
• Integration w/ BaBar, Geant4, Wired

TechXHome.com
5
Design Ideas Added Features

• Goal clustered deployment, launch, federation
• Special JAS Job use
• Minimal prerequisites
• Bare grid Globus, Java, nothing else
• Heterogeneous cluster
• Off-grid (or not) client, data, codebase
• Clients dont need to be superusers
• Optional background deployment
• Single sign on

TechXHome.com
6
About Resource Discovery

• Resource discovery
• Software needs location of data files
• Software needs location of Java-enabled hosts
• Pluggable LDIF source (MDS, URL of text file)
• Community Authorization Service
• Fine-grained access control
• Is resource discovery in a way

7
Move code to data with GridFTP

• Location transparency
• User sees data sets
• Could also have user choice
• Automatic deployment of JAS
• Multi-threaded task set
• Verification of code version, GridFTP codebase to
  node if new
• GridFTP/link data to user sandbox
• Deploy control and catalog servers only on
  cluster head node
• Worker nodes wait for catalog server to run

TechXHome.com
8
Launch Application with GlobusRun

• Automatic launch of Java servers
• Java Data Servers are run on specified
  JRE-enabled nodes
• Special Grid Job is now started (exit the Wizard)
• Code loaded into client or written in editor
• -compiled
• -automatically distributed to Java Data Servers
• -results (std out, std err, histograms) sent
  back

TechXHome.com
9
A few more Impressive Features

• User can stop analysis, change code, restart.
• Distributed debugging can catch individual node
  failures.
• Histogram re-bin slider surprisingly responsive

TechXHome.com
10
Headaches and Issues

• Versions of Globus vs. Java CoG Kit
• CoG properties configuration
• Client server clocks disagree
• MS-Windows text line breaks
• Abandoned jobs
• Firewalls

TechXHome.com
11
Future Ideas

• Upgrade to Globus Toolkit 3
• Pre-install code on cluster head or portal
  machine and deploy from there
• Use more grid services (Condor, Replica)
• Implement interfaces or service descriptions from
  PPDG CS-11 group.

TechXHome.com
12
Further Information on JAS

• for the latest on JAS see the 3pm Catogory 9
  paper
• JAS3 - A general purpose data analysis framework
• for HENP and beyond.
• CONTACTS
• David Alexander, alexanda_at_txcorp.com
• Brian Miller, bmiller_at_txcorp.com
• Tony Johnson, tony_johnson_at_SLAC.stanford.edu
• Massimiliano Turri, turri_at_SLAC.stanford.edu
• Java Analysis Studio, http//jas.freehep.org
