High Resolution Simulations of Gravity and Turbidity Currents

1

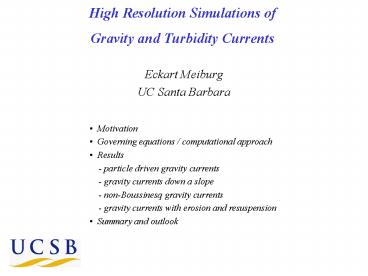

High Resolution Simulations ofGravity and
Turbidity Currents

• Eckart Meiburg
• UC Santa Barbara

• Motivation
• Governing equations / computational approach
• Results
• - particle driven gravity currents
• - gravity currents down a slope
• - non-Boussinesq gravity currents
• - gravity currents with erosion and
  resuspension
• Summary and outlook

2
Atmospheric dust storm

• Particles represent small
• mass fraction
• Large density ratio of
• particles/fluid
• Suspension mechanism?

Coast of Africa (NASA)
3
Atmospheric dust storm

• Particles represent small
• mass fraction
• Large density ratio of
• particles/fluid
• Suspension mechanism?

Coast of Africa (NASA)
Mars (NASA)
4
Sandstorms
5
Avalanche

• Non-Boussinesq
• Formation
• Growth / Amplification
• Front velocity
• Particle-particle interaction
• Erosion / Resuspension
• Deposition
• Influence of bottom topography
• Runout length

6
Turbidity current

• Underwater sediment flow down
• the continental slope
• Can transport many km3 of
• sediment
• Can flow O(1,000)km or more
• Often triggered by storms or
• earthquakes
• Repeated turbidity currents in the
• same region can lead to the
• formation of hydrocarbon
• reservoirs
• Properties of turbidite
• - particle layer thickness
• - particle size distribution
• - pore size distribution

• Turbidity current.
• http//www.clas.ufl.edu/

7
Turbidite systems on the continental slope
Houston
Study area
Courtesy of F.A. Diegel
8
Turbidity current (contd)
Var Fan, off Nice coast, caused in 1979 by
airport construction accident
9
Framework Dilute flows

• Volume fraction of particles of O(10-2 - 10-3)
• particle radius particle separation
• particle radius characteristic length scale of
  flow
• coupling of fluid and particle motion primarily
  through
• momentum exchange, not through
  volumetric effects
• effects of particles on fluid continuity equation
  negligible

10
Moderately dilute flows Two-way coupling

• Mass fraction of heavy particles of O(10), small
  particle inertia (e.g., sediment transport)
• particle loading modifies effective fluid density
• particles do not interact directly with each
  other
• Suspension dynamics can be described by
• incompressible continuity equation
• variable density Navier-Stokes equation
  (Boussinesq)
• conservation equation for the particle
  concentration field
• ? dont resolve small scale flow field around
  each particle,
• but only the large fluid velocity
  scales (SGS model)

11
Moderately dilute flows Two-way coupling
(contd)
effective density
settling velocity
12
Model problem
Lock exchange configuration
Dense front propagates along bottom
wall Light front propagates along top wall
13
Past work

• Benjamin (1968)
• shape of energy-conserving gravity current head
• height of energy-conserving current ½ height
  of lock
• Shallow water theory
• Rottman Simpson, Keller Chyou
• Particle-driven currents
• Bonnecaze Huppert, Garcia Parker
• Non-Boussinesq currents
• Groebelbauer et al., Lowe et al., Birman
  Meiburg
• Numerical simulations
• Klemp et al., Härtel, Meiburg et al.,
  Balachandar et al.
• Reviews
• Simpson (1997), Rottman and Linden (2001)

14
Numerical method

• Fourier spectral method in the streamwise and
  spanwise
• directions
• sixth order compact finite difference method or
  spectral
• element method in the vertical direction
• third order Runge-Kutta time stepping
• mostly equidistant grids
• up to 70 million grid points

15
Results 3D turbidity current Temporal evolution
DNS simulation (Fourier, spectral element, 7x107
grid points)

• Necker, Härtel, Kleiser and Meiburg (2002a,b)

• turbidity current develops lobe-and-cleft
  instability of the front
• current is fully turbulent
• erosion, resuspension not accounted for

16
Results 3D turbidity current - Frontal
instability

• Lobe-and-cleft instability (Simpson 72)
• Instability wavelength and growth rate agree
  with linear theory
• by Härtel et al. (2000)

17
Results Sedimentation rate
Global sedimentation rate as function of time

• early and late times are governed by different
  power law regimes

18
Results Deposit profiles
Comparison of transient deposit profiles with
experimental data of de Rooij and Dalziel
(1998)

• - - - Experiment
• ___ Simulation

• simulation reproduces experimentally observed
  sediment accumulation

19
Results 2D vs. 3D simulations

• early times good agreement between 2D and
  spanwise averaged 3D results
• late times spanwise instabilities lead to more
  rapid decay of 3D flow

20
Results 2D vs. 3D - Front velocity, suspended
particle mass

• ____ 3D simulation
• - - - - 2D simulation

• 3D front propagates slightly faster
• particles settle out faster in the 3D flow

21
Results 2D vs. 3D - Final deposit profile

• 2D and 3D simulations predict quantitatively
  similar deposit profiles

22
Results Mixing of interstitial fluid

• us 0
• us 0.01
• us 0.02

• higher particle settling velocity results in
  better mixing of interstitial fluid
• reason by the time the more rapidly settling
  particles have been deposited,
• there is still sufficient kinetic energy
  left to effect thorough mixing

23
Gravity current moving down a slope

• Gravity current moving down a slope for Re
  4,000.

24
Front velocity

• Beyond a certain angle, the front velocity
  reaches a quasisteady state, then jumps to larger
  value

25
Simple model for scaling
Late stages are dominated by two-layer structure,
not by front
2 layer approximation of density field (Thorpe
1967)
26
Simple model comparison with simulation
Comparison of velocity at gate location with
model results
27
Results Bottom wall shear stress

• wall shear stress distribution reflects
  spanwise and streamwise flow structures
• allows prediction as to where particle bed
  erosion may occur

28
Erosion, resuspension of particle bed

• Experimentally determined correlation by Garcia
  Parker (1993) evaluates resuspension flux at the
  particle bed
• surface as function of
• bottom wall shear stress
• settling velocity
• particle Reynolds number
• Here we model this resuspension as diffusive flux
  from the
• particle bed surface into the flow

29
Erosion, resuspension of particle bed (contd)

• based on experimentally measured correlation
  between shear stress at the
• surface of the bed and an effective
  resuspension flux

30
Erosion, resuspension of particle bed (contd)
deposition outweighs erosion decaying turbidity
current
erosion outweighs deposition growing turbidity
current
31
Erosion, resuspension of particle bed (contd)

• multiple, polydisperse flows
• feedback of deposit on subsequent flows
• formation of ripples, dunes etc.

32
Channelization by turbidity currents A
Navier-Stokes based linear instability mechanism
Focus on cross-section behind the front

• evaluate base flow from numerical simulations
  or simplified analytical model
• in order to obtain U(z), C(z)
• linearize 3D flow around 1D base state, obtain
  eigenvalue problem

33
Channelization by turbidity currents A
Navier-Stokes based linear instability mechanism
Instability mechanism
34
Strong density difference Boussinesq vs.
non-Boussinesq
Momentum equation with Boussinesq approximation
Non-Boussinesq momentum equation
35
Strong density difference

• small density contrast (Boussinesq case)
  fronts are symmetric

• large density contrast (non-Boussinesq)
  asymmetric fronts

36
Strong density difference

• Lowe, Linden and
• Rottman (2004)

• experiments confirm asymmetric fronts for large
  density contrast

37
Strong density difference

• for non-Boussinesq flows the lobe-and-cleft
  instability persists

38
Strong density difference

• Theory based on two-layer shallow water equations
  (Lowe, Rottman and Linden 2004)
• different types of flows are possible, with or
  without bore
• front velocities and spatial distribution of
  dissipation rates decide which solution forms in
  reality
• obtain detailed information on dissipation from
  simulations

39
Strong density difference

• density contours alone dont allow us to
  determine nature of the flow

40
Strong density difference
Light front velocity Comparison with
experimental data and theoretical value for
energy-conserving (Benjamin) front

• light front is approximately energy-conserving
  for all density ratios

41
Strong density difference
Dense front velocity Comparison with
experimental data and theoretical values for a
dissipative front without a bore

• dense front behaves dissipatively for all
  density ratios

42
Strong density difference
Global dissipation within the dense and light
fronts

• ____ light front
• - - - - dense front

• in the energy-conserving light front, the
  dissipation does not depend on ?
• in the dissipative dense front, the dissipation
  varies with ?

43
Gravity currents in stratified ambients

• generation of internal waves
• complex interaction of the current with the
  stratified ambient

44
Reversing buoyancy currents

• propagates along bottom over finite distance,
  then lifts off
• subsequently propagates along top

45
Hazards posed by gravity and turbidity currents
Gravity currents may encounter underwater marine
installations
Constantinescu (2005)

• what forces and moments are exerted on the
  obstacle?
• steady vs. unsteady?
• erosion and deposition near the obstacle?

46
Summary

• high resolution three-dimensional simulations of
  gravity currents
• detailed information regarding sedimentation
  dynamics, energy
• budgets, mixing behavior, dissipation
• important differences between 2D and 3D
  simulation results
• current extension to gravity currents flowing
  down a slope, more
• complex geometries, erosion and
  resuspension, intrusions,
• reversing buoyancy, submarine structures
• non-Boussinesq currents light front is
  energy-conserving,
• dense front is dissipative
