Apprenticeship Learning via Inverse Reinforcement Learning

1

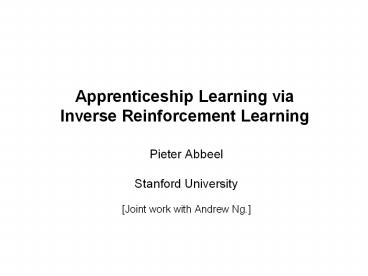

Apprenticeship Learning via Inverse
Reinforcement Learning

• Pieter Abbeel
• Stanford University
• Joint work with Andrew Ng.

2
Overview

• Reinforcement Learning (RL)
• Motivation for Apprenticeship Learning
• Proposed algorithm
• Theoretical results
• Experimental results
• Conclusion

3
Example of Reinforcement Learning Problem

• Highway driving.

4
RL formalism
System dynamics
System dynamics
System dynamics
s0

sT
s1
sT-1
s2
R(s0)
R(s2)
R(sT-1)
R(s1)
R(sT)




overall score

• Assume that at each time step, our system is in
  some state st.
• Upon taking an action a, our state randomly
  transitions to some new state st1.
• We are also given a reward function R.
• The goal Pick actions over time so as to
  maximize the expected score
• ER(s0) R(s1) R(sT).

5
RL formalism

• Markov Decision Process (S,A,P,s0,R)
• W.l.o.g. we assume
• Policy
• Utility of a policy?? for reward RwT?

6
Motivation for Apprenticeship Learning

• Reinforcement learning (RL) gives powerful tools
  for solving MDPs. It can be difficult to specify
  the reward function. Example Highway driving.

7
Apprenticeship Learning

• Learning from observing an expert.
• Previous work
• Learn to predict experts actions as a function
  of states.
• Usually lacks strong performance guarantees.
• (E.g.,. Pomerleau, 1989 Sammut et al., 1992
  Kuniyoshi et al., 1994 Demiris Hayes, 1994
  Amit Mataric, 2002 Atkeson Schaal, 1997 )
• Our approach
• Based on inverse reinforcement learning (Ng
  Russell, 2000).
• Returns policy with performance as good as the
  expert as measured according to the experts
  unknown reward function.

8
Algorithm

• For i 1,2,
• Inverse RL step
• Estimate experts reward function R(s) wT?(s)
  such that under R(s) the expert performs better
  than all previously found policies ?j.
• RL step
• Compute optimal policy ?i for
• the estimated reward w.

9
Algorithm Inverse RL step
10
Algorithm Inverse RL step
Quadratric programming problem. (same as for SVM)
11
Feature Expectation Closeness and Performance

• If we can find a policy ? such that
• ?(?E) - ?(?)2 ? ?,
• then for any underlying reward R(s) wT?(s),
• we have that
• Uw(?E) - Uw(?) wT ?(?E) - wT ?(?)
• ? w2 ?(?E) - ?(?)2
• ? ?.

12
Algorithm
?2
?(?E)
?(?2)
w(3)
?(?1)
w(2)
w(1)
Uw(?) wT?(?)
?(?0)
?1
13
Theoretical Results Convergence

• Theorem. Let an MDP (without reward function), a
  k-dimensional feature vector ? and the experts
  feature expectations ?(?E) be given. Then after
  at most
• k T2/?2
• iterations, the algorithm outputs a policy ?
  that performs nearly as well as the expert, as
  evaluated on the unknown reward function
  R(s)wT?(s), i.e.,
• Uw(?) ? Uw(?E) - ?.

14
Proof (sketch)
?2
?(?E)
?(?1)
d0
d1
?(1)
w(1)
?(?0)
?1
15
Proof (sketch)
16
Algorithm (projection version)
?2
?(?E)
?(?2)
?(?1)
w(3)
w(2)
?(2)
?(1)
w(1)
?(?0)
?1
17
Theoretical Results Sampling

• In practice, we have to use sampling to estimate
  the feature expectations of the expert. We still
  have ?-optimal performance with high probability
  if the number of observed samples is at least
• O(poly(k,1/?)).
• Note the bound has no dependence on the
  complexity of the policy.

18
Gridworld Experiments
Reward function is piecewise constant over small
regions. Features ? for IRL are these small
regions.
128x128 grid, small regions of size 16x16.
19
Gridworld Experiments
20
Gridworld Experiments
21
Gridworld Experiments
22
Gridworld Experiments
23
Case study Highway driving
Output Learned behavior
Input Driving demonstration
The only input to the learning algorithm was the
driving demonstration (left panel). No reward
function was provided.
24
More driving examples
In each video, the left sub-panel shows a
demonstration of a different driving style, and
the right sub-panel shows the behavior learned
from watching the demonstration.
25
More driving examples
In each video, the left sub-panel shows a
demonstration of a different driving style, and
the right sub-panel shows the behavior learned
from watching the demonstration.
26
Car driving results
Collision Left Shoulder Left Lane Middle Lane Right Lane Right Shoulder
? (expert) 0 0 0.13 0.20 0.60 0.07
1 ? (learned) 0 0 0.09 0.23 0.60 0.08
w (learned) -0.08 -0.04 0.01 0.01 0.03 -0.01
? (expert) 0.12 0 0.06 0.47 0.47 0
2 ? (learned) 0.13 0 0.10 0.32 0.58 0
w (learned) 0.23 -0.11 0.01 0.05 0.06 -0.01
? (expert) 0 0 0 0.01 0.70 0.29
3 ? (learned) 0 0 0 0 0.74 0.26
w (learned) -0.11 -0.01 -0.06 -0.04 0.09 0.01
27
Different Formulation

• LP formulation for RL problem
• max. ? ?s,a ?(s,a) R(s)
• s.t.
• ?s ?a ?(s,a) ?s,a P(ss,a) ?(s,a)
• QP formulation for Apprenticeship Learning
• min. ?,? ?i (?E,i - ?i)2
• s.t.
• ?s ?a ?(s,a) ?s,a P(ss,a) ?(s,a)
• ?i ?i ?s,a ?i(s) ?(s,a)

28
Different Formulation (ctd.)

• Our algorithm is equivalent to iteratively
• linearizing QP at current point (Inverse RL
  step),
• solve resulting LP (RL step).
• Why not solving QP directly? Typically only
  possible for very small toy problems (curse of
  dimensionality). Our algorithm makes use of
  existing RL solvers to deal with the curse of
  dimensionality.

29
Conclusions

• Our algorithm returns a policy with performance
  as good as the expert as evaluated according to
  the experts unknown reward function.
• Algorithm is guaranteed to converge in
  poly(k,1/?) iterations.
• Sample complexity poly(k,1/?).
• The algorithm exploits reward simplicity (vs.
  policy simplicity in previous approaches).

30
Additional slides for poster

• (slides to come are additional material, not
  included in the talk, in particular projection
  (vs. QP) version of the Inverse RL step another
  formulation of the apprenticeship learning
  problem, and its relation to our algorithm)

31
Simplification of Inverse RL step QP ? Euclidean
projection

• In the Inverse RL step
• set ?(i-1) orthogonal projection of ?E onto
  line through ?(i-1),?(?(i-1))
• set w(i) ?E - ?(i-1)
• Note the theoretical results on convergence and
  sample complexity hold unchanged for the simpler
  algorithm.

32
Algorithm (projection version)
?2
?E
?(?1)
w(1)
?(?0)
?1
33
Algorithm (projection version)
?2
?E
?(?2)
?(?1)
w(2)
?(1)
w(1)
?(?0)
?1
34
Algorithm (projection version)
?2
?E
?(?2)
?(?1)
w(3)
w(2)
?(2)
?(1)
w(1)
?(?0)
?1
35
Appendix Different View

• Bellman LP for solving MDPs
• Min. V cV s.t.
• ? s,a V(s) ? R(s,a) ? ?s P(s,a,s)V(s)
• Dual LP
• Max. ? ?s,a ?(s,a)R(s,a) s.t.
• ?s c(s) - ?a ?(s,a) ? ?s,a P(s,a,s) ?(s,a)
  0
• Apprenticeship Learning as QP
• Min. ? ?i (?E,i - ?s,a ?(s,a)?i(s))2 s.t.
• ?s c(s) - ?a ?(s,a) ? ?s,a P(s,a,s) ?(s,a)
  0

36
Different View (ctd.)

• Our algorithm is equivalent to iteratively
• linearize QP at current point (Inverse RL step),
• solve resulting LP (RL step).
• Why not solving QP directly? Typically only
  possible for very small toy problems (curse of
  dimensionality). Our algorithm makes use of
  existing RL solvers to deal with the curse of
  dimensionality.

37
Slides that are different for poster

• (slides to come are slightly different for
  poster, but already appeared earlier)

38
Algorithm (QP version)
?2
?(?E)
?(?1)
w(1)
Uw(?) wT?(?)
?(?0)
?1
39
Algorithm (QP version)
?2
?(?E)
?(?2)
?(?1)
w(2)
w(1)
Uw(?) wT?(?)
?(?0)
?1
40
Algorithm (QP version)
?2
?(?E)
?(?2)
w(3)
?(?1)
w(2)
w(1)
Uw(?) wT?(?)
?(?0)
?1
41
Gridworld Experiments
42
Case study Highway driving
Output Learned behavior
Input Driving demonstration
(Videos available.)
43
More driving examples
(Videos available.)
44
Car driving results (more detail)
    Collision Offroad Left Left Lane Middle Lane Right Lane Offroad Right
1 Feature Distr. Expert 0 0 0.1325 0.2033 0.5983 0.0658
  Feature Distr. Learned 5.00E-05 0.0004 0.0904 0.2286 0.604 0.0764
Weights Learned -0.0767 -0.0439 0.0077 0.0078 0.0318 -0.0035
2 Feature Distr. Expert 0.1167 0 0.0633 0.4667 0.47 0
  Feature Distr. Learned 0.1332 0 0.1045 0.3196 0.5759 0
  Weights Learned 0.234 -0.1098 0.0092 0.0487 0.0576 -0.0056
3 Feature Distr. Expert 0 0 0 0.0033 0.7058 0.2908
  Feature Distr. Learned 0 0 0 0 0.7447 0.2554
  Weights Learned -0.1056 -0.0051 -0.0573 -0.0386 0.0929 0.0081
4 Feature Distr. Expert 0.06 0 0 0.0033 0.2908 0.7058
  Feature Distr. Learned 0.0569 0 0 0 0.2666 0.7334
  Weights Learned 0.1079 -0.0001 -0.0487 -0.0666 0.059 0.0564
5 Feature Distr. Expert 0.06 0 0 1 0 0
  Feature Distr. Learned 0.0542 0 0 1 0 0
  Weights Learned 0.0094 -0.0108 -0.2765 0.8126 -0.51 -0.0153
45
Proof (sketch)
46
Apprenticeship Learning via Inverse
Reinforcement Learning

• Pieter Abbeel and Andrew Y. Ng
• Stanford University
