CENG 450 Computer Systems and Architecture Lecture 12

1

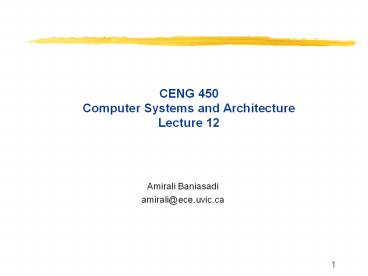

CENG 450Computer Systems and
ArchitectureLecture 12

• Amirali Baniasadi
• amirali_at_ece.uvic.ca

2
This Lecture

• Branch Prediction
• Multiple Issue

3
Branch Prediction

• Predicting the outcome of a branch
• Direction
• Taken / Not Taken
• Direction predictors
• Target Address
• PCoffset (Taken)/ PC4 (Not Taken)
• Target address predictors
• Branch Target Buffer (BTB)

4
Why do we need branch prediction?

• Branch prediction
• Increases the number of instructions available
  for the scheduler to issue. Increases
  instruction level parallelism (ILP)
• Allows useful work to be completed while waiting
  for the branch to resolve

5
Branch Prediction Strategies

• Static
• Decided before runtime
• Examples
• Always-Not Taken
• Always-Taken
• Backwards Taken, Forward Not Taken (BTFNT)
• Profile-driven prediction
• Dynamic
• Prediction decisions may change during the
  execution of the program

6
What happens when a branch is predicted?

• On misprediction
• No speculative state may commit
• Squash instructions in the pipeline
• Must not allow stores in the pipeline to occur
• Cannot allow stores which would not have happened
  to commit
• Even for good branch predictors more than half of
  the fetched instructions are squashed

7
A Generic Branch Predictor
Predicted Stream PC, T or NT
Fetch
f(PC, x)
Resolve
Actual Stream f(PC, x) T or NT
Actual Stream
Execution Order
Predicted Stream
- Whats f (PC, x)? - x can be any relevant
info thus far x was empty
8
Bimodal Branch Predictors

• Dynamically store information about the branch
  behaviour
• Branches tend to behave in a fixed way
• Branches tend to behave in the same way across
  program execution
• Index a Pattern History Table using the branch
  address
• 1 bit branch behaves as it did last time
• Saturating 2 bit counter branch behaves as it
  usually does

9
Saturating-Counter Predictors

• Consider strongly biased branch with infrequent
  outcome
• TTTTTTTTNTTTTTTTTNTTTT
• Last-outcome will misspredict twice per
  infrequent outcome encounter
• TTTTTTTTNTTTTTTTTNTTTT
• Idea Remember most frequent case
• Saturating-Counter Hysteresis
• often called bi-modal predictor
• Captures Temporal Bias

10
Bimodal Prediction

• Table of 2-bit saturating counters
• Predict the most common direction
• Advantages simple, cheap, good accuracy
• Bimodal will misspredict once per infrequent
  outcome encounter
• TTTTTTTTNTTTTTTTTNTTTT

11
Correlating Predictors

• From program perspective
• Different Branches may be correlated
• if (aa 2) aa 0
• if (bb 2) bb 0
• if (aa ! bb) then
• Can be viewed as a pattern detector
• Instead of keeping aggregate history information
• I.e., most frequent outcome
• Keep exact history information
• Pattern of n most recent outcomes
• Example
• BHR n most recent branch outcomes
• Use PC and BHR (xor?) to access prediction table

12
Pattern-based Prediction

• Nested loops
• for i 0 to N
• for j 0 to 3
• Branch Outcome Stream for j-for branch
• 11101110111011101110
• Patterns
• 111 -gt 0
• 110 -gt 1
• 101 -gt 1
• 011 -gt 1
• 100 accuracy
• Learning time 4 instances
• Table Index (PC, 3-bit history)

13
Two-level Branch Predictors

• A branch outcome depends on the outcomes of
  previous branches
• First level Branch History Registers (BHR)
• Global history / Branch correlation past
  executions of all branches
• Self history / Private history past executions
  of the same branch
• Second level Pattern History Table (PHT)
• Use first level information to index a table
• Possibly XOR with the branch address
• PHT Usually saturating 2 bit counters
• Also private, shared or global

14
Gshare Predictor (McFarling)
Branch History Table
Global BHR
Prediction
f
PC

• PC and BHR can be
• concatenated
• completely overlapped
• partially overlapped
• xored, etc.
• How deep BHR should be?
• Really depends on program
• But, deeper increases learning time
• May increase quality of information

15
Hybrid Prediction

• Combining branch predictors
• Use two different branch predictors
• Access both in parallel
• A third table determines which prediction to use
  Two or more predictor components combined
• Different
• branches benefit
• from different types
• of history

16
Issues Affecting Accurate Branch Prediction

• Aliasing
• More than one branch may use the same BHT/PHT
  entry
• Constructive
• Prediction that would have been incorrect,
  predicted correctly
• Destructive
• Prediction that would have been correct,
  predicted incorrectly
• Neutral
• No change in the accuracy

17
More Issues

• Training time
• Need to see enough branches to uncover pattern
• Need enough time to reach steady state
• Wrong history
• Incorrect type of history for the branch
• Stale state
• Predictor is updated after information is needed
• Operating system context switches
• More aliasing caused by branches in different
  programs

18
Performance Metrics

• Misprediction rate
• Mispredicted branches per executed branch
• Unfortunately the most usually found
• Instructions per mispredicted branch
• Gives a better idea of the program behaviour
• Branches are not evenly spaced

19
Upper Limit to ILP Ideal Machine
Amount of parallelism when there are no branch
mis-predictions and were limited only by data
dependencies.
FP 75 - 150
Integer 18 - 60
IPC
Instructions that could theoretically be issued
per cycle.
20
Impact of Realistic Branch Prediction

• Limiting the type of branch prediction.

FP 15 - 45
Integer 6 - 12
IPC
21
Multiple Issue

• Multiple Issue is the ability of the processor to
  start more than one instruction in a given cycle.
• Superscalar processors
• Very Long Instruction Word (VLIW) processors

22
1990s Superscalar Processors

• Bottleneck CPI gt 1
• Limit on scalar performance (single instruction
  issue)
• Hazards
• Superpipelining? Diminishing returns (hazards
  overhead)
• How can we make the CPI 0.5?
• Multiple instructions in every pipeline stage
  (super-scalar)
• 1 2 3 4 5 6 7
• Inst0 IF ID EX MEM WB
• Inst1 IF ID EX MEM WB
• Inst2 IF ID EX MEM WB
• Inst3 IF ID EX MEM WB
• Inst4 IF ID EX MEM WB
• Inst5 IF ID EX MEM WB

23
Superscalar Vs. VLIW

• Religious debate, similar to RISC vs. CISC
• Wisconsin Michigan (Super scalar) Vs. Illinois
  (VLIW)
• Q. Who can schedule code better, hardware or
  software?

24
Hardware Scheduling

• High branch prediction accuracy
• Dynamic information on latencies (cache misses)
• Dynamic information on memory dependences
• Easy to speculate ( recover from
  mis-speculation)
• Works for generic, non-loop, irregular code
• Ex databases, desktop applications, compilers
• Limited reorder buffer size limits lookahead
• High cost/complexity
• Slow clock

25
Software Scheduling

• Large scheduling scope (full program), large
  lookahead
• Can handle very long latencies
• Simple hardware with fast clock
• Only works well for regular codes (scientific,
  FORTRAN)
• Low branch prediction accuracy
• Can improve by profiling
• No information on latencies like cache misses
• Can improve by profiling
• Pain to speculate and recover from
  mis-speculation
• Can improve with hardware support

26
Superscalar Processors

• Pioneer IBM (America gt RIOS, RS/6000, Power-1)
• Superscalar instruction combinations
• 1 ALU or memory or branch 1 FP (RS/6000)
• Any 1 1 ALU (Pentium)
• Any 1 ALU or FP 1 ALU 1 load 1 store 1
  branch (Pentium II)
• Impact of superscalar
• More opportunity for hazards (why?)
• More performance loss due to hazards (why?)

27
Superscalar Processors

• Issues varying number of instructions per clock
• Scheduling Static (by the compiler) or
  dynamic(by the hardware)
• Superscalar has a varying number of
  instructions/cycle (1 to 8), scheduled by
  compiler or by HW (Tomasulo).
• IBM PowerPC, Sun UltraSparc, DEC Alpha, HP 8000

28
Elements of Advanced Superscalars

• High performance instruction fetching
• Good dynamic branch and jump prediction
• Multiple instructions per cycle, multiple
  branches per cycle?
• Scheduling and hazard elimination
• Dynamic scheduling
• Not necessarily Alpha 21064 Pentium were
  statically scheduled
• Register renaming to eliminate WAR and WAW
• Parallel functional units, paths/buses/multiple
  register ports
• High performance memory systems
• Speculative execution

29
SS DS Speculation

• Superscalar Dynamic scheduling Speculation
• Three great tastes that taste great together
• CPI gt 1?
• Overcome with superscalar
• Superscalar increases hazards
• Overcome with dynamic scheduling
• RAW dependences still a problem?
• Overcome with a large window
• Branches a problem for filling large window?
• Overcome with speculation

30
The Big Picture
issue
Static program
Fetch branch predict
execution

Reorder commit
31
Readings

• New paper on branch prediction online. READ.
• Material would be used in the THIRD quiz
