Grid Scheduling Overview

1

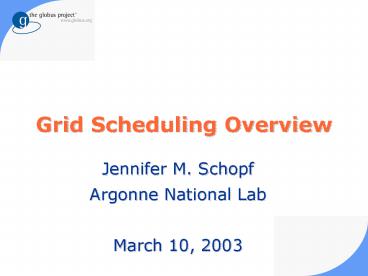

Grid Scheduling Overview

• Jennifer M. Schopf
• Argonne National Lab
• March 10, 2003

2
What is Grid Scheduling?

• Process of making scheduling decisions involving
  resources over multiple administrative domains
• May be one machine at one site, but choices are
  distributed
• May be multiple machines at multiple sites
• Also called superscheduling, meta-scheduling,
  scheduling at the Grid level, etc.

3
A Grid Scheduler is Not a LocalResource
Management System (LRMS)

• No ownership or control over local resources
• Jobs get submitted to LRMS as user
• No control or often even information about other
  Grid jobs

4
Grid Scheduling Involves

• Acquiring information about jobs and resources
  generally inaccurate and out of date
• Matching jobs to resources
• Managing data
• Monitoring progress of the job
• And more!

5
This Talk

• Overview of a few systems
• Condor, PBS, KB scheduler, AppLes, Maui/Silver
• Grid Scheduling Architecture from GGF
• Summary

6
Condor

• Condor is a High-throughput computing (HTC)
  approach
• deliver large amounts of processing capacity over
  long periods of time
• User submits a condor job, system finds an
  available machine
• When machine becomes busy, job is checkpointed
  and migrated

7
ClassAds and MatchMaking

• ClassAds
• a way to describe jobs and resources
• similar to a newspapers classified ads
• Machines use a resource offer ad to advertise
  resource properties
• both static and dynamic
• available RAM memory, CPU type, CPU speed,
  virtual memory size, physical location, and
  current load average
• User specifies a resource request ad
• Defines both the required and a desired set of
  properties of the resource to run the job
• Both ads have ranking functions

8
Portable Batch System PBS

• Workload management solution for HPC systems and
  Linux clusters
• Originally designed for NASA because existing
  LRMS were inadequate for modern
  parallel/distributed computers and clusters
• Provides
• Extraction of scheduling policy into a single
  separable, completely customizable module.
• Additional controls over initiating or scheduling
  execution of batch jobs
• Allow routing of those jobs between different
  hosts.
• Site can define and implement individual policies

9
PBS Components

• Typical interaction - client-server model
• clients making (batch) requests to servers
• servers performing work on behalf of the clients
• Server manages a number of different objects
• queues or jobs, each object consisting of a
  number of data items or attributes.
• Server provides batch services
• creating, routing, executing, modifying, or
  deleting jobs for batch clients

10
KB Scheduler

• Led by Jarek Nabrzyski, Poznan Supercomputing and
  Networking Center, part of GridLab
• Decisions using an AI knowledge-based (KB)
  multi-criteria job searching technique
• Information about time costs, user preferences,
  load balancing, memory usage, cache usage
• Uses a set of AI expert techniques, each with its
  own strengths and weaknesses
• Implemented on top of the Globus Toolkit with
  some added high-level services
• Advanced reservations
• Extensions to the standard information providers

11
AppLeS

• AppLeS Application Level Scheduling project
• Berman, Wolski et al., UCSD
• High-performance scheduler targeted to multi-user
  distributed heterogeneous environments
• Each Grid app scheduled by its own AppLeS
• determines and actuates a schedule
• Schedule customized for the individual app and
  the target computational Grids at execution time.

• Everything in the system is evaluated in terms of
  its impact on the application
• Resources in the system are evaluated in terms of
  predicted capacities at execution time, as well
  as their potential for satisfying application
  resource requirements

12
AppLeS Parameter Sweep Template

• Parameter sweep applications
• Structured as sets of experiments
• Each executed with a distinct set of parameters
• Each experiment is independent
• Often structured so that distinct experiments
  share large input files, and produce large output
  files
• To achieve efficiency, shared data files must be
  co-located with experiments
• Schedule must adapt to the dynamically
  fluctuating performance of the shared resources.

13
AppLeS Architecture

• Application specific info from the end user or
  application developer
• Via the Heterogeneous Application Template
• User preferences as well
• Dynamic system information provided by the
  Network Weather Service
• All data used by the AppLeS Coordinator to
  determine a potentially performance-efficient
  application schedule
• Coordinator then works with the appropriate
  resource management systems to implement the
  schedule on the relevant resources

14
Silver/Maui

• Grid-level module, Silver, interacts with local
  version of the Maui scheduler on each resource
• User submits a PBS-style job submission locally
• This is translated into a meta-job submission and
  sent to the Silver module
• Queuing policies of the local Maui installations
  determined individually
• Simulation framework as well

15
System Overview

• Each addresses a slightly different context
• There are many many more I dont have time to
  discuss here
• None of them does everything you want them to do
  in a grid environment
• So what is the right approach?

16
This Talk

• Overview of a few systems
• Condor, PBS, KB scheduler, AppLes, Maui/Silver
• Grid Scheduling Architecture from GGF
• Summary

17
10 Actions for Superscheduling

• 10 Actions for Superscheduling
• GGF Scheduling working group
• Initial discussions June 2000-July 2001
• Q How does a user schedule on the grid?
• Resulted in GGF CI.5
• In late 2002 this was updated and sent to special
  issue on Grid computing
• Includes examples from current approaches
• www.mcs.anl.gov/jms/Pubs

18
Context

• User is currently the most common Grid
  Scheduler
• Every action defined is currently performed by
  some Grid-level scheduler, but no current
  approach does them all
• Note We did not consider error conditions

19
In a nutshell...
20
Ordering was approximate(from GGF doc)

• We use the word step and a
• numbering system for easy reference.
• This does not imply that these actions
• are actually performed in this order, or
• that they all MUST occur in every
• system. In general, dont pay too much
• attention to the numbering. Some of
• the steps may be interactive, recursive,
• repeated, or just plain ignored.

21
Phase One Resource Discovery
Phase One-Resource Discovery

22
1. Authorization Filtering

• Authentication
• Establishing identity (who are you?)
• Authorization
• Establishing permissions (what can you do?)
• Where do you have an account?
• Not a new problem, only one made more complicated
  by more extensive access to systems

23
Authorization Filtering Cont.

• User
• List in a drawer
• Ideally
• A wallet of credentials, smart enough to
  remember my username at different sites as well

24
Todays Systems

• KB scheduler uses Globus MDS for this info
• PBS allows administrators to set up specific
  queues for authorization groups by setting up
  execution lists and attaching this information to
  a specific queue
• Condor does not require an account (login) on
  machines where it runs a job

25
2. Application Definition

• Minimal set of job requirements to further filter
  number of available resources
• Can be static data
• OS type, hardware a binary is available for, an
  architecture it is best suited for
• Can be dynamic info
• Amount of RAM, connectivity, space in /tmp

26
Application definitions

• User
• Generally user defined
• Often inaccurate, incomplete
• Ideally
• Smart compilers or other tools to automatically
  generate information about application
  requirements and runtimes

27
Todays systems

• User defined at the command line
• Eg. RSL in Globus
• Information in Condor ClassAds, also user defined

28
3. Minimum Requirement Filtering

• Use static data to limit the search space
• Used to cut down dynamic queries needed
• Can be combined with dynamic search (4)

29
Minimum Requirement Filtering

• User
• I know I need Linux, I dont consider others
• Ideally
• Automatic, part of dynamic search
• No reason to limit search this way

30
Todays Systems

• Most do this as part of Dynamic Filtering, 4
• PBS
• First pass to sort available jobs according to
  some administrator-defined policy
• Second-tier evaluation using dynamic filters for
  which those that should be run soonest (step 4)
• High-level filter is then used on the most
  deserving job to determine which of the
  available resources can be used based on static
  criteria.
• Maui/Silver scheduler
• Static-level information filtering at Silver
  level and information at the local level using
  the Maui
• Condor
• initial matching followed by a feasibility
  evaluation upon claiming the actual resources

31
Phase One Resource Discovery
Phase One-Resource Discovery
Phase Two - System Selection

32
4. Information Gathering

• Dynamic searches to match resources with
  application requirements
• What information is available and how the user
  can get access to it
• Generally involves using some kind of Grid
  Information System
• Scalability issues
• More queries slows down system
• Consistency concerns
• No such thing as a global view of the system

33
Information Gathering

• User
• Might use the Globus MDS or a portal information
  service like HotPage, or they might just know
• Ideally
• Seamless interface to global monitoring and
  prediction
• Todays systems
• KB interacts with MDS
• PBS has its own internally
• Condor uses some internal monitors

34
5. System Selection

• Matching between resources and application
  information
• Users
• Best estimate
• Ideally
• Perfect matches based on current information,
  using variance information and other predictions

35
Todays Systems

• Condor Matchmaking
• Silver/Maui
• submits a full job descr. to each local scheduler
• They returns feasible time ranges, including
  estimated execution times, cost, and resources
  used
• Higher-level Silver daemon does range-based
  calculus to select the best resource
• KB scheduler
• Multi-objective schedule evaluation based on a
  set of AI techniques
• Avoids some of the more common scalability issues
  with more statistical-based approaches

36
Phase One Resource Discovery
Phase One-Resource Discovery
Phase Three- Job Execution

37
6. Advance Reservation (Optional)

• Reserve resources in a guaranteed way
• Users
• Call up sys admins and friends (call, like, on
  the phone)
• Ideally
• Automatically done when you submit a job based on
  user requirements
• Current systems
• Enabled in PBSPro and Maui
• Service Level agreements in new GRAM-2 protocol

38
7. Job Submission

• Run the job on the resources selected
• User
• Qsub
• Ideally
• Make it so
• Current systems
• Each has its own API

39
8. Preparation tasks(11. Clean-up tasks)

• File transfers, directory set ups
• Users
• Scp, ftp, mkdir, GridFTP
• Ideally
• Automatically done as part of job submission

40
Current systems

• Condor
• DagMan can do file staging as a separate task
• PBS
• allows file staging using SCP or GridFTP

41
9. Monitoring Progress

• How is my job doing?
• Should I move it somewhere else?
• Users
• qstat
• Moving is hard to do, so generally not done
• Ideally
• System takes care of it based on intuitive
  knowledge of user requirements, and good
  prediction techniques
• Current Systems
• Every LRMS has a stat command

42
Prophesy by Taylor at TAMU

• 3 major components
• a relational database to record performance data,
  system features and application details
• an application analysis component that
  automatically instruments applications and
  generates control flow information
• data analysis component that facilitates the
  development of performance models, predictions
  and trends.
• Used to develop models based upon significant
  data and predict the performance on a different
  system

43
Smith at NASA

• Basic AI matching techniques on previous runtimes
• Matches to most suitable past approaches
• Using these run-time predictors results in lower
  mean wait times for the workloads with higher
  offered loads

44
Lee and Schopf, ANL

• Log past runtimes of applications
• Log environmental data
• CPU load information
• NWS bandwidth data
• Use regression techniques to predict runtimes
  without any application models

45
Summary
46
Places where Grid Scheduling Work is Discussed

• Conferences
• Job Scheduling Workshop, SuperComputing, HPDC,
  IPDPS, EuroPar
• Journals
• JPDC, TPDS, special issues on Grid computing in
  various journals
• Global Grid Forum Scheduling Area
• Upcoming book edited by Nabrzyski, Schopf and
  Weglarz

47
For more information

• Jennifer Schopf
• jms_at_mcs.anl.gov
• Current 10 actions document
• www.mcs.anl.gov/jms/Pubs
• All references available in that document
