Integrating CSP Decomposition Techniques and BDDs for Compiling Configuration Problems

1

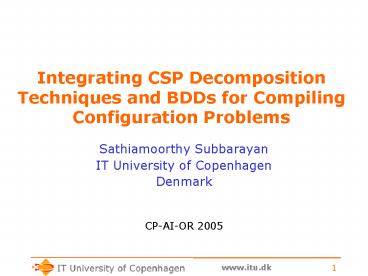

Integrating CSP Decomposition Techniques and BDDs
for Compiling Configuration Problems

• Sathiamoorthy Subbarayan
• IT University of Copenhagen
• Denmark
• CP-AI-OR 2005

2
Configuration

• An arrangement of parts
• Valid Configuration- a valid arrangement
• Valid according to some specified rules
• NP-Hard problem

3
Examples

• Bike
• Car
• PC
• Power-Backup Systems
• Controllers
• Business Software

4
Problem Representation

• Constraint Satisfaction Problem (CSP)
• A set of variables and their domains
• A set of rules/constraints on variable values
• Configuration
• - A legal assignment to all variables

5
Interactive Configurator

• Interactively guides the user
• Shows only valid extensions
• User always in a consistent state

6
Required Functionalities

• Propagate the user selections
• Display the valid choices
• Explain reasons for unselectable or implied
  options

7
Binary Decision Diagrams
A compressed representation of solutions
8
Previous work

• Compile into a Binary Decision Diagram

configurator
BDD generation
lookup
BDD
BDD
Compilation
rules
offline
online
NP-hard
P
Problem! BDD size could explode
9
This work

• Configuration rules have hierarchies
• Hierarchies close to tree-shape
• Tree Decomposition of CSP?
• Space reduction?
• (upto 96)
• Response time reduction?
• (upto 200x)

10
CSP to BDD compilation
BDD
CSP
11
Tree Decomposition of CSP
CSP
CSP
Tree-of-BDDs
12
Benefit of decomposition
BDD
Tree-of-BDDs
Potential Space Reduction
b1b2b3 ?lt bdd
-Online Configurators -Embedded Configurators
13
Required Functionalities

• Propagate the user selections
• Display the valid choices
• Explain reasons for unselectable or implied
  options

14
Explanations

• A partial assignment by the user might cause
  some options unselectable /implied
• Explanation for such an option is the subset of
  the partial assignment that makes the option
  unselectable/implied
• When user assignments are given priorities, we
  might need minimum explanations

15
Explanations in single BDD case

• Variant of Shortest path problem in DAG
• Assigned variable (vval)
• 0 for val edges
• 1 for other edges
• Other variables
• 0 for their edges
• Shortest path from root to 1-node corresponds to
  an explanation

16
Example

• Assign a0
• Assign b1
• e1 is implied

1
1
Explain e0?
Explanation b1
Can also handle priorities and non-Boolean
variables
17
Dont Care variables for Explain

• In the example, necessary variables are a,b, and
  e
• Variables c and d are hence dont cares for
  Explain

Abstraction !
18
Explanations in Tree-of-BDDs
Abstraction
b1
b2
b3
Join
Explanation
Explain
19
Experiments

• Four Benchmarks
• PC
• Renault
• Two PSR instances
• 10000 random interactions
• Comparison of
• Space usage
• Average and Worst time for Responses
• Average and Worst time for Explanations
• Tools
• CLab an existing single BDD-based tool
• iCoDE implementation of the tree-of-BDDs

20
Compilation Details
21
Time Comparisons

• Response (PropagateDisplay)

22
Time Comparisons

• Explanation

23
Conclusion

• Decomposition results in
• Space reduction
• Shorter responses
• Tree-of-BDDs can scale higher than the single BDD
  approach
• Future work include
• BDD variable orderings
• Multi-valued Decision Diagrams
• different decomposition techniques
