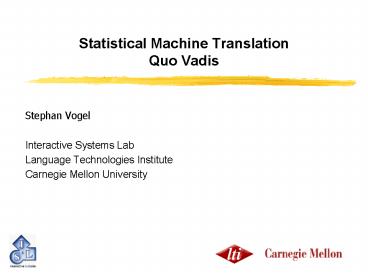

Statistical Machine Translation Quo Vadis

1
Statistical Machine TranslationQuo Vadis

• Stephan Vogel
• Interactive Systems Lab
• Language Technologies Institute
• Carnegie Mellon University

2
N-Best List Generation

• Benefit
• Required for optimizing model scaling factors
• Rescoring
• For translation with pivot language L1 -gt L2 -gt
  L3
• We have n-best translations at sentence end
• But Hypotheses are recombined -gt many good
  translations dont reach the sentence end
• Recover those translations

3
Storing Multiple Backpointers

• When recombining hypotheses, store them with the
  best (i.e. surviving) hypothesis, but dont
  expand them

hb
hr
hb
hr
hr
hr
4
Tuning the SMT System

• We use different models in SMT system
• Models have simplifications
• Trained on different amounts of data
• gt Different levels of reliability
• gt Give different weight to different ModelsQ
  c1 Q1 c2 Q2 cn Qn
• Find optimal scaling factors c1 cn
• Optimal means Highest score for chosen
  evaluation metric

5
Brute Force Approach Manual Tuning

• Decode with different scaling factors
• Get feeling for range of good values
• Get feeling for importance of models
• LM is typically most important
• Sentence length to balance shortening effect of
  LM
• Word reordering is more or less effective
  depending on language
• Narrow down range in which scaling factors are
  tested
• Essentially multi-linear optimization
• Works good for small number of models
• Time consuming (CPU wise) if decoding takes long
  time

6
Automatic Tuning

• Many algorithms to find (near) optimal solutions
  available
• Simplex
• Maximum entropy
• Minimum error training
• Minimum Bayes risk training
• Genetic algorithm
• Note models are not improved, only their
  combination
• Large number of full translations required gt
  still problematic when decoding is slow

7
Automatic Tuning on N-best List

• Generate n-best lists, e.g. for each of 500
  source sentences 1000 translations
• Loop
• Changing scaling factors results in re-ranking
  the n-best lists
• Evaluate new 1-best translations
• Apply any of the standard optimization techniques
• Advantage much faster
• Can pre-calculate the counts (e.g. n-gram
  matches) for each translation to speed up
  evaluation
• For Bleu or NIST metric with global length
  penalty do local hill climbing for each
  individual n-best list

8
Minimum Error Training

• For each scaling factor we have Q ck Qk
  QRest
• For different values different hyps have lowest
  score
• Different hyps lead to different MT eval scores

h21 WER 2
Score
h22 WER 0
h23 WER 5
h11 WER 8
h12 WER 5
h13 WER 4
h22
h21
ck
best hyp
h12
h13
h11
10
7
10
9
9
Exploring Lattice Input for Statistical Machine
Translation

• Stephan Vogel, Kay Rottmann, Bing
  Zhao,Sanjika Hewavitharana
• InterACT Carnegie Mellon
• InterACT University of Karlsruhe

10
Motivation

• Lattice translation is used for tighter coupling
  between speech recognition and translation
• Use alternative word sequences
• Lattice is more efficient than n-best list
• Decouple processing steps yet use relevant
  information for end-to-end optimization
• Lattices can be used to encode alternatives
  arising from other knowledge sources
• Disfluency annotation add edges to lattice to
  skip over disfluencies
• Add synonyms and paraphrases
• Add morphological variants, esp. for unknown
  words
• Allow different word segmentation (e.g. For
  Chinese)
• Partial word reordering

11
Advantage of using lattices

• Decouple processing steps
• Different people can work on different parts of
  the system with less interference
• Use stronger models (additional tools) which
  would be difficult to integrate into the decoder
• Closer to one solution fits allIf decoder can
  translate lattices that it can do x, y, z
• No hard decisions
• Keep alternatives till additional information is
  available
• Assign probabilities to those alternatives
• Use them as additional features in minimum error
  rate training
• Essentially many arguments for n-best list
  rescoring are good arguments for lattice
  translation

12
Outline

• Word reordering (some nice results)
• Multiple word segmentations for Chinese (initial
  results)
• Paraphrasing (Matthias Bracht)

13
Distortion Models for Word Reordering

• Distortion models are part of the IBM and HMM
  alignment models
• Absolute position (IBM2) or relative position
  (HMM, IBM4)
• Conditioned on sentence length, word class, word
  (-gt lexicalized DM)
• In phrase-based systems
• Standard DM models simple jump models, also
  lexicalized
• Block reordering models
• Some attempts have been made to do reordering as
  pre/post processing
• Reorder source sentence to fit word order of
  target sentences
• Reorder target sentence, insert reordering
  markers
• Reordering based on hand-written rules
• Reordering based on word alignment, need to learn
  reordering model to apply to test sentences
• Problem with reordering as preprocessing
  difficult to recover from errors, therefore keep
  alternatives

14
Word Reordering based on POS Patterns

• Learning reordering patterns
• Use word alignment information reorder source
  words to make alignment (locally) monotone
• Collect the reordering patternsoriginal word
  sequence -gt reordered word sequence
• But use POS tags rather then words to get better
  generalization
• Extension use context information
• Context 1 POS tag left, 1 POS tag right
• Apply reordering pattern only when also context
  matches
• I.e. compare POS sequence of length n2, reorder
  sequence of length n.
• Pruning
• Keep only patters which have been seen gt 10
  times
• Keep only patterns with relative frequency gt
  threshold (typically 0.1)

15
Example for Learning RO-Patterns

• Spanish en esto estamos todos de acuerdo .
• English we all agree on that .
• POS PRP DT VB IN DT .
• Alignment NULL ( ) en ( 4 ) esto ( 5 )
  estamos ( 1 ) todos ( 2 ) de
  ( ) acuerdo ( 3 ) . ( 6 )
• Extracted Rules
• PRP DT VB IN DT 4 - 5 - 1 - 2 - 3
• PRP DT VB 2 3 1
• PRP DT VB IN 3 4 1 2
• When using embedded patterns, restrict length to
  7
• When dropping embedded patterns, use up to 20
  words

16
Constructing Reordering Lattice

• Tag test sentence
• For each matching POS sequence create a parallel
  reordered path
• Confusion lattice would over-generate too much
• Eg. NN ADJ and reordered ADJ NN would also
  generateundesirable NN NN and ADJ ADJ

Example Sentence A final agreement has not yet
been reached RO-Lattice
17
The Translation Process

• Given phrase table
• Represented as prefix tree in memory
• With emitting nodes pointing to multiple
  translations
• And a lattice
• Run over lattice and prefix tree in parallel
• Expand phrases one word at a time
• If final state in tree, create for each
  translation new lattice edge
• Translation lattices have one or multiple scores
• Propagate RO pattern score to translation edges
• First or n-best path search through lattice
• Apply LM, word count, phrase count,
• Allow for locale reordering within given window
  (typically 4 words)

18
Results English -gt Spanish

• Training and test corpus from TC-Star evaluation
  2007
• Systems
• Baseline uses (unlexicalized) jump model
• Use RO patterns and monotone decoding
• Adding context information (1 POS left, 1 POS
  right)
• Allow for additional reordering in the decoder
• Note scores reported here are higher than in
  graphics on 2 previous slidesdue to less pruning
  in final MER optimization.

19
Effect of Pruning on Translation Quality

• Pruning, i.e. removing low probability reordering
  patterns help
• Effect is rather pronounced, therefore worrying

20
Adding Context Information

• Pattern context one POS left, one POS right
• Result
• 5-fold increase in number of patterns
• More stable
• Small (but consistent) improvements

21
Arabic English (Small System)

• Training only on news corpus, dev-set mt03
• Tagging with Stanford parser
• Results
• We see improvements for Arabic, so far not as
  impressive as for Spanish
• So far RO model trained only on 150k sentence

22
Translation with Multiple Word Segmentations

• Chinese to English translation results depend on
  word segmentation
• Large word lists for segmentation lead to larger
  number of unknown words in test sets
• Different segmentation will result in unknown
  words at different positions in the test
  sentences
• Intuitively the vocabulary of the segmented
  Chinese corpus should be close in size to the
  vocabulary of the English side (modulo
  morphology)

23
Initial Experiments

• Training
• IBM 4 alignment models in both directions on
  200 million words
• Phrase pairs from combined Viterbi paths
• Note Training with only one segmentation
• Test set
• 494 Chinese sentences from ASR transcriptions of
  broadcast news
• Two references
• Multiple segmentation for test sentences
• Segmentation based on word lists of different
  sizes
• Also segmentation into individual characters
• Add source word features
• Unigram probability
• Length of word in characters

24
Results

• Large vocabulary for segmentation hurts
  performance
• Using alternative segmentations alone did not
  help
• Adding probability information hurt performance
  (training corpus has on segmentation only)
• Adding length of source words as feature did
  result in nice improvement
• Note Lattice reduces number of UNKs from 96 to
  67

25
Summary

• Lattice translation is a nice way to decouple
  preprocessing and decoding without making hard
  decisions
• Lattices are efficient structure to handle many
  alternative
• Allow to test richer preprocessing in a very
  simple way
• One solution for may tasks
• Successful applications
• Word reordering
• Word segmentation

26
Future Work

• Reordering
• Arabic full system (underway)
• Currently some problems with tagging
• Chinese system
• Restricted to word segmentation for tagging
• Investigate learning the pattern on word level
• Using additional features for learning and
  scoring reordering patterns
• Multi-word segmentation
• Train different segmentations
• Paraphrasing
• Get the system up and running
• Analyze where the (expected-) benefits come from
• Additional applications
• Disfluency removal
• Morphology

27
Quo Vadis Whats Next?

• What are major problems, how to overcome them?
• Quality
• Word order
• Lexical choice
• Agreement
• Language specific
• Partial alignment to compounds in German-English
  translations
• Word segmentation (Chinese, etc) can
  significantly influence translation results
• Usability
• Sufficient quality for standard text translation
  applications
• Speech translation e.g. parliamentary speeches
• Limited domain speech translation on handheld
  devices

28
Translation Quality

• Oracle experiments show that better translations
  should be possible given the existing data
• Oracle score for each source sentence select
  translation from n-best list which best matches
  with human reference translations
• Of course, score depends on size of n-best list
• For 1000-best list Oracle score is typically 10
  Bleu points higher then 1-best result
• Why are they not selected as 1-best?
• Variability in translations
• Only weak correlation (on per sentence level)
  between model scores and human evaluation scores
• Our models do not assign the best score to the
  best translation
• Ultimately our models are still too weak

29
Problems with Current Models

• Not the right models, i.e. we miss important
  aspects of languages and translation
• Models have simplifying assumptions, e.g.
  independence assumptions
• Models are trained separately but interact at
  decoding time
• Mismatch between training criterion (maximum
  likelihood) and decoding criterion (minimum
  error)

30
Solution Learning Richer Models

• Adding new models e.g. word fertility model,
  class-based LM, etc. this is the usual way to
  improve the systems
• Problem number of parameters become to large,
  i.e. better model but parameter estimation
  unreliable
• Discriminative training, to retrain given
  models  e.g. perceptron learning
• Results so far did not really give significant
  improvements ?

31
Solution Soft Extension of Models

• Add discriminating features to generate/select
  correct translation for current sentence
• Dangerous could degrade translations of other
  sentences
• Solution only add discriminating features to
  current model, which corrects current error
  without destroying other translations
• Need to get generalization, i.e. apply more
  abstract features not p( f e f' ) but p( f
  e 'current topic is X' ) or p( f e 'there
  is an auxiliary verb close by )
• There is a very rich and constantly evolving set
  of different machine learning techniques we
  need to investigate them

32
Improving Quality through Data

• We have been improving quality constantly over
  the last couple of years just by using more data
• So continue to use more and more data
• Only for a small number of languages, but
  resources are growing at an immense rate
• Monolingual data, definitely
• Bilingual data more problematic currently for
  major language pairs
• Creates engineering challenges
• Memory and speed requirements grow
• Distributed processing necessary
• Opens scientific possibilities
• More data means more model parameters can be
  estimated
• Fancier models can be used

33
Going Large

• Currently large research systems for Chinese and
  Arabic
• 250 million word corpus, resp. 120 million words
• vocabularies gt 1 million full word forms
• Memory problems
• Phrase tables (15 words) to large to fit into
  memory
• Sampling techniques are used
• No one-for-all systems
• Translating a test set (typically lt 1000
  sentences) will take hours
• Sampling the phrase table
• Even retraining on sub-sampled training data
• But could even improve performance - adaptation
• Time problems
• Training with GIZA Chinese-English (1 direction)
  takes 5 days on 1 CPU
• Many groups started to parallelize training
• Parallelizing translation is trivial (if your
  models fit into memory of each machine)

34
Big LMs, really Big LMs

• We (at CMU) typically work with a 200 million
  word 3-gram LM
• Google reported improvement of 5 Bleu points
  using a 200 billion word 5-gram LM
• 1.6 TB ngram table
• 1000 CPUs to sample
• 40 hours for this sampling
• IBM reports 3 Bleu points for Arabic system using
  Gigaword corpus, i.e. 3 billion words 5-gram LM
• Typically linear improvement in MT quality (as
  measures with standard MT metrics) requires
  exponential growth in corpus size
• Holds for bilingual and monolingual data
• Slope different for different languages
• Slope different for very in-domain data and not
  so in-domain
• Out-of domain hurts small systems, unclear for
  very large systems

35
Large Corpus for NBest List Rescoring

• For a hypothesis from the n-best list, calculate
  the collocation statistics of any n-gram pairs.
  (No restriction to length of n-grams!)
• The prime minister calls on the people to work
  together for permanent peace.
• I(the, prime), I(the, prime minister),, I(the
  prime minister, the people), ..., I(calls on,
  to),, I(work, for),
• Collocation Statistics for n-gram pair ,
• Different co-occurrence statistics explored
• Point-wise Mutual Information works best
• Accumulated collocations for a sentence

36
Co-Occurrences of n-gram Pairs

• Index the corpus of N words using suffix array
  (Manber Myers 1990)
• For a sentence with m words, locate all its
  embedded n-grams in the corpus within O(m log N)
  time (Zhang Vogel 2005).
• For each n-gram, locate all the sentence IDs for
  each of its occurrences
• Calculate co-occurrences for all the n-gram
  pairs

37
Distributed Computing for Large Data

• Corpus and suffix array for 100 million words
  need 900MB RAM
• We use 2.9 billion words from Gigaword corpus
• 100 corpus chunks distribute over 2030 machines

Monolingual Corpus Information Servers

NYT1999
NYT2000
XINHUA2004
Hyp1 Hyp2 Hyp N
hypothesis
Client
Add up co-occurrence information from servers
38
Experiment Results

• TIDES 03 Chinese-English test set
• Selection for each sentence select corpus
  segment with highest ngram match

39
Corpus Selection
Translation quality (BLEU, NIST) when using
different amounts of data

• The useful information is often in a small
  subsection of the data
• Some portions hurt
• Add selection mechanism - adaptation

40
Going small

• Two issues
• Generating bilingual data from scratch
• Running translation system on devices with
  limited resources
• If needed, translations can be made.
• What should be translated?
• Select from larger monolingual corpus, typically
  available for one of the two languages
• Select sentences to cover vocabulary and bigrams
  seems good strategy
• Get those translated

41
Selection N-grams / Sentence Length

• 20 of the corpus, well selected, give nearly the
  same result as using the full corpus
• Using trigrams in the selection process does not
  make a difference

42
Going small Prune Phrase Table

• Sure you remove translation alternative with too
  low probabilities
• And you dont store very long phrases which might
  never be used
• But Can you then eliminate another 50 or 80 of
  the entries without hurting performance?
• Current studies Remove entries
• which can be generated from shorter phrases
• and which are close in probabilities
• Method guarantees that you loose coverage
• Initial results on BTEC data successful no
  degradation up to removing 80 of the entries

43
Going Small SMT on Handheld Devices

• We do not always have the big memory can we
  still build data-driven systems?
• Yes, successfully build 2-way speech translation
  system for PDA
• Specification
• 1 GB on PDA, i.e. not so small
• Models used directly from flash card
• 1m source phrases plus 1m target phrases plus 5m
  pairs
• Typical domain specific systems (travel, medical)
  use 10-20 MB
• Language model is actually using more memory than
  the phrase-table

44
Going Deep

• More structure
• More linguistic knowlegde
• Parsing
• String-to-tree and tree-to-tree mapping
• More features, i.e. richer models
• More data, more parameters, richer models
  possible
• Context dependent lexicon models p( f e, f ),
  f an the left, on the right, or somewhere in the
  sentence
• Distortion models p( jump f1, f2, e1, e2)
• Dependencies on word classes

45
Syntax based SMT System

• Many folks working on this
• Its tough to beat the phrase-based systems
• Bet between Franz Josef Och and Daniel Marcu,
• So far Franz is the winner
• But Daniel remain optimistic syntax based
  systems catch up
• Also new effort in our group
• Parse English side
• Align corpus and induce phrase pairs
• Use this information to generate (hierarchical)
  translation rules
• Use chart-based decoder to translate
• Current situation catching up - not yet
  exceeding - standard system
• But relies on phrase alignment, i.e. improvements
  in phrase alignment will improve this system too
• Still problems with integration of LM
• Requires smarter pruning to bring down run-time

46
Parallel ( bilingual) Processing

• Currently
• word alignment models bridge the language gap
• But a load of preprocessing steps are done
  monolingualy
• Examples
• Number tagging
• Word segmentation for Chinese, Japanese, etc
• Using morphology toolkit to fragment Arabic words
• Often, this leads to even greater disparity
  between the two languages
• Need integrated models
• Word segmentation integrated with word alignment
• Splitting/deleting of morphemes integrated with
  word alignment

47
Chinese Word Segmentation

• Different Chinese words segmenters Stanford,
  IBM, CMU
• Which segmenter to use i.e. which segmenter is
  best
• Best closest to gold standard, e.g. treebank
• Best best translation (according to some
  automatic metric)
• Translation Experiment
• Bilingual 19 m words (English)
• LM from 200 m words
• Phrase pairs from lt 20 sentences
• Phrase probs only from lexicalfeatures
• Testset mt03
• Standford segmenter is best when evaluated
  against treebank
• But problematic for machine translation

48
Quo Vadis

• Continuing to improve best practices
• More data
• Incremental extensions to word and phrase
  alignment models
• Improvements in search strategies
• Going large
• Very large corpora monolingual, comparable
• Distributed processing
• But should not turn science into pure engineering
  tasks
• Going small
• Limited Domain Applications on hand-held devices
• Selecting the right data
• Removing redundant information from models
• Going deep
• Structurally rich models
• Exploring generously the arsenal of machine
  learning techniques
• Soft extensions of current models minimal number
  of additional parameter to minimize errors
