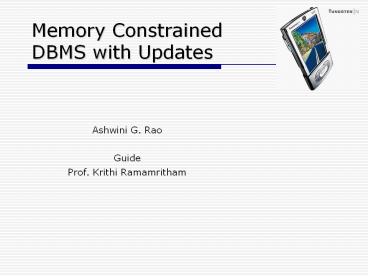

Memory Constrained DBMS with Updates

1
Memory Constrained DBMS with Updates

• Ashwini G. Rao
• Guide
• Prof. Krithi Ramamritham

2
Outline of the talk

• Need for Handheld DBMS
• New Issues in Implementation
• Project Goals
• Review of Existing Work
• Compression in Storage
• Transaction Management
• Synchronization
• Current Implementation Status
• Conclusions and Future work

3
Handhelds

• Small, Convenient, Carry anywhere
• Powerful
• E.g. Simputer- 206MHz, 32MB SDRAM, 24 MB Flash
  memory, LCD display, Smart card
• Applications
• Personal Info Management
• E-dairy
• Enterprise Applications
• Health-care, Micro-banking

4
Need for Handheld DBMS

• Handheld applications
• Volume of data is high
• Simple and Complex Queries
• select, project, aggregate
• ACID properties of transactions
• Require Data Privacy
• Need Synchronization
• Database management techniques are needed to
  meet the above requirements

5
New Issues in Implementation

• Handheld DBMS vs. Disk DBMS
• Handheld DB is Flash memory based
• Disk read time is very small
• Storage model should consider small memory and
  computation power
• Transaction management and synchronization have
  to consider disconnections, mobility and
  communication cost
• Handheld Operating System provides lesser
  facilities
• E.g. no multi-threading support in PalmOS
• Better security measures are required as
  handhelds are easily stolen, damaged and lost

6
Project Goals

• Existing work
• Storage models
• Query processing optimization
• Executor
• My work
• Compression in Storage
• Transaction management
• Synchronization

7
Existing Work Review

• Storage Management
• Aim at compactness in representation of data
• Limited storage could preclude any additional
  index
• Data model should try to incorporate some index
  information
• Query Processing
• Minimize writes to secondary storage
• Efficient usage of limited main memory

8
Storage Management

• Existing storage models
• Flat Storage
• Tuples are stored sequentially. Duplicates not
  eliminated
• Pointer-based Domain Storage
• Values partitioned into domains which are sets of
  unique values
• Tuples reference the attribute value by means of
  pointers
• One domain shared among multiple attributes

9
Storage Management (cont)
Flat Storage
Domain Storage

• In Domain Storage, pointer of size p (typically 4
  bytes) points to the domain value. Can we further
  reduce the storage cost?

10
ID Based Storage
11
ID Based Storage

• ID Storage
• An identifier for each of the domain values
• Store the smaller identifier instead of the
  pointer
• Identifier is the positional value in the domain
  table. Use it as an offset into the domain table
• D domain values can be distinguished by
  identifiers of length log2D /8 bytes.

12
ID Storage (cont)

• Extendable IDs are used. Length of the identifier
  grows and shrinks depending on the number of
  domain values
• Starting with 1 byte identifiers, the length
  grows and shrinks.
• To reduce reorganization of data, ID values are
  projected out from the rest of the relation and
  stored separately maintaining Positional
  Indexing.

13
ID Storage (cont)

• Ping Pong Effect
• At the boundaries, there is reorganization of ID
  values
• when the identifier length changes
• Frequent insertions and deletions at the
  boundaries might
• result in a lot of reorganization
• Phenomena should be avoided
• No deletion of Domain values
• Domain structure means a future insertion might
  reference
• the deleted value
• Do not delete a domain value even it is not
  referenced
• Setting a threshold for deletion for domain
  values
• Delete only if number of deletions exceeds a
  threshold
• Increase the threshold when boundaries are being
  crossed to reduce ping pong effect

14
ID Storage (cont)

• Primary Key-Foreign Key relationship
• Primary key is a domain in itself
• IDs for primary key values
• Values present in child table are the
  corresponding primary key IDs
• Projected foreign key column forms a Join Index

15
ID Storage (cont)

• ID based Storage wins over Domain Storage when
  pointer size gt log2D /8
• Relations in a small device do not have a very
  high cardinality Above condition true for most of
  the data.
• Advantages of ID storage
• Considerable saving in storage cost.
• Efficient join between parent table and child
  table

16
Query Processing

• Considerations
• Minimize writes to secondary storage
• Use Main memory as write buffer
• Need for Left-deep Query Plan
• Reduce materialization in flash memory. If
  absolutely necessary use main memory
• Bushy trees use materialization
• Left deep tree is most suited for pipelined
  evaluation
• Right operand in a left-deep tree is always a
  stored relation

17
Query Processing (cont)

• Need for optimal memory allocation
• Using nested loop algorithms for every operator
  ensures that minimum amount of memory used to
  execute the plan
• Nested loop algorithms are inefficient
• Different devices come with different memory
  sizes
• Query plans should make efficient use of memory.
  Memory must be optimally allocated among all
  operators
• Need to generate the best query execution plan
  depending on the available memory

18
Query Processing (cont)

• Operator evaluation schemes
• Different schemes for an operator
• Schemes conform to left-deep tree query plan
• All have different memory usage and cost
• Cost of a scheme is the computation time

19
Query Processing (cont)

• 2-Phase optimizer
• Phase 1 Query is first optimized to get a query
  plan
• Phase 2 Division of memory among the operators
• Scheme for every operator is determined in phase
  1 and remains unchanged after phase 2, memory
  allocation in phase 2 is on the basis of the cost
  functions of the schemes
• Memory is assumed to be available for all the
  schemes, this may not be true for a resource
  constrained device
• Traditional 2-phase optimization cannot be used

20
Query Processing (cont)

• 1-Phase optimizer
• Query optimizer is made memory cognizant
• Modified optimizer takes into account division of
  memory among operators while choosing between
  plans
• Ideally, 1-phase optimization should be done but
  the optimizer becomes complex.

21
Query Processing (cont)

• Modified 2-phase optimizer
• Optimal division of memory involves the decision
  of selecting the best scheme for every operator
• Phase 1
• Determine the optimal left-deep join order using
  dynamic programming approach
• Phase 2
• Divide memory among the operators
• Choose the scheme for every operator depending on
  the memory allocated

22
Query Processing (cont)

• Memory allocation algorithms
• Exact memory allocation
• Heuristic memory allocation
• Conclusions
• Response times highest with minimum memory and
  least with maximum memory
• Computing power of the handheld affects the
  response time in a big way
• Heuristic memory allocation differed from exact
  algorithm in a few points only

23
Compression in DB

• Advantages
• Saves space
• Reduces read time and write time as less data is
  processed
• Logging consumes less space and time
• Disadvantages
• CPU intensive
• Competes with other CPU intensive DBMS tasks.
• May slow down the DBMS

24
Compression in Disk DB

• Main assumption
• The high disk read time compensates for the
  extra time required for compression and
  decompression
• E.g. Let time taken to read 10 blocks of data
  from the disk be 10ms. Let the time taken for
  compression and decompression be 5ms. After
  compression 10 blocks occupy only 1 block.
• Processing time with compression/decompression
• ( 1ms 5ms) 6ms
• Handheld DB is Flash memory based
• Read time is very less. Above assumption is no
  longer valid!!

25
Compression in Handhelds

• Techniques can exploit high write time of flash
  memory
• Logging
• Compressed records consume lesser log space
• Writing time is reduced
• Decompression done when recovery is initiated
• Highly beneficial if failures are rare
• Saves communication cost when log records have to
  be sent over the network
• E.g., Transaction management

26
Compression in Handhelds (cont)

• Data compression in Smart cards
• Consider Handheld with Smart card support
• Data stored in smart cards is accessed and
  updated
• E.g., Personal database
• Memory in smart cards is limited
• Compression will save space
• Data can be decompressed and processed in the
  handheld

27
Transaction Management

• Ensure ACID properties of local and global
  transactions
• Local transaction - Update address book entry in
  Simputer
• Global transaction - Transfer money from a bank
  account to an epurse in a smart card attached to
  a Simputer
• Issues
• Frequent disconnections, resource constraints,
  mobility, loss or damage to handheld

28
Transaction Management (cont)

• We will Look into
• Concurrency control
• Atomicity
• Local
• Global
• Consistency
• Durability

29
Concurrency control

• Concurrency in handhelds depends on
• Multi-tasking support from the handheld OS
• E.g., Linux in Simputer, PalmOS
• User requirements
• Several tasks may have to execute concurrently
• E.g., A periodic synchronization task, address
  book access and an aggregation operation may run
  concurrently.
• Strict 2PL, table level locks can be used
• Small number of concurrent processes
• Very few data conflicts
• Table level locking has small overhead and allows
  non conflicting processes to continue execution

30
Atomicity

• Ensure the All or nothing property
• Local atomicity
• E.g., enter name, email, phone number in the
  address book of Simputer
• Shadow based update vs. In place update
• Global atomicity
• E.g., In an epurse application the updates are
  made at the bank's server, the Simputer and the
  smart card
• 2PC, optimizations to 2PC, 1PC

31
Local atomicity

• Shadow based update
• Advantages
• No disk locality problem in handheld DB
• Simplifies recovery
• Disadvantages
• Poorly adopted to Pointer based storage models
• Cost increases with increase in size of flash
  memory
• In place update
• Uses WAL
• Accommodates Pointer based storage models
• Cost does not increase with size of flash memory
• Buffer replacement policy is Steal
• Dirty blocks can be written to Smart card storage
  to avoid Undo

32
Global atomicity

• Two Phase Commit (2PC)
• Most commonly used atomic commit protocol
• Shortcomings in handheld scenario
• Two rounds (decision and voting) of messages
  imposes high communication overhead
• Requires the handheld to be connected during the
  voting and decision phase
• Large number of forced writes
• Optimizations to 2PC
• Presumed commit
• Presumed abort

33
Global atomicity (cont)

• One Phase Commit (1PC)
• Advantages
• Only one round of messages- no voting phase
• Handheld can disconnect as soon as log records
  are transferred to fixed server
• Lesser number of forced writes
• Transactions involving Smart card and Handheld
  can use 1PC
• Disadvantages
• Requires participants to enforce 2PL. Will work
  with weak levels of consistency under certain
  conditions. In heterogeneous environment it is
  difficult to control the local DBMS concurrency
  control policies.

34
Consistency and Durability

• Consistency
• Local consistency can be ensured by defining
  integrity constraints
• Durability
• Either the changes of the transaction or enough
  information about the changes are written to
  stable storage before the transaction commits
• Network durability- transfer log records to a
  server on the fixed network.
• 1PC ensures network durability
• Pointer based logging
• Extended ephemeral logging

35
Synchronization

• Access data Anytime and Anywhere using the
  handheld
• Mobile sales person, Wireless ware house
• Problem Not possible to remain connected always
• Solution- Replicate data in the handheld
• Download a copy of the data into the handheld
  from the remote server and process it offline.
  Periodically merge the changes with the server

36
Synchronization -Issues

• Data replication can lead to conflicts
• Update-update, Update-delete, Unique key
  violation, Integrity constraint violation
• Maintain global consistency between replicated
  copies
• Strict consistency with Data partitioning
• Strict consistency with Reservation protocols or
  Leases
• Efficient when data is rarely shared
• Weak consistency with Eventual consistency
• leases restrictive when data is shared between
  many copies
• Independently access and update data
• only tentative commits possible
• Actual commit when transaction is executed at
  the server

37
Synchronization Issues (cont)

• Application specific conflict detection and
  resolution
• Maximum flexibility
• Device, network and backend agnostic
• XML, Unicode
• Incremental maintenance
• Save communication cost
• Download parts of relations, i.e., views

38
Synchronization Existing Models

• Publish Subscribe Model
• Three tier
• Enterprise applications
• Independent updates
• Eventual consistency
• Conflict detection, resolution and merge

• PC to Handheld Model
• Two tier
• Personal information

39
Publish Subscribe Model

• Eventual consistency model
• Merge replication in Win SQL CE, Oracle Lite
• Publish Subscribe Process
• Publication and article
• Publishing
• Subscribing
• Subscription
• Synchronization
• Merging

40
Publish Subscribe Architecture

• Application
• SQL DB Engine
• SQL Database
• Client Agent
• Server Agent
• Merge Agent
• Conflict Detection
• Conflict Resolution
• Replication Provider
• SQL Server Database
• Communication Link

41
Conflict Detection and Resolution

• Conflict detection
• Row level tracking
• Associate RowID and Version with each row
• RowID is used to uniquely identify each row
• Version is used to check whether the a given row
  has changed in the server
• Conflict resolution
• A conflict resolution procedure is invoked when a
  conflict is detected. The resolution procedure is
  created when the article is published
• output can be server wins or handheld wins. Here
  the server always wins

42
Row level tracking
STEP 1
STEP 2
43
Row level tracking (cont)
STEP 4
STEP 3
44
Current Implementation Status

• Two Synchronization tools have been implemented
  for the Simputer
• First Sync tool assumes that no updates are done
  in the handheld database
• Second sync tool is based on Merge replication in
  Windows SQL CE. It allows independent updates in
  the handhelds.

45
Conclusions

• Handheld DBMS techniques have to consider the
  resource constraints, mobility, frequent
  disconnections, and security aspects of the
  handheld
• The techniques used for one component will
  influence the choice of the technique used in
  another component. There is a very strong
  interdependence between the components of the
  handheld DBMS
• Techniques rejected for the disk environment may
  be explored in the handheld environment

46
Future work

• Enhance the Sync tool
• Transaction management component
• Recovery management component
• Concurrency control component
• Performance analysis of existing compression
  techniques in handheld environment

47
References
48
References (cont)
49
References (cont)
50
References (cont)
51

• Thank You

52
Query Processing (cont)

• Benefit/Size of a scheme
• Every scheme is characterized by a benefit/size
  ratio which represents its benefit per unit
  memory allocation
• Minimum scheme for an operator is the scheme that
  has max. cost and min. memory
• Assume n schemes s1, s2,sn to implement an
  operator o
• min(o)smin
• i, 1in Cost(si) Cost(smin) ,
• Memory(si) Memory(smin)
• smin is the minimum scheme for operator o
• Benefit(si)Cost(smin)
  Cost(si)
• Size(si) Memory(si) Memory(smin

53
Query Processing (cont)

• Every operator is a collection of (size, benefit)
  points, n points for n schemes
• Operator cost function is the collection of
  (cost, memory) points of its schemes
