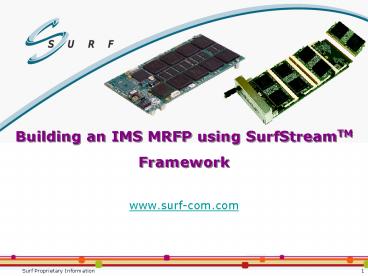

Building an IMS MRFP using SurfStreamTM Framework

1
Building an IMS MRFP using SurfStreamTM Framework

• www.surf-com.com

2
Presentation Highlights

• Multimedia Resource Function Processor (MRFP)
  Development Challenges
• SurfStream Framework Overview
• Building an MRFP using SurfStream Framework
• SurfStream Feature Support
• SurfStream Hardware Integration
• Surfs Value Propositions

3
MRFP Development Challenges
4
IMS Service Provider Needs

• Deliver highest quality media processing to
  support mobile and IP services
• Audio/video mail
• Video portal
• Video conferencing
• Multimedia servers
• Recording servers
• Support multiple formats for multiple devices
• Combine traditional TDM-based applications with
  next-generation IP Audio/Video services
• Simple migration path for supporting future
  formats

5
IMS Service Provider Needs

• A single solution for all media types
• Flexible channel media type assignment is
  required to reach entire audience
• Price and ROI
• Smooth and flexible migration from audio
  systems to audio and video systems
• Fast integration into current infrastructure

6
MRFP Development Challenges

• Growing number of codecs
• Interoperability
• Each media type has its own interoperability
  issues
• New media formats are introduced i.e., iLBC,
  H.264, WMA9, WMV9
• Quality issues due to environmental changes
• DSP code optimization
• Application type optimization
• System bottlenecks
• New hardware standards

7
MRFP Services and Architecture
SIP
Application Server Layer
SIP
Session Control Layer
Megaco/H.248 or SIP with MSMLMOML / MSCMLNETANN
Media Processing Layer
Video
Audio
8
Buying Boards or Chips

• Why Boards?

• Why Chips?

• Pre-requisite
• Standard form factor or
• Standard mezzanine-card connector
• Lowest risk
• Lowest initial investment
• Cheapest solution in the long run
• Negotiation
• Change vendor
• Easiest migration path to next generation DSPs

• Proprietary form factor
• Single-DSP solutions
• Very high volumes (10K)

Prediction By 2008 all new Tier-I
infrastructure solutions will be based on
standard boards and modules that are made by
third parties.
9
New Hardware Standards
10
Why Put Audio Video on the Same Chip/Module?

• Easy migration path from 0 video / 100 audio to
  100 video / 0 audio and anything in-between
• Minimal system delay -gt higher overall quality
• No need to separate audio from video and send
  each to a separate chip/module
• Easier to establish lip-sync between audio and
  video when packets are lost or delayed
• Lower operational expenses
• Only need to support one chip/board
• Lower integration efforts
• Single API for audio and video
• No need for an aggregation device to
  combine/split audio and video

11
MRFP Development Challenges

• A typical MRFP is composed of four components
• Media processing DSP code
• Host-based state machines and APIs
• Hardware platform
• MRFP application

• Generic

• Generic

• Generic

• Application-Specific

All generic components are provided by Surf,
allowing our customers to focus their resources
on the application specific part.
12
SurfStream Framework Overview
13
SurfStream Framework Principles

• All application development needs in one SW
  package
• Host-based library for DSP control and monitoring
• OS-specific drivers for all boards
• Windows-based diagnostic tool for easy debugging
• Short development cycle
• Feature rich for maximal flexibility
• User-friendly APIs sample applications
• Comprehensive documentation
• Technical support

14
SurfStream Framework Principles (contd)

• Best of Breed
• High capacity
• Efficient implementation
• Optimized for all type of telecom/IMS media
  processing needs
• Field-proven
• Standards compliant
• Intensively tested
• Flexible

15
(No Transcript)
16
Application 1 Audio Video Mail
Audio/Video message stored as .MP4 file parsed
and sent to media board
Video MPEG4 -gt H.263 CIF ? QCIF 30FPS -gt
10FPS Audio WB-AMR?NB-AMR Transport H.223
Audio, Video Control multiplexed in 3G-324M
using H.223
17
Application 2 MRFP
Prompt for file transfer
Audio/Video 3G-324M
Audio/Video Over H.324 (V.34 modem)
Voice Over PSTN
Audio/Video Over RTP
Audio Over RTP
18
Building a Cross-platform MRFP with the
SurfStream Framework

19
Step 1 Initializing HW Devices

• API concept
• Controls C-callable functions
• Monitors Callback functions
• Steps
• Reset DSP
• Download DSP software
• Activate DSP
• Reset layer-2 switch
• Set layer-2 switch to default mode
• Set DSP and channel callback functions
• Establish logical Host-DSP connection

20
Step 2 Initialize Channels and Routing of Audio
and Video

• Step 2.1 Create Configure
• Video channel
• Audio channel
• Audio video mixing channels

File system
Host API
FEP
SurfStream API
Layer II switch
Packet Interface

• Video channel
• MPEG4-gtH.263
• QCIF-gtCIF
• RTP
• JB

• Audio channel
• AMRlt-gtG729
• RTP
• JB

Channels can be located on the same DSP or on
separate DSPs
21
Step 2 Initialize Channels and Routing for Media
Streaming and Conferencing

• Step 2.2 Configure packet routing
• Video channel
• Audio channel
• Mixing channel

File system
Host API
FEP
SurfStream API
Layer II switch
Packet Interface

• Video channel
• MPEG4-gtH.263
• QCIF-gtCIF
• RTP
• JB

• Voice channel
• AMRlt-gtG729
• RTP
• JB

Routing is identical whether or not channels are
on the same DSP
22
Step 3 Play Video Audio .3gp or .mp4 Streams
in the Conference

• Associate Video channel with a FEP
• Associate Voice channel with a FEP
• Associate a file with a FEP
• Command for FEP to start streaming

File system
Host API
FEP
SurfStream API
Layer II switch
Packet Interface

• Video channel
• MPEG4-gtH.263
• QCIF-gtCIF
• RTP
• JB

• Voice channel
• AMRlt-gtG729
• RTP
• JB

Circuit Switch Interface
FEP File End Point
23
SurfStream Framework Feature Support
24
General Features

• Dynamic port assignment for Audio/Video/Fax/Modem
• Direct DSP?network interface, resulting in lowest
  possible delay
• DSPs connected to Ethernet eliminate the need for
  an aggregation unit that causes excessive delay
• Inter DSP communication for running algorithms
  across multiple DSPs (i.e. large conference)
• Open Framework
• Vendors can build a user-defined channel to
  create a competitive advantage or re-use in-house
  algorithms
• Diagnostics included in release version allow
  easy bug analysis and resolution

25
Play/Record Features

• Enables playing/recording of audio and video
  streams from Host file system to IP, TDM, or 3G
  networks
• Supports real-time video streaming of proprietary
  optimized SRF file format
• Standard and proprietary file formats
• MP4
• 3GP
• SRF
• Reliable Host-DSP communication over UDP
• Supports .WAV audio file format with G.711
  A-law/µ-law encoding

26
Audio Features

• Audio Codecs
• G.711, G.729, G.723.1, G.729AB, GSM FR, GSM EFR,
  GSM NB-AMR, EVRC
• Up to 32 TDM or IP Audio conferencing
  participants
• Block size
• 5-30ms (5ms resolution)
• Echo cancellation
• G.168 2002
• Echo tail up to 128ms

• VAD, CNG, Packet Loss Concealment
• RTP/RTCP
• RFC 3550, 3551, 3389
• Fixed/Adaptive Jitter Buffer
• Up to 300 ms
• Caller ID Detection Generation
• Tone and Events Monitoring, Relay and Generation

27
Video Features

• Video Codecs
• Current MPEG-4 and H.263
• Roadmap H.264, H.263, H.263, H.261
• Resolution
• CIF
• QCIF
• Frame Rate
• 1-30FPS

• Video Toolbox (advanced features)
• Configurable frame rate
• Bit rate change
• Any resolution resize
• Video codec change
• Logo insertion

28
Video Features (contd)

• Bit rate
• CBR (Constant Bit Rate) 10768Kbps
• VBR (Variable Bit Rate) Minimum Maximum
  Quality (automatic bit rate adjustment)
• Configurable deblocking levels

• RTP Encapsulation
• Multiple destination support
• Jitter Buffer - Supporting packet rearranging and
  packet loss handling

29
Video Conferencing Features

• Video conferencing
• Up to 16 participants on a single DSP
• Up to 96 participants when using inter DSP
  communication
• Dynamic participants display
• Addition/removal of participants during video
  conference
• User-defined screen layout defining size and
  location for each picture component
• Pre-defined layouts (roadmap feature)
• Dynamic configuration of layout
• Background and foreground setting in run-time
• Transparency alpha blending per picture (roadmap)
• Picture overlap support
• Raw video interface
• YUV format

30
SurfStream Framework Hardware Integration
31
Chip-Level
Chip-Level Solution C64x-based

• SurfSTP-10/12/14/15/55 (based on TI C64xx)
• Supports audio/video/fax/modem
• Ideal for various applications
• Gateway
• Conferencing
• Streaming
• Supports simultaneous TDM?IP interfaces for VOIP
  gateway
• SurfDetect for real-time streaming diagnostics
  from DSP
• Open Framework for integration of customer
  technology
• Solution is also available on other TI C64x-based
  DSPs

32
Board-Level - PCI

• SurfAce-112
• Form Factor PCI
• Number of STP-12 DSPs 1 on board/2,4 or 8 with
  daughter card
• Interfaces
• Ethernet
• E1/T1 (optional)
• PCI
• H.100
• Software features same as SurfSTP-xx
• Modes of operation
• Control through PCI
• Stand-alone mode Control through Ethernet

33
Board-Level - PTMC
Board-Level Solutions PCI, PTMC AMC

• SurfRider-812/PTMC
• Form Factor PTMC (cPCI mezzanine)
• Number of 6412 DSPs 2,4,or 8
• Interfaces
• Ethernet
• PCI
• H.100
• Software features same as SurfSTP-xx
• Modes of operation
• Control through PCI, Media through Ethernet
• Stand-alone mode Control Media through Ethernet

34
Board-Level - AMC
Board-Level Solutions PCI, PTMC AMC

• SurfRider/AMC
• Fully compliant, half-height, single-size AMC
  form factor
• 2,4,6,8 DSPs of C64xx or any other
  processor/logic type
• Supports all next-generation TI DSPs
• High capacity of audio/video
• Very high throughputs
• Up to 10Gb between external interface and any
  DSP, and between the DSPs
• Supports ALL types of external interfaces
• GbEthernet, PCI_Express, Advanced switching,
  Rapid IO, Fiber channel, Infiniband and others
• Mounted on ATCA (up to 8 boards) or MicroTCA

35
SurfRider-812/PTMC Integrated with cPCI
Carrier board provided by Surf Partners
36
SurfRider-812/PTMC Integrated with ATCA
Carrier board provided by Surf Partners
37
Roadmap Version 4.2

• Release date
• Q2/06
• Contents TMS320C6455, AMC Video Enhancements
• AMC DSP farm board
• TI TMS320C6455TM support
• H.264 encoding/decoding/transcoding
• Audio/video sync enhancements
• More

38
Surfs Value Propositions
39
Surfs Value Propositions

• Unique approach integrated audio/video platform
  (instead of separate systems)
• Next Generation DSPs
• Open Framework
• Seamless integration of video into audio
  infrastructures
• Easy integration of third-party technology
• Optimized architecture and APIs for a wide range
  of applications

40
Surfs Value Propositions, contd

• Strategic partnership with TI
• Market presence
• Established customer base
• Field-hardened solutions
• Credibility
• Market-proven since 1996
• Well-known and reputable provider of Universal
  Port solutions
• Field-hardened
• Patents
• 26 pending
• 4 approved

41
Thank You

• www.surf-com.com
