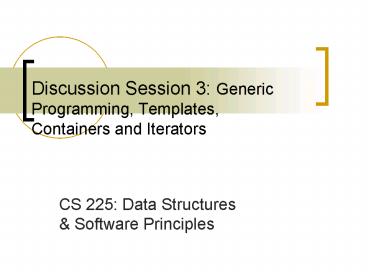

Discussion Session 3: Generic Programming, Templates, Containers and Iterators

1
Discussion Session 3 Generic Programming,
Templates, Containers and Iterators

• CS 225 Data Structures Software Principles

2
Agenda

• Templates
• IntArray vs. SimpleArray
• Containers and Iterators
• Vector Class
• Functors
• Generic Programming

3
By the end of this class, you

• Need to
• Appreciate the need for templates
• Know how to implement and use templates
• Understand the concepts of Containers and
  Iterators
• Understand (broadly) the STL Vector code
• Ought to Know
• Do NOT Need to Know
• The precise working of every function in the
  sample code

4
Would you write this?

• void swap (int a, int b)
• int tmp a
• a b
• b tmp

5
Would you write this?

• void swap (char a, char b)
• char tmp a
• a b
• b tmp

• void swap (int a, int b)
• int tmp a
• a b
• b tmp

6
Or this?

• void swap (Some_type a, Some_type b)
• Some_type tmp a
• a b
• b tmp

7
Templates

• Provide a way to re-use source code
• Two kinds of templates
• Class Templates
• Function Templates
• The compiler generates a specific class or
  function from a template, referred to as template
  instantiation
• A class generated from a template is called a
  generated class
• A function generated from a template is called a
  generated function

8
Templates

• Common code for various data types.
• Generic data type.
• Syntax
• template lttypename Etypegt class SomeName
• template lttypename Etypegt function declaration
• Using templates
• Specify type compiler needs to know
• SomeNameltintgt variable_name
• Swapltchargt(c1, c2)

9
Function Template swap( )

• template lttypename Tgt void swap (T a, T b)
• T tmp a
• a b
• b tmp
• swapltdoublegt(d1, d2)

10
Class Template Array

• See Array wrapper class at /homesta/cs225/src/libr
  ary/03-cgeneric/_simpleGenArray
• templatelttypename Etypegt class SimpleArray
• //
• Etype operator (int index)
• //
• Etype data // Pointer to array elements.
• SimpleArrayltintgt integer_array

11
Agenda

• Templates
• IntArray vs. SimpleArray (code in library)
• Containers and Iterators
• Vector Class
• Functors
• Generic Programming

12
SimpleArray Things to Note

• template lttypename Etypegt goes at the beginning
  of the class and every function defn.
• template ltclass Etypegt is equivalent
• SimpleArray is not a type SimpleArrayltgt is
• SimpleArrayltintgt
• SimpleArrayltStringgt
• An array of Etypes is stored with a pointer to
  Etype
• Memory is allocated using new Etype
• Check _runThisCode for examples of use

13
Agenda

• Templates
• IntArray vs. SimpleArray
• Containers and Iterators
• Vector Class
• Functors
• Generic Programming

14
Containers

• A container is an object that holds other objects
• Examples are Arrays, Vectors, and Lists
• In general, you can add objects to containers, or
  remove objects from containers
• The C Standard Library (STL) has been designed
  so that containers support standard operations /
  provide common functionality.

15
Iterators

• Iterators are generalizations of pointers for
  containers
• Iterators are NOT general pointers!
• They are an abstraction of the idea of a pointer
  to an element in a sequence
• Iterators act as an interface between containers
  and algorithms they hold them together by
  providing an abstract view of the data

16
Categories of Iterators

• Based on access types
• Input
• Output
• Forward
• Bidirectional access
• Random access
• There is a natural hierarchy among these

17
Iterator Categories and Operations
18
Common Functions for (almost) all STL containers
16.3
Functions that return Iterators
begin( ) Points to first element end(
) Points to one-past-last
element rbegin( ) Points to first
element of reverse sequence rend( )
Points to one-past-last element of reverse
sequence
Element Access
front( ) First element back( ) Last element
Subscripting, unchecked access At(
) Subscripting, checked access
19
More Functions
Stack and Queue Operations
push_back( ) Add to the end pop_back( )
Remove the last element push_front( ) Add new
first element (used for list only) pop_front(
) Remove first element (should be used for list
only)
List Operations
insert(p, x) Add x before p insert(p,
n, x) Add n copies of x before p insert(p,
first,last) Add elements from firstlast
before p erase(p) Remove the
element at p erase(first, last) Erase
firstlast clear( ) Erase all the
elements
20
More Functions
Other Operations
size( ) Number of elements empty(
) Is the container empty? max_size( )
Size of the largest possible
container capacity( ) Space allocated (vector
only) reserve( ) Reserve space for
future expansion (vector only) resize ( )
Change the size of the container swap( )
Swap elements of two containers
Are the contents of the two containers
the same? ! Are the contents
of the two containers different? lt
Is one container lexicographically before
another?
21
More Functions
Constructors, etc
container( ) Empty
container container(n) n elements
default value container(n,x) n copies
of x container(first, last) Initial elements
from firstlast container(x) Copy
constructor container( ) Destroy
the container and all its elements
Assignments
operator(x) Copy assignment. assign(n,
x) Assign n copies of x assign(first,
last) Assign from firstlast
22
Using Iterators

• templatelttypename Tgt void print_all(T c)
• typename Titerator i
• cout ltlt ""
• for (i c.begin() i ! c.end() i)
• cout ltlt i
• cout ltlt ""

23
An example The IntArrayIter Class
24
The IntArrayIter class

• Things to Note
• The iterator class is nested in the IntArrayIter
  class
• We implement the iterator with an int
• How we implement the member functions via simple
  pointer manipulation
• The implementations of begin( ) and end( )
• The IntArray class has onePastEnd as a member

25
Agenda

• Templates
• IntArray vs. SimpleArray
• Containers and Iterators
• Vector Class
• Functors
• Generic Programming

26
The (modified) STL Vector class
Begin / Rend
End / Rbegin
2
5
4
6
1
start
finish
onePastEnd
size 5 capacity 8
27
The (modified) STL Vector class

• 4 iterators
• iterator, reverse_iterator
• Their const versions
• Element access
• unchecked access
• at( ) checked access
• Rapid access, but expensive insert/delete (except
  for push_back( ) and pop_back( ) )

28
Agenda

• Templates
• IntArray vs. Array
• Containers and Iterators
• Vector Class
• Functors
• Generic Programming

29
Function Objects (Functors)

• Class objects that overload the ( ) operator for
  implementing desired behavior
• also ordinary function is a function object
• and so is a function pointer
• See Jasons _genericFns/ code!

class Negate public int operator() (int n)
return -n
void Callback(int n, Negate neg) int val
neg(n)
30
A Functor Example

• templatelttypename Tgt class Sum
• private
• T res
• public
• Sum(T I0) res( I ) // init
• void operator( ) (T x) res x //
  accumulate
• T result( ) const return res // return sum

31
An Accumulating function

• template lttypename It, typename Accgt
• void Accumulate (It first, It last, Acc
  accumulate)
• It temp
• for (temp first, temp ! last temp)
• accumulate(temp)

32
Putting Them Together

• void random_accumulating_function
• (Vectorltintgt vi, Listltdoublegt ld)
• Sum s Product p
• Accumulate (vi.begin( ), vi.end( ), s)
• Accumulate (ld.begin( ), ld.end( ), p)
• cout ltlt s.result( ) ltlt p.result( )

33
Alternatively

• templatelttypename Tgt class Product
• private
• T res
• public
• Product(T I1) res( I ) // init
• void operator( ) (T x) res x //
  accumulate
• T result( ) const return res // return sum
• void f (listltintgt ld)
• Product p
• p for_each(ld.begin( ), ld.end( ), p) //
  include ltalgorithmgt
• cout ltlt the product is ltlt p.result( ) ltlt
  endl

34
Agenda

• Templates
• IntArray vs. SimpleArray
• Containers and Iterators
• Vector Class
• Functors
• Generic Programming

35
Generic Programming

• Decide which algorithms you want parameterize
  them so that they work for a variety of suitable
  types and data structures
• Containers that are templated so they can hold
  elements of any type
• Generic algorithms which operate on containers
  using iterators and assume nothing about the type
  of object they contain. Examples include copy(
  ), sort( ), binary_search( ), partition( )

36
The _genericFns code

• Things to Note
• The print( ) function Just like Accumulate( )
• The printRelevant( ) function
• The function objects we use for formatting
• How to load the vector using push_back( )
• Looping through the Vector using iterators
• Calling the Generic print functions
• On a subset of the Vector
• Printing Relevant elements only

37
Summary

• Templates
• IntArray vs. SimpleArray
• Containers and Iterators
• Vector Class
• Functors
• Generic Programming
• From an EWS machine
• /homesta/cs225/src/library/03-cgeneric/
