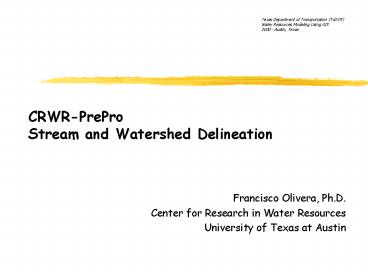

CRWRPrePro Stream and Watershed Delineation

1
CRWR-PreProStream and Watershed Delineation
Texas Department of Transportation (TxDOT) Water
Resources Modeling Using GIS 2000 - Austin, Texas

• Francisco Olivera, Ph.D.
• Center for Research in Water Resources
• University of Texas at Austin

2
What is CRWR-PrePro?
Digital Spatial Data

• CRWR-PrePro is an ArcView pre-processor of
  digital spatial data for the HECs Hydrologic
  Modeling System (HMS)

CRWR-PrePro
Data for HEC-HMS Input Components (Not all HMS
options are included yet)
3
What is HEC-HMS?

• HEC-HMS is a new generation software for
  precipitation-runoff simulation that supersedes
  the HEC-1 Flood Hydrograph Package. (HEC-HMS
  Users Manual)
• HEC-HMS is a Windows version of HEC-1.

4
What is HEC-HMS?
Control Definition of the analysis time window.
BasinDefinition of the hydrologic elements.
HEC-HMS Simulation
Hydrographs
Precipitation Definition of rainfall data in time
and space.
5
Stream-Watershed Delineation
Terrain Analysis
Stream-Watershed Delineation
6
Terrain Analysis
Burn-In Streams Grid
DEMGrid
Fill Sinks Grid
DigitizedStream NetworkLine Coverage
Flow Direction Grid
Flow Accumulation Grid
7
Terrain Analysis
58
71
78
72
69
74
56
67
Hydrologic functions
49
46
44
53
69
37
38
58
55
31
64
22
68
61
47
21
16
Digital elevation model (DEM)
0
0
0
0
0
0
1
1
2
1
0
3
8
2
5
0
1
1
20
0
0
0
0
1
24
Flow accumulation grid
Stream Network
8
Terrain Analysis

• DEM and digitized reach network

9
Terrain Analysis
Burning-in streams

10
Terrain Analysis

• Burned-in DEM
• Elevation is increased by a fixed value in all
  cells, except for those that coincide with the
  digitized reach network.

11
Terrain Analysis

• Flow direction
• Water flows to one of the eight neighbor cells,
  according to the direction of the steepest
  descent.

12
Terrain Analysis

• Flow accumulation
• Measure of the drainage area in units of grid
  cells.

13
Stream-Watershed Delineation
Stream NetworkDefinition
Watershed OutletDefinition
Raster to VectorConversion
Watershed Delineation
14
Stream Network Definition
15
Sub-Basins and Reach Network

• Reach network.
• Grid cells draining more than a user-defined
  threshold value (blue streams), or located
  downstream of user-defined cells (red streams)
  are part of the reach network.

16
Sub-Basins and Reach Network

• Reach segmentation.
• Reach segments (links) are the sections of a
  reach channel connecting two successive
  junctions, a junction and an outlet, or a
  headwater and a junction.

17
Watershed Outlet Definition
18
Sub-Basins and Reach Network

• Watershed outlets.
• The most downstream cells of the reach segments
  (brown cells), and user-defined cells (red dots)
  are potential sub-basin outlets.

19
Sub-Basins and Reach Network

• Modified reach segmentation.
• The user-defined outlets modify the reach
  segmentation by splitting the segments in which
  they are located.

20
Watershed Delineation
Watershed Outlets
Watershed Delineation
21
Sub-Basins and Reach Network

• Sub-basin delineation.
• The drainage area of each sub-basin outlet is
  delineated.

22
Vectorization

• Streams and watersheds are converted from raster
  to vector format.

23
Merging Polygons and Watersheds
WatershedVectorization
StreamVectorization
Dissolving SpuriousPolygons
MergingWatersheds
24
Merging Spurious Polygons

• Cells connected to the main watershed polygon
  through a corner are defined as a separate
  polygon (spurious polygon).
• These polygons are dissolved into the main
  polygon.

25
Merging Watersheds

• Adjacent watershed polygons can be merged into a
  single polygon, if they share the outlet or one
  flows into the other.

26
Merging Watersheds

• After merging sub-basin polygons, the attribute
  tables are modified so that the watershed code
  (WshCode) of the reaches and the area of the new
  sub-basin are updated.
