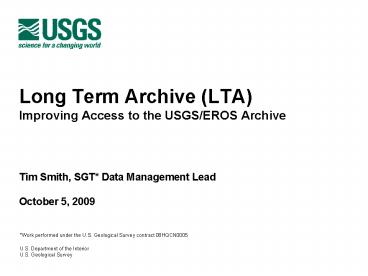

Long Term Archive (LTA)Improving Access to the
USGS/EROS Archive

• Tim Smith, SGT Data Management Lead
• October 5, 2009

2
Long Term Archive (LTA)

• Mission
• The LTA provides data management, access,
  archive, and distribution for all data sets
  within the USGS Historical Archives that have
  long term relevance to science and other USGS
  missions
• External Drivers
• Continued transition from data sales to free data
  delivery over the internet (hard copy
  distribution ended in FY2009)
• Internal Drivers
• Improve access to the archive
• Develop and maintain data access, preservation,
  and distribution infrastructure as a project to
  project service

3
What we do

• The LTA is responsible for over 70 data
  collections
• We operate maintain systems that schedule,
  acquire, process, and archive aerial,
  cartographic, topographic and satellite data
• We provide reimbursable support activities for
  data services and access for other federal
  agencies
• We provide products to the public via on-demand
  high resolution scans from the film archive and
  enable no charge web downloads for all LTA data
  collections
• We operate, develop, evolve, and manage the
  infrastructure required to store, access, and
  distribute USGS/EROS data
• We perform activities that ensure long-term
  preservation of the USGS/EROS data archive

4
Where we are going

• We manage, operate, and maintain photographic and
  digital archives and ensure long-term
  preservation
• We manage, engineer, operate and maintain the
  Computer Room 1 Mass Storage System (SL8500)
• We create and maintain off-site backups of LTA
  data
• We assist other projects in transitioning
  selected archives to the LTA (Landsat DAAC
  Topo, etc)
• We operate a Data Ingest, Management and Archive
  Service and offer these services to other
  projects
• We support USGS archive affiliation activities
  with the National Archive and Records
  Administration (NARA)

5
Concept of Operation
6
Where we are going

• Improve access to the archive
• Modernize and evolve archive access capabilities
  including Earth Explorer and GloVis. We strive
  to make these systems more customer self
  sufficient
• Continue to build data capture systems to support
  the high-resolution film scanning capabilities
  (Phoenix 5 1,000 dpi scanning back system)
• Continue to generate single frame metadata from
  photo indexes and map line plots for historical
  aerial film

7
External Interfaces

• National Park Service
• Film digitizing, management, metadata generation,
  and public access
• NASA
• EO-1 acquisition scheduling, processing,
  archiving and distribution
• NOAA
• AVHRR acquisition scheduling, data reception,
  processing, archiving and distribution, ground
  station engineering, operations and maintenance.
• US Air Force
• Eagle Vision- commercial satellite data receipt,
  processing, archiving, distribution, and license
  management
• USGS
• Geography Discipline - Commercial satellite and
  aerial data receipt, processing, archiving,
  distribution
• Water Resources Discipline GOESS ground system,
  NWIS, and NATWEB operations and maintenance.
• National Interagency Fire Center
• AVHRR Greenness Mapping and associate processing
  and distribution
• Fish and Wildlife Service
• Film digitizing, storage, and public access

8
LTA Collection Diversity

• Data Types
• Aerial
• Cartographic
• Topographic
• Satellite
• Digital and film archive media
• Static and growing collections

500 terabytes
9
End to End Data Management

• Repeatable operations functions and processes
• Evolve the EROS access, preservation and
  distribution data system
• Mass Storage
• Inventory Server
• Browse Server
• Networking
• Earth Explorer
• GloVis
• TRAM
• Data Distribution

10
Data Archive

• Manage all archived data within a near-line tape
  storage system
• Data migrations
• Backup copy generation
• Data access
• Backup copies stored at off-site locations
• Engineering studies lead development and
  enhancement efforts

SUN SL8500 Mass Storage System
11
Historical Film Archive Digitization

• Digitizing film rolls and photo indexes
• Created full frame browse with USGS logo attached
• Provided on-line access.
• Discovered a host of un-recorded photos (orphans)

• Archiving the medium-resolution products
  (captured to make a browse image) in the Mass
  Storage System and provide access as they become
  available
• 6.5 million frames digitized since Oct 2004
• SCAR, AHAP, NHAP, NAPP web-enabled for no-charge
  downloads
• USGS collection released in December 2008
• (National Parks medium resolution data also
  released as free downloads)

12
The LTA Film Digitizing Process
Digitizing Aerial Film Archive Placed photo
indexes on-line Full frame browse and
metadata Stored files near-line Free FTP down
loads of medium resolution 400 dpi imagery
Digitizing Completed USGS/ NAPP 1.4 M
frames Sept 05 USGS/NHAP 511 K frames
Nov 05 USGS/Survey 2.9 M frames
Mar 07 Other collects 1.7 M frames 2009
TIFF image To Storage System
Archive to Phoenix Digitizing system
JPEG browse to Web interface
Medium-resolution Digitized product To customer
Customer Request
13
Creating Single Frame Metadata

• Scanned photo indexes linked to individual frame
  metadata record
• Implemented processes and software to
• Estimate the Lat/Long coordinates for each frame
• Update single frame metadata record
• Working USGS historical collection
• 68,000 indexes
• 2,600,000 frames
• 350,000 frames annually
• Over 1.7 million produced as of 9/30/09

Photo Index
Single Frame
14
Historical Film Scanning Capability

• On-demand high-resolution scanned products from
  the historical film archive based on customer
  requests
• Currently charge 30/file a 5 per order USGS
  fee
• Files only retained for 30-days in case there is
  a customer question. Declass imagery are
  retained as a 7 micron source for future free
  downloads
• Aerial scans are being saved as 25 micron (1,000
  dpi) through the Phoenix 5 system

15
New High Resolution Data Capture Capabilities

• Reuse of film advance robotics, software, and
  workflow
• Proven roll to roll advance capabilities
• Better Light Scanning Back
• 10200 x 13600 pixels
• 1000 dpi
• 25 micron
• 2 min/frame scan time
• Improved LED light source
• 16X brighter
• Operate 6 systems 24X5 and provide output images
  free over the internet

16
Medium Res. Web Enabling

• Large volume, static collection (110 TB)
• High public interest historical photos 1939-
  Present
• Small file sizes 10mb (B/W) 30mb (color)
• Web-enabling through standard systems
• Earth Explorer and also GloVis for NAPP and
  NHAP
• Registration required before each downloading
  session throttle
• Specific scene selection required for each
  download, guards in place to exclude scripting.
• No additional processing required for
  distribution
• Archive data is the distribution data
• All data stored in the Mass Storage System
• Nearly the entire collection resides on disk
  (98TB cache)
• Remaining data available near-line from tape

17
The LTA an explosion of free data
18

• Questions?
