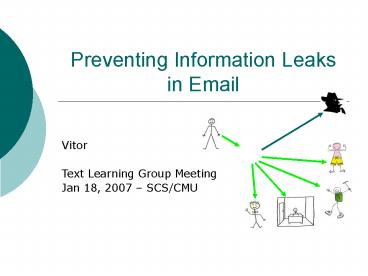

Preventing Information Leaks in Email

1
Preventing Information Leaks in Email

• Vitor
• Text Learning Group Meeting
• Jan 18, 2007 SCS/CMU

2
Outline

• Motivation
• Idea and method
• Leak Criteria, text-based baselines
• Crossvalidation, network features
• Results
• Finding Real Leaks in the Enron Data
• Predicting Real leaks in the Enron Data
• Smoothing the leak criteria
• Related Work
• Conclusions

3
Information Leaks

• Whats being leaked?
• Credit card, New products information
• Social Security Numbers
• Software pre-release versions
• Business Strategy, Health records, etc.
• Multi-million dollar industry (ILDP)
• Anonymity and Privacy of data
• Information Leakage Detection and Prevention
  (from Wikipedia)

4
Information Leak using Email

• Hard to estimate, but according to PortAuthority
  Technologies

How data is being leaked
5
Email Leaks make good headlines. Just google it

• California Power-Buying Data Disclosed in
  Misdirected E-Mail
• Leaked email exposes MS charity as PR exercise
• Bush Glad FEMA Took Blame for Katrina, According
  to Leaked Email

6
More Email leak in the headlines

• Dell leaked email shows channel plans -Direct
  threat haunts dealers-A leaked email reveals Dell
  wants to get closer to UK resellers.
• Business group say Liberals handled leaked email
  badly.
• Is Leaked eMail a SCO-Microsoft Connection?
• Leaked email may be behind Morgan Stanley's Asia
  economist's sudden resignation

7
Detecting Email Leaks
Email Leak email accidentally sent to wrong
person

• Idea
• Goal to detect emails accidentally sent to the
  wrong person
• Generate artificial leaks Email leaks may be
  simulated by various criteria a typo, similar
  last names, identical first names, aggressive
  auto-completion of addresses, etc.
• Method LOOK FOR OUTLIERS.

Email Leak
8
Avoiding Expensive Email Errors

• Method
• Create simulated/artificial email recipients
• Build model for (msg.recipients) train
  classifier on real data to detect synthetically
  created outliers (added to the true recipient
  list).
• Features textual(subject, body), network
  features (frequencies, co-occurrences, etc).
• Rank potential outliers - Detect outlier and warn
  user based on confidence.

P(rec_t) Probability recipient t is an outlier
given message text and other recipients in the
message.
9
Method
All messages sent and received by the user
Leak classifier is trained with real email data
combined with simulated outliers.
This module produces the simulated outliers.
It simulates the most common types of mistake
that can cause a leak. For instance, email
addresses with the same initial letters, or
addresses with very close spelling, etc.
Flowchart of Leak Detection Application
10
Leak Criteria how to generate (artificial)
outliers

• Several options
• Frequent typos, same/similar last names,
  identical/similar first names, aggressive
  auto-completion of addresses, etc.
• In this paper, we adopted the 3g-address
  criteria
• On each trial, one of the msg recipients is
  randomly chosen and an outlier is generated
  according to

Marina.wang _at_enron.com
1
2
3
Else Randomly select an address book entry
11
(No Transcript)
12
Dataset Enron Email Collection

• Why?
• Large, thousands of messages
• Natural email, not email lists
• Real work environment
• Free
• No privacy concerns
• More than 100 users (with sentreceived msgs)

13
Enron Data Preprocessing 1

• Setup a realistic temporal setup
• For each user, 10 (most recent) sent messages
  will be used as test
• All users had their Address Books extracted
• List of all recipients in the sent messages.

14
Enron Data Preprocessing 2

• ISI version of Enron
• Remove repeated messages and inconsistencies
• Disambiguate Main Enron addresses
• List provided by Corrada-Emmanuel from UMass
• Bag-of-words
• Messages were represented as the union of BOW of
  body and BOW of subject
• Some stop words removed
• Self-addressed messages were removed

15
Experiments using Textual Features only

• Three Baseline Methods
• Random
• Rank recipient addresses randomly
• Cosine or TfIdf Centroid
• Create a TfIdf centroid for each user in
  Address Book. A user1-centroid is the sum of all
  training messages (in TfIdf vector format) that
  were addressed to user user1. For testing, rank
  according to cosine similarity between test
  message and each centroid.
• Knn-30
• Given a test msg, get 30 most similar msgs in
  training set. Rank according to sum of
  similarities of a given user on the 30-msg set.

16
Experiments using Textual Features only
Email Leak Prediction Results Prec_at_1 in 10
trials.
On each trial, a different set of outliers is
generated
17
Network Features

• How frequent a recipient was addressed
• How these recipients co-occurred in the training
  set

18
Using Network Features

• Frequency features
• Number of received messages (from this user)
• Number of sent messages (to this user)
• Number of sentreceived messages
• Co-Occurrence Features
• Number of times a user co-occurred with all other
  recipients. Co-occurr means two recipients were
  addressed in the same message in the training
  set
• Max3g features
• For each recipient R, find Rm (address with max
  score from 3g-address list of R), then use
  score(R)-score(Rm) as feature. Scores come from
  the CV10 procedure. Leak-recipient scores are
  likely to be smaller than their 3g-address
  highest score.

19
To combine textual features with network
features Crossvalidation

• Training
• Use Knn-30 on 10-Fold crossvalidation setting to
  get textual score of each user for all training
  messages
• Turn each train example into R binary examples,
  where R is the number of recipients of the
  message.
• R-1 positive (the real recipients)
• 1 negative (leak-recipient)
• Augment textual score with network features
• Quantize features
• Train a classifier VP5- Classification-based
  ranking scheme
• (VP5Voted Perceptron with 5 passes over training
  set)

20
Results TextualNetwork Features
21
Finding Real Leaks in Enron

• How can we find it?
• Grep for mistake, sorry or accident. We
  were looking for sentences like Sorry. Sent this
  to you by mistake. Please disregard., I
  accidentally send you this reminder, etc.
• How many can we find?
• Dozens of cases.
• Unfortunately, most of these cases were
  originated by non-Enron email addresses or by an
  Enron email address that is not one of the 151
  Enron users whose messages were collected
• Our method requires a collection of sent
  (received) messages from a user. Only 150 Enron
  users .

22
Finding Real Leaks in Enron

• Found 2 good cases
• Message germanyc/sent/930, message has 20
  recipients, leak is alex.perkins_at_
• kitchen-l/sent items/497, it has 44 recipients,
  leak is rita.wynne_at_
• Prepared training data accordingly (90/10 split)
  and no simulated leak added

23
Results Finding Real Leaks in Enron

• Very Disappointing!!
• Reason alex.perkins_at_ and rita.wynne_at_ were never
  observed in the training set!

Prec_at_1, Average Rank, 100 trials
24
Smoothing the leak generation

• Sampling from random unseen recipients with
  probability a

1-a
a
Generate a random email address NOT in Address
Book
25
Some Results

• Kitchen-l has 4 unseen addresses out of the 44
  recipients,
• Germany-c has only one.

26
Mixture parameter a
27
Mixture parameter a
28
Back to the simulated leaks
29
Whats next

• Modeling
• Better, more elegant model
• Email Server side application
• Predict based on all users on mail server
• In companies, use info from all email users
• Privacy issues
• Integration with cc-prediction

30
Related Work

• Email Privacy Enforcement System
• Boufaden et al. (CEAS-2005) - used information
  extraction techniques and domain knowledge to
  detect privacy breaches via email in a university
  environment. Breaches student names, student
  grades and student IDs.
• CC Prediction
• Pal McCallum (CEAS-06) Counterpart problem
  prediction of most likely intended recipients of
  email msg. One single user, limited evaluation,
  not public data
• Expert finding in Email
• Dom et al.(SIGMOD-03), Campbell et al(CIKM-03)
• Balog de Rijke (www-06), Balog et al
  (SIGIR-06)
• Soboroff, Craswell, de Vries (TREC-Enterprise
  2005-06-07) Expert finding task on the W3C
  corpus

31
Thanks!

• Questions?
• Comments?
• Ideas?

32
(No Transcript)
33
http//www.workshare.com/company/blog/default.aspx
?11postid18titleData-Leak-Bank-Loses-IPO-Rol
e

• Data Leak Bank Loses IPO
• Deutsche Bank has lost its spot among the
  underwriters of Hertz Global Holdings Inc.'s
  initial public offering after several e-mails
  discussing the 1.5 billion initial public
  offering were inadvertently sent by the bank.
  This security breach will not only affect them
  financially, but will no doubt weaken their
  ability to capture new business in the future. A
  simple data security policy within Protect
  Enterprise Suite would have stopped this leak
  from occurring.
• Source Bloomberg.com

34
http//hrwatch.counciloned.com/060705/Email.htm
35
Cases of Malicious Leaks

• In October 2002, an email sent from Merrill Lynch
  to Standard Poor's in which
• it requested an assessment of Commerzbank was
  leaked, causing the latter to
• issue a statement regarding its financial
  robustness.
• In October 2002, an internal Dell Computer
  document regarding its plan to enter
• the PDA market was leaked and posted on a French
  Web site.
• In February 2004, portions of the Windows 2000
  and Windows NT 4 source code
• databases were leaked, apparently by one of its
  outsourcers for code
• development.
• In September 2004, a former helpdesk employee at
  Teledata Communications
• pleaded guilty to a scheme to steal and sell
  30,000 consumer credit reports of
• the company's customers.
• In October 2004, confidential information about
  145,000 American residents was
• leaked from identification and credential
  verification services provider
• ChoicePoint. The company registered 11.4 million
  in charges related to this
• incident.
• In December 2004, Apple filed a lawsuit against
  three members of its Apple
• Developer Connection network, who allegedly
  distributed a pre-release version of
• "Tiger," the company's next major Mac OS X
  release, through the P2P filesharing
• network BitTorrent.

36
http//flagrantharbour.com/?p206

• Sun Hung Kai email leak
• Another classic example of a stupendous security
  breach, this time by Sun Hung Kais online
  brokerage operation, SHK Online.
• Hundreds of account holders received the
  following email, sent on April 4
• Dear Client,
• We notice that there has been no securities
  trading activities in your account with SHK
  ONLINE (SECURITIES) LIMITED for a long time and
  the account is currently showing a ZERO balance.
  As part of our companys regular account
  maintenance, we will classify such accounts as
  INACTIVE. Should the account remain in such
  INACTIVE status without any balance and/or
  securities trading activities by 4 May 2006, your
  account will be closed automatically without
  further notice.
• Should you wish to reactivate your account,
  please contact our customer service hotline at
  (852) 2822 5001 or email us at enquiry_at_shkonline.c
  om as soon as possible for assistance.
• Regards,
• Customer Service Department
• SHK Online (Securities) LtdLevel 11, One Pacific
  Place,88 Queensway, Hong Kong.
• Tel [phone]Fax [phone]
• Whats wrong with this? I hear you ask. And how
  do I know how many people received it?
• The wrong is that the email addresses of the
  recipients were all congregated together in the
  TO field. The recipients were not BCCd nor were
  they sent this newsletter style using a mailer.
