Analyzing Brain Signals by Combinatorial Optimization

1
Analyzing Brain Signals by Combinatorial
Optimization
Quantifying statistical interdependence of point
processes Application to spike data and EEG

• Justin Dauwels
• LIDS, MIT
• Amari Research Unit, Brain Science Institute,
  RIKEN
• December 1, 2008

2
Topics

• Mathematical problem
• Similarity of Multiple Point Processes
• Motivation/Application
• Early diagnosis of Alzheimers disease from EEG
  signals
• Along the way
• Spike synchrony

Collaborators François Vialatte, Theophane
Weber, and Andrzej Cichocki (RIKEN, MIT)
Financial Support
3
Alzheimer's disease
One disease, many symptoms
Evolution of the disease (stages)
EEG data

• 2 to 5 years before
• mild cognitive impairment (MCI)
• 6 to 25 progress to Alzheimers

memory, language, executive functions, apraxia,
apathy, agnosia, etc

• Mild (early stage)
• becomes less energetic or spontaneous
• noticeable cognitive deficits
• still independent (able to compensate)

Memory (forgetting relatives)

• Moderate (middle stage)
• Mental abilities decline
• personality changes
• become dependent on caregivers

Apathy

• Severe (late stage)
• complete deterioration of the personality
• loss of control over bodily functions
• total dependence on caregivers

Video sources Alzheimer society

• 2 to 5 of people over 65 years old
• up to 20 of people over 80
• Jeong 2004 (Nature)

GOAL Diagnosis of MCI based on EEG

• EEG is relatively simple and inexpensive
  technology
• Early diagnosis medication more effective, more
  time to prepare future care of patient, etc.

4
Overview

• Alzheimers Disease (AD)
• decrease in EEG synchrony
• Similarity of Point Processes
• Two 1-D point processes
• Two multi-D point processes
• Multiple multi-D point processes
• Numerical Results
• Conclusion

5
Alzheimer's disease
Inside glimpse abnormal EEG
EEG system inexpensive, mobile, useful for
screening
Brain slow-down
slow rhythms (0.5-8 Hz) fast rhythms (8-30 Hz)
(Babiloni et al., 2004 Besthorn et al.,
1997 Jelic et al. 1996, Jeong 2004 Dierks et
al., 1993).
focus of this project
Decrease of synchrony

• AD vs. MCI (Hogan et al. 203 Jiang et
  al., 2005)
• AD vs. Control (Hermann, Demilrap, 2005,
  Yagyu et al. 1997 Stam et al., 2002 Babiloni et
  al. 2006)
• MCI vs. mildAD (Babiloni et al., 2006).

Images www.cerebromente.org.br
6
Spontaneous (scalp) EEG
Time-frequency X(t,f)2 (wavelet transform)
f (Hz)
Time-frequency patterns (bumps)
Fourier X(f)2
Fourier power
t (sec)
amplitude
EEG x(t)
7
Sparse representation bump model
f(Hz)
f(Hz)
Bumps Sparse representation
t (sec)
f(Hz)
t (sec)
104- 105 coefficients
t (sec)

• Assumptions
• time-frequency map is suitable representation
• oscillatory bursts (bumps) convey key
  information

about 102 parameters
F. Vialatte et al. A machine learning approach
to the analysis of time-frequency maps and its
application to neural dynamics, Neural Networks
(2007).
8
Similarity of bump models
How similar are n 2 bump models?
Similarity of multiple multi-dimensional point
processes
with
and
point / event
9
Overview

• Alzheimers Disease (AD)
• decrease in EEG synchrony
• Similarity of Point Processes
• Two 1-dim point processes
• Two multi-dim point processes
• Multiple multi-dim point processes
• Numerical Results
• Conclusion

10
Two one-dimensional point processes
x
t
0
x
0
t
How synchronous/similar? Classical methods for
continuous time series fail e.g.,
cross-correlation
11
Two aspects of synchrony

• Analogy waiting for a train
• Train may not arrive (e.g., mechanical problem)
• Event reliability
• Train may or may not be on time
• Timing precision

12
Two 1-dim point processes

• Review of Spike Synchrony Measures
• Surrogate Spike Data
• Spike Trains from Morris-Lecar Neuron
• Conclusion

13
Spike Synchrony Measures

• Von Rossum distance (mixed)
• Schreiber et al similarity measure (mixed)
• Hunter-Milton similarity measure (mixed)
• Victor-Purpura distance metric (event
  reliability)
• Event synchronization (mixed)
• Stochastic event synchrony
• (timing precision and event reliability)

14
Van Rossum distance measure

• Spikes convolved with exponential or Gaussian
  function
• ? spike trains converted into time series s(t)
  and s(t)
• Squared distance between s(t) and s(t)
• If x x, we have DR 0
• Time constant tR

tR
van Rossum M.C.W., 2001. A novel spike distance.
Neural Computation 13, 75163.
15
Schreiber et al. similarity measure

• Spikes convolved with exponential or Gaussian
  function
• ? spike trains converted into time series s(t)
  and s(t)
• Correlation between s(t) and s(t)
• If x x, we have SS 1
• Time constant tS

Schreiber S., Fellous J.M., Whitmer J.H.,
Tiesinga P.H.E., and Sejnowski T.J., 2003. A new
correlation-based measure of spike timing
reliability. Neurocomputing 52, 925931.
16
Victor-Purpura distance measure

• Minimal cost DV of transforming x into x'
• Basic operations
• event insertion/deletion cost 1
• event movement cost proportional to distance
  (constant CV)
• If x x, we have DV 0
• Time constant tV 1/CV

DELETION
INSERTION
Victor J. D. and Purpura K. P., 1997.
Metric-space analysis of spike trains theory,
algorithms, and application. Network Comput.
Neural Systems 8(17), 127164.
17
Stochastic Event Synchrony

• x and x synchronous if identical apart from
• delay
• little timing jitter
• few deletions/insertions
• based on generative statistical model

x
0
v
0
x
0
Dauwels J., Vialatte F., Rutkowski T., and
Cichocki A., 2007. Measuring neural synchrony by
message passing, NIPS 20, in press.
18
Stochastic Event Synchrony
T0
v
0
T0
-dt /2
T0
dt /2
Stochastic event synchrony (SES) delay dt ,
jitter st , non-coincidence ?
Dauwels J., Vialatte F., Rutkowski T., and
Cichocki A., 2007. Measuring neural synchrony by
message passing, NIPS 20, in press.
19
Stochastic Event Synchrony
T0
v
0
T0
-dt /2
T0
dt /2
Dauwels J., Vialatte F., Rutkowski T., and
Cichocki A., 2007. Measuring neural synchrony by
message passing, NIPS 20, in press.
20
Probabilistic inference
PROBLEM Given 2 point processes x and x,
compute ? and ? dt , st
APPROACH (j, j,?) argmaxj,j,? log p(x,
x, j, j,?)
SOLUTION Coordinate descent (j(i1) , j(i1)
) argmaxj,j log p(x, x, j , j , ?(i))
?(i1) argmaxx log p(x, x, j(i1) ,
j(i1) , ?)
DYNAMIC PROGRAMMING
PARAMETER ESTIMATION
x6
x5
x4
x3
x2
x1
xk non-coincident
xk non-coincident
(xk xk ) coincident pair
0
0
x1
x2
x3
x4
x5
x6
21
Spike Synchrony Measures

• Von Rossum distance (mixed)
• Schreiber et al similarity measure (mixed)
• Hunter-Milton similarity measure (mixed)
• Victor-Purpura distance metric (event
  reliability)
• Event synchronization (mixed)
• Stochastic event synchrony
• (timing precision and event reliability)

22
Two 1-dim point processes

• Review of Spike Synchrony Measures
• Surrogate Spike Data
• Spike Trains from Morris-Lecar Neuron
• Conclusion

23
Surrogate Data

• pd 0, 0.1, , 0.4 (deletion probability)
• dt 0, 25, and 50 ms (delay)
• st 10, 30, and 50 ms (timing jitter)
• length of hidden sequence 40/(1-pd)
• expected length of x and x 40
• ES computed over 10000 pairs

24
Surrogate Data Results
dt 0
Van Rossum measure DR similar for SS ,SH ,SQ
Victor Purpura measure DV

• EDR increases with pd and st
• ? DR cannot distinguish timing dispersion from
  event reliability
• (likewise all measures except SES and DV)
• EDV increases with pd, practically
  independent of st
• ? DV measure for event reliability
• ONLY curves for dt 0ms, measures strongly
  depend on lag

25
Surrogate Data Results for SES

• Est increases with st, practically independent
  of pd
• ? st measure for timing dispersion
• E? increases with pd, practically independent
  of st
• ? ? measure for event reliability
• Curves for dt 0, 25, and 50 ms practically
  coincident

26
Two 1-dim point processes

• Review of Spike Synchrony Measures
• Surrogate Spike Data
• Spike Trains from Morris-Lecar Neuron
• Conclusion

27
Morris-Lecar Neurons

• Simple neuron model
• Exhibits behavior of Type I II neurons
  (saddle-node/Hopf bifurc.)
• Input current baseline sinusoid Gaussian
  noise
• Membrane potential

Spiking threshold
Type II
Type I
5 trials
28
Morris-Lecar Neurons (2)
Type II
Type I
50 trials
Low reliability Small timing dispersion
High reliability Large timing dispersion
jitter st (3ms)2, non-coincidence ? 27
jitter st (15ms)2, non-coincidence ? 3
29
Morris-Lecar Neurons Results

• Small t Type II has larger similarity than type
  I (dispersion in Type I)
• Large t Type I has larger similarity than type
  II (drop-outs in Type II)
• Observation
• Similarity depends on time constant t ?
  similarity FUNCTION S(t)
• SES AUTOMATICALLY selects st

30
Two 1-dim point processes

• Review of Spike Synchrony Measures
• Surrogate Spike Data
• Spike Trains from Morris-Lecar Neuron
• Conclusion

31
Conclusion

• Similarity of pairs of spike trains timing
  precision and reliability
• Comparison of various spike synchrony measures
• Most measures not able to separate the two
  aspect of synchrony
• Exception Victor-Purpura and Stochastic Event
  Synchrony
• Victor-Purpura event reliability
• SES both timing precision and event reliability
• Most measures depend on time constant, to be
  chosen by user
• Exception Event Synchronization and SES
• Most measures sensitive to lags between the two
  spike trains
• Exception SES
• Future work application to neurophysiological
  recordings

32
Overview

• Alzheimers Disease (AD)
• decrease in EEG synchrony
• Similarity of Point Processes
• Two 1-dim point processes
• Two multi-dim point processes
• Multiple multi-dim point processes
• Numerical Results
• Conclusion

33
Similarity of two bump models...
34
... by matching bumps

• Bumps in one model, but NOT in other
• ? fraction of non-coincident bumps ?
• Bumps in both models, but with offset
• ? Average time offset dt (delay)
• ? Timing jitter with variance st
• ? Average frequency offset df
• ? Frequency jitter with variance sf

Stochastic Event Synchrony (SES) (?, dt,
st, df, sf )
PROBLEM Given two bump models, compute (?, dt,
st, df, sf )
35
Generative model
yhidden

• Generate bump model (hidden)
• geometric prior for number of bumps
• bumps are uniformly distributed in rectangle
• amplitude, width (in t and f) all i.i.d.

• Generate two noisy observations
• offset between hidden and observed bump
• Gaussian random vector with
• mean ( dt /2, df /2)
• covariance diag(st/2, sf /2)
• amplitude, width (in t and f) all i.i.d.
• deletion with probability pd

y
y
( -dt /2, -df /2)
( dt /2, df /2)
Dauwels J., Vialatte F., Rutkowski T., and
Cichocki A., 2007. Measuring neural synchrony by
message passing, NIPS 20, in press.
36
Summary
PROBLEM Given two bump models, compute (?, dt,
st, df, sf )
?
APPROACH (c,?) argmaxc,? log p(y, y, c,
?)
SOLUTION Coordinate descent c(i1)
argmaxc log p(y, y, c, ?(i) ) ?(i1)
argmaxx log p(y, y, c(i1) ,? )
MATCHING ? max-product
ESTIMATION ? closed-form
Dauwels J., Vialatte F., Rutkowski T., and
Cichocki A., 2007. Measuring neural synchrony by
message passing, NIPS 20, in press.
37
Average synchrony
3. SES for each pair of models 4. Average the SES
parameters

1. Group electrodes in regions
2. Bump model for each region

38
Overview

• Alzheimers Disease (AD)
• decrease in EEG synchrony
• Similarity of Point Processes
• Two 1-dim point processes
• Two multi-dim point processes
• Multiple multi-dim point processes
• Numerical Results
• Conclusion

39
Beyond pairwise interactions
Multi-variate similarity
Pairwise similarity
40
Similarity of multiple bump models
y2
y1
y3
y4
y5

• Models similar if
• few deletions/large clusters
• little jitter

y1
y2
y3
y4
y5
Constraint in each cluster at most one bump
from each signal
Dauwels J., Vialatte F., Weber T. and Cichocki.
Analyzing Brain Signals by Combinatorial
Optimization, Allerton 2008.
41
Generative model
yhidden

• Generate bump model (hidden)
• geometric prior for number n of bumps
• bumps are uniformly distributed in rectangle
• amplitude, width (in t and f) all i.i.d.

y1
y2
y3
y4
y5

• Generate M noisy observations
• offset between hidden and observed bump
• Gaussian random vector with
• mean ( dt,m /2, df,m /2)
• covariance diag(st,m/2, sf,m
  /2)
• amplitude, width (in t and f) all i.i.d.
• deletion with probability pd

pc (i) p(cluster size i y) (i
1,2,,M)
Parameters ? dt,m , df,m , st,m , sf,m, pc
Dauwels J., Vialatte F., Weber T. and Cichocki.
Analyzing Brain Signals by Combinatorial
Optimization, Allerton 2008.
42
Probabilistic inference
PROBLEM Given M bump models, compute ? dt,m ,
df,m , st,m , sf,m, pc
APPROACH (b,?) argmaxb,? log p(y, y, b,
?)
SOLUTION Coordinate descent b(i1)
argmaxc log p(y, y, b, ?(i) ) ?(i1)
argmaxx log p(y, y, b(i1) ,? )
CLUSTERING (Integer Program)
ESTIMATION OF PARAMETERS

• Integer programming methods (e.g., LP relaxation)
• IP with 10.000 variables solved in about 1s
• CPLEX commercial toolbox for solving IPs
  (combines several algorithms)

Dauwels J., Vialatte F., Weber T. and Cichocki.
Analyzing Brain Signals by Combinatorial
Optimization, Allerton 2008.
43
Overview

• Alzheimers Disease (AD)
• decrease in EEG synchrony
• Similarity of Point Processes
• Two 1-dim point processes
• Two multi-dim point processes
• Multiple multi-dim point processes
• Numerical Results
• Conclusion

44
EEG Data

• EEG of 22 Mild Cognitive Impairment (MCI)
  patients and 38 age-matched
• control subjects (CTR) recorded while in rest
  with closed eyes
• ? spontaneous EEG
• All 22 MCI patients suffered from Alzheimers
  disease (AD) later on
• Electrodes located on 21 sites according to
  10-20 international system
• Electrodes grouped into 5 zones (reduces number
  of pairs)
• 1 bump model per zone
• Band pass filtered between 4 and 30 Hz

EEG data provided by Prof. T. Musha
45
Similarity measures

• Correlation and coherence
• Granger causality (linear system) DTF, ffDTF,
  dDTF, PDC, PC, ...
• Phase Synchrony compare instantaneous phases
  (wavelet/Hilbert transform)
• State space based measures
• sync likelihood, S-estimator,
  S-H-N-indices, ...
• Information-theoretic measures

FREQUENCY
TIME
No Phase Locking
Phase Locking
46
Sensitivity (average synchrony)
Corr/Coh
Granger
Info. Theor.
State Space
Phase

SES
Significant differences for ffDTF and SES (more
unmatched bumps, but same amount of jitter)
Mann-Whitney test small p value suggests large
difference in statistics of both groups
47
Classification (bi-SES)
85 correctly classified
ffDTF

• Clear separation, but not yet useful as
  diagnostic tool
• Additional indicators needed (fMRI, MEG, DTI,
  ...)
• Can be used for screening population
  (inexpensive, simple, fast)

48
Correlations
Strong (anti-) correlations families of
sync measures
49
Overview

• Alzheimers Disease (AD)
• decrease in EEG synchrony
• Similarity of Point Processes
• Two 1-dim point processes
• Two multi-dim point processes
• Multiple multi-dim point processes
• Numerical Results
• Conclusion

50
Conclusions

• Measure for similarity of point processes
• Key idea matching of events
• Applications
• Spiking synchrony (surrogate data/Morris Lecar
  neuron)
• EEG synchrony of MCI patients
• SES allows to distinguish event reliability from
  timing precision
• About 85-90 correctly classified MCI vs. healthy
  subjects
• perhaps useful for screening a large
  population
• Future work
• Combination with other modalities (MEG, fMRI,
  ...)
• Integration of biophysical models
• Alternative inference techniques (variations on
  max-product, Monte-Carlo)

51

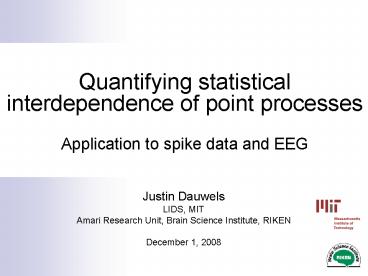

Analyzing Brain Signals by Combinatorial
Optimization
Quantifying statistical interdependence of point
processes Application to spike data and EEG

• Justin Dauwels
• LIDS, MIT
• Amari Research Unit, Brain Science Institute,
  RIKEN
• December 1, 2008

52
References software

• References
• Quantifying Statistical Interdependence by
  Message Passing on Graphs
• PART I One-Dimensional Point Processes, Neural
  Computation (under revision)
• Quantifying Statistical Interdependence by
  Message Passing on Graphs
• PART II Multi-Dimensional Point Processes,
  Neural Computation (under revision)
• Quantifying Statistical Interdependence by
  Message Passing on Graphs
• PART III Multivariate Approach, Neural
  Computation (in preparation)
• A Comparative Study of Synchrony Measures for the
  Early Diagnosis of Alzheimer's Disease
• Based on EEG, NeuroImage (under revision)
• On the Early Diagnosis of Alzheimer's Disease
  Based on EEG,
• Current Alzheimers Research (in preparation,
  invited review)
• Measuring Neural Synchrony by Message Passing,
  NIPS 2007

• Software
• MATLAB implementation of the synchrony measures
• MATLAB Toolbox for bump modelling

.
53
Summary
Similarity of multiple multi-dimensional point
processes
Step 1 TWO ONE-dimensional point processes
Dynamic programming
Step 2 TWO MULTI-dimensional point processes
Max-product/LP relaxation/Edmund-Karp
Step 3 MULTIPLE MULTI-dimensional point processes
Integer Programming
54
Estimation
Simple closed form expressions
Deltas average offset
Sigmas var of offset
artificial observations (conjugate prior)
...where
55
Large-scale synchrony
Apparently, all brain regions affected...
56
Alzheimer's disease
Outside glimpse the future (prevalence)
USA (Hebert et al. 2003)

• 2 to 5 of people over 65 years old
• Up to 20 of people over 80
• Jeong 2004 (Nature)

Million of sufferers
World (Wimo et al. 2003)
Million of sufferers
57
Ongoing and future work
Applications

• Fluctuations of EEG synchrony
• Caused by auditory stimuli and music (T.
  Rutkowski)
• Caused by visual stimuli (F. Vialatte)
• Yoga professionals (F. Vialatte)
• Professional shogi players (RIKEN Fujitsu)
• Brain-Computer Interfaces (T. Rutkowski)
• Spike data from interacting monkeys (N. Fujii)
• Calcium propagation in gliacells (N. Nakata)
• Neural growth (Y. Tsukada Y. Sakumura)
• ...

Algorithms

• alternative inference techniques (e.g., MCMC,
  linear programming)
• time dependent (Gaussian processes)
• multivariate (T.Weber)

58
Fitting bump models
?
Signal
gradient method
F. Vialatte et al. A machine learning approach
to the analysis of time-frequency maps and its
application to neural dynamics, Neural Networks
(2007).
59
Boxplots

• SURPRISE!
• No increase in jitter, but significantly less
  matched activity!
• Physiological interpretation
• neural assemblies more localized?
• harder to establish large-scale synchrony?

60
Generative model
yhidden

• Generate bump model (hidden)
• geometric prior for number n of bumps
• p(n) (1- ? S) (? S)-n
• bumps are uniformly distributed in rectangle
• amplitude, width (in t and f) all i.i.d.

• Generate two noisy observations
• offset between hidden and observed bump
• Gaussian random vector with
• mean ( dt /2, df /2)
• covariance diag(st/2, sf /2)
• amplitude, width (in t and f) all i.i.d.
• deletion with probability pd

y
y
( -dt /2, -df /2)
( dt /2, df /2)
Easily extendable to more than 2 observations
61
Probabilistic inference
PROBLEM Given two bump models, compute (?spur,
dt, st, df, sf )
?
APPROACH (c,?) argmaxc,? log p(y, y, c,
?)
SOLUTION Coordinate descent c(i1)
argmaxc log p(y, y, c, ?(i) ) ?(i1)
argmaxx log p(y, y, c(i1) ,? )
MATCHING
POINT ESTIMATION
62
Alzheimer's disease
Inside glimpse abnormal EEG
EEG system inexpensive, mobile, useful for
screening
Brain slow-down
slow rhythms (0.5-8 Hz) fast rhythms (8-30 Hz)
(Babiloni et al., 2004 Besthorn et al.,
1997 Jelic et al. 1996, Jeong 2004 Dierks et
al., 1993).
focus of this project
Decrease of synchrony

• AD vs. MCI (Hogan et al. 203 Jiang et
  al., 2005)
• AD vs. Control (Hermann, Demilrap, 2005,
  Yagyu et al. 1997 Stam et al., 2002 Babiloni et
  al. 2006)
• MCI vs. mildAD (Babiloni et al., 2006).

Images www.cerebromente.org.br
63
Comparing EEG signal rhythms ?

2 signals
PROBLEM I Signals of 3 seconds sampled at
100 Hz (? 300 samples) Time-frequency
representation of one signal about 25 000
coefficients
64
Comparing EEG signal rhythms ?(2)
PROBLEM II Shifts in time-frequency!
65
Generative model
yhidden

• Generate bump model (hidden)
• geometric prior for number n of bumps
• p(n) (1- ? S) (? S)-n
• bumps are uniformly distributed in rectangle
• amplitude, width (in t and f) all i.i.d.

y1
y2
y3
y4
y5

• Generate M noisy observations
• offset between hidden and observed bump
• Gaussian random vector with
• mean ( dt,m /2, df,m /2)
• covariance diag(st,m/2, sf,m
  /2)
• amplitude, width (in t and f) all i.i.d.
• deletion with probability pd

pc (i) p(cluster size i y) (i
1,2,,M)
Parameters ? dt,m , df,m , st,m , sf,m, pc
66
Classification (multi-SES)
Average bump freq
85 correctly classified
Average cluster size
Average bump width
90 correctly classified
Average cluster size
ffDTF
67
Similarity of bump models...
How similar or synchronous are two bump
models?
68
Signatures of local synchrony
f (Hz)

Time-frequency patterns (bumps)
EEG stems from thousands of neurons bump if
neurons are phase-locked local synchrony
t (sec)
69
Alzheimer's disease
Inside glimpse brain atrophy
amyloid plaques and neurofibrillary tangles
Video source Alzheimer society
Images Jannis Productions. (R. Fredenburg S.
Jannis)
Video source P. Thompson, J.Neuroscience, 2003
70
Probabilistic inference
POINT ESTIMATION ?(i1) argmaxx log p(y, y,
c(i1) ,? )
Uniform prior p(?) dt, df average
offset, st, sf variance of offset Conjugate
prior p(?) still closed-form expression Other
kind of prior p(?) numerical optimization
(gradient method)
71
Probabilistic inference
MATCHING c(i1) argmaxc log p(y, y, c, ?(i)
)
EQUIVALENT to (imperfect) bipartite max-weight
matching problem c(i1) argmaxc log p(y, y,
c, ?(i) ) argmaxc Skk wkk(i) ckk
s.t. Sk ckk 1 and Sk ckk 1 and ckk 2
0,1
find heaviest set of disjoint edges
not necessarily perfect

• ALGORITHMS
• Polynomial-time algorithms gives optimal
  solution(s) (Edmond-Karp and Auction
  algorithm)
• Linear programming relaxation extreme points of
  LP polytope are integral
• Max-product algorithm gives optimal solution if
  unique Bayati et al. (2005), Sanghavi (2007)

72
Max-product algorithm
MATCHING c(i1) argmaxc log p(y, y, c, ?(i)
)
Generative model
p(y, y, c, ?) / I(c) p?(?) ?kk (N(t k tk
dt ,st,kk) N(f k fk df ,sf, kk) ß-2)ckk
73
Max-product algorithm
MATCHING c(i1) argmaxc log p(y, y, c, ?(i)
)
Conditioning on ?
µ?
µ?
µ?
µ?
74
Max-product algorithm (2)

• Iteratively compute messages
• At convergence, compute marginals p(ckk)
  µ?(ckk) µ?(ckk) µ?(ckk)

75
Algorithm
PROBLEM Given two bump models, compute (?spur,
dt, st, df, sf )
?
APPROACH (c,?) argmaxc,? log p(y, y, c,
?)
SOLUTION Coordinate descent c(i1)
argmaxc log p(y, y, c, ?(i) ) ?(i1)
argmaxx log p(y, y, c(i1) ,? )
MATCHING ? max-product
ESTIMATION ? closed-form
76
Generative model
yhidden

• Generate bump model (hidden)
• geometric prior for number n of bumps
• p(n) (1- ? S) (? S)-n
• bumps are uniformly distributed in rectangle
• amplitude, width (in t and f) all i.i.d.

• Generate two noisy observations
• offset between hidden and observed bump
• Gaussian random vector with
• mean ( dt /2, df /2)
• covariance diag(st/2, sf /2)
• amplitude, width (in t and f) all i.i.d.
• deletion with probability pd

y
y
( -dt /2, -df /2)
( dt /2, df /2)
Easily extendable to more than 2 observations
77
Generative model (2)
y
y
i
( -dt /2, -df /2)
i
j
( dt /2, df /2)

• Binary variables ckk
• ckk 1 if k and k are observations of
  same hidden bump, else ckk 0 (e.g., cii 1
  cij 0)
• Constraints bk Sk ckk and bk Sk ckk
  are binary (matching constraints)
• Generative Model p(y, y, yhidden , c, dt , df
  , st , sf ) (symmetric in y and y)
• Eliminate yhidden ? offset is Gaussian RV with
  mean ( dt , df ) and covariance diag (st , sf)
• Probabilistic Inference

?
p(y, y, c, ?) ? p(y, y, yhidden , c, ?)
dyhidden
(c,?) argmaxc,? log p(y, y, c, ?)
78
Summary

• Bumps in one model, but NOT in other
• ? fraction of spurious bumps ?spur
• Bumps in both models, but with offset
• ? Average time offset dt (delay)
• ? Timing jitter with variance st
• ? Average frequency offset df
• ? Frequency jitter with variance sf

PROBLEM Given two bump models, compute (?spur,
dt, st, df, sf )
?
APPROACH (c,?) argmaxc,? log p(y, y, c,
?)
79
Objective function
y
y
i
( -dt /2, -df /2)
i
j
( dt /2, df /2)

• Logarithm of model log p(y, y, c, ?) Skk
  wkk ckk log I(c) log p?(?) ?

wkk -(1/st (t k tk dt)2 1/sf (f k
fk df)2 ) - 2 log ß ß pd (?/V)1/2
Euclidean distance between bump centers

• Large wkk if a) bumps are close b)
  small pd c) few bumps per volume element
• No need to specify pd , ?, and V, they only
  appear through ß knob to control matches

80
Distance measures
Scaling
wkk 1/st,kk (t k tk dt)2 1/sf,kk
(f k fk df)2 2 log ß st,kk (?tk
?tk) st sf,kk (?fk ?fk) sf

Non-Euclidean
81
Generative model
p(y, y, c, ?) / I(c) p?(?) ?kk (N(t k tk
dt ,st,kk) N(f k fk df ,sf, kk) ß-2)ckk
82
Prior for parameters

• Expect bumps to appear at about same frequency,
  but delayed
• Frequency shift requires non-linear
  transformation, less likely than delay
• Conjugate priors for st and sf (scaled inverse
  chi-squared)
• Improper prior for dt and dt p(dt) 1 p(df)

83
Preliminary results for multi-variate model
linear comb of pc

CTR
MCI
84
Probabilistic inference
PROBLEM Given two bump models, compute (?spur,
dt, st, df, sf )
?
APPROACH (c,?) argmaxc,? log p(y, y, c,
?)
SOLUTION Coordinate descent c(i1)
argmaxc log p(y, y, c, ?(i) ) ?(i1)
argmaxx log p(y, y, c(i1) ,? )
MATCHING
POINT ESTIMATION
Minx2 X, y2Y d(x,y)
X
Y
85
Generative model
yhidden

• Generate bump model (hidden)
• geometric prior for number n of bumps
• p(n) (1- ? S) (? S)-n
• bumps are uniformly distributed in rectangle
• amplitude, width (in t and f) all i.i.d.

y1
y2
y3
y4
y5

• Generate M noisy observations
• offset between hidden and observed bump
• Gaussian random vector with
• mean ( dt,m /2, df,m /2)
• covariance diag(st,m/2, sf,m
  /2)
• amplitude, width (in t and f) all i.i.d.
• deletion with probability pd
• (other prior pc0 for cluster size)

pc (i) p(cluster size i y) (i
1,2,,M)
Parameters ? dt,m , df,m , st,m , sf,m, pc
86
Role of local synchrony
Stimuli
Consolidation
Stimulus
Assembly activation
Assembly recall
Hebbian consolidation
Voice
Face
Voice
(Hebb 1949, Fuster 1997)
87
Probabilistic inference
PROBLEM Given M bump models, compute ? dt,m ,
df,m , st,m , sf,m, pc
APPROACH (c,?) argmaxc,? log p(y, y, c,
?)
SOLUTION Coordinate descent c(i1)
argmaxc log p(y, y, c, ?(i) ) ?(i1)
argmaxx log p(y, y, c(i1) ,? )
CLUSTERING (IP or MP)
POINT ESTIMATION

• Integer program
• Max-product algorithm (MP) on sparse graph
• Integer programming methods (e.g., LP
  relaxation)

88
Fourier transform
2
3
1
3
2
1

Frequency
High frequency
Low frequency
89
Windowed Fourier transform


Fourier basis functions
Window function
windowed basis functions
f
Windowed Fourier Transform
t
90
Overview

• Alzheimers Disease (AD)
• decrease in EEG synchrony
• Synchrony measure in time-frequency domain
• Pairs of EEG signals
• Collections of EEG signals
• Numerical Results
• Conclusion

91
Average synchrony
3. SES for each pair of models 4. Average the SES
parameters

1. Group electrodes in regions
2. Bump model for each region

92
Beyond pairwise interactions...
Multi-variate similarity
Pairwise similarity
93
Similarity measures

• Correlation and coherence
• Granger causality (linear system) DTF, ffDTF,
  dDTF, PDC, PC, ...
• Phase Synchrony compare instantaneous phases
  (wavelet/Hilbert transform)
• State space based measures
• sync likelihood, S-estimator,
  S-H-N-indices, ...
• Information-theoretic measures

FREQUENCY
TIME
No Phase Locking
Phase Locking
94
Generative model (2)
Model
Cost function
unit cost of non-coincident event
unit cost of coincident pair
95
Surrogate Data Results (2)

• SS depends on dt
• likewise other S except SES

96
Probabilistic inference
PROBLEM Given two bump models, compute (?, dt,
st, df, sf )
?
APPROACH (c,?) argmaxc,? log p(y, y, c,
?)
SOLUTION Coordinate descent c(i1)
argmaxc log p(y, y, c, ?(i) ) ?(i1)
argmaxx log p(y, y, c(i1) ,? )
MATCHING
POINT ESTIMATION
97
Probabilistic inference (2)
MATCHING c(i1) argmaxc log p(y, y, c, ?(i)
)
EQUIVALENT to (imperfect) bipartite max-weight
matching problem c(i1) argmaxc log p(y, y,
c, ?(i) ) argmaxc Skk wkk(i) ckk
s.t. Sk ckk 1 and Sk ckk 1 and ckk 2
0,1
find heaviest set of disjoint edges
not necessarily perfect

• ALGORITHMS
• Polynomial-time algorithms gives optimal
  solution(s) (Edmond-Karp and Auction
  algorithm)
• Linear programming relaxation gives optimal
  solution if unique Sanghavi (2007)
• Max-product algorithm gives optimal solution if
  unique Bayati et al. (2005), Sanghavi (2007)

98
Max-product algorithm
MATCHING c(i1) argmaxc log p(y, y, c, ?(i)
)
µ?
µ?
µ?
µ?

• At convergence, compute marginals p(ckk)
  µ?(ckk) µ?(ckk) µ?(ckk)
• Decisions ckk argmaxckk p(ckk)
  (optimal if solution unique)

99
Exemplar-based formulation
yhidden
y1
y2
y3
y4
y5

• Exemplars identical copies of hidden bumps
  cluster center
• Other bumps in cluster non-identical copies of
  exemplars

• Is event an exemplar?
• If not, which exemplar is it associated with?
• Several constraints

Integer program
100
Exemplar-based formulation IP
Binary Variables
Integer Program LINEAR objective
function/constraints
Equivalent to k-dim matching for k 2 in P but
for k gt 2 NP-hard!
