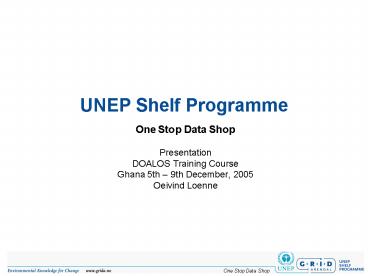

UNEP Shelf Programme

1
UNEP Shelf Programme

• One Stop Data Shop
• Presentation
• DOALOS Training Course
• Ghana 5th 9th December, 2005
• Oeivind Loenne

One Stop Data Shop
2
Mandate UN General Assembly 2002

• Calls upon the United Nations Environment
  Programme, working within the Global Resource
  Information Database (GRID) system for data and
  information management, to expand on a voluntary
  basis the capacity of existing GRID centres to
  store and handle research data from the outer
  continental margin, on a basis to be mutually
  agreed with the coastal State, and complementary
  to existing regional data centres, giving due
  regard to confidentiality needs and in accordance
  with Part XIII of the Convention, and making use
  of existing data management mechanisms under the
  Intergovernmental Oceanographic Commission and
  the International Hydrographic Organisation, with
  a view to serving the needs of coastal States,
  and in particular developing countries and small
  island developing States, in their compliance
  with article
• 76 of the Convention

One Stop Data Shop
3
Mandate Break Down

• store and handle research data
• outer continental margin
• mutually agreed with the coastal state
• complementary to existing regional data centres
• confidentiality needs
• Part XIII of the Convention
• use of existing data management mechanisms
• Intergovernmental Oceanographic Commission
• International Hydrographic Organisation
• coastal states, in particular developing
  countries and SIDS

One Stop Data Shop
4
The Start - Arendal Workshop
Representatives from
Mozambique Angola Seychelles Senegal Madagascar
Cape Verde Philippines Sri Lanka
Conclusion The most efficient way to make use of
UNEPs GRID system is to establish a centre for
the management of marine geophysical, bathymetric
and geological research data that will be hosted
in one of its centres. Workshop participants
identified and need for such a "one stop data
shop".
One Stop Data Shop
5
Data Sources
One Stop Data Shop
6
Typical Data Flow
Meta Data (data about the data)
Cultural Data
Seismic Data
Well Data
Handling Processing Homogenization
Bathymetry Data
Velocity Data
Grav/Mag Data
Secure Storage Confidential

Modern interpretation tools State
of the art software Experts
END USERS
One Stop Data Shop
7
Simplified Work Flow

• Get hold of Metadata
• Include easily available digital data at same
  time as collecting Metadata
• Collect non-digital and other less available data
  on request from states
• Use filters/conversion programs to import,
  process and output datasets in various formats
• Ensure all software modules access the same
  primary database
• Establish security and access control

One Stop Data Shop
8
Status

• Launched the service January 2005
• Currently improving technical solutions
• New data sources
• Contacting major Data Owners GEODAS, BGR
  Japan, Ifremer, Southampton, ODP/DSDP
• Data Links on internet present and expanding

One Stop Data Shop
9
Status - Continued

• Scanning of relevant areas completed
• Using scanning results to populate the One Stop
  Data Shop
• Will gather residual data on demand
• Work lab for customer support
• Demand driven, need more customers

One Stop Data Shop
10
Data Structure
One Stop Data Shop
11
Data Structure - Continued
Examples of Systems and Software Caris Lots
Software for UNCLOS analyses and mapping Geocap
Software for UNCLOS analyses and mapping Data
base Collection of datasets in a spatial
relational database Geodas NGDC/NOAA Track
line data bases and search Software ETOPO2
NGDC/NOAA 2-Minute Gridded Global Relief
Data Gebco General Bathymetric Chart of
the Oceans ArcGis ESRI geographical
information system SW (ArcInfo, ArcView) And
more......
Filter programs catcsv filter for csv
concatenation and manipulation csv2dif filter
converting csv into dif csv2shp filter converting
csv into shape file dbf2csv filter converting dbf
into csv dif2csv filter converting dif into
csv dif2dif filter for dif concatenation and
manipulation dif2html filter converting dif into
html dif2xml filter converting dif into
xml gebco2csv filter converting gebco vector into
csv gebco2vtk filter converting gebco grid into
vtk etopo2vtk filter converting etopo2 into
vtk geodas2vtk filter converting geodas csv dif
into vtk geodas csv dif shp2csv filter converting
shape file into csv vtk2csv filter converting vtk
vector into csv
File formats Csv Comma Separated
Values file format dbf dBASE
database file format, attribute part of shape
file format dif NASA Directory
Interchange Format w. local extensions gebco grid
Gebco one minute interval bathymetric
raster format gebco vector Gebco digital
bathymetric contours and coastlines format Geodas
Geodas MGD77, HYD93 and XYZ file
formats Grid Etopo2/Gebcgo grid
aster format Html Hypertext
Mark-up Language format Hyd93 Geodas
Hydrographic Survey Data exchange format Mgd77
Geodas Marine Track line Geophysical
Data exchange format seg-y Society
of Exploration Geophysicist data exchange
format Shapefile ESRI spatial data
format, includes shp and dbf Shp
Spatial part of shape file format Vtk
Visualization Toolkit / Geocap internal
format Xml Extensible Mark-up
Language format xy(z) CSV format
for spatial data (coordinates only)
One Stop Data Shop
12
Typical Data Types

• Data
• Coast line
• State borders
• Base lines
• ETOPO2
• GEBCO
• World sediment thickness map
• Well data, electrical logs
• Aeromagnetic data
• Satellite gravity
• Bathymetry, two way travel time
• Corrected bathymetry
• Side scan sonar
• Multi beam bathymetry
• Magnetics total field
• Magnetics residual field
• Observed gravity
• Free air gravity anomaly
• Single channel seismic reflection

• Meta data, data about the data
• When
• Where
• How
• Instruments
• Platform
• Naviagtional details
• Weather details
• Problems
• Recording details

One Stop Data Shop
13
Area Generator
Generate a project anywhere in the world in
chosen projection and datum in a few
minutes. The project can be converted by the
OSDS filters to the desired format for import
into chosen tool. Data completeness of the
project will depend on the OSDSs ability to
get access to and process relevant data.
One Stop Data Shop
14
Visualised output examples West
AfricaBackdrop Coastlines, State Borders,
ETOPO2 Bathymetry
Ship Track Lines
Ghana
One Stop Data Shop
15
Visualised output examples West
AfricaBackdrop Coastlines, State Borders,
ETOPO2 Bathymetry
Corrected Bathymetry
Ghana
One Stop Data Shop
16
Visualised output examples West
AfricaBackdrop Coastlines, State Borders,
ETOPO2 Bathymetry
Single Channel Seismic Reflection Track Lines
Ghana
One Stop Data Shop
17
Visualised output examples West
AfricaBackdrop Coastlines, State Borders,
ETOPO2 Bathymetry
Seismic Refraction Track Lines
Ghana
One Stop Data Shop
18
Visualised output examples West
AfricaBackdrop Coastlines, State Borders,
ETOPO2 Bathymetry
Free Air Gravity Anomaly
Ghana
One Stop Data Shop
19
Visualised output examples West
AfricaBackdrop Coastlines, State Borders,
ETOPO2 Bathymetry
Magnetic Residual Field
Ghana
One Stop Data Shop
20
Seismic Data

• CDP Sismic data (digital) relatively straight
  forward
• Challenge to use non - digital seismic data more
  effectively. Investigating solutions
• Reconstruction of seismic traces, result is SEG-Y
  data
• Interpreting scanned seismic images directly
• Status Both work processes possible, choose most
  practical and cost efficient
• Of course, there will always be coloured pencils

One Stop Data Shop
21
Why develop the One Stop Data Shop?

• Cost effective way to store and handle research
  data
• Acts as one port of entry to access data
• Each state does not have to start from scratch
• UN Umbrella
• Data owners know who they are dealing with
• Effective way to build and use expertise
• Effective way to transfer capacity to states

One Stop Data Shop
22
When will a state benefit from the One Stop Data
Shop?
All phases of the deliniation project

• Further assessment
• Bathymetry
• Grav/Mag
• Seismic
• Conversion/Filtering
• Data update
• Finding and including new data
  from data repositories
• Data management
• Quality assessment
• Depth conversion

• Interpretation
• Data management
• Formatting/Filtering
• Backup Storage
• Data uncertainty
• Depth conversion

• Interpretation
• Data management
• Plots/Figures
• Backup Storage

• Follow - up
• Assistance related to feedback from CLCS

• Early assessment
• Project creation
• ETOPO2
• GEBCO
• Coastlines
• State Borders
• World Sediment
• Thickness map

• Acquisition
• Integrated
• acquisition plan
• Inclusion
• of Acquired data
• Backup Storage
• Quality assessment
• Depth conversion

One Stop Data Shop
23
Who can use the One Stop Data Shop?

• Mandate with a view to serving the needs of
  coastal states, and in particular developing
  countries and small island developing states
• Use of the One Stop Data Shop is open for
• States
• All parties that the state has requested that the
  One Stop Data Shop shall assist

One Stop Data Shop
24
How to Access the One Stop Data Shop

• UNEP Shelf Programme web page (http//www.continen
  talshelf.org/) to access metadata (under
  construction) or
• Contact us directly http//www.continentalshelf.or
  g - info_at_continentalshelf.org (Implemented)
• Define area of interest, format and means of data
  transfer
• We will collect and generate data according to
  specs (if possible) and transfer data collection
  to user (implemented)

One Stop Data Shop
25
UNEP Shelf Programme One Stop Data ShopSee the
data in your area
Contact us for a live demonstration of how the
One Stop Data Shop can create a data collection
for your offshore area
One Stop Data Shop
26
Conclusion Up and runninghttp//www.continental
shelf.org/

• Street address Longum Agder ParkTeknologiveien
  1N-4849 Arendal, Norway
• Telephone [phone]
• Programme Manager
• 47 3703 5715
• Fax [phone]
• E-mail info_at_continentalshelf.org

• The UNEP Shelf Programme Facilityc/o
  UNEP/GRID-ArendalService Box 706N-4808 Arendal,
  Norway
• Street address Longum Agder ParkTeknologiveien
  1N-4849 Arendal, Norway
