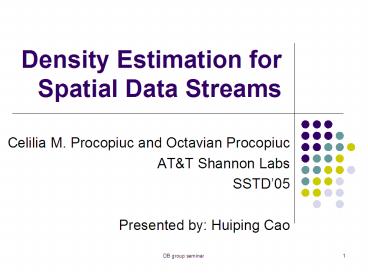

Density Estimation for Spatial Data Streams

1
Density Estimation for Spatial Data Streams

• Celilia M. Procopiuc and Octavian Procopiuc
• ATT Shannon Labs
• SSTD05
• Presented by Huiping Cao

2
Outline

• Background
• Related work
• Problem definition
• Online algorithm
• Experiments
• References

3
Background

• Streaming data
• Large volume
• Continuous arrival
• Data stream algorithms
• One pass
• Small amount of space
• Fast updating

4
Background

• Data stream model
• Operations of elements
• Insertion Most common case
• Deletion
• Updating Most difficult case
• Validation time of elements
• Whole history
• Landmark window Geh01, cash register this
  paper

• Partial recent history
• Sliding window Geh01, turnstile model this
  paper


5
Related work

• Classified according to operations
• Aggregation
• avg, max, min, sum Dob02
• count (distinct values) Gib01
• Quantile in 1D data Gre01
• Frequent items (Heavy hitter) Man02
• Query estimation
• Join size estimation Dob02
• K Nearest Neighbor seaching
• eKNN Kou04, RNN aggregationKor01
• Techniques
• Histogram Tha02, sample Joh05, special
  synopsis ... ...


6
Problem definition

• D , where pi ? Rd
• Cash register model
• Qi ,
• Ri a d-dimensional hyper-rectangle
• Selectivity of Qi sel(Qi) pi j i, pi ?
  Ri

• These points arrive before time step i
• They lie in Ri
• Problem Estimating sel(Qi)
• Measurement, relative error

7
Online algorithm rough steps

• Get random samples S of D
• Using reservoir sampling method vit85
• Using kd-tree(kd75)-like structure to index
  these sample points

• Maintenance of the sample and the kd-tree-like
  structure online

• Compute range selectivity estimated_sel(Q) using
  kernel density estimator


8
Random sampling

• Theorem1
• Let T be the data stream seen so far, size T
• let S ? T be a random sample chosen via the
  reservoir sampling technique, such that S
  ?((d/?2)log (1/?)log(1/?)), where 0
  S is the size of S.
• Then with probability 1-?, for any axis-parallel
  hyper-rectangle Q the following is true

• sel(Q) Q?T is the selectivity of Q with
  respect to the data stream seen so far,

• sel(Q, S) Q?S is the selectivity of Q with
  respect to the random sample.


9
Sampling

• Random sampling
• Problem when sel(Q) is smaller, relative error
  is bigger

• Better selectivity estimator kernel density
  estimator

10
Kernel density estimator

• S s1, , sm random subset of D
• where x (x1, , xd) and si (si1, , sid) are
  d-dimensional points

• Bj kernel bandwidth along dimension j
• Sco92
• Global parameter

11
One-dimensional kernels

• (a) Kernel function, B 1
• (b) Contribution of multiple kernels to estimate
  of range query


12
Local kernel density estimator

• kd-tree structure T(S) index of the sample data
• Each leaf contains one point si ? leaf(si)
• Two leaves are disjoint
• Union of all leaves is Rd
• Each leaf maintain d1 values ?i, ?i1, ?i2,,
  ?id

• ?ij approximates the standard distribution of
  the points in the cell centered at si along
  dimension j

• R a1, b1 ? ? ad, bd
• Ti subset of points in tree leaf leaf(si)

13
Update T(S)

• Purpose maintain ?i, ?ij (1 j d)
• ?i is the number of stream points contained in
  leaf(si)

• Assume p is the current point in the data stream
• If p is not selected in S according to sample
  algorithm

• Find the leaf that contains p, leaf(si),
• Increment ?I
• Add (pj sij)2 to ?ij
• If p is selected in S
• A point q will be deleted from S
• Delete leaf(q)
• Add a new leaf corresponding to p

14
Delete leaf(q)

• u parent node of leaf(q)
• v sibling of leaf(q)
• box(u) axis parallel hyper-rectangle of node u
• h(u) hyper-plane orthogonal to a coordinate axis
  that divides box(u) into two smaller boxes
  associated with the children of u.

• N(q), neighbors of leaf(q)
• leaves in the subtree of v that have one boundary
  contained in h(u)

15
Delete leaf(q)

• Redistribute points in leaf(q) to N(q)
• Extending the bounding box of each neighbor of
  leaf(q) past h(u), until it hits the left
  boundary of leaf(q)

• Update ?, ? values for all leaves in N(q)
• Notations
• Leaf(r)? N(q)
• boxe(r) the expanded box of r

16
Update ? of leaf(r)

• Update ? value for every leaf leaf(r) ? N(q)
• compute selectivity sel(boxe(r)) of the boxe(r)
  w.r.t. leaf(q)

• ?r ?r sel(boxe(r))

17
Update ? of leaf(r)

• ?j, ?j be the intersection of boxe(r) and the
  kernal function of q along dimension j.

• Discretize it by ? equidistant points (? is a
  large constant)

• ?j v1, v2, , v? ?j
• Update ?rj as following
• Wti is the approximate number of points of
  leaf(q) whose jth coordinate lies in the
  interval vi,vi1.

18
Update ? of leaf(r)

• Updating ?rj by discretizing the intersection of
  boxe(r) and the kernel of q along dimension j
  (the gray area represents wt2)

• All points in this interval is approximated by
  its midpoint

19
Insert a leaf

• p newly inserted point
• q existing sample point such that p?leaf(q)
• Split leaf(q) by a hyperplane
• Pass through the midpoint (pq)/2
• Direction alternative rule of kd-tree
• If i is the splitting dim for the parent of q,
  then the splitting dim for q is (i1) mod d

• Update ? and ? values for p and q using similar
  procedure for updating

20
Extension

• Allow deletion of a point p from the data stream
• If p is not a kernel center
• Compute leaf(si) such that p? leaf(si)
• ?i ?i -1
• ?ij ?ij (pj - sij)2
• p is a kernel center
• Delete leaf(p)
• Replace p with a newly coming point p
• This does not follow the sample procedure, may
  make the sample not uniform w.r.t. points in D

21
Experiments

• Different number of dimensions
• Different query loads
• Range selectivity
• Measurement
• Accuracy
• Trade-off between accuracy and space usage

22
Data

• Synthetic data, generator is for projected
  cluster Agg99

• SD2(2D), SD4 (4D)
• 1 million points, 90 are contained in clusters,
  10 uniformly distributed

• Real data
• NM2
• 1 million 2D data with real-valued attributes
• Each point an aggregate of measurements taken in
  15m interval, reflecting minimum and maximum
  delay times between pairs of severs on ATTs
  backbone network

23
Query loads

• 2 query workload for each dataset
• Queries are chosen randomly in the attribute
  space

• Each workload contains 200 queries
• Each query in a workload has the same
  selectivity,

• 0.5 for the first workload (low selectivity)
• 10 for the second (high selectivity)

24
Accuracy measure

• Qi , its relative error is Erri
• Let Qi1, , Qik be the query workload, the
  average relative error of this workload is
  avg_err

25
Validating local kernels in an off-line setting(1)

• MPLKernels (Multi-Pass Local kernels)
• Scan the data once, get random sample points
• Compute the kd-tree on them
• Scan the data second times, compute ? and ?
• Only useful in off-line setting
• GKernels (Global Kernels) Gun00
• Kernel bandwidth function of global standard
  deviation of the data along each dimension

• One-pass approximation ? Two-pass accurate
  computation

• Sample Random sampling
• LKernels one pass local kernels

26
Validating local kernels in an off-line setting(2)
27
Validating local kernels in an off-line setting(3)
28
Comparison with histogram methods(1)

• Histogram method Tha02
• faster heuristic EGreedy

29
General online setting(1)

• Queries arrive interleaved with points
• Compare
• Sample
• LKernels
• MPLernels

30
General online setting(2)
31
General online setting(3)
32
General online setting(4)
33
References

• kd75 J.L. Bentley. Multidimensional Binary
  Search Trees Used for Associative Searching.
  Communication of the ACM, 18(9), September 1975.

• vit85 J.S. Vitter. Random sampling with a
  reservoir. ACM Transactions on Mathematical
  Software, 11(1) 37-57, 1985.

• Sco92 D. W. Scott. Multivariate Density
  Estimation. Wiley-Interscience, 1992.

• Agg99 C. C. Aggarwal, C. M. Procopiuc, J. L.
  Wolf, P. S. Yu, and J. S. Park. Fast algorithms
  for projected clustering. In SIGMOD99, pages
  6172.
• Gun00 D. Gunopulos, G. Kollios, V. J. Tsotras,
  and C. Domeniconi. Approximating multidimensional
  aggregate range queries over real attributes. In
  SIGMOD00, pages 463474.
• Geh01 J. Gehrke, F. Korn and D. Srivastava. On
  computing correlated aggregates over continual
  data streams. In SIGMOD01.

• Gib01 P. Gibbons. Distinct sampling for
  Highly-Accurate Answers to Distinct Values
  Queries and Event Reports. In VLDB01.

• Gre01 M. Greenwald and S. Khanna,
  Space-Efficient Online Computation of Quantile
  Summaries. In SIGMOD01.


34
References

• Dob02 A. Dobra, M. Garofalakis, J. Gehrke and
  R. Rastogi. Processing complex aggregate queries
  over data streams. In SiGMOD02.

• Kor02 Flip Korn, S. Muthukrishnan, Divesh
  Srivastava. Reverse nearest neighbor aggregats
  over data streams. In VLDB02.

• Tha02 N. Thaper, S. Guha, P. Indyk, and N.
  Koudas. Dynamic multidimensional histograms. In
  SIGMOD02, pages 428439.

• Man02 G. Manku and R. Motwani. Approximate
  Frequency Counts over Data Streams. In VLDB02,
  pages 346-357.

• Kou04 Nick Koudas and Beng Chin Ooi and
  Kian-Lee Tan and Rui Zhang, Approximate NN
  Queries on Streams with Guaranteed
  Error/performance Bounds. In VLDB04, pages
  804-815.
• Joh05 T. Johnson, S. Muthukrishnan and I.
  Rozenbaum. Sampling Algorithms in a stream
  Operator. In SIGMOD05.


35
Appendix reservoir sampling

• This algorithm (called Algorithm X in Vitters
  paper) obtains a random sample of size n during a
  single pass through the relation.

• The number of tuples in the relation does not
  need to be known beforehand. The algorithm
  proceeds by inserting the first n tuples into a
  reservoir.
• Then a random number of records are skipped, and
  the next tuple replaces a randomly selected tuple
  in the reservoir.

• Another random number of records are then
  skipped, and so forth, until the last record has
  been scanned.


36
Appendix kd-tree

• Start from the root-cell and bisect recursively
  the cells through their longest axis, so that an
  equal number of particles lie in each sub-volume
