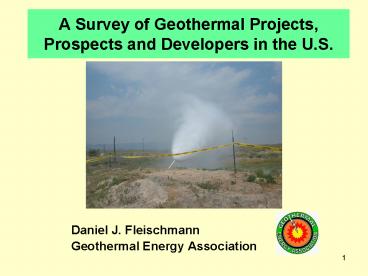

A Survey of Geothermal Projects, Prospects and Developers in the U.S.

1
A Survey of Geothermal Projects, Prospects and
Developers in the U.S.

• Daniel J. Fleischmann
• Geothermal Energy Association

2
THE GEOTHERMAL INDUSTRY HAS MOMENTUM

• There is a window of opportunity for major new
  development for the first time in 25 years

• Geothermal technologies are spreading to new
  applications, including alternative fuel
  development

• Geothermal research is leading to new
  breakthroughs (Geothermal power produced from
  162.5 degrees in Alaska, EGS and Hot Dry Rock
  proven feasible)

3
Acquiring information on new projects

• Updated estimates of developing projects from a
  survey completed in March of 2006

• Included interviews and confirmation by
  developers and utilities

• Included tours of facilities and meetings with
  stakeholders in 5 states


4
What already exists in the U.S.?

• 61 Power plants (5 states AK, CA, HI, NV, UT)
• Total installed capacity
• 11/2006 2830.65 MW
• Total generation in 2005
• 16,010 GWh (1.5 million homes)
• Total installed Direct-use capacity 617 thermal
  MW (Estimate Year-end 2005)

5
What is under development?

• There are 9 states currently planning new
  projects, including Alaska, Arizona, California,
  Hawaii, Idaho, Nevada, New Mexico, Oregon, and
  Utah
• 51 projects under development of up to 1924.7 MW
• 61 projects (including unconfirmed) of up to
  2376.7 MW

• Similar growth in direct use developments

6
GEOTHERMAL POTENTIAL BY 2025 We can triple
capacity in 10 years
7
Whats New? State by State
8
Alaska

•
  State has lots of
  Potential

•
  High retail energy cost


•
  Reliance on Diesel Fuel
  Generators

•
  Unalaska (15 MW)

•
  Aleutian
  Islands

•
  Makushin
  Volcano 6679

•
  Chena Hot Springs

•
  60
  miles from Fairbanks

•
  Will
  be total 1 MW of ORC units

•

  Resource temp 162.5F (72C)

•


•

  20 MW power plant

•

  (From deeper well)

9
Arizona

• Clifton
  Power Project

•
  (2-20 MW)

• San
  Francisco Volcanic Field

• Direct
  use for agriculture

• (including greenhouses at
  Willcox)

• (Possible for larger greenhouses?)
• Direct
  use for residential heating

•
  Aquaculture (discussed later)

10
California

•
  15 projects under
  development

•
  Up to 869 MW

•
  Geysers area Up to 80 MW


•
  (Among largest in the
  world)

•
  Southern California 500
  MW

•
  Salton Sea 200 MW

•
  (2,000 MW of proven
  reserves)

•
  Truckhaven Area 224 MW

•


•
  Other potential throughout


•
  Mount Shasta Area 220 MW


•


•
  Mammoth Hot Springs up to
  40 MW

•
  (Mammoth Lakes)

•


•
  Surprise Valley 27 MW

•
  (Northeast corner)


11
Hawaii

• Expansion of existing plant expected to more
  than double capacity (adding 38 MW)

• Geothermal already provides 20 of the power on
  the Big Island of Hawaii

• Hawaii relies on petroleum for almost ¾ of
  energy

• Highest energy prices in U.S. Twice National
  Average

12
Idaho

•
  Raft River Project (10 MW)

•
  (Up to 90 MW)

•
  Crane Creek Hot Springs

•
  (100 179 MW potential)

•
  Snake River Plain

•
  Mount Bennett Hills

•
  Magic Hot Springs

•
  Rexburg

•


•
  Basin and Range Province

•
  Willow Spring (100 MW)

•
  China Cap (100 MW)

•
  Sulphur Springs

•
  Preston

•


•
  USFS Lands

•
  Boise County, Boiling Springs
  Shoup, Valley County


13
New Mexico

•
  Rio Grande Rift (blind anomalies)

•
  Las Cruces (direct use)

•
  Albuquerque (direct use, power?)

•


•
  Lightning Dock (up to 20 MW)

•
  (Power Plant)

•
  (AmeriCulture project)

• -Small 1 MW binary unit
•
  -Save 30 total operating costs

•
  -Pay back cost in 17 months

•
  -Expand to 10 million/per year

•
  -Hire additional 80
  workers

•


•
  Greenhouses (1 in U.S.)

•
  2 largest in U.S. proposed

14
Nevada

•

  19 projects Under Development

•

  Up to 661 MW

•

  24 total up to 763 MW

•

  Steamboat area (Reno)

•

  Has existing plants

•

  100 MW field when completed

•

  Northwest corner

•

  3 projects up to 85 MW

•

  Churchill/Lyon Counties

•

  6 projects up to 152 MW

•

  Winnemucca area

•

  4 areas up to 121 MW

•

  California border

•

  4 areas up to 283 MW


15
Oregon

•


•

  Crump Geyser (40-60 MW)

•

  (Near Lakeview

•

  site of first Oregon power
  plant)
•



•

  Newberry Volcano (120 MW)

•

  (Bend)

•
  Neal Hot Springs
  (25-30 MW)

•
  (near Crane Creek
  Hot Springs, Idaho)

•


•
  Klamath
  Falls (1.2 MW)

•

  (Oregon Institute of
  Technology)
•




•



16
Utah

•
  Cove Fort (36 MW)

•


•
  Roosevelt HS (11 35 MW)

•


•
  Renaissance (100 MW)

•
  (Wasatch
  Front)

•


•
  IWGC efforts

•
  (North of Roosevelt HS)

•


•
  Several direct use projects

• West Jordan?

17
Other states

• Other Western States
• Colorado Several potential locations
  high-temp resource measured in San Juan Basin at
  6,800 feet

• Montana 50 geothermal areas and at least 15
  high-temperature sites (US Dept. of Energy)

• Washington State 600 MW available in next 20
  years (WGA Geothermal Task force report)

• Wyoming Potential outside of Yellowstone
• Rest of the U.S.
• Potential in oil producing states (discussed
  later)

• Possible in Eastern States down the road
• (25 U.S. States use geothermal resources for
  direct uses)

18
Other Geothermal Power Applications

• Power and cascaded heat for
• Agricultural production
• Greenhouses
• Aquaculture
• Alternative fuels
• Very energy intensive (18 of Natural Gas
  consumption in Iowa)

• Wabuska Bio-fuel plant
• -Will be online in 2007
• -5 million gpy
• -Oil seed, algae
• Photo The grain silo, methanol recovery towers,


• and the tank farm at the bio-diesel facility
  under

• construction. Infinifuel Biodiesel. Used by
  permission

• Also drilling at Gerlach, Nevada ethanol plant
• Interest in other locations in Nevada interest
  in New Mexico


19
Geothermalin Louisiana?

• Other possibilities include
• Co-production of oil and gas
• Louisiana
• Montana
• North and South Dakota
• Texas
• Wyoming
• Desalinization
• Mining precious metals (gold, silver)
• Hydrogen Production
• Industrial drying onions and garlic in Nevada
• Local power use Alaska, Oregon

20
Direct Use

• Low temperature resources are widely available
• Can help farmers manufacturing projects in USA
  (ex. AZ Shrimp farm)

• District heating (Boise, Reno, other cities
  possible?)

• Dairy processing, bio-fuels refining, heap
  leaching


21
Direct Use ProjectsProsperity vs. Bankruptcy
Bluffdale, Utah The Utah State Prison
-Saved 344,000 in heating costs in FY 2006
Radium Springs, New Mexico Greenhouses.
(Photo by Geo-Heat Center, Oregon Institute of
Technology) -Saves 46,200 per acre per year -P
lans to expand to 40 acres in the near future
-Hire 100 additional workers
Boise, Idaho 4 existing systems
-Priced 30 below the cost of natural gas
-Plans to expand to Boise State University (18
thousand students)
Elko, Nevada Industrial park Econ
development -New Construction 6 buildings (40,0
00 sq feet) -Customers will save 2/3rds on heatin
g costs
22
Looking ahead to the Future

23
DRIVING THE MOMENTUM

• Current Drivers
• New Projects Energy prices Load growth
  Industry growth Advanced technology Tax
  credits Renewable Portfolio Standards
  Research and Development Breakthroughs
• Future Drivers
• Breakthroughs Carbon taxes Calls for energy
  independence New applications for geothermal
  technology Well-capitalized industry Tipping
  Point (where what was theoretical becomes
  standard)

24
Web Resources

• Geothermal Energy Association (GEA) Industry
  information

• http//www.geo-energy.org/
• Geothermal Resources Council (GRC) Bulletins
  and research reports

• http//www.geothermal.org/
• Great Basin Center for Geothermal Energy Links
  and informational tools

• http//www.unr.edu/geothermal/
• Geothermal-biz Contacts and News Updates
• http//www.geothermal-biz.com
• GEA More information on Developing Plants
• http//www.geo-energy.org/information/developing.a
  sp

• GEA State research papers (AZ, ID, NM, UT)
• http//www.geo-energy.org/publications/reports.asp



25
THANK YOU!

• Daniel Fleischmann
• Geothermal Energy Association
• 202-454-5241 (ph)
• 202-454-5265 (fax)
• dan_at_geo-energy.org
• Questions?
