Survey of ShortReach Optical Interconnect

1

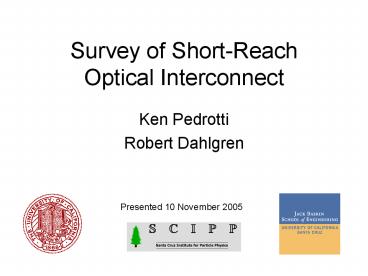

Survey of Short-ReachOptical Interconnect

• Ken Pedrotti
• Robert Dahlgren

Presented 10 November 2005
2
Outline

• Introduction
• Pure silica fiber trends
• Splicing trends
• Connector trends
• Active component trends
• Transceiver module trends
• What to expect in the year 2010?
• Questions and discussion

3
Short Reach Links

Optical Internetworking Forum (OIF)

VSR-1 through VSR-4 classifications

Gigabit Ethernet

Multimode 850 nm

10 Gigabit Ethernet

Singlemode or parallel multimode

Fibre Channel

Serial HIPPI

Proprietary links

4
Main Commercial Trends

• Fiber to the home/curb/pedestal deployment is
  moving forward
• Common form factors
• Smaller form factors
• Standards-based specifications
• Short Reach and VSR standards
• Convergence of specs at 1 and 10 Gbps
• WDM begat DWDM and CWDM
• Pure silica core fiber less of a niche
• Ribbon fiber and mass splicing/termination

5
Lesson from the Aircraft Industry
6
Convergence

• Telecom and datacom PHYs have less distinction
• Traditional datacom companies like Cisco are
  making more carrier-class equipment
• Common medium (often SMF)
• Data rates moving towards convergence
• OC-192, 10G Ethernet, 10G Fibre Channel
• Possible to unify component markets to take
  advantage of economies of scale

7
What Convergence Meansfor VSR Links

• 1 and 10 Gbps may be the sweet spot for short
  links up to 300 m for some time
• 850 nm VCSEL and MMF
• Single and multi-fiber arrangements
• Broad support from industry in volume
• Common electrical interface
• 40 Gbps and 100 Gbps serial technology too
  expensive for VSR
• WDM approaches not suitable for VSR

8
Ribbon Optical Fiber

• Four, twelve, or sixteen fibers
• Usually spaced at 250 mm pitch
• Connectors, splicing more complex
• Cost per splice about 2 2.5x
• Lower cost per fiber

9
Pure-Silica Core Fiber Trends

• Several manufacturers now make optical fiber for
  high radiation environments.
• Singlemode, step-index multimode, graded index
  multimode
• Cost premium TBD compared to standard (e.g.
  Ge-doped core) fiber of the same type
• Improved polymer coatings

10
Pure-Silica Core Fiber Vendors

• Fujikura Ltd.
• Oxford Electronics
• Mitsubishi International
• Verrillion Inc.
• OFS (formerly Lucent)
• CorActive On custom basis
• Sumitomo Electric
• 3M dropped production
• Corning MMF in development

11
Evolution of Arc Fusion Splicing

• Active alignment with optical source and detector
  at the fiber endfaces
• Local injection into core and detection
• Imaging-based alignment
• Ribbon fiber splicers (mass splicing)
• V-groove (passive) splicers
• Enabled by tighter fiber concentricity specs
• Smaller, lighter, better ergonomics
• Compensation schemes, loss estimation

12
Improvement of Fiber ConcentricityEnables
V-groove Alignment
Active Core Alignment
V-groove Alignment
13
Splicing trends

• Continued acceptance of v-groove based splicers
  in non RD applications
• Continuing acceptance of mass fusion splicing for
  ribbon fiber
• Continued development of custom splice
  programming, e.g. thermal diffusion core
  expansion for specialty fiber
• Laser-based fiber stripping and cleaving needs
  cost reduction

14
Mass Fusion Splice of12-fiber Ribbonized SMF
Images courtesy AFL Telecommunications
15
Splice Economics

• Splicing cost roughly 2040 not including costs
  associated with access and packaging. Can be
  much higher.
• Mass splices cost roughly 2 2.5x for a 12-fiber
  ribbon
• Spliceless ATLAS design tradeoff
• Need lower cost fiber recoating systems and
  proof-testers for High-Rel applications
• Splicer manufacturers Fitel, Fujikura, 3sae

16
Connector Market Landscape

• Simplex-SC is de-facto standard for telecom.
• Duplex-SC is de-facto standard for datacom.

• Newer Small Form Factor connectors vying for
  market dominance.
• Several incompatible connectors for ribbon fiber
  applications.

17
Legacy Connectors
ST
Biconic
FC
SMA
ESCON
old FDDI
Images used with permission of Alcoa-Fujikura,
Ltd.
18
Ribbon Fiber ConnectorsMT Ferrule Technology
Images used with permission of US Conec, Ltd.
19
Small Form Factor Connectors

• Driven by smaller front-panel opening, like the
  ubiquitous R-45 telephone/ethernet jack.
• Driven by low-cost 100 Mbps and 1 Gbps ethernet
  system and cable companies
• High front panel density low cost/port
• Telcos are looking to replace SC connector
• High front panel density CO and closet space
• Incorporate cost-saving features
• Incorporate ergonomic features
• Some allow field termination

20
Some SFF Connectors
MT-RJ
LC
Duplex-LC
MU
Images used with permission of Alcoa-Fujikura,
Ltd.
21
Laser Diode Structures
Most require multiple growth steps Thermal
cycling is problematic for electronic devices
22
Detector Technologies
Features
Layer Structure
Simple, Planar, Low Capacitance Low Quantum
Efficiency
MSM (Metal Semiconductor Metal) PIN APD Wav
eguide
Semiinsulating GaAs
Contact InGaAsP p 5x1018 Absorption
InGaAs n- 5x1014 Contact InP
n 1x1019
Trade-off Between Quantum efficiency and Speed
Gain-Bandwidth 120GHz Low Noise Difficult to
make Complex
Contact InP p
1x1018 Multiplication InP n
5x1016 Transition InGaAsP n
1x1016 Absorption InGaAs n
5x1014 Contact InP n
1x1018 Substrate InP Semi
insulating
High efficiency High speed Difficult to couple
into
Absorption Layer
Guide Layers
Absorption Layer Contact layers
Key
23
VCSEL status and trends

• VCSELs dominate where DFB laser or high power is
  not needed
• Many suppliers at the 1 Gbps level
• Reliability established at 850 nm
• 1300 nm devices have been slow to reach
  commercialization
• Low cost visible VCSELs becoming available at 635
  and 650 nm
• TBD 3 Gbps and 10Gbps

24
Semiconductor Trends

• CMOS and SiGe-BiCMOS has taken over the chip
  market up to 10Gb/s rates
• 40 Gb/s OC-768 is waiting, with components ready
  but deployments few
• As long haul market has softened component
  manufacturers have targeted current new
  developments at gigabit and 10G Ethernet
  applications
• Addition of Forward error correction (FEC) drives
  maximum bit rate up eg. SONET 9.952Gb/s to 12.5
  Gb/s with a 5-6.5 coding gain
• Chips appearing designed for RZ rather than NRZ
  applications

25
Semiconductor Trends

• Transceivers are including more monitoring and
  feedback control elements in chips to reduce part
  counts and size
• With CMOS implementations practical at 10Gb/s
  more multirate-multiprotocol solutions appearing
  thus increasing volumes and lowering product
  costs
• More network protocol processing in highly
  integrated chips
• Transmitters with low speed supervisory tone
  modulation inputs
• Equalization and compensation of analog links
• Smaller packaging
• TBD rad-hard electronics

26
Transceivers conform to standards

• Under the auspices of IEEE, ANSI, ITU
• Highly technical, dry, and can be political.
• Strict rules of operation, balloting to approve.
• Communication protocol and Physical Layer
• SONET, Fibre Channel, ATM, Gigabit Ethernet
• Optical connector intermatability standard
• Duplex-SC, duplex-LC, MT-RJ, SG
• Environmental
• Telecordia, Product Safety, Military, EMC

27
Example OC-192 10 Gbps VSR Standards (OIF)
28
Transceivers conform to MSAs

• Standards bodies only define the minimum
  necessary requirements for interoperability.
• Multi-source Agreements (MSAs) between
  manufacturers describe common features outside of
  the standard, e.g. module pinout
• Generates consensus and critical mass without
  violating anti-trust guidelines.
• Electrical connector/formfactor standards
• 1x9, GBIC, GLM, 2x5, 2x10, SFP
• 200pin, 300pin, XFP, Xenpak

29
Example MSA Form Factors
10 Gigabit Small Form Factor Pluggable MSA

• XFP Applications
• OC192/STM-64 9.95 Gb/s
• 10 Gigabit FC 10.5 Gb/s
• G.709 10.7 Gb/s
• 10 Gigabit Ethernet 10.3 Gb/s
• Smaller space and lower cost alternative to
  parallel-optics VSR.
• XFP Value Propositions
• Protocol Agnostic - "any application, any rate".
• Allows 16 XCVRs on a typical 19" rack with 23mm
  pitch density.
• Single footprint for all links.
• Less than 1/3 the power and size of an MSA with
  parallel interface.
• Hot plugable.
• XFI (10 Gigabit Serial Electrical Interface)
  Electrical Signaling
• Supports 12" of FR4 with one connector
• Low EMI and power due to nominal 500 mV
  differential drive.
• Slew control for improved Signal Integirty and
  lower EMI.
• TX and RX signals each are a 100 Ohm differential
  pair, AC coupled for simplicity.

Xenpak

Xpak
http//www.xenpak.org/ http//www.xfpmsa.org/ http
//www.x2msa.org/
X2
30
SFF Transceiver Showing Duplex-LC Receptacle
Image courtesy Picolight, Inc.
31
XAUI Electrical Interface

• Defined in IEEE 802.3ae, section 42
• Extends the Media Independent Interface
• Fewer pins than full parallel I/O
• Quartet of differential pair per direction
• 3.125 Gbps per lane
• XAUI chips resets jitter accumulation
• XAUI chips establish lane order
• XAUI chips eliminates lane-to-lane skew

32
Transceiver Trends

• More intelligence and RAM in modules
• Price erosion of 10 Gbps modules
• Garden variety 1 Gbps modules at near-commodity
  pricing
• Equalization of optical dispersion
• Vcc of 3.3V (and lower) rather than 5V
• Better EMI and ESD margins
• Gbps modules for polymer optical fiber
• Special BiDi modules for FTTx

33
What to expect in 2010for VSR Data Links

• Fiber used in shorter and shorter links
• 1300 nm VCSELs
• Silicon Photonics
• Resonant microcavity devices
• Few new connectors
• Electronic dispersion compensation
• More intelligence in transceivers
• Inexpensive mini fusion splicers

34
Questions

• Is one gigabit/second technology adequate for the
  lifetime of the detector?
• Radiation hardness of VCSELs and
  commercially-available transceivers
• Can we use 1310/850 BiDi module to aid with
  photobleaching?
• Is it economically feasible for spliceless design
  made completely of pure silica fiber
• Suitability of photonic crystal fiber
