Support Vector Machines

1

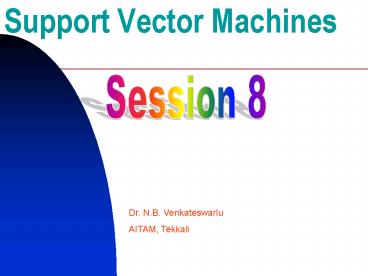

Support Vector Machines

Session 8
Dr. N.B. Venkateswarlu AITAM, Tekkali
2
Overview

• Background
• Linear Classifier
• SVM
• Margin
• Non-Linear SVM
• Kernel Functions
• Java Demo Applets

3
Some Background

• In the machine learning context, a vector goes
  like this
• Each attribute is a dimension of the vector.
• The inner product or dot product is defined as
  below

4
Linearly Seperable Classes
5
(No Transcript)
6
Seperating Planes
7
a
Linear Classifiers
x
f
yest
f(x,w,b) sign(w x b)
denotes 1 denotes -1
w x bgt0
w x b0
How would you classify this data?
w x blt0
8
a
Linear Classifiers
x
f
yest
f(x,w,b) sign(w x b)
denotes 1 denotes -1
How would you classify this data?
9
a
Linear Classifiers
x
f
yest
f(x,w,b) sign(w x b)
denotes 1 denotes -1
How would you classify this data?
10
a
Linear Classifiers
x
f
yest
f(x,w,b) sign(w x b)
denotes 1 denotes -1
Any of these would be fine.. ..but which is best?
11
a
Linear Classifiers
x
f
yest
f(x,w,b) sign(w x b)
denotes 1 denotes -1
How would you classify this data?
Misclassified to 1 class
12
a
a
Classifier Margin
Classifier Margin
x
x
f
f
yest
yest
f(x,w,b) sign(w x b)
f(x,w,b) sign(w x b)
denotes 1 denotes -1
denotes 1 denotes -1
Define the margin of a linear classifier as the
width that the boundary could be increased by
before hitting a datapoint.
Define the margin of a linear classifier as the
width that the boundary could be increased by
before hitting a datapoint.
13
Some Background The Perceptron

• Goal Find a plane in the n-dimension input space
  that classify the data.
• The classifier trained has the form
• y is the class label predicted by the perceptron,
  x is the example (instance, vector) to be
  classified and m is the weight vector and b is
  the offset.
• Main Idea Each attribute is assigned a weight,
  negative, zero or positive. The sum of all these
  weights multiplied by the instance value for this
  attribute is (more or less) the class tag. The
  final decision rule is
• If yi gt 0 then class positive, If yi lt 0 then
  class negative

• So we can also write

14
Non-Linearly Seperable classes
15
Probable Misclassifications
16
SVMs

• Support Vector Machines
• To summarize A SVM finds an hyperplace
  separating the training set in a feature space
  induced by a kernel function used as the inner
  product in the algorithm.
• The solution for the margin optimization process
  is sparse in a. Which means that only a few
  examples are effectively used in the classifier.
  These examples are the closest to the classifying
  boundary, so they SUPPORT this hyperplane. The
  vectors supports the classifier, Support Vector
  Machine.

17
a
Maximum Margin
x
f
yest

• Maximizing the margin is good according to
  intuition and PAC theory
• Implies that only support vectors are important
  other training examples are ignorable.
• Empirically it works very very well.

f(x,w,b) sign(w x b)
denotes 1 denotes -1
The maximum margin linear classifier is the
linear classifier with the, um, maximum
margin. This is the simplest kind of SVM (Called
an LSVM)
Support Vectors are those datapoints that the
margin pushes up against
Linear SVM
18
Linear SVM Mathematically
x
MMargin Width
Predict Class 1 zone
X-
wxb1
Predict Class -1 zone
wxb0
wxb-1

• What we know
• w . x b 1
• w . x- b -1
• w . (x-x-) 2

19
Linear SVM Mathematically

• Goal 1) Correctly classify all training data
•
  if yi 1
•
  if yi -1
•
  for all i
• 2) Maximize the Margin
• same as minimize
• We can formulate a Quadratic Optimization Problem
  and solve for w and b
• Minimize
• subject to

20
Example of linear SVM
Support vectors
margin
21
Support Vectors
22
Solving the Optimization Problem
Find w and b such that F(w) ½ wTw is minimized
and for all (xi ,yi) yi (wTxi b) 1

• Need to optimize a quadratic function subject to
  linear constraints.
• Quadratic optimization problems are a well-known
  class of mathematical programming problems, and
  many (rather intricate) algorithms exist for
  solving them.
• The solution involves constructing a dual problem
  where a Lagrange multiplier ai is associated with
  every constraint in the primary problem

Find a1aN such that Q(a) Sai -
½SSaiajyiyjxiTxj is maximized and (1) Saiyi
0 (2) ai 0 for all ai
23
The Optimization Problem Solution

• The solution has the form
• Each non-zero ai indicates that corresponding xi
  is a support vector.
• Then the classifying function will have the form
• Notice that it relies on an inner product between
  the test point x and the support vectors xi we
  will return to this later.
• Also keep in mind that solving the optimization
  problem involved computing the inner products
  xiTxj between all pairs of training points.

w Saiyixi b yk- wTxk for any xk
such that ak? 0
f(x) SaiyixiTx b
24
Dataset with noise

• Hard Margin So far we require all data points be
  classified correctly
• - No training error
• What if the training set is noisy?
• - Solution 1 use very powerful kernels

OVERFITTING!
25
Soft Margin Classification
Slack variables ?i can be added to allow
misclassification of difficult or noisy examples.
What should our quadratic optimization criterion
be? Minimize
26
Hard Margin v.s. Soft Margin

• The old formulation
• The new formulation incorporating slack
  variables
• Parameter C can be viewed as a way to control
  overfitting.

Find w and b such that F(w) ½ wTw is minimized
and for all (xi ,yi) yi (wTxi b) 1
Find w and b such that F(w) ½ wTw CS?i is
minimized and for all (xi ,yi) yi (wTxi b)
1- ?i and ?i 0 for all i
27
Linear SVMs Overview

• The classifier is a separating hyperplane.
• Most important training points are support
  vectors they define the hyperplane.
• Quadratic optimization algorithms can identify
  which training points xi are support vectors with
  non-zero Lagrangian multipliers ai.
• Both in the dual formulation of the problem and
  in the solution training points appear only
  inside dot products

Find a1aN such that Q(a) Sai -
½SSaiajyiyjxiTxj is maximized and (1) Saiyi
0 (2) 0 ai C for all ai
f(x) SaiyixiTx b
28
Linear SVM for non-seperable data
29
Non-linear SVM for linearly non-seperable data
30
Non-linear SVMs

• Datasets that are linearly separable with some
  noise work out great
• But what are we going to do if the dataset is
  just too hard?
• How about mapping data to a higher-dimensional
  space

0
x
31
Non-linear SVMs Feature spaces

• General idea the original input space can
  always be mapped to some higher-dimensional
  feature space where the training set is separable

F x ? f(x)
32
Kernel methods approach

• The kernel methods approach is to stick with
  linear functions but work in a high dimensional
  feature space
• The expectation is that the feature space has a
  much higher dimension than the input space.

33
Kernel methods
data
Identified pattern
kernel
subspace
Pattern Analysis algorithm
34
Mapping
35
Mappping is know as Kernel Functions

• Here is a training set in the input space I and
  the same training in the feature space F. We go
  from a 2D space to a 3D space.

The training set is not linearly separable in the
input space.
The training set is linearly separable in the
feature space. This is called the Kernel Trick.
36
Mappping is know as Kernel Functions

• Here is a training set in the input space I and
  the same training in the feature space F. We go
  from a 2D space to a 3D space.

The training set is not linearly separable in the
input space.
37
Mappping is know as Kernel Functions
The training set is not linearly separable in the
input space.
38
(No Transcript)
39
Classes seperable after mapping
40
Example

• Consider the mapping
• If we consider a linear equation in this feature
  space
• We actually have an ellipse i.e. a non-linear
  shape in the input space.

41
Capacity of feature spaces

• The capacity is proportional to the dimension
  for example
• 2-dim

42

• If data are mapped into a space of sufficiently
  high dimension, they will always be linearly
  separable (N data points in N-1 dimensions or
  more)
• Problem Linear separator in space of d
  dimensions have d parameters problem of over
  fitting
• Reason for maximal margin/optimal separator

43
Form of the functions

• So kernel methods use linear functions in a
  feature space
• For regression this could be the function
• For classification require thresholding

44
Problems of high dimensions

• Capacity may easily become too large and lead to
  overfitting being able to realise every
  classifier means unlikely to generalise well
• Computational costs involved in dealing with
  large vectors

45
Kernel Functions

• To make the data linearly separable we could
• Project the data from the input space to a new
  space called feature space
• This feature space having more dimensions than
  the input space we could separate the data THERE
• Using the normal Adatron (linear SVM)

46
Example of polynomial kernel.

• r degree polynomial
• K(x,x)(1ltx,xgt)d.
• For a feature space with two inputs x1,x2 and
• a polynomial kernel of degree 2.
• K(x,x)(1ltx,xgt)2
• Let
• and , then
  K(x,x)lth(x),h(x)gt.

47
Kernel Functions

• Lets use an example projection

• The inner product of two vectors x and y
  projected in the space F becomes

48
(No Transcript)
49
Kernel Functions

• But what happens if, instead of projecting the
  data we just do

• Which means taking the input space inner
  product and squaring it.
• It will actually lead to the feature space inner
  product!!!

This is much less time consuming as we are
implicitly projecting the training set.
50
Kernel Functions

• So we could define a kernel function as follows
  It is the function that represents the inner
  product of some space in ANOTHER space.
• Some spaces are known only by their kernel
  function
• (ie their projection is UNKNOWN)
• Its the case with these kernel functions
• Gaussian RBF kernel
• Sigmoïd kernel
• An experimental kernel called KMOD

51
(No Transcript)
52
Radial Basis Functions
53
Sigmoidal Function
54
The Kernel Trick

• The linear classifier relies on dot product
  between vectors K(xi,xj)xiTxj
• If every data point is mapped into
  high-dimensional space via some transformation F
  x ? f(x), the dot product becomes
• K(xi,xj) f(xi) Tf(xj)
• A kernel function is some function that
  corresponds to an inner product in some expanded
  feature space.
• Example
• 2-dimensional vectors xx1 x2 let
  K(xi,xj)(1 xiTxj)2,
• Need to show that K(xi,xj) f(xi) Tf(xj)
• K(xi,xj)(1 xiTxj)2,
• 1 xi12xj12 2
  xi1xj1 xi2xj2 xi22xj22 2xi1xj1 2xi2xj2
• 1 xi12 v2 xi1xi2 xi22 v2xi1
  v2xi2T 1 xj12 v2 xj1xj2 xj22 v2xj1 v2xj2

• f(xi) Tf(xj), where f(x) 1 x12
  v2 x1x2 x22 v2x1 v2x2

55
What Functions are Kernels?

• For some functions K(xi,xj) checking that
• K(xi,xj) f(xi) Tf(xj) can be
  cumbersome.
• Mercers theorem
• Every semi-positive definite symmetric function
  is a kernel
• Semi-positive definite symmetric functions
  correspond to a semi-positive definite symmetric
  Gram matrix

K
56
Examples of Kernel Functions

• Linear K(xi,xj) xi Txj
• Polynomial of power p K(xi,xj) (1 xi Txj)p
• Gaussian (radial-basis function network)
• Sigmoid K(xi,xj) tanh(ß0xi Txj ß1)

57
Non-linear SVMs Mathematically

• Dual problem formulation
• The solution is
• Optimization techniques for finding ais remain
  the same!

Find a1aN such that Q(a) Sai -
½SSaiajyiyjK(xi, xj) is maximized and (1) Saiyi
0 (2) ai 0 for all ai
f(x) SaiyiK(xi, xj) b
58
Nonlinear SVM - Overview

• SVM locates a separating hyperplane in the
  feature space and classify points in that space
• It does not need to represent the space
  explicitly, simply by defining a kernel function
• The kernel function plays the role of the dot
  product in the feature space.

59
Properties of SVM

• Flexibility in choosing a similarity function
• Sparseness of solution when dealing with large
  data sets
• - only support vectors are used to specify
  the separating hyperplane
• Ability to handle large feature spaces
• - complexity does not depend on the
  dimensionality of the feature space
• Overfitting can be controlled by soft margin
  approach
• Nice math property a simple convex optimization
  problem which is guaranteed to converge to a
  single global solution
• Feature Selection

60
SVM Applications

• SVM has been used successfully in many real-world
  problems
• - text (and hypertext) categorization
• - image classification
• - bioinformatics (Protein classification,
• Cancer classification)
• - hand-written character recognition

61
Application 1 Cancer Classification

• High Dimensional
• - pgt1000 nlt100
• Imbalanced
• - less positive samples
• Many irrelevant features
• Noisy

FEATURE SELECTION In the linear case, wi2 gives
the ranking of dim i
SVM is sensitive to noisy (mis-labeled) data ?
62
(No Transcript)
63
(No Transcript)
64
(No Transcript)
65
(No Transcript)
66
(No Transcript)
67
(No Transcript)
68
(No Transcript)
69
(No Transcript)
70
(No Transcript)
71
(No Transcript)
72
(No Transcript)
73
(No Transcript)
74
(No Transcript)
75
(No Transcript)
76
SVMs

• There are many ways to implement this
  optimization process.
• The Kernel-Adatron is one. The simplest since
  its derived from the very well known perceptron.
• Its simple but the slowest (awfully, painfully
  slow) since it passes through all the examples
  MANY times (many epoch)
• The first approach used was Quadratic Programming
  since this optimization problem is quadratic.
• Subject to the complex quadratic programming
  theory
• Many numerical issues due to the method
• An entire QP matrix for a sparse solution
• Rather slow as well
• Chunking chops the QP matrix in smaller chucks to
  gain speed from the sparseness. Does work but
  sometimes the improvement is unsignificant.
• SMO stands for Sequential Minimal Optimization.
  Its Chunking to its finest grain. Using heavy
  heuristics, points are optimized by pair.
• Very fast
• Well documented, see John Platt on Google

77
Kernel function details

• The first kernel shown is called the polynomial
  kernel

Where n is its order (in our example n2) and b
is called the lower order term (in our example
b0).

• Why do we need a lower order term?
• Because the origin of the input space matches the
  origin of the feature space induced by the
  polynomial kernel.
• It serves as an offset or a shift for the origin
  of the feature space from the input space origin.
• When given the choice, its strongly suggested
  you use it.

78
Kernel function details

• The most popular kernel function (most powerful)
  is the Gaussian RBF kernel

Powerful kernel as its effect is to create a
small classification hyperball around an
instance. This kernel doesnt have a projection
formula since its dimension is infinite (you can
create as many balls as you want).
Where s is a measure of the radius of the
hyperball around an instance. You want this
ball to be big enough so hyperballs connect
with each other (pattern recognition) but not too
big to overlap the other class.
79
Kernel function details

• Gaussian RBF overfits badly
• The Christmas Tree effect.
• If you select s too small for the distance
  between your examples, you will create small
  balls around all your instances.
• You will get a 100 accuracy on your training
  set, wonderful!
• But only your examples are classified (balls are
  too small).
• In my applet, enter a few examples manually
  (using mouse). Make them sparse. Use the Gaussian
  RBF kernel with a significantly smaller s than
  the proposed values. HERE is YOUR Christmas Tree
• your examples created small color balls, like
  Christmas tree balls.
• The Christmas Tree effect is a joke. But your
  classifier is a joke too. No classification of
  new instances are possible with it.

80
Karush-Kuhn-Tucker conditions???

• Just some conditions that are necessary for a
  solution in non-linear programming to be optimal

81
Common Kernels

• Polynomial
• Radial basis function
• Sigmoid

82
Some RBFs
83
(No Transcript)
84
(No Transcript)
85
(No Transcript)
86
Softmargin method

• Modified maximum margin idea allows for
  mislabeled examples during training
• Still creates a hyperplane that separates as
  cleanly as possible
• The hyperplane maximizes the distance to the
  nearest cleanly split examples

87
SVM_light

• SVM package
• Allows you to choose type (linear vs non-linear)
  and/or Kernel function
• Two executables svm_learn and svm_classify

88
SVM_light

• ltclassgt ltfeature nrgtltfeaturegt
• Example
• 1 10.7 20.3 30.5
• -1 11.2 20.6 30.9

89
Mathematical background

• The support vector (SV) machine is a new type of
  learning machine. It is based on statistical
  learning theory.

90
Objective

• Use linear support vector machines (SVMs) to
  classify 2-D data.

91
Background

• Suppose we want to find a decision function f
  with the property f(xi) yi, ?i.
• (1)
•
• In practice, a separating hyperplane often does
  not exist. To allow for the possibility of
  examples violating (1), the slack variables ?i
  are introduced.
• (2)
• to get
• (3)

92
Background(2)
The SV approach to minimizing the guaranteed risk
bound consists of the following.
Minimize (4) subject to the constraints
(2) and (3). Introducing Lagrange multipliers ?i
and using the Kuhn_Tucker theorem of optimization
theory, the solution can be shown to have an
expansion (5) with nonzero coefficients ?i
only where the corresponding example (xi, yi)
precisely meets the constraint (3). These xi are
called support vectors. All remaining examples of
the training set are irrelevant.
93
Background(3)
The constraint (3) is satisfied automatically
(with ?i 0), and they do not appear in the
expansion (5). The coefficients ?i are found by
solving the following quadratic programming
problem. Maximize (6) subject
to and (7) By linearity of the dot
product, the decision function can be written
as (8)
94
Background (4)
To allow for much more general decision surfaces,
one can first nonlinearly transform a set of
input vectors x1, , xl into a high-dimensional
feature space. The decision function
becomes (9) Where RBF Kernels
are (10)
95
Principal Component Analysis

• Given N data vectors from k-dimensions, find c lt
  k orthogonal vectors that can be best used to
  represent data
• The original data set is reduced to one
  consisting of N data vectors on c principal
  components (reduced dimensions)
• Each data vector is a linear combination of the c
  principal component vectors
• Works for numeric data only
• Used when the number of dimensions is large

96
Principal Component Analysis
97
Principal Component Analysis

• Aimed at finding new co-ordinate system which has
  some characteristics.
• M4.5 4.25
• Cov Matrix 2.57 1.86
• 1.86 6.21
• Eigen Values 6.99, 1.79
• Eigen Vectors 0.387 0.922
• -0.922 0.387

98
(No Transcript)
99
However in some cases it is not possible to have
PCA working.
100
Canonical Analysis
101

• Unlike PCA which takes global mean and
  covariance, this takes between the group and
  within the group covariance matrix and the
  calculates canonical axes.

102
(No Transcript)
103
Underfitting and overfitting
104
Non-Seperable Trining Sets
105
SVMs works badly with outliers
