Potential Energy

1

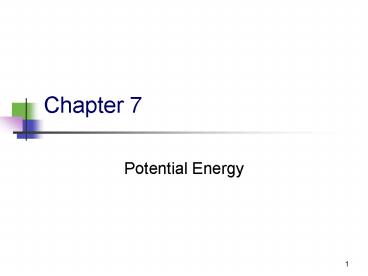

Chapter 7

• Potential Energy

2
7.1 Potential Energy

• Potential energy is the energy associated with
  the configuration of a system of two or more
  interacting objects or particles that exert
  forces on each other
• The forces are internal to the system

3
Types of Potential Energy

• There are many forms of potential energy,
  including
• Gravitational
• Electromagnetic
• Chemical
• Nuclear
• One form of energy in a system can be converted
  into another

4
System Example

• This system consists of the Earth and a book
• Do work on the system by lifting the book through
  Dy
• The work done by an external force on the book is
  mgyb - mgya

Fig 7.1
5
Potential Energy

• Similar as the work-kinetic energy theorem, the
  work equals to the difference between the final
  and initial values of some quantity of the
  system.
• The quantity is called potential energy of the
  system.
• Through the work, energy is transferred into the
  system in a form different from kinetic energy.
• The transferred energy is stored in the system.
• The quantity Ugmgy is called the gravitational
  potential energy of the book-Earth system.

6
Gravitational Potential Energy

• Gravitational Potential Energy is associated with
  an object at a given distance above Earths
  surface
• Assume the object is in equilibrium and moving at
  constant velocity
• The work done on the object is done by
  and the upward displacement is

7
Gravitational Potential Energy, cont

• The quantity mgy is identified as the
  gravitational potential energy, Ug
• Ug mgy
• Units are joules (J)

8
Gravitational Potential Energy, final

• The gravitational potential energy depends only
  on the vertical height of the object above
  Earths surface
• A reference configuration of the system must be
  chosen so that the gravitational potential energy
  at the reference configuration is set equal to
  zero
• The choice is arbitrary because the difference in
  potential energy is independent of the choice of
  reference configuration

9
7.2 Conservation of Mechanical Energy for
isolated systems

• The mechanical energy of a system is the
  algebraic sum of the kinetic and potential
  energies in the system
• Emech K Ug
• The statement of Conservation of Mechanical
  Energy for an isolated system is Kf Ugf Ki
  Ugi
• An isolated system is one for which there are no
  energy transfers across the boundary

10
Conservation of Mechanical Energy, example

• Look at the work done on the book by the
  gravitational force as it falls from some height
  yb to a lower height ya
• Won book DKbook
• Also, W mgyb mgya
• So, DK -Dug
• Kf Ugf Ki Ugi
• The isolated system is the book and the Earth.

Fig 7.2
11
(No Transcript)
12
Fig 7.4
13
(No Transcript)
14
(No Transcript)
15
(No Transcript)
16
(No Transcript)
17
Fig 7.5
18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
(No Transcript)
22
Elastic Potential Energy

• Elastic Potential Energy is associated with a
  spring, Us 1/2 k x2
• The work done by an external applied force on a
  spring-block system is
• W 1/2 kxf2 1/2 kxi2
• The work is equal to the difference between the
  initial and final values of an expression related
  to the configuration of the system

23
Elastic Potential Energy, cont

• This expression is the elastic potential energy
  Us 1/2 kx2
• The elastic potential energy can be thought of as
  the energy stored in the deformed spring
• The stored potential energy can be converted into
  kinetic energy

Fig 7.6
24
Elastic Potential Energy, final

• The elastic potential energy stored in a spring
  is zero whenever the spring is not deformed (U
  0 when x 0)
• The energy is stored in the spring only when the
  spring is stretched or compressed
• The elastic potential energy is a maximum when
  the spring has reached its maximum extension or
  compression
• The elastic potential energy is always positive
• x2 will always be positive

25
Conservation of Energy for isolated systems

• Including all the types of energy discussed so
  far, Conservation of Energy can be expressed as
• DK DU DEint DE system 0 or
• K U E int constant
• K would include all objects
• U would be all types of potential energy
• The internal energy is the energy stored in a
  system besides the kinetic and potential
  energies.

26
7.3 Conservative Forces

• A conservative force is a force between members
  of a system that causes no transformation of
  mechanical energy to internal energy within the
  system
• The work done by a conservative force on a
  particle moving between any two points is
  independent of the path taken by the particle
• The work done by a conservative force on a
  particle moving through any closed path is zero

27
Nonconservative Forces

• A nonconservative force does not satisfy the
  conditions of conservative forces
• Nonconservative forces acting in a system cause a
  change in the mechanical energy of the system

28
Nonconservative Force, Example

• Friction is an example of a nonconservative force
• The work done depends on the path
• The red path will take more work than the blue
  path

Fig 7.7
29
Mechanical Energy and Nonconservative Forces

• In general, if friction is acting in a system
• DEmech DK DU -kd
• DU is the change in all forms of potential energy
• If friction is zero, this equation becomes the
  same as Conservation of Mechanical Energy
