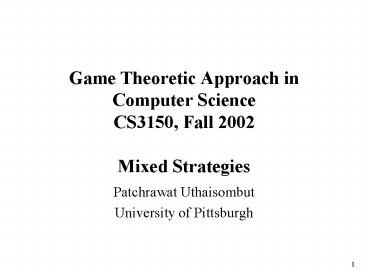

Title: Game Theoretic Approach in Computer Science CS3150, Fall 2002 Mixed Strategies
1Game Theoretic Approach in Computer
ScienceCS3150, Fall 2002Mixed Strategies
- Patchrawat Uthaisombut
- University of Pittsburgh
2Randomness in Payoff Functions
- 2002 US open Final match.
- Serena is about to return the ball.
- She can either hit the ball down the line (DL) or
crosscourt (CC) - Venus must prepare to cover one side or the other
3Mixes Strategies
- What is a mixed strategy?
- Suppose Ak is the set of pure strategies for
player k. - A mixed strategy for player k is a probability
distribution over Ak. - An actual move is chosen randomly according to
the probability distribution. - Example
- Ak stand, walk, run
- Stand 50, walk 25, run 25 is a mixed
strategy for k.
4Need for Mixed Strategies
- Multiple pure-strategy Nash equilibria
- No pure-strategy Nash equilibria
- Games where players prefer opposite outcomes
- Matching Pennies
- Chicken
- Sports
- Attack and Defense
- Each player does very badly if her action is
revealed to the other, because the other can
respond accordingly. - Want to keep the other guessing.
- Mixed strategy Nash equilibrium always exists.
5Expectation
- Suppose X is a random variable.
- Suppose X 5 with probability 0.5
- Suppose X 6 with probability 0.3
- Suppose X 0 with probability 0.2
- Then EX 50.5 60.3 00.2
- 2.5 1.8 0 4.3
- In general, if X vi with probability pi
- Then EX Sum vi pi
6Mixes Strategies in the Chicken Games
- Mixing 2 pure strategies
- Swerve with probability p and Straight with
probability (1-p) - A continuous range of mixed strategies.
- Shown as a function of p instead of one row for
each value of p.
7Mixes Strategies in the Chicken Games
8Payoff Curves and Best-Response Curves
9Finding Mixed Strategy Nash Equilibrium
- Compute Rows payoffs as a function of q.
- Find q that make Rows payoffs indifferent no
matter what pure strategy she chooses. - Plot Rows best-response curve.
- Do steps 1-3 for the Column player and p.
- Plot Rows and Columns best-response curves
together. - Points where the 2 curves meet are Nash
equilibria.
10Why it is an equilibrium?
- It is a Nash equilibrium because
- Apichai cant change his strategy to do better
and - Buncha cant change her strategy to do better
- Why cant Apichai do better?
- Buncha chooses a mix such that it doesnt matter
what Apichai does. - Why cant Buncha do better?
- Apichai chooses a mix such that it doesnt matter
what Buncha does.
11Exercise
- Find mixed strategy Nash equilibrium in the
following games. - Battle of the Two Cultures
- Tennis match
12Mixing when a player has 2 strategies
- Suppose Serena has a third option, to lob.
- Need 2 variables for Serena
- p1 probability of choosing DL
- p2 probability of choosing CC
- (1-p1-p2) probability of choosing Lob.
13Tennis game with 3 Pure Strategies
14Reduction to 2-Pure-Strategy Game
- Serena will never use CC.
- Back to a game in which each player has only 2
pure strategies.
15Coincidental Case
- 3 lines meet at a single point
16Coincidental Case
- Too few equalities to solve all variables.
- Serenas p-mix is indeterminate
- Serena has some flexibility to choose her mix and
still get the best payoff.
