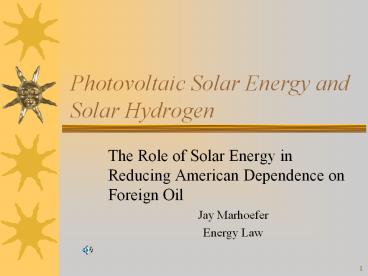

Photovoltaic Solar Energy and Solar Hydrogen

1
Photovoltaic Solar Energy and Solar Hydrogen

• The Role of Solar Energy in Reducing American
  Dependence on Foreign Oil
• Jay Marhoefer
• Energy Law

2
The Role of Solar Energy

• Renewable source of H2 production.
• Renewable source of electricity.
• Easily integrated with grid and renewables.
• Scalable.
• Residential/community distributed generation.
• DGREPs (distributed generation real estate
  partnerships).
• National/international infrastructure projects.

3
Problems Addressed

• Chicken/egg enigma in building a national
  hydrogen infrastructure.
• Requirement of fossil fuels for hydrogen.
• Requirement of more coal, gas-fired and possibly
  nuclear power plants.
• Peak electricity consumption, both daytime and
  summer.
• Increased vehicle miles of summer.

4
Conclusions

• Solar is already becoming cost-competitive in
  some states (including Illinois).
• Hydrogen solves the non-dispatchability problem
  of solar.
• Hydrogen also cures the peak/baseload issue of
  solar.
• Solar is one way to ensure that Mexico will
  continue to have oil for export to the U.S.

5
The Power of the Sun

• Each day, the sun provides more than 15,000x the
  entire annual energy needs of the world.
• A site of solar panels 20 miles x 20 miles in
  Nevada could provide enough electricity to meet
  the entire U.S. demand.

6
The Suns Energy Banks

• Second law of thermodynamics requires more energy
  to produce less energy.
• But suns energy can be banked over time.
• Biomass lt1 year (corn/ethanol).
• Petroleum gt100 million years (resulting in
  highly concentrated energy stores).

7
A Brief History of Solar Energy

• 1839 Edmond Becquerel (19 years old) discovers
  PV effect.
• 1923 Albert Einstein receives Nobel Prize for
  theories explaining the photoelectric effect.
• 1954 Bell Laboratories scientists develop first
  PV cells for space applications.
• 1973 PV introduced to replace fossil fuels
  during the oil crisis.
• 1995 US PV industry grosses more than 350M.
• 1996 Amorphous silicon PV panels on market at
  3 per Wp.

8
How Solar Cells Work

• Two types of siliconnegative n type (A) and
  positive p type (B)form an electric field.
• Each photon hitting the cell will free exactly
  one electron, e-, which flows toward the load.
• This results in an electric current.

9
Types of Solar Technologies

• Crystalline Silicon
• Leading commercial material for PV.
• Requires most semiconductor material.
• Most expensive and efficient (15).
• Thin film
• Semiconductor material only a few microns thick
  much less required.
• Least expensive and efficient (8).
• Films can degrade over time (amorphous).

10
PV Costs--2003

• Modules
• 3-5 per peak watt
• Systems
• Installation, inverters, batteries
• Another 3-5 per watt

11
Example

• Sharp 185W NT-S5E1U
• Crystalline silicon
• 185 watts per module
• Each module 3 x 5
• 736 per module
• 4 per watt

12
Example (contd)

• Marhoefer manor
• 3000 kWh in August 2002
• 5.5 kW peak PV capacity desired
• 30 panels (450 square feet)
• Configurable on southern exposure only
• 15 x 30
• Panel cost 22,000
• Installed system cost 45,000

13
Misconceptions About PV

• Myth Solar works well only in hot climates.
• Reality Light, not heat, drives PV too much
  heat degrades performance (explains Arizona)
• Myth Solar panels are extremely expensive.
• Reality The prohibitive cost of PV is not the
  panels, it is the labor and other required
  components (e.g., inverters, batteries).

14
Where Does the Sun Shine?
15
Where Does the Sun Shine?
16
Who Are the Players?

• In 2000, oil companies owned one-third of PV
  manufacturing capacity
• BP Solar
• Siemens Solar (owned by Royal Dutch Shell)

17
Who Are the Players?

• Between 1995 and 2000
• Eightfold increase in Japanese production
• Tripling of EU production
• Doubling of US production

18
Production Cost Trends
19
A Cost Comparison

• The expectation is that sometime between 2010 and
  2015, the per kWh cost of PV will be equivalent
  to coal.

20
How Much Does Solar Cost?

• Assumptions
• Unsubsidized
• 6 hours per day dispatchable
• 20-year system life
• 5 percent annual cost of capital
• Doubling domestic manufacturing scale

21
A Real Cost Comparison

• Within 5 years, unsubsidized solar costs will be
  less than summer peak rates for residential
  consumers

22
The Clean Power Calculator

• Free example at
• http//kyocerasolar.clean-power.com/kyocerasolar/
  default.asp
• The fully customizable version can be found at
• http//www.clean-power.com/cpe/setup/

23
Million Solar Roofs Initiative

• Announced June 1997
• Goal is to install solar energy systems on one
  million U.S. buildings by 2010
• DOE focuses efforts on national, state and local
  partnerships.
• Utilities
• Building industry
• Government agencies

24
The Solar Decathalon

• Fourteen universities built solar homes on
  National Mall in Washington, D.C. in Fall 2002
• Goal was to prove self-sufficiency.

Winning home by University of Colorado, Boulder
25
The Solar/Hydrogen Solution

• Non-dispatchable solar power can be stored in
  hydrogen through electrolysis.
• Then, hydrogen can be run through fuel cell for
  baseload power.
• Efficiencies
• Solar PV 15-20
• Electrolyzer 90
• Fuel cell 45 (excluding thermal)

26
The IIT Solar/Hydrogen Project
27
The IIT Solar/Hydrogen Project
28
Why Does This Matter to Oil Imports?

• Hydrogen is far more expensive to produce than
  gasoline there are no hydrogen mines.
• Producing H2 requires a free source of energy
  (exclusive of capital costs) to be viable.
• Solar and wind are the only two renewables that
  have this potential.

29
Energy Life Cycle Facts

• Most vehicle miles are driven in summer solar is
  most productive in summer.
• Most vehicle miles come from residential/consumer
  use solar is much better suited for residential.
• Most peak electricity use occurs in daytime
  solar is productive only during daylight hours.

30
Other Renewables

• Wind tends to blow more at night and during
  winter months.
• Provides the perfect complement to solar.
• Solar and wind together can provide adequate
  coverage when either by itself might be
  inadequate.
• Example is Chicago, which has low average wind
  velocity but higher speeds at night and in
  winter.
• Only issue is cost.

31
Seasons of the Wind
Winter
Spring
Summer
Fall
32
A New Dispatchability Paradigm

• Hydrogen is used as common denominator between
  grid electricity, NG, renewables.
• Solar/wind/fuel cell provides baseload grid
  provides peak.
• Hydrogen produced by either electrolysis or
  natural gas reformation.
• H2 production allows home fueling.
• System saves consumer money even before the
  hydrogen cars arrive.

33
Residential Optimization
34
Community Optimization

• Networked version of residential
• Single refueling station for a community
• Mid-rise public housing
• New housing developments
• 250kW fuel cell generator
• Use of smart cards to bank energy
  inputs/outputs
• Issue QF for grid or independent transmission?

35
Large-scale Corporate Distributed Generation

• Alternative to pure IPPs.
• Large companies develop renewable-based QFs to
  produce hydrogen.
• QF is remote to companys site.
• Company may be active or passive in hydrogen
  refueling site.
• Smart card/debit card/branded credit card
  transactions.
• Insource or outsource the hydrogen fuel
  business.

36
National Infrastructure Projects

• National (or Mexican) site incorporating recycled
  solar panels.
• Nevada 80 federal land, prime PV site.
• Mexico Panels for barrels program.
• Mexico expected to be net importer of oil by 2020
  unless major changes occur.
• Prime PV site.
• Use of recycled panels a possiblity.

37
How This Could Play Out

• Critical mass of residential refueling stations
  developed in clusters.
• 2-3 million.
• SFHs, new developments and public housing.
• Provides benefits even without H2 cars.
• Automakers get interested.
• Commuter car market.
• Oil companies get interested.
• Clusters need to be networked who better?
• Feeding frenzy develops.

38
What Would It Cost?

• Residential (2003)
• Solar panels 30,000
• Micro wind turbines 15,000
• Inverter 10,000
• Electrolyzer 15,000
• Reformer 15,000
• Fuel cell 25,000
• Optimizer 5,000
• Total 115,000
• Value of independence Priceless

39
Current Law 100K Tax Deduction

• However,
• 26 U.S.C. 179A (2)(A) provides a 100,000 tax
  deduction for constructing a clean energy
  refueling station.
• Only components covered by the law are for
  holding and dispensing clean fuel.
• Same law that provides 2,000 credit for buying a
  LEV.
• Entire deduction must be taken in one year.
• Property must be depreciable.

40
Current Laws and Incentives
41
Current Laws and Incentives

• Illinois
• Chicago Million Solar Roofs Partnership
  (Illinois)
• City of Chicago - Green Power Purchasing
  (Illinois)
• Fuel Mix and Emissions Disclosure (Illinois)
• Illinois Clean Energy Community Foundation Grants
  (Illinois)
• Photovoltaic Incentive Program (PIP) (Illinois)
• Renewable Energy Resources Program Rebates
  (Illinois)
• Renewables Portfolio Goal (Illinois)
• Special Assessment for Renewable Energy Systems
  (Illinois)
• State of Illinois - Green Power Purchasing
  (Illinois)

42
Current Laws and Incentives

• Federal
• Energy Efficient Mortgage (Federal)
• Energy Star Financing and Mortgages (Federal)
• Job Creation and Worker Assistance Act of 2002 -
  Special Depreciation (Federal)
• Renewable Energy Production Incentive (REPI)
  (Federal)
• Renewable Energy Systems and Energy Efficiency
  Improvements Program (Federal)
• Solar and Geothermal Business Energy Tax Credit
  (Federal)
• Solar, Wind, and Geothermal Modified Accelerated
  Cost Recovery System (MACRS) (Federal)

43
